Deploy the docker image manually using Console on ECS

Welcome! In this hands-on lesson you’ll deploy an existing Docker image to an AWS ECS cluster running on Fargate. We’ll create and register a task definition, then run it as a Fargate service (optionally behind an Application Load Balancer). Finally, you’ll test the app through the ALB or service endpoint.

​

Prerequisites

• An ECS cluster already created and set to run Fargate tasks.
• Your Docker image pushed to Amazon ECR.
• A VPC and subnets configured for Fargate (and ALB if you plan to expose HTTP traffic).
• IAM permissions to create task definitions, roles, and services.

​

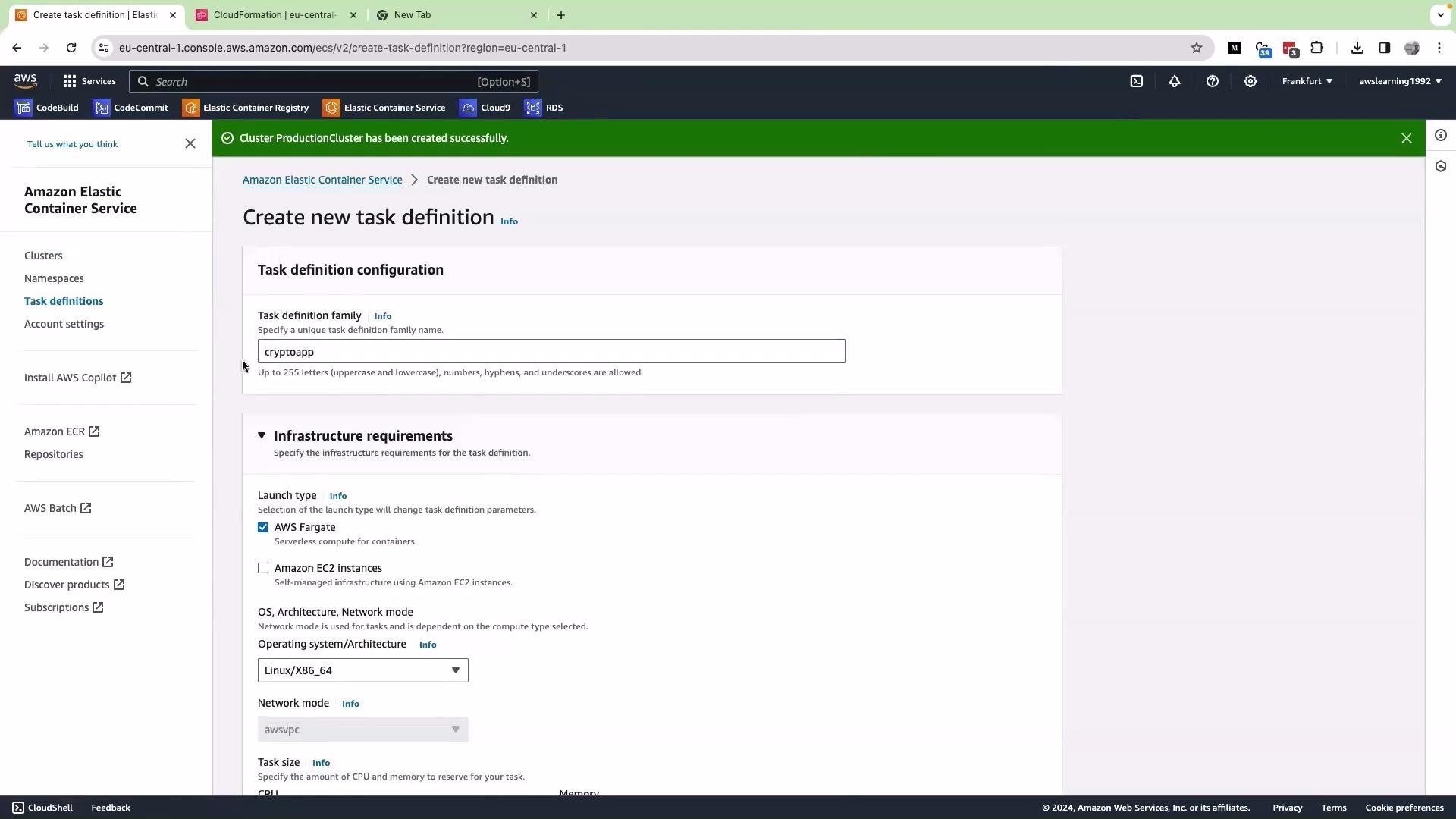

Step 1 — Create a new Task Definition

1. Open the ECS console and select Task Definitions.
2. Click Create new task definition and give it a name (for example, Crypto App).
3. For Launch type / infrastructure choose AWS Fargate.

Leave OS / architecture at the default values unless you have specific requirements. Choose CPU and memory sizing according to your app’s resource needs.

​

Task role vs Task execution role

• Task role: assumed by the application container when it calls AWS APIs directly (for example, to access S3 or DynamoDB).
• Task execution role: used by the ECS agent to pull images from ECR and send logs to CloudWatch.

​

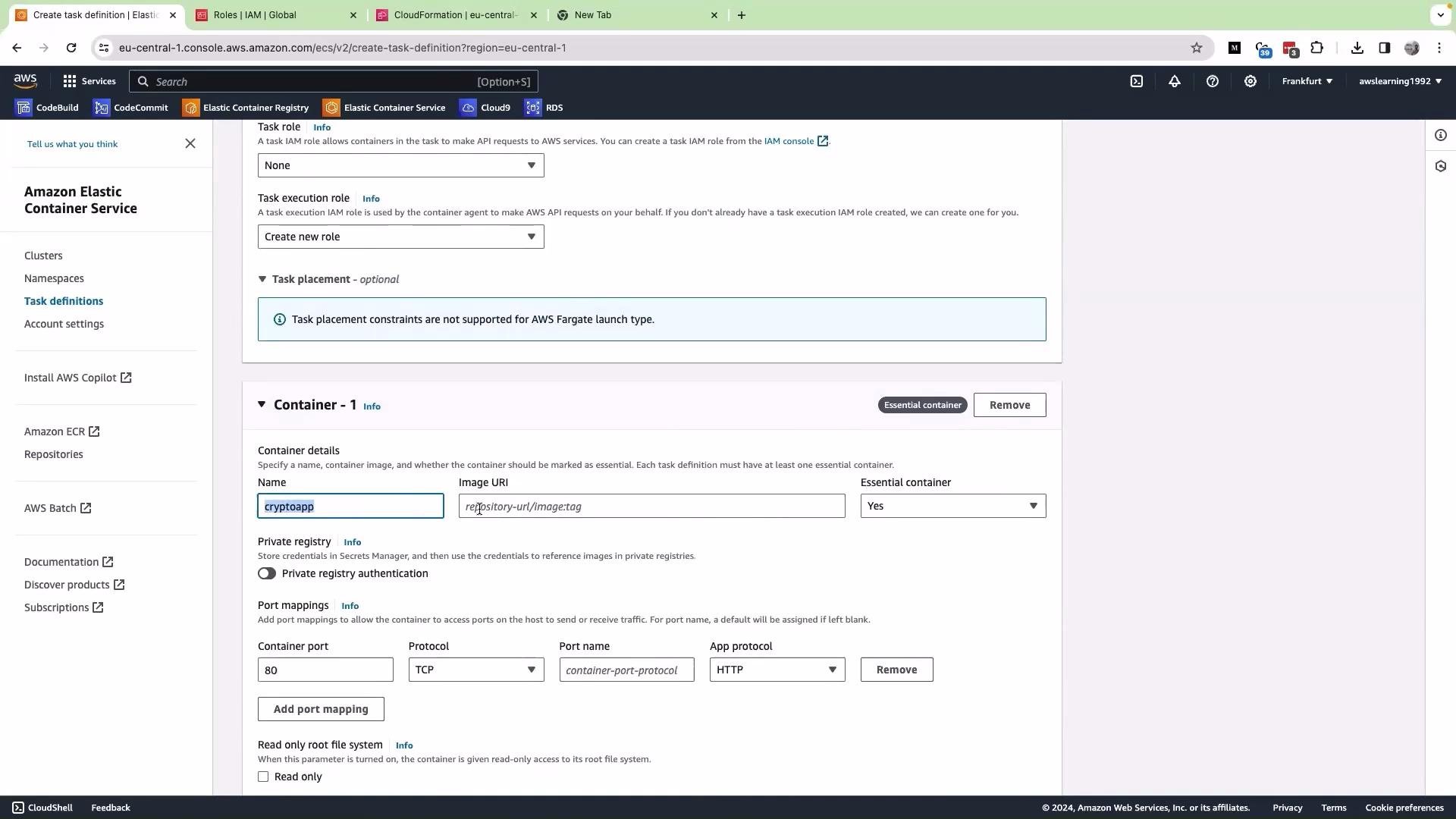

Step 2 — Add a Container Definition

Scroll down and add a container definition:

• Name the container (e.g., crypto-app).
• Provide the container image URI from ECR.

To obtain the image URI:

1. Open your ECR repository.
2. Locate the desired image tag and copy the image URI.
   Example: 123456789012.dkr.ecr.<region>.amazonaws.com/<repository-name>:<tag>

Paste that URI into the container image field in the task definition.

​

Step 3 — Configure Ports and Health Checks

• Set the container port to the port your application listens on (e.g., a Flask app commonly uses 5000).
• If exposing via an Application Load Balancer (ALB) on port 80, configure the ALB target group to use the container port (for example, 5000) and forward traffic from port 80 to the target group.
• Configure container health checks or ALB health checks to point at the correct path and port (for example, /health on port 5000).

Note: ECS/Fargate does not require port 80 internally—only the ALB listener typically uses 80/443. Ensure your security groups allow the ALB to reach the container port. Leave resource limits and any advanced settings according to your workload, then create the task definition.

​

Step 4 — Register and Run the Task / Create a Service

After creating the task definition:

• Register it (the console does this as part of creation).
• Create a new Fargate service in your cluster using that task definition.

If you want external HTTP access:

• Create or select an ALB.
• Create a target group with the container port (e.g., 5000).
• Attach the Fargate service to that target group.
• Configure the ALB listener to forward from port 80 (or 443) to the target group.

Once the service is created and tasks are running, open the ALB DNS name or the service URL in your browser to test the application.

​

Example: Testing the deployed app

In this lesson we performed a simple functional test:

• Opened the app, filled the order form (name, address, quantity), and clicked Submit Order.
• Returned to the product page and verified the expected app flow and responses.

This confirmed the container was running correctly on ECS Fargate and integrated with the ALB and backend services.

​

Architecture summary

​

Troubleshooting checklist

• Confirm the task execution role has ECR pull and CloudWatch permissions.
• Verify security groups allow ALB-to-task traffic on the container port.
• Check target group health checks and ECS container health checks for correct path and port.
• Review CloudWatch logs for container startup errors.
• Ensure the image URI and tag match what’s present in ECR.

​

Further reading and references

• Amazon ECS Documentation
• Amazon ECR Documentation
• Application Load Balancer Overview

That completes this lesson. See you in the next one!
