In this lesson you’ll run the Solar System Node.js application on your local machine or VM, inspect its structure, execute tests, collect coverage, and observe runtime behavior. Later lessons will show how to automate these same steps using Jenkins CI/CD. This repository contains:
  • A small HTML frontend
  • Server startup code (app.js)
  • Controller logic and Mongoose model (app.controller.js)
  • Frontend client script (client.js)
  • Unit tests (app-test.js)
  • Dockerfile for containerization
  • OpenAPI 3.0 spec for the API

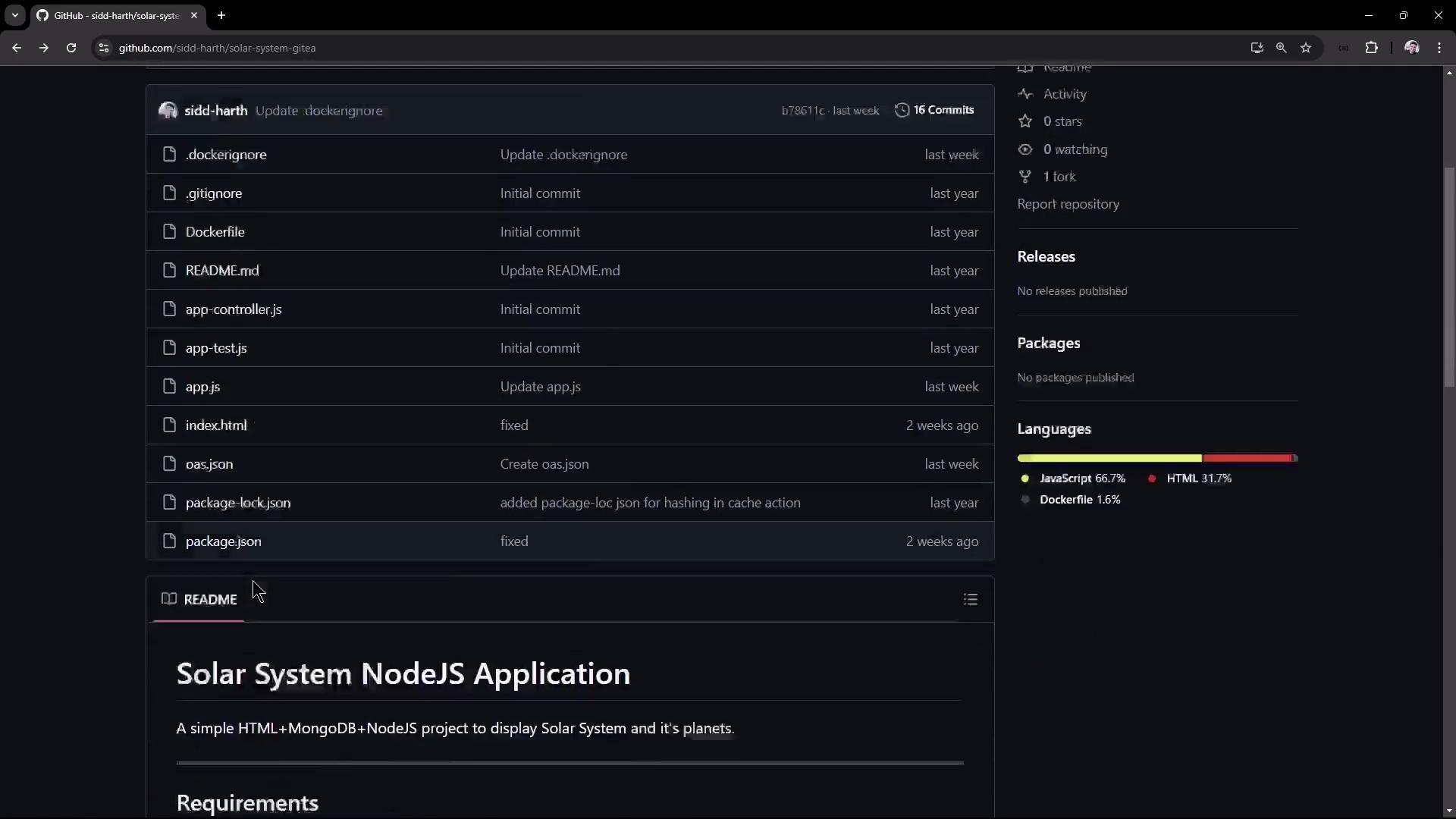

A dark-mode screenshot of a GitHub repository page showing a file list (README.md, app.js, index.html, package.json, etc.). The README titled "Solar System NodeJS Application" is visible, with a language breakdown (JavaScript, HTML, Dockerfile) in the sidebar.

​
Prerequisites (quick checks)

Ensure Node.js and npm are installed and available on your PATH:
$ node --version
v8.11.3

$ npm --version
6.1.0
Common npm commands used in this project:
CommandPurpose
npm installInstall dependencies and create node_modules
npm testRun Mocha tests (mocha-junit-reporter produces JUnit XML)
npm run coverageRun nyc to collect coverage reports
npm startStart the Express server (app.js)
Clone the repository:
$ git clone https://github.com/sidd-harth/solar-system-gitea.git
$ cd solar-system-gitea
Useful references:

​
package.json — scripts & coverage policy

The project defines start, test, and coverage scripts. NYC enforces a minimum of 90% line coverage via package.json:
{
  "name": "Solar System",
  "version": "6.7.6",
  "author": "Siddharth Barahalikar <barahalikar.siddharth@gmail.com>",
  "homepage": "https://www.linkedin.com/in/barahalikar-siddharth/",
  "license": "MIT",
  "scripts": {
    "start": "node app.js",
    "test": "mocha app-test.js --timeout 10000 --reporter mocha-junit-reporter --exit",
    "coverage": "nyc --reporter cobertura --reporter lcov --reporter text --reporter json-summary mocha app-test.js"
  },
  "nyc": {
    "check-coverage": true,
    "lines": 90
  },
  "dependencies": {
    "cors": "^2.8.5",
    "express": "^4.18.2",
    "mocha-junit-reporter": "^2.2.1",
    "mongoose": "5.13.20",
    "nyc": "^15.1.0",
    "serverless-http": "^3.2.0"
  },
  "devDependencies": {
    "chai": "*",
    "chai-http": "*",
    "mocha": "*"
  }
}

​
app.js — server startup and MongoDB connection

app.js boots Express and connects to MongoDB using Mongoose. At runtime the app expects these environment variables:
  • MONGO_URI
  • MONGO_USERNAME
  • MONGO_PASSWORD
Below is a corrected minimal excerpt showing required imports and proper mongoose.connect usage:
const express = require("express");
const path = require("path");
const OS = require("os");
const bodyParser = require("body-parser");
const mongoose = require("mongoose");
const cors = require("cors");
const serverless = require("serverless-http");

const app = express();

app.use(bodyParser.json());
app.use(express.static(path.join(__dirname, "/")));
app.use(cors());

mongoose.connect(
  process.env.MONGO_URI,
  {
    user: process.env.MONGO_USERNAME,
    pass: process.env.MONGO_PASSWORD,
    useNewUrlParser: true,
    useUnifiedTopology: true,
  },
  function (err) {
    if (err) {
      console.log("MongoDB connection error: " + err);
    } else {
      // Connection successful
    }
  },
);

// ... other app routes and server startup ...
Ensure MONGO_URI, MONGO_USERNAME, and MONGO_PASSWORD are provided in your environment before running tests or starting the server. Without a valid MONGO_URI, mongoose.connect will fail with “The uri parameter to openUri() must be a string, got ‘undefined‘“.

​
app.controller.js — data model and API endpoints

The application uses a Mongoose Schema for planets and exposes several endpoints. Example model and routes (simplified):
var Schema = mongoose.Schema;

var dataSchema = new Schema({
  name: String,
  id: Number,
  description: String,
  image: String,
  velocity: String,
  distance: String,
});

var planetModel = mongoose.model("planets", dataSchema);

// Example endpoints (simplified)
app.post("/planet", function (req, res) {
  // Fetch planet by id or name from MongoDB
});

app.get("/", async (req, res) => {
  // Serve index page or data
});

app.get("/os", function (req, res) {
  res.json({ os: OS.hostname() }); // returns host/pod name
});

app.get("/live", function (req, res) {
  res.json({ status: "live" });
});

app.get("/ready", function (req, res) {
  res.json({ status: "ready" });
});

​
client.js — frontend behavior and fetch handling

The client script fetches /os on window load and writes the host/pod name into the page. The snippet below demonstrates robust fetch handling and wiring the click handler:
console.log("We are inside client.js");

/* on page Load */
window.onload = function () {
  const planet_id = document.getElementById("planetID")
    ? document.getElementById("planetID").value
    : "";
  console.log("onLoad - Request Planet ID - " + planet_id);

  fetch("/os", {
    method: "GET",
  })
    .then(function (res) {
      if (res.ok) {
        return res.json();
      }
      throw new Error("Request failed");
    })
    .then(function (data) {
      document.getElementById("hostname").innerHTML = `Pod - ${data.os}`;
      // document.getElementById('environment').innerHTML = `Env - ${data.env}`;
    })
    .catch(function (error) {
      console.log(error);
    });
};

const btn = document.getElementById("submit");
if (btn) {
  btn.addEventListener("click", function () {
    // submit handler
  });
}

​
app-test.js — Mocha + Chai (integration style)

Tests use chai-http to exercise endpoints. The test suite shows how the API is validated and how mocha-junit-reporter produces JUnit XML for CI:
let mongoose = require("mongoose");
let server = require("./app");
let chai = require("chai");
let chaiHttp = require("chai-http");

// Assertion
chai.should();
chai.use(chaiHttp);

describe("Planets API Suite", () => {
  describe("Fetching Planet Details", () => {
    it("it should fetch a planet named Mercury", (done) => {
      let payload = { id: 1 };
      chai
        .request(server)
        .post("/planet")
        .send(payload)
        .end((err, res) => {
          res.should.have.status(200);
          res.body.should.have.property("id").eql(1);
          res.body.should.have.property("name").eql("Mercury");
          done();
        });
    });
  });

  it("it should fetch a planet named Venus", (done) => {
    // additional test
    done();
  });
});

​
Dockerfile — containerize the app

A sample Dockerfile used for building images:
FROM node:18-alpine3.17

WORKDIR /usr/app

COPY package*.json /usr/app/

RUN npm install

COPY . .

ENV MONGO_URI=uriPlaceholder
ENV MONGO_USERNAME=usernamePlaceholder
ENV MONGO_PASSWORD=passwordPlaceholder

EXPOSE 3000

CMD [ "npm", "start" ]

​
OpenAPI snippet

The repo includes an OpenAPI 3.0 specification for the API (partial):
{
  "openapi": "3.0.0",
  "info": {
    "title": "Solar System API",
    "version": "1.0"
  },
  "paths": {
    "/": {
      "get": {
        "responses": {
          "200": {
            "description": "",
            "content": {
              "text/plain": {
                "schema": {
                  "example": "Example",
                  "type": "string"
                }
              }
            }
          }
        }
      }
    },
    "/live": {
      "get": {
        "responses": {
          "200": {
            "description": ""
          }
        }
      }
    }
  }
}

​
Install dependencies

Install modules locally:
$ npm install
added 365 packages, and audited 366 packages in 3s

44 packages are looking for funding
  run `npm fund` for details

8 vulnerabilities (2 moderate, 5 high, 1 critical)

To address all issues, run:
  npm audit fix

Run `npm audit` for details.

​
Running tests — common failure mode and mitigation

If you run npm test without MONGO_URI set, app.js will try to connect to MongoDB and Mongoose will throw an error during startup:
$ npm test

> Solar System@6.7.6 test
> mocha app-test.js --timeout 10000 --reporter mocha-junit-reporter --exit

MongooseError: The `uri` parameter to `openUri()` must be a string, got "undefined". Make sure the first parameter to `mongoose.connect()` or `mongoose.createConnection()` is a string.
    at Connection.openUri (...node_modules/mongoose/lib/connection.js:694:11)
    ...
To run tests locally you can:
  • Provide real environment variables (MONGO_URI, MONGO_USERNAME, MONGO_PASSWORD), or
  • Mock the database connection in tests (recommended for CI), or
  • Use a local MongoDB instance, or
  • Temporarily hardcode a connection string (not recommended—see warning below).
Never commit real credentials. If you must hardcode a connection string for local debugging, ensure it is removed before committing and never store production secrets in source control.
Example of a hardcoded connection (for demo only — do not commit):
mongoose.connect(
  "mongodb+srv://superuser:SuperPassword@supercluster.d83jj.mongodb.net/superData",
  {
    useNewUrlParser: true,
    useUnifiedTopology: true,
  },
  function (err) {
    if (err) {
      console.log("MongoDB connection error: " + err);
    }
  },
);

​
Successful test run and JUnit report

When the DB connection is satisfied (or tests are mocked), mocha exits with code 0 and produces a JUnit XML via mocha-junit-reporter, which CI systems can consume:
$ npm test
# ... mocha runs tests ...
$ echo $?
0

​
Code coverage with NYC

Running coverage uses nyc and enforces the threshold defined in package.json. If coverage is below the threshold, the command exits non-zero—useful to fail or gate CI pipelines:
$ npm run coverage
# runs tests + nyc, then outputs a summary
-------------------------------|---------|----------|---------|---------|-------------------
File                           | % Stmts | % Branch | % Funcs | % Lines | Uncovered Line #s
-------------------------------|---------|----------|---------|---------|-------------------
All files                      |   79.54 |    33.33 |      70 |   79.06 |
app.js                         |   79.54 |    33.33 |      70 |   79.06 | 23,49-50,58,62-67
-------------------------------|---------|----------|---------|---------|-------------------
$ echo $?
1
This intentional failure is often used in CI to demonstrate how to stop or continue pipeline execution on coverage failures; Jenkins automation will show patterns for handling such failures.

​
Start the application locally

Start the server:
$ npm start

> Solar System@6.7.6 start
> node app.js

Server successfully running on port - 3000
(node:83049) [DEP0170] DeprecationWarning: The URL mongodb://... is invalid. Future versions of Node.js will throw an error.
(Use `node --trace-deprecation ...` to show where the warning was created)
The app listens on port 3000 by default. Access it locally via http://localhost:3000 or on your VM using its IP and port 3000.

​
Web UI screenshot

Open the UI to search planets and inspect the host/pod name displayed:
A stylized web page titled "SOLAR SYSTEM" with a purple header, a search box, and descriptive text on the left. On the right is a cartoon illustration of the Sun and several orbiting planets against a starry black background.

​
API endpoints (summary)

EndpointMethodPurposeSample Response
/osGETReturn hostname/pod name{"os":"jenkins-controller-1"}
/liveGETLiveness probe{"status":"live"}
/readyGETReadiness probe{"status":"ready"}
/planetPOSTQuery planet by id/name (DB){ "id":1, "name":"Mercury", ... }
/GETServe index page or plaintext"Example"
Example JSON responses:
  • GET /os
{
  "os": "jenkins-controller-1"
}
  • GET /live
{
  "status": "live"
}
  • GET /ready
{
  "status": "ready"
}

​
Wrap-up

You have now:
  • Examined the repository structure and key files (app.js, app.controller.js, client.js, tests, Dockerfile, OpenAPI)
  • Installed dependencies and run tests locally
  • Learned common failure modes (missing MONGO_URI) and mitigations
  • Collected code coverage using nyc
  • Started the app and verified the UI and basic endpoints
Next steps: automate these commands in a Jenkins pipeline to run installs, tests, coverage checks, and builds so you can validate the application automatically as part of CI/CD.
