Welcome back. This lesson covers secure service-to-service communication in cloud-native platforms — a core topic for platform engineering and cloud-native security certifications. You’ll learn why service meshes are used, how mutual TLS (mTLS) enables zero‑trust architectures, where eBPF fits in, and what trade-offs to expect between security and performance. Key benefits of a service mesh:
  • Scales to hundreds of microservices with consistent security and traffic controls.
  • Enables zero‑trust service identities and explicit allow policies.
  • Encrypts data in transit and provides service-to-service identity verification, including across clusters.
  • Implements policy-as-code for service communication, reducing brittle network-level controls.

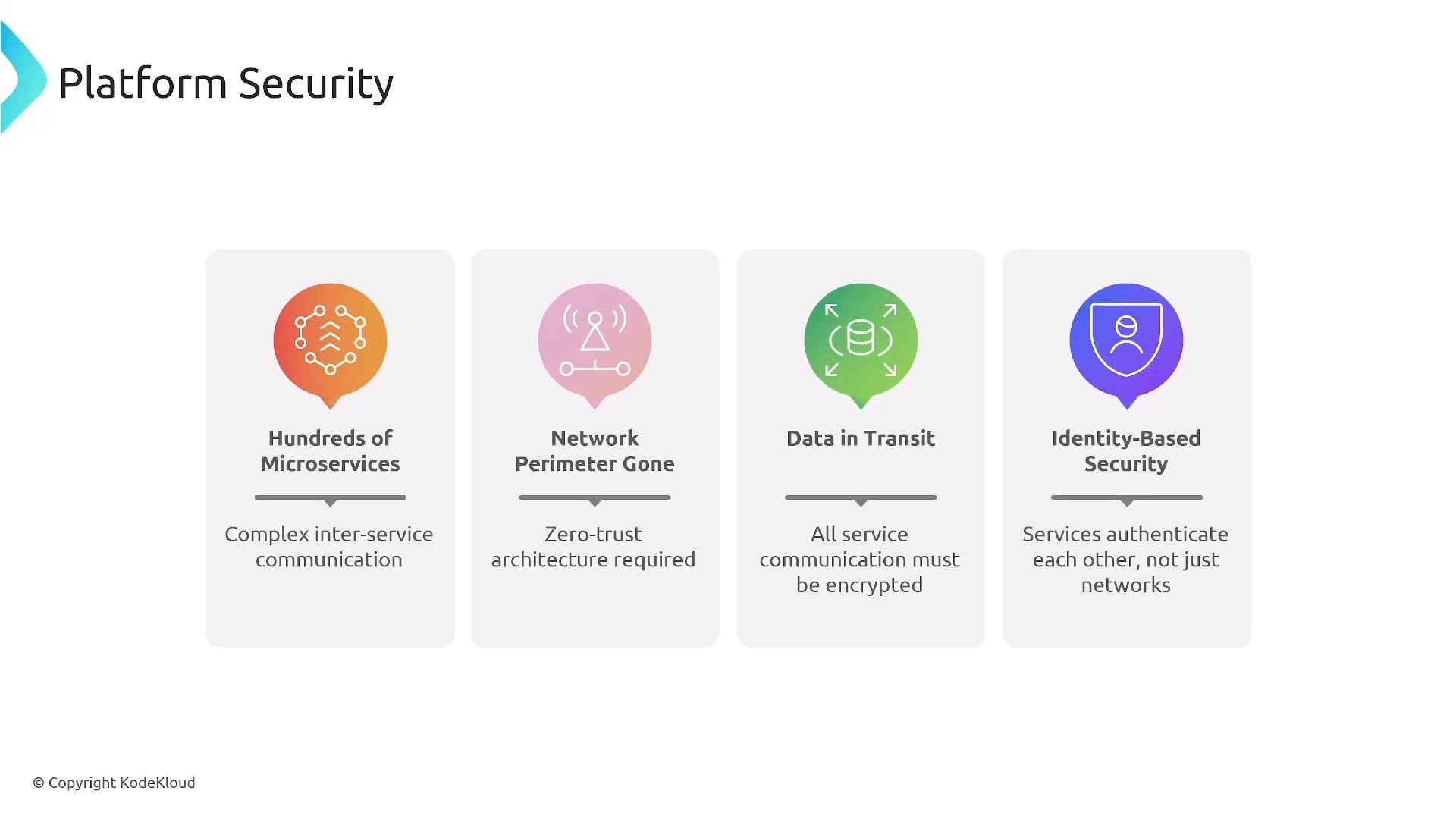

A slide titled "Platform Security" showing four illustrated panels about security concerns. Each panel highlights: Hundreds of Microservices, Network Perimeter Gone, Data in Transit, and Identity-Based Security with brief captions about inter-service communication, zero-trust, encryption, and service authentication.

​
From perimeter security to service identity

Modern cloud-native platforms move away from perimeter/IP-based controls toward cryptographic service identities, automatic encryption-in-transit, and centralized policy enforcement. In this zero‑trust model, every service interaction must be explicitly authenticated and authorized.

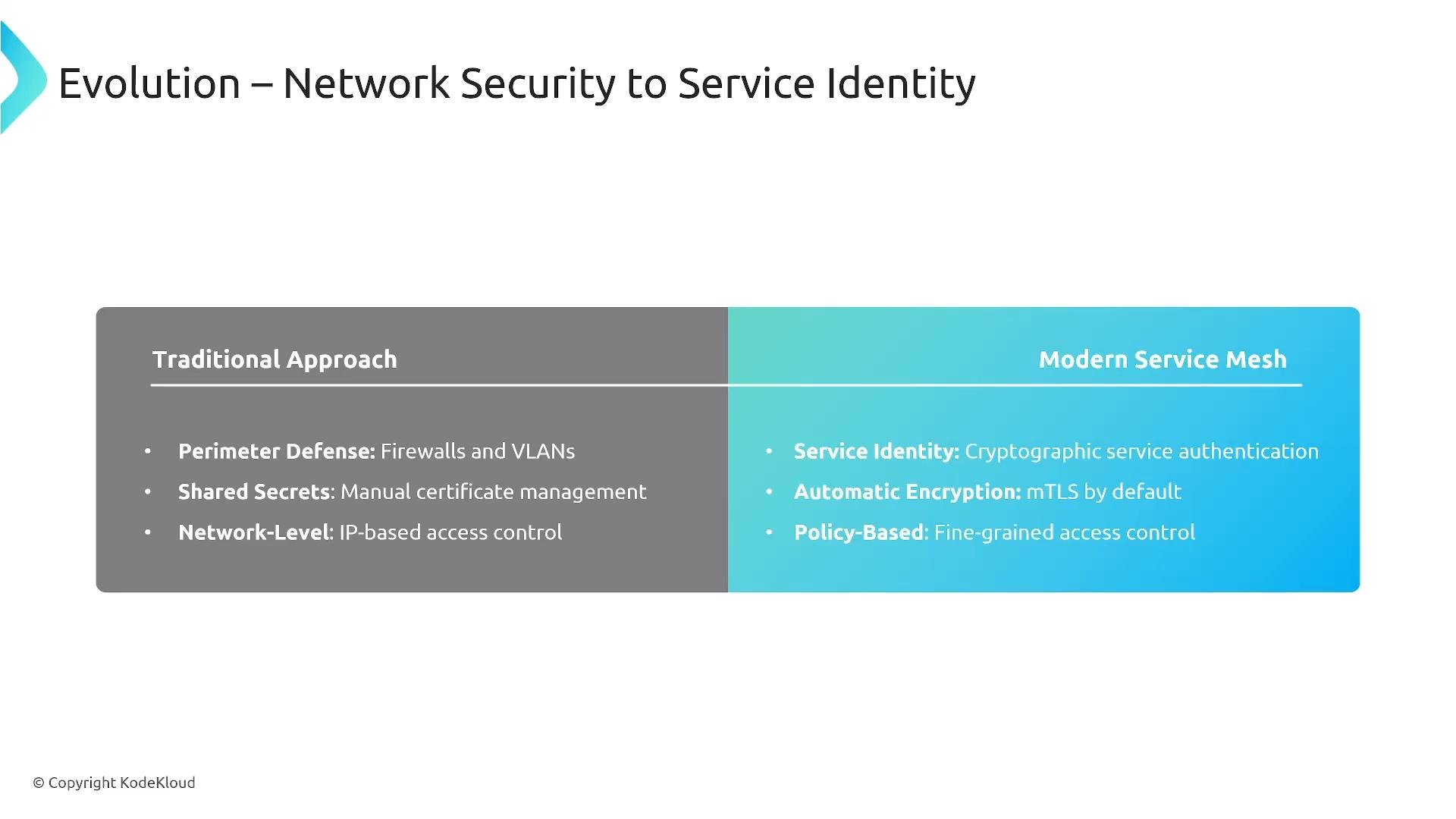

A slide titled "Evolution – Network Security to Service Identity" comparing a Traditional Approach (perimeter defense, shared secrets, IP-based access control) with a Modern Service Mesh (service identity, automatic mTLS encryption, policy-based access control). It shows a side-by-side contrast of legacy network security versus cryptographic service identities and fine-grained policies.
Platform teams and developers both benefit from this separation of concerns:
  • Platform engineers can provide centralized networking, identity, and security guarantees.
  • Developers focus on business logic without embedding certificate handling into app code.
  • The infrastructure transparently handles mTLS, certificate rotation, and policy enforcement.

​
What is a service mesh?

A service mesh is an infrastructure layer that provides secure, observable, and controllable service-to-service communication. It is commonly implemented using sidecar proxies injected into application pods, or via ambient/injectionless modes. Typical mesh components:
  • Data plane: sidecar proxies that handle traffic, encryption, and enforcement.
  • Control plane: manages configuration, issues certificates, and collects telemetry.
  • Applications: run unmodified and rely on the mesh for communication features.

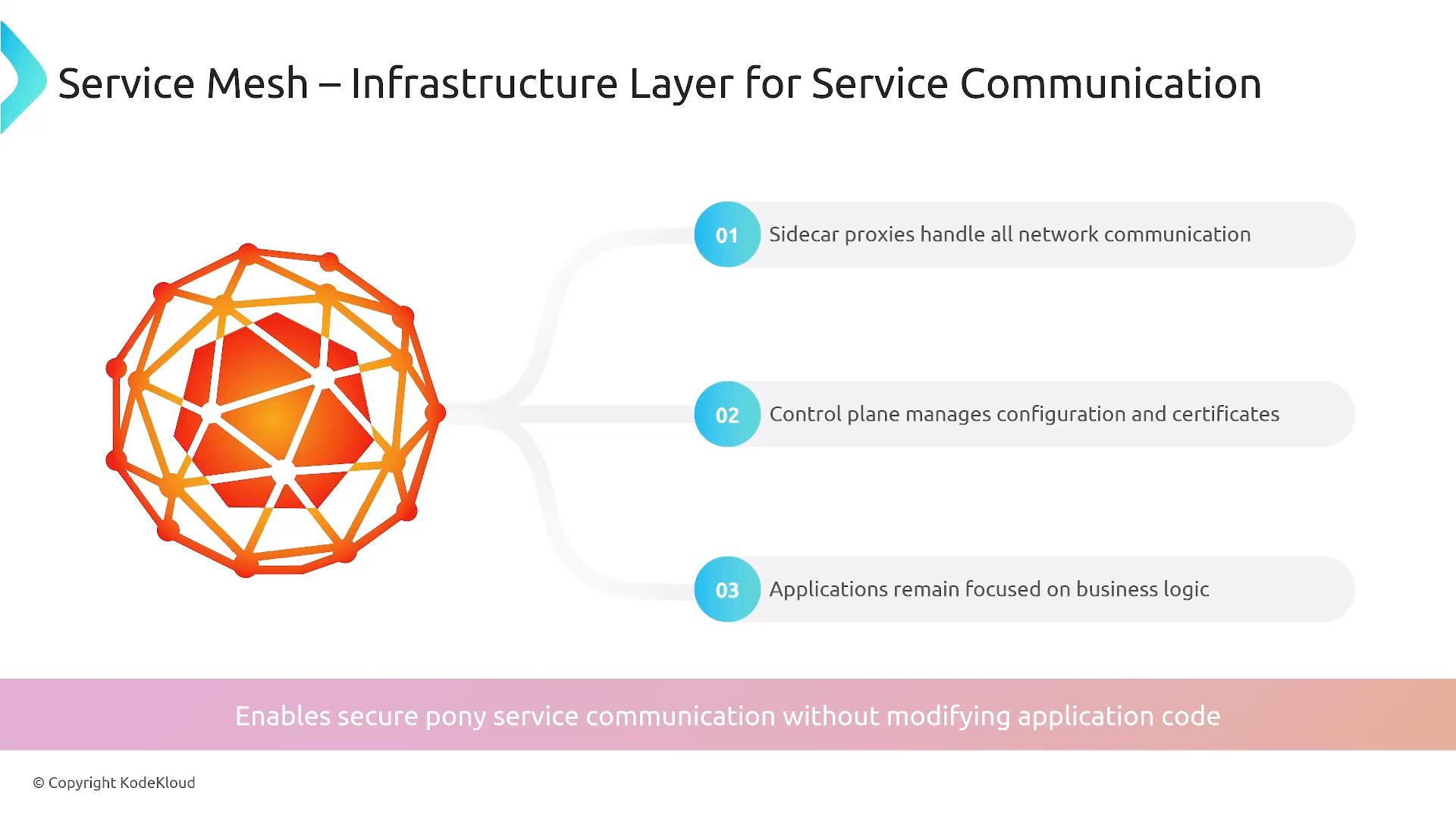

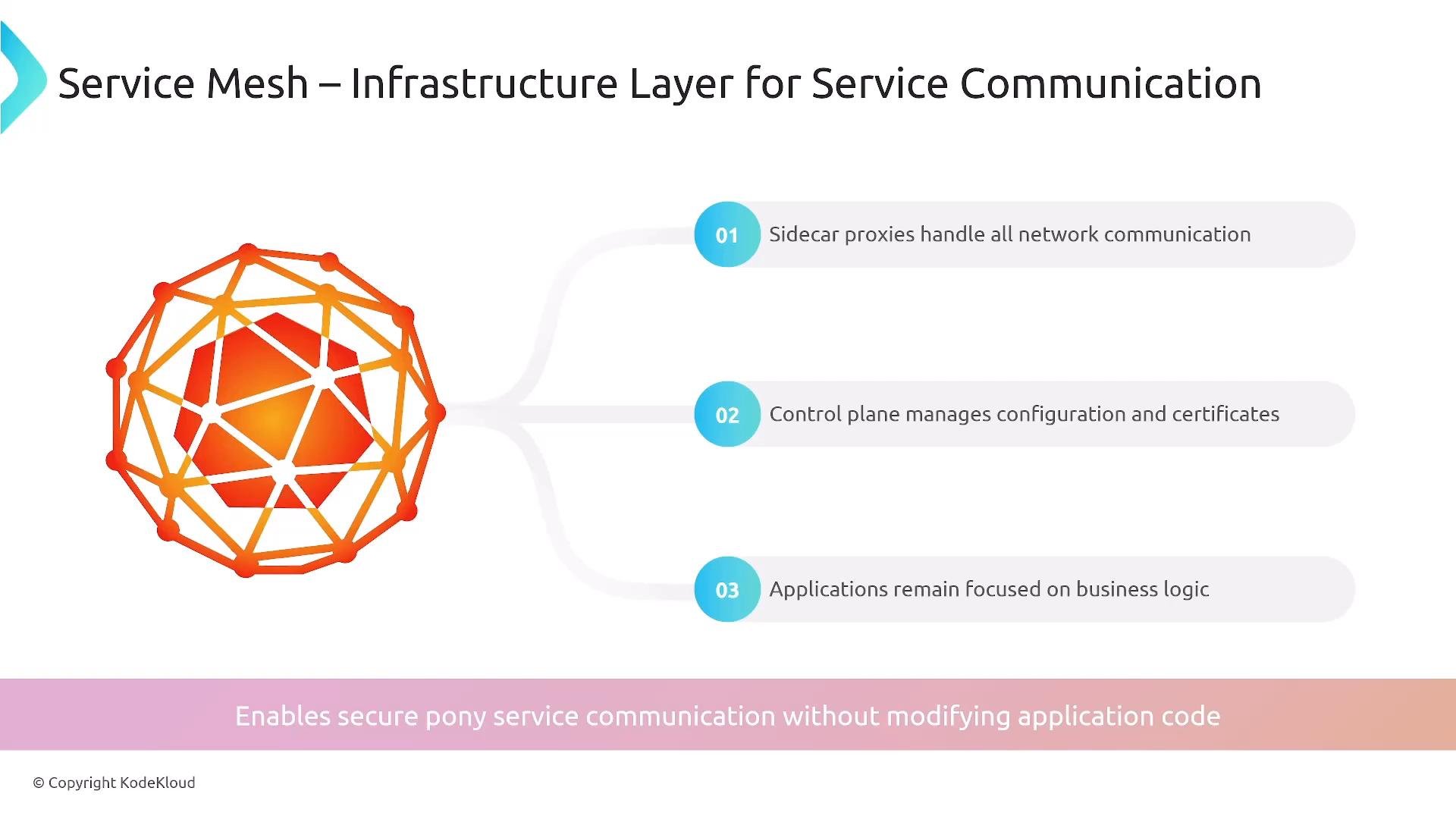

A presentation slide titled "Service Mesh – Infrastructure Layer for Service Communication" showing an orange network/mesh graphic on the left and three numbered points on the right (sidecar proxies handle network communication; control plane manages configuration and certificates; applications remain focused on business logic). A footer notes it enables secure service communication without modifying application code.
From an architecture viewpoint, the split between data plane and control plane delivers centralized policy and telemetry while keeping runtime overheads and application code unchanged.

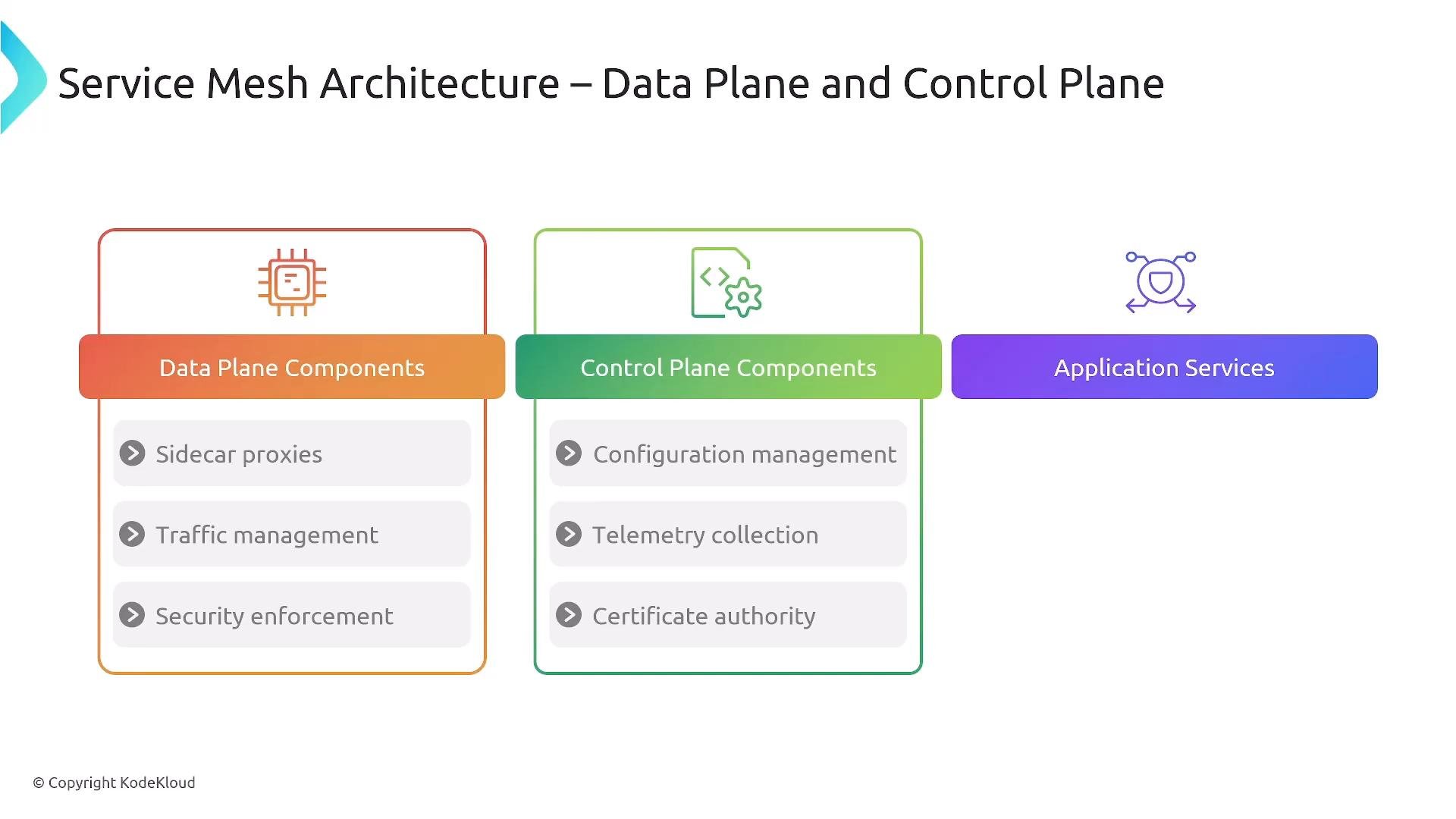

A slide titled "Service Mesh Architecture – Data Plane and Control Plane" showing three colored columns: Data Plane Components, Control Plane Components, and Application Services. The Data Plane lists sidecar proxies, traffic management and security enforcement, while the Control Plane lists configuration management, telemetry collection and certificate authority.

​
Mutual TLS (mTLS) — cryptographic service authentication

One of the most important security primitives provided by service meshes is mutual TLS (mTLS). mTLS provides:
  • Mutual authentication (both client and server validate certificates).
  • Encryption for data in transit.
  • Service identity (certificates bind to service identities, not IPs).
  • Automated short‑lived certificate issuance and rotation.

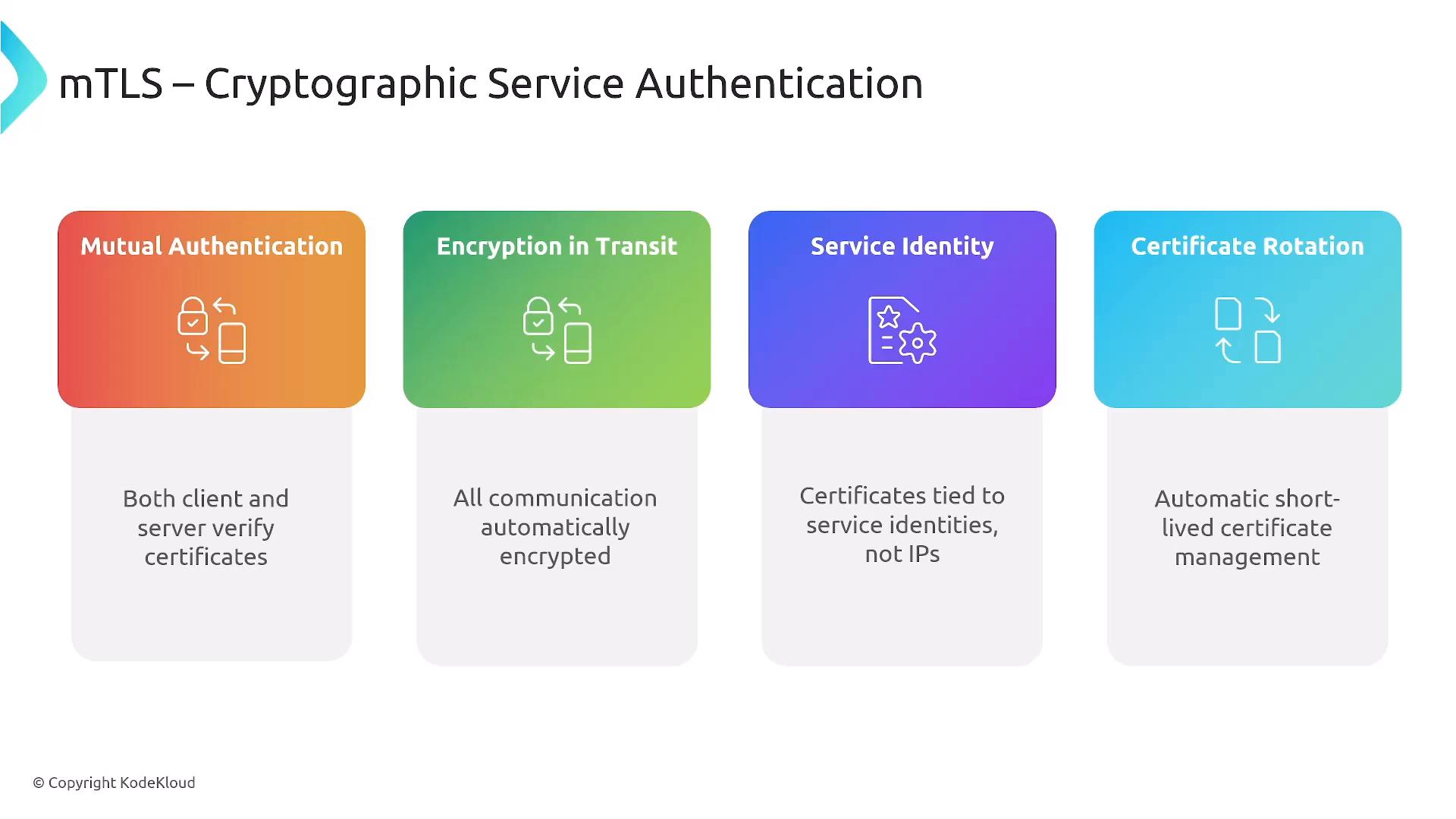

A slide titled "mTLS — Cryptographic Service Authentication" showing four colored panels: Mutual Authentication, Encryption in Transit, Service Identity, and Certificate Rotation. Each panel has an icon and short notes (client/server verify certificates; all communication encrypted; certificates tied to service identities not IPs; automatic short‑lived certificate management).
How mTLS differs from standard TLS:

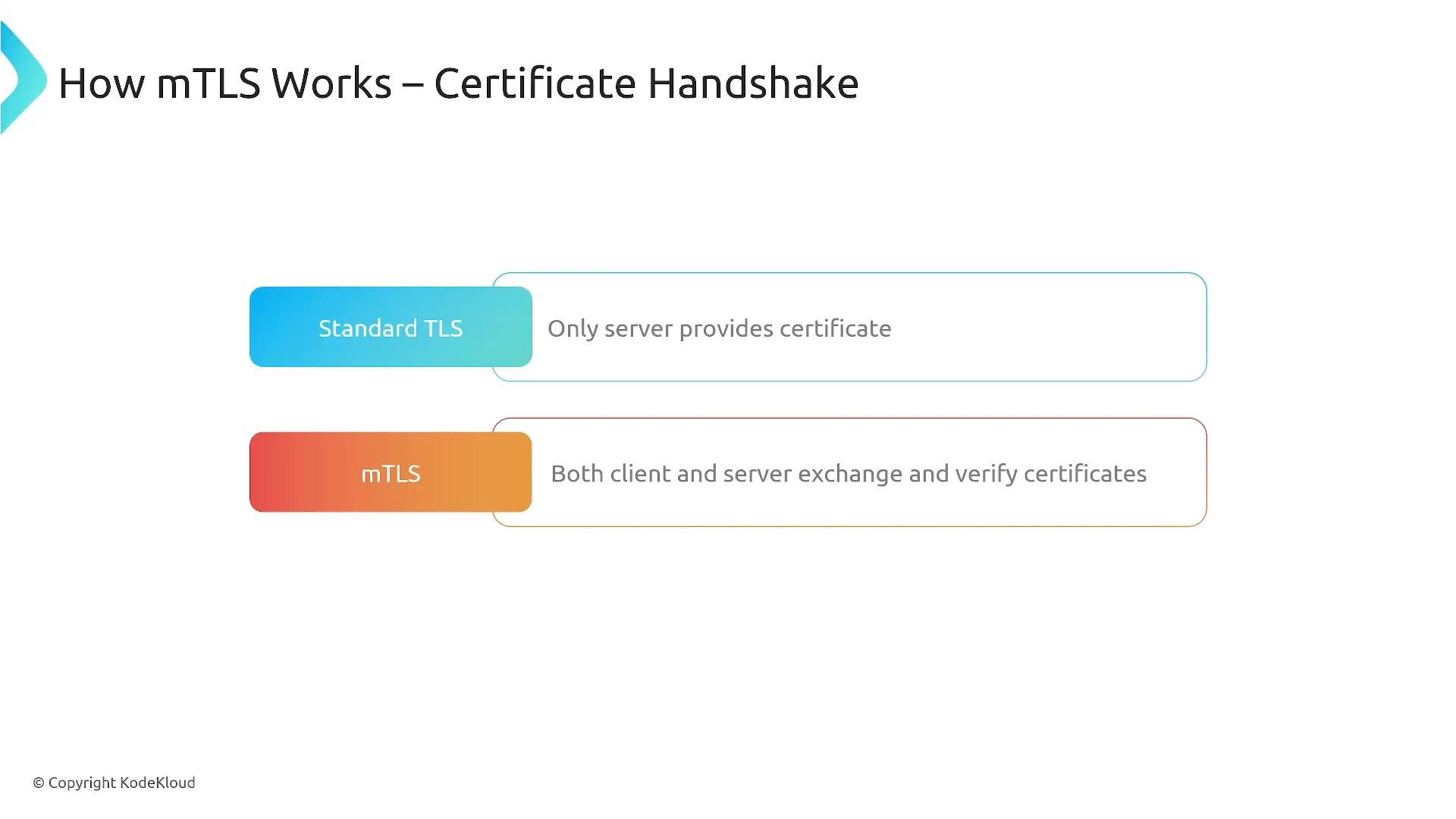

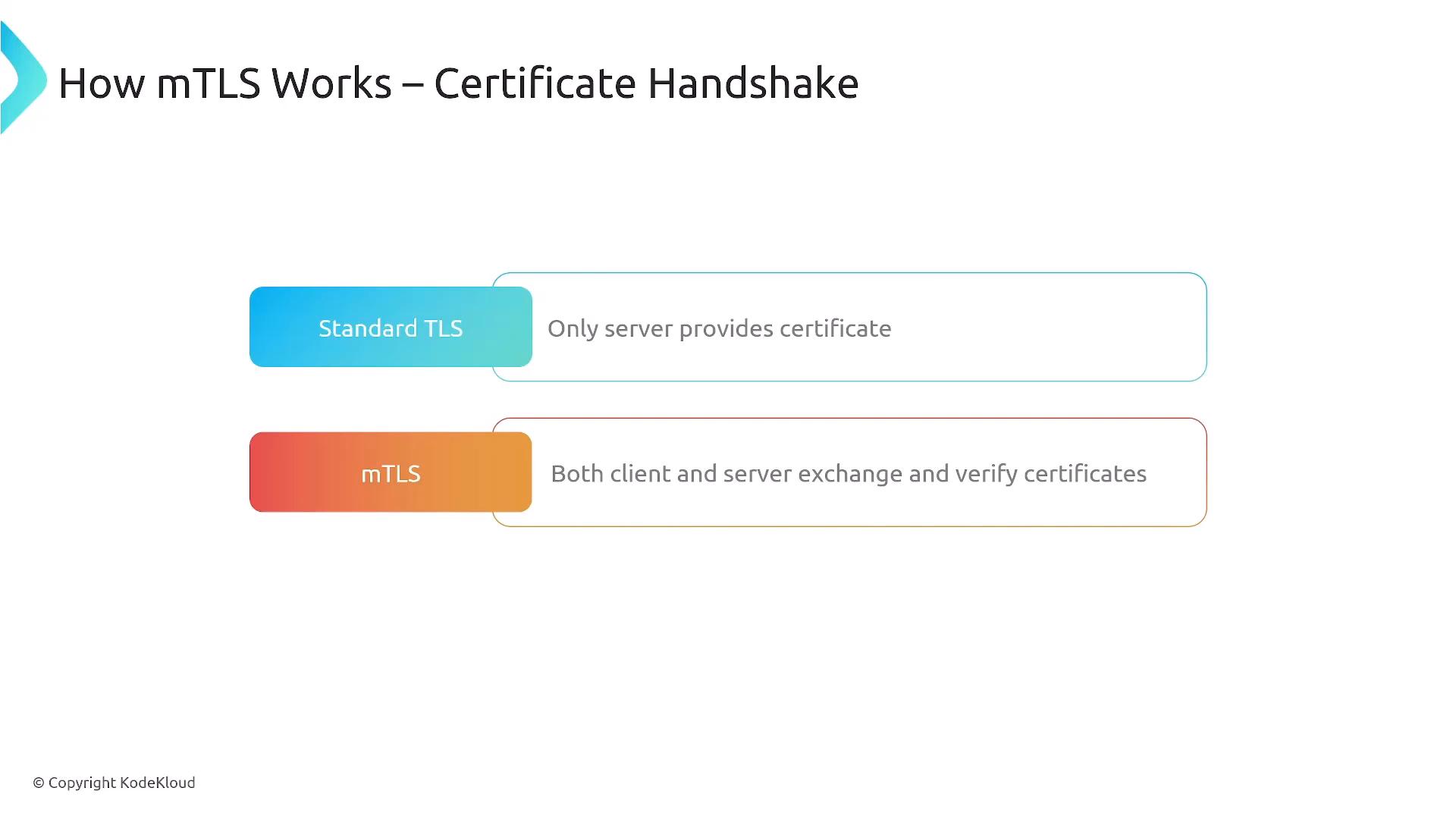

A slide titled "How mTLS Works – Certificate Handshake" that compares Standard TLS (only the server provides a certificate) with mTLS (both client and server exchange and verify certificates).
Example: when PonySpawnerService calls Magic Engine, the proxies for each service exchange and validate certificates. The result is cryptographic proof of the caller’s identity and encrypted communication, all without changing application code. Understand the common projects and their trade-offs: Each choice involves trade-offs: choose Istio for advanced features, Linkerd for operational simplicity and performance, or Envoy if you need a flexible high-performance proxy.

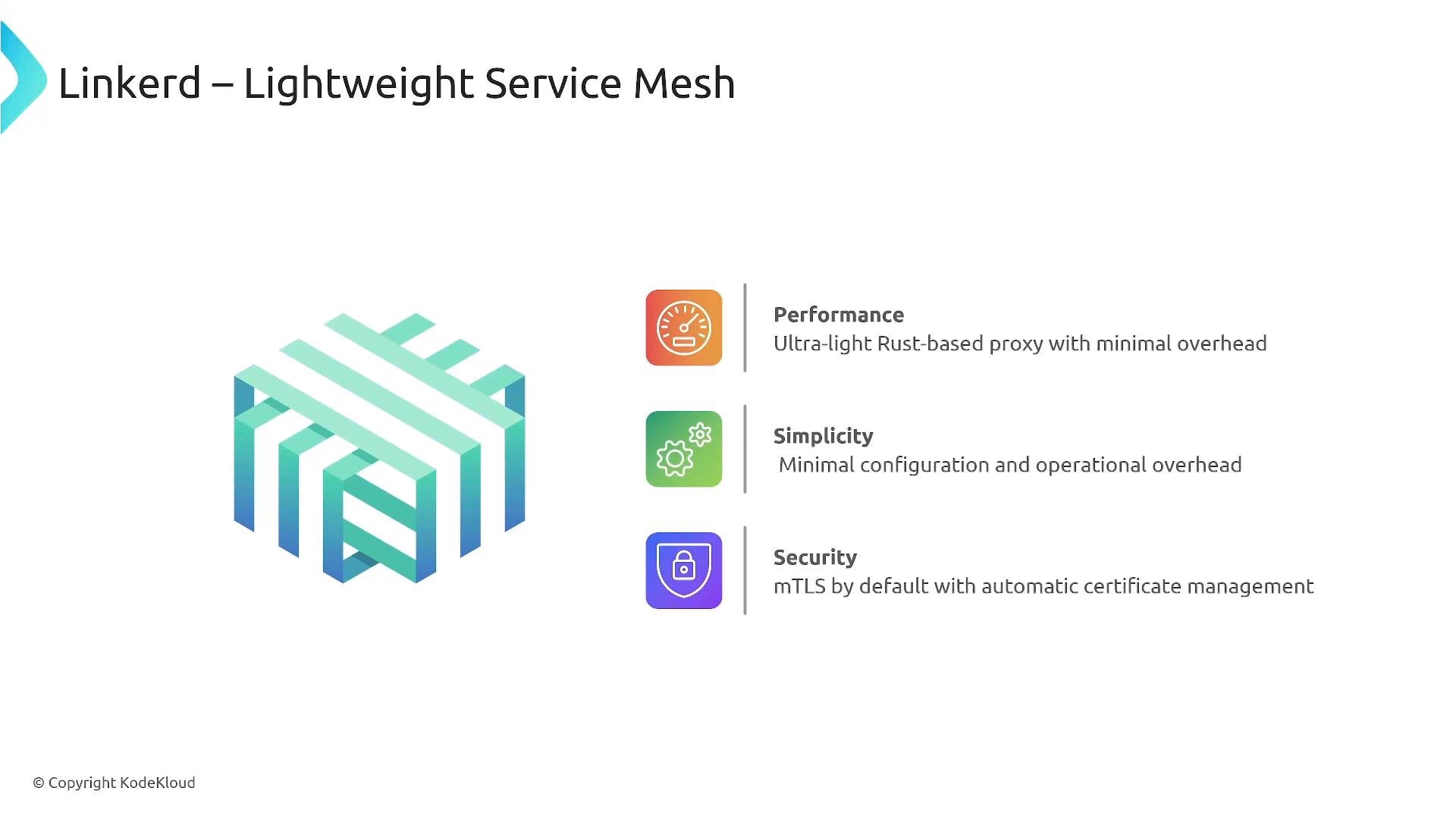

A presentation slide titled "Linkerd — Lightweight Service Mesh" with a large logo and three feature blocks labeled Performance, Simplicity, and Security, each shown with an icon and short description. The text highlights an ultra-light Rust-based proxy, minimal configuration/operational overhead, and mTLS by default.

​
Network layer: L4 vs L7

Service meshes and related controls can operate at different OSI layers. Choose the layer that matches your needs for performance and application awareness.

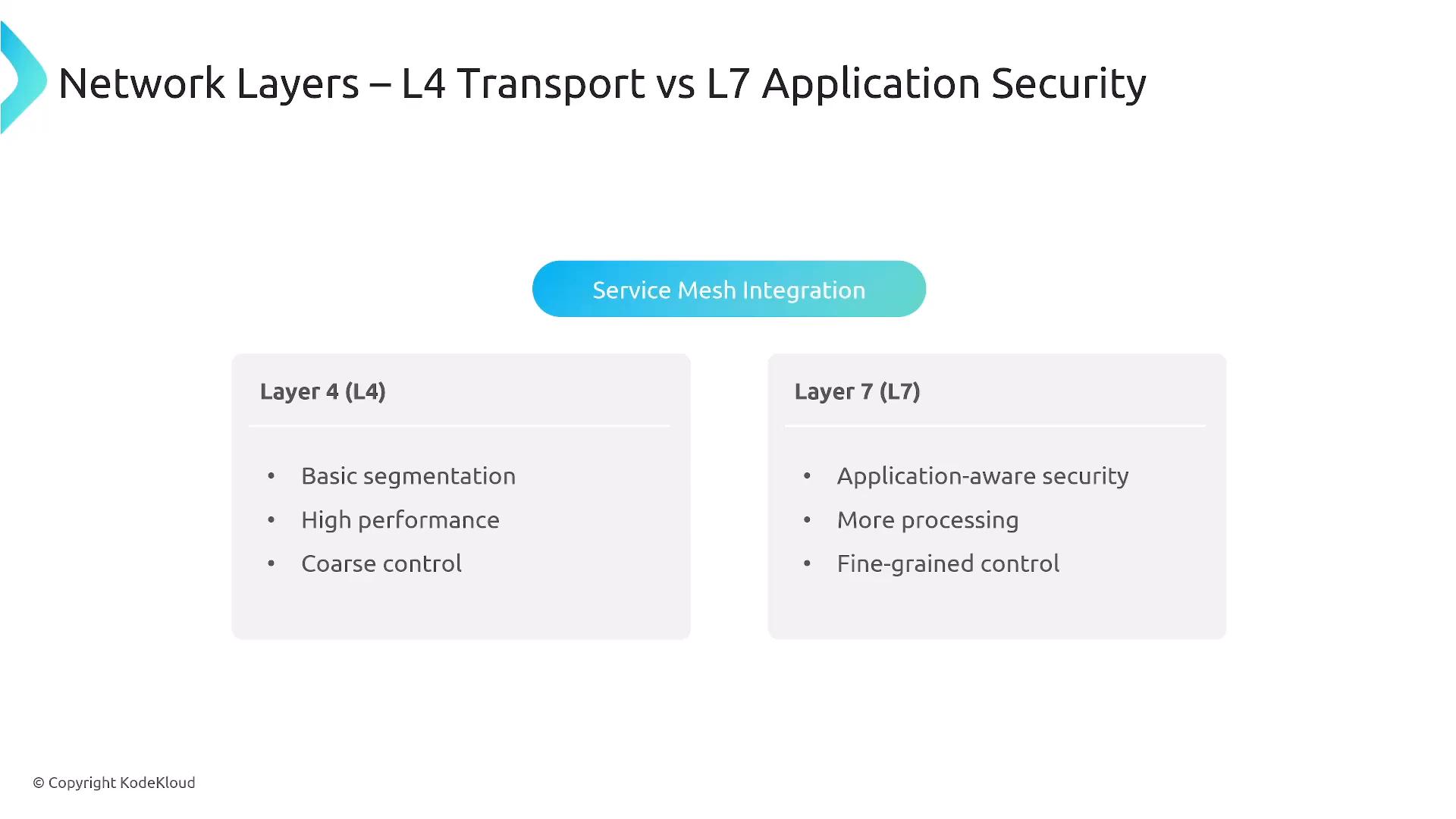

A presentation slide titled "Network Layers – L4 Transport vs L7 Application Security" with a "Service Mesh Integration" banner in the center. Two side-by-side boxes compare Layer 4 (basic segmentation, high performance, coarse control) and Layer 7 (application-aware security, more processing, fine-grained control).
Operational notes:
  • Many meshes favor deny-by-default for east-west traffic; you should write explicit allow policies.
  • Identity-based access control replaces brittle IP rules.
  • The mesh control plane automates certificate issuance, rotation, and revocation; this is not an eBPF responsibility.

​
eBPF — kernel-level observability and enforcement

eBPF extends the kernel with safe, efficient programs allowing deep visibility and high-performance enforcement. eBPF complements service meshes by accelerating the data plane and providing visibility at the packet/process level. Common eBPF-based projects:

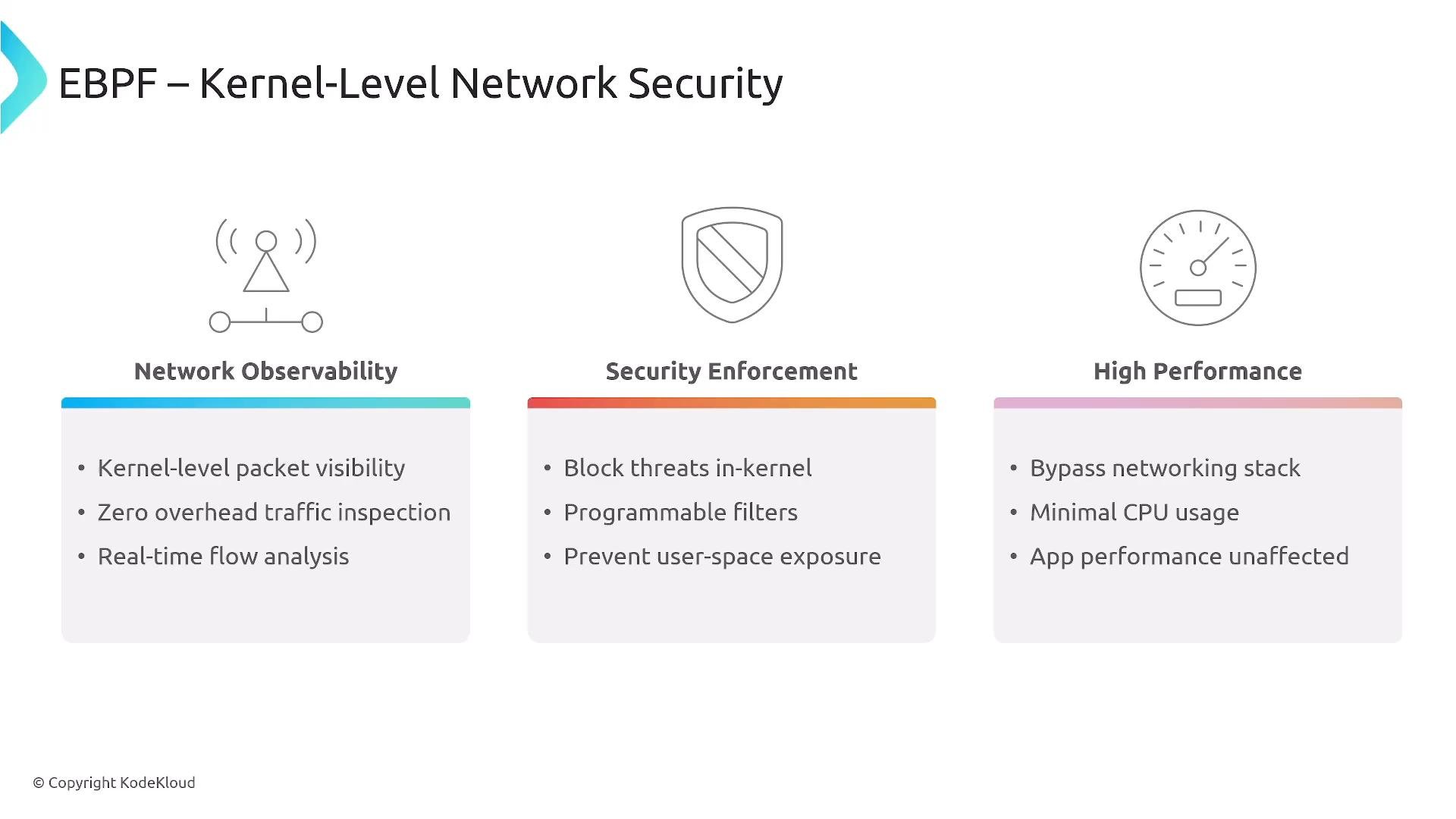

A presentation slide titled "EBPF – Kernel-Level Network Security." It shows three columns — Network Observability, Security Enforcement, and High Performance — each with short bullet points describing related features.

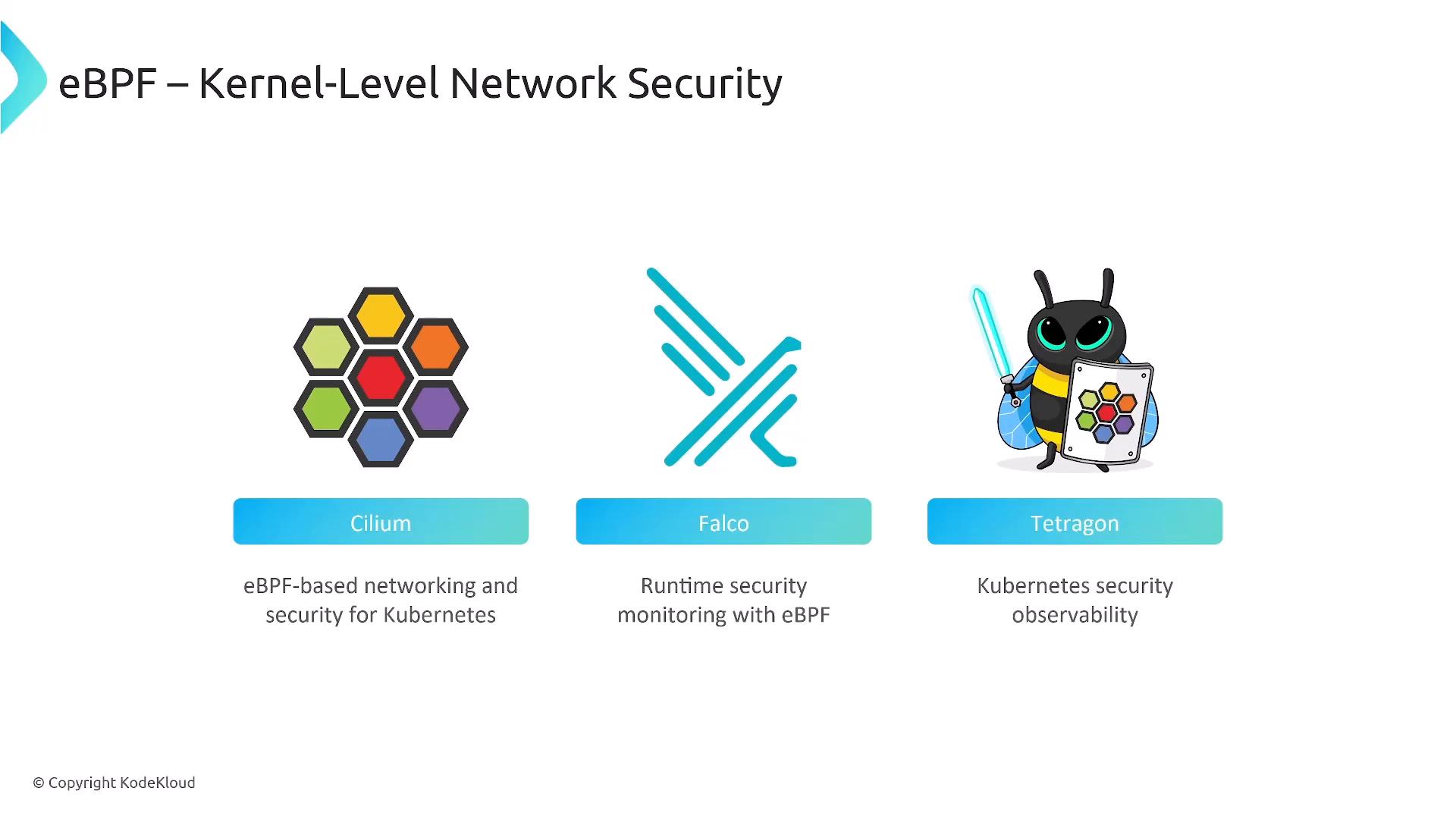

A slide titled "eBPF – Kernel-Level Network Security" showing three logos and labels for Cilium, Falco, and Tetragon, each with a short description of their eBPF-based Kubernetes networking, runtime security monitoring, and observability roles.
eBPF use cases and limits:
  • Accelerates the data plane and provides deep packet/process visibility.
  • Enables high-performance, kernel-level network policies that integrate with meshes.
  • Does not manage certificate lifecycles — certificate management remains the mesh/control plane’s responsibility.

​
Case study: Sparkle Pony Ranch (SPR)

SPR’s plan is to deploy a mesh to provide mTLS, centralized policy-as-code, and to offload certificate management from application teams. Expected benefits include fewer incidents, better audit trails, and higher developer productivity.
A presentation slide titled "SPR Service Mesh Security Strategy" showing three colored user icons labeled Swati, Alan, and Phuong with brief role descriptions underneath and a small "Sparkle Pony Ranch" tag.

​
Summary — what to study for the exam

  • Understand service mesh architecture (data plane vs control plane) and the value of sidecars or ambient modes.
  • Know mTLS benefits: mutual authentication, encryption-in-transit, short-lived certs, and automated rotation.
  • Be able to compare service mesh projects (Istio, Linkerd, Envoy) and eBPF tools (Cilium, Falco, Tetragon).
  • Know L4 vs L7 trade-offs: performance vs application-aware control.
  • Understand zero‑trust networking patterns: encrypt all traffic, authenticate services cryptographically, and use explicit allow policies.

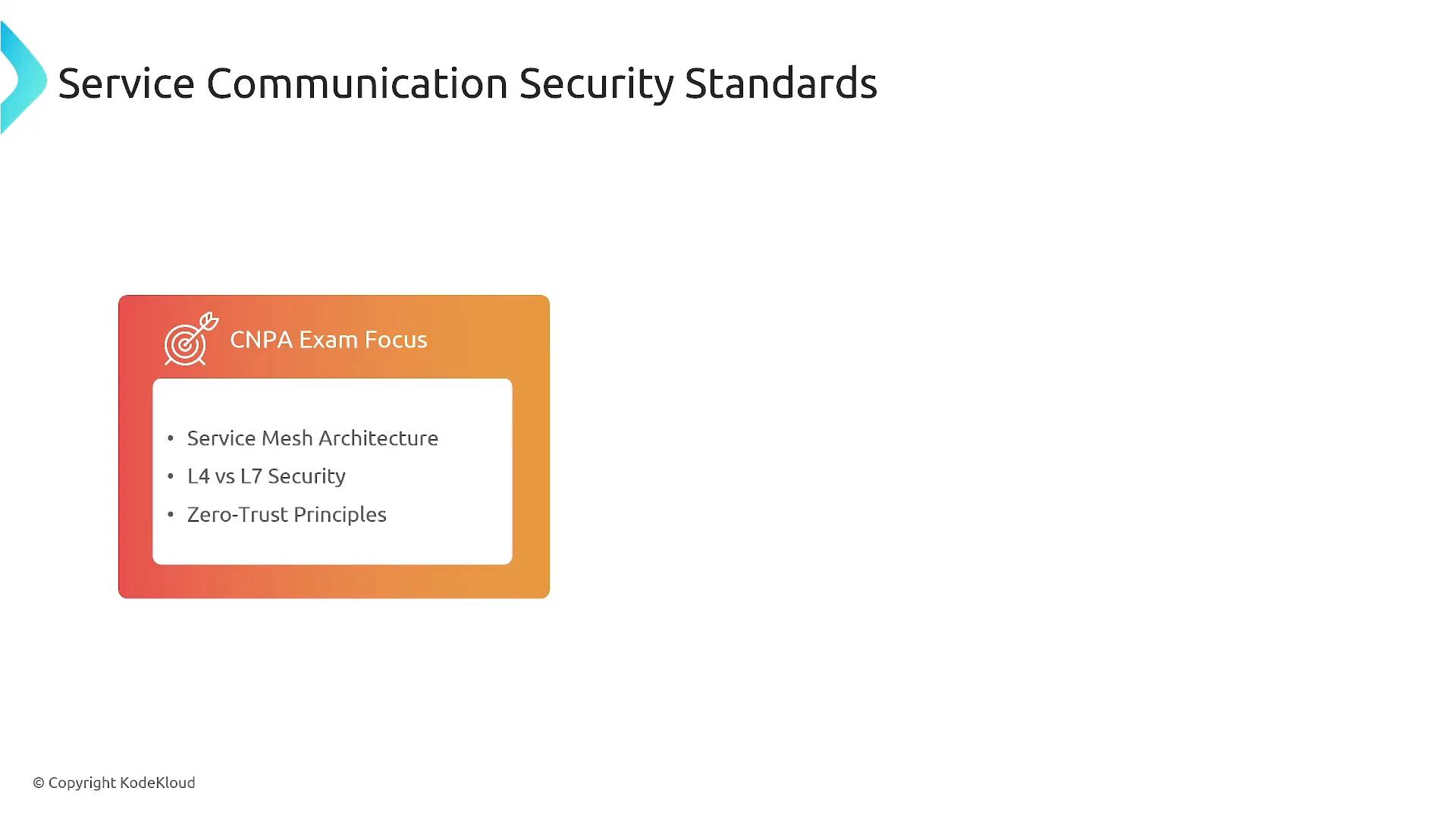

A presentation slide titled "Service Communication Security Standards" with a CNPA Exam Focus box listing Service Mesh Architecture, L4 vs L7 Security, and Zero-Trust Principles. The slide shows a copyright notice for KodeKloud.
The exam emphasizes conceptual understanding and trade-offs (service mesh vs eBPF, mTLS benefits, L4 vs L7) rather than deep implementation details. Focus on the purpose, capabilities, and typical use cases of each technology.
