Section Introduction

We built a strong foundation with Kyverno. You learned how to validate resources to enforce standards, mutate them to add required configuration, and generate new resources to complete application stacks. These policies have so far made decisions using only the data contained in the resource being processed — for example, checking for a label on a Pod or adding a sidecar to a Deployment.

The image is an infographic titled "External Data Sources" showing five icons with labels: "Validate rules," "Enforce standards," "Mutation," "Add required configurations," and "Generate new resources."

In many production environments, however, the information needed to make correct policy decisions lives outside the resource. This section explains how to consult external data inside Kyverno policies so you can make data-driven policy decisions.

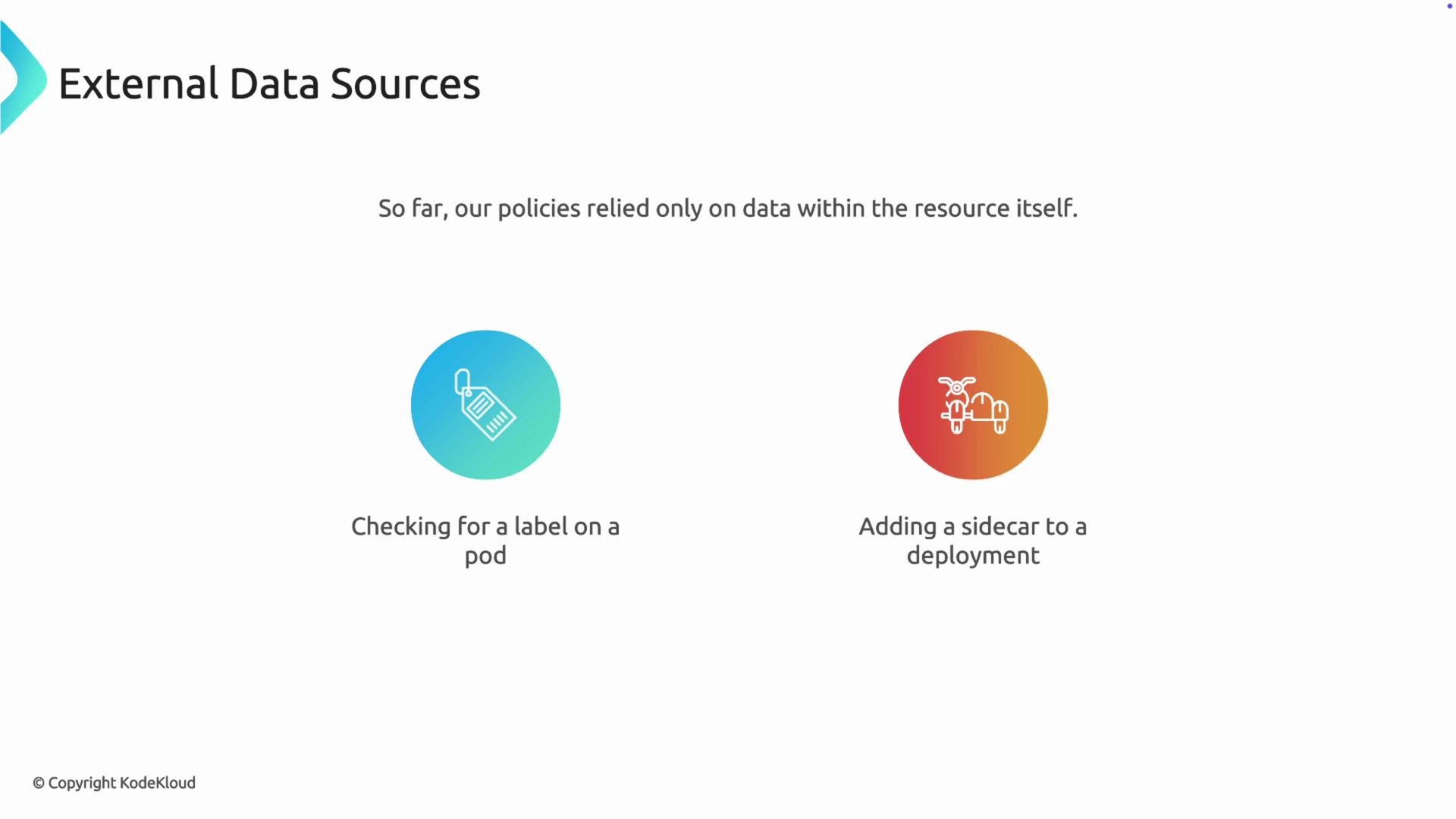

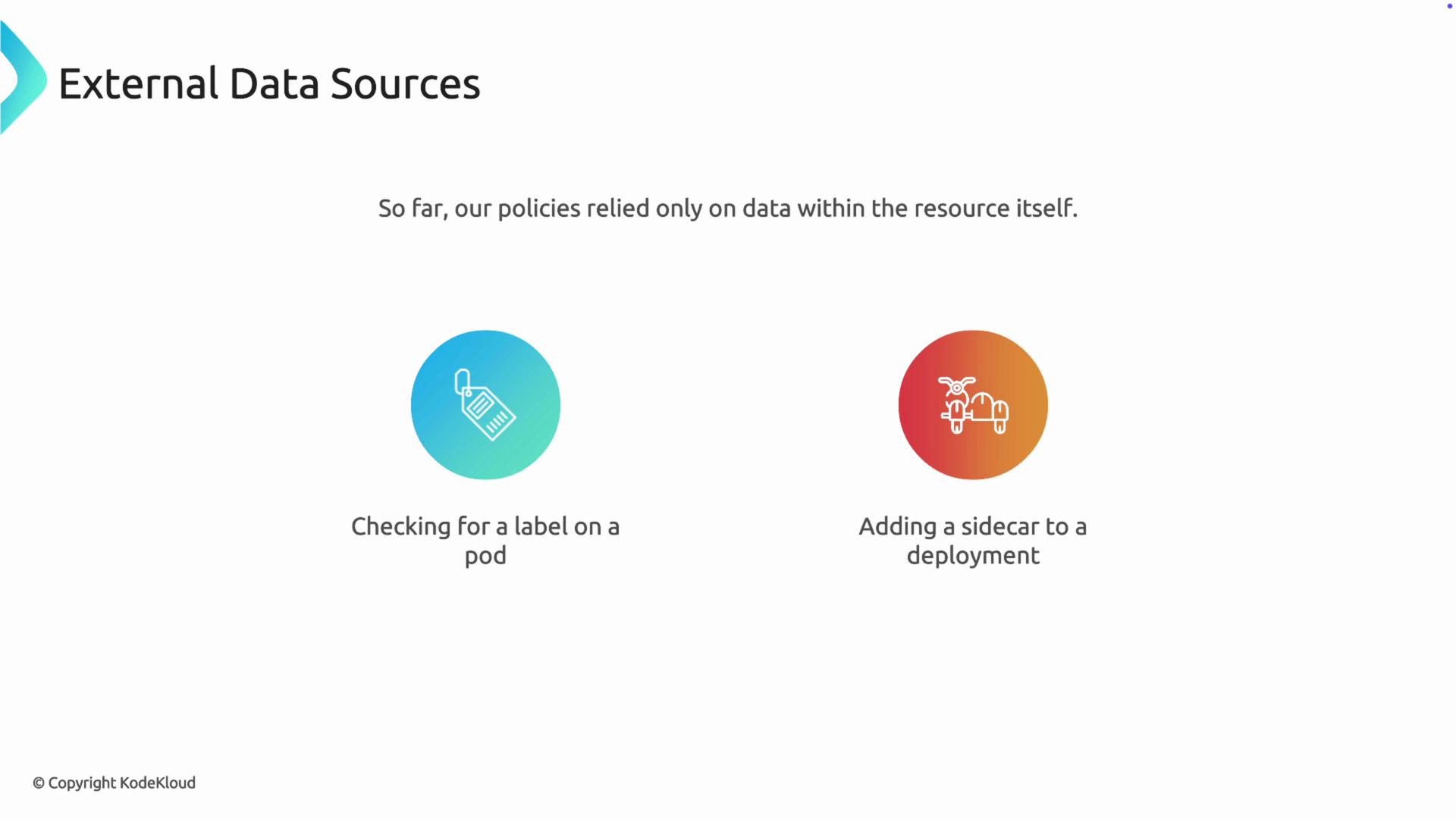

The image is an educational graphic about external data sources, specifically discussing checking for a label on a pod and adding a sidecar to a deployment.

Real-world scenario: Alex, a platform engineer, must ensure every new Deployment includes a cost-center label so cloud spend can be tracked. The finance team manages canonical cost-center values centrally in a ConfigMap named billing-info. Developers sometimes forget to add the label or paste outdated values, producing inaccurate billing and forcing Alex to manually correct Deployments after creation.

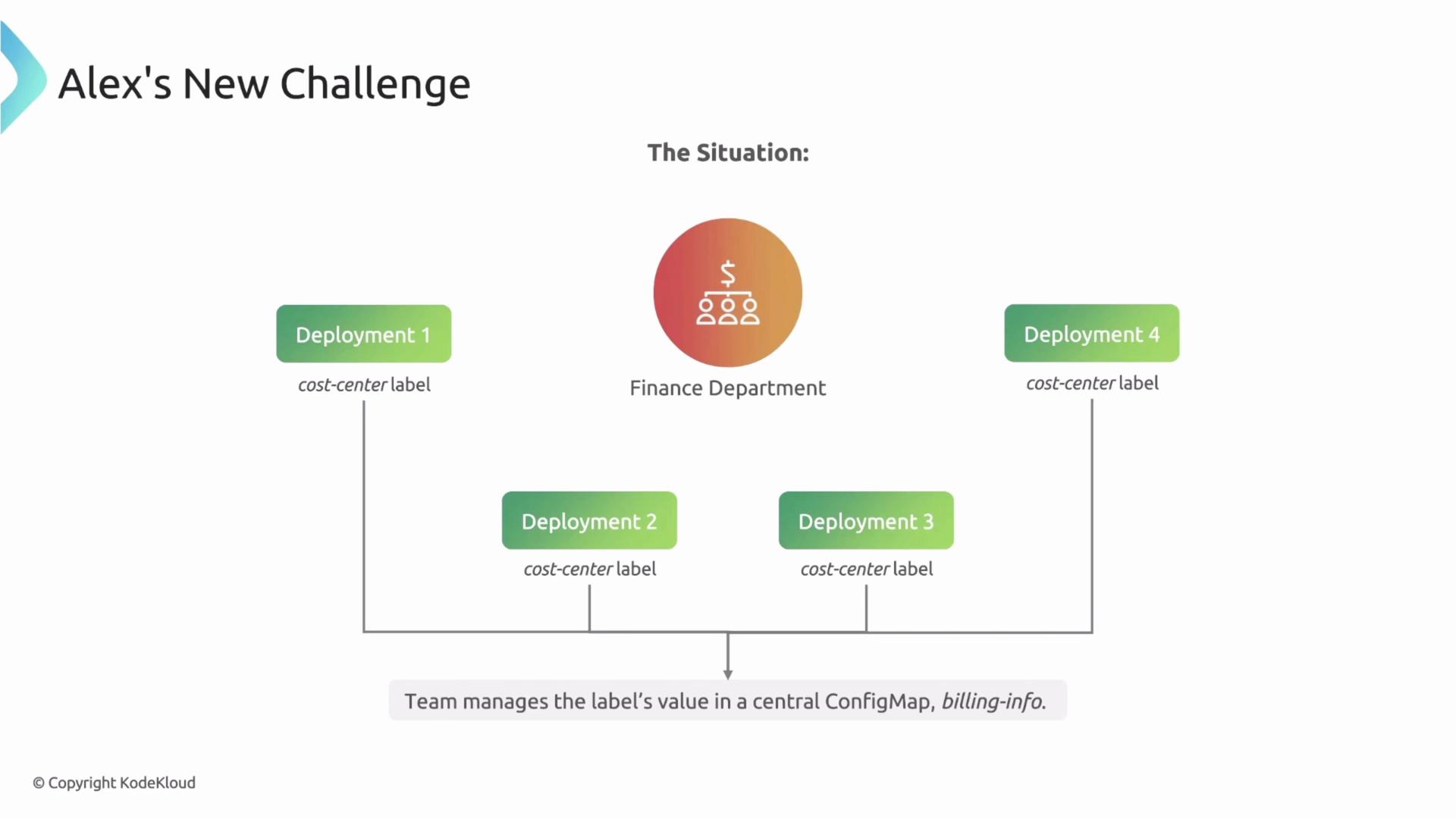

The image shows a diagram about "Alex's New Challenge" with four deployments labeled as "cost-center" under the Finance Department. It indicates that the team manages the label's value in a central ConfigMap called "billing-info."

A static mutate rule that hardcodes a label value won’t work here because the cost-center value changes and is maintained centrally. What Alex needs is a dynamic mutate rule that reads the correct cost-center value from the billing-info ConfigMap and applies it to new Deployments automatically.

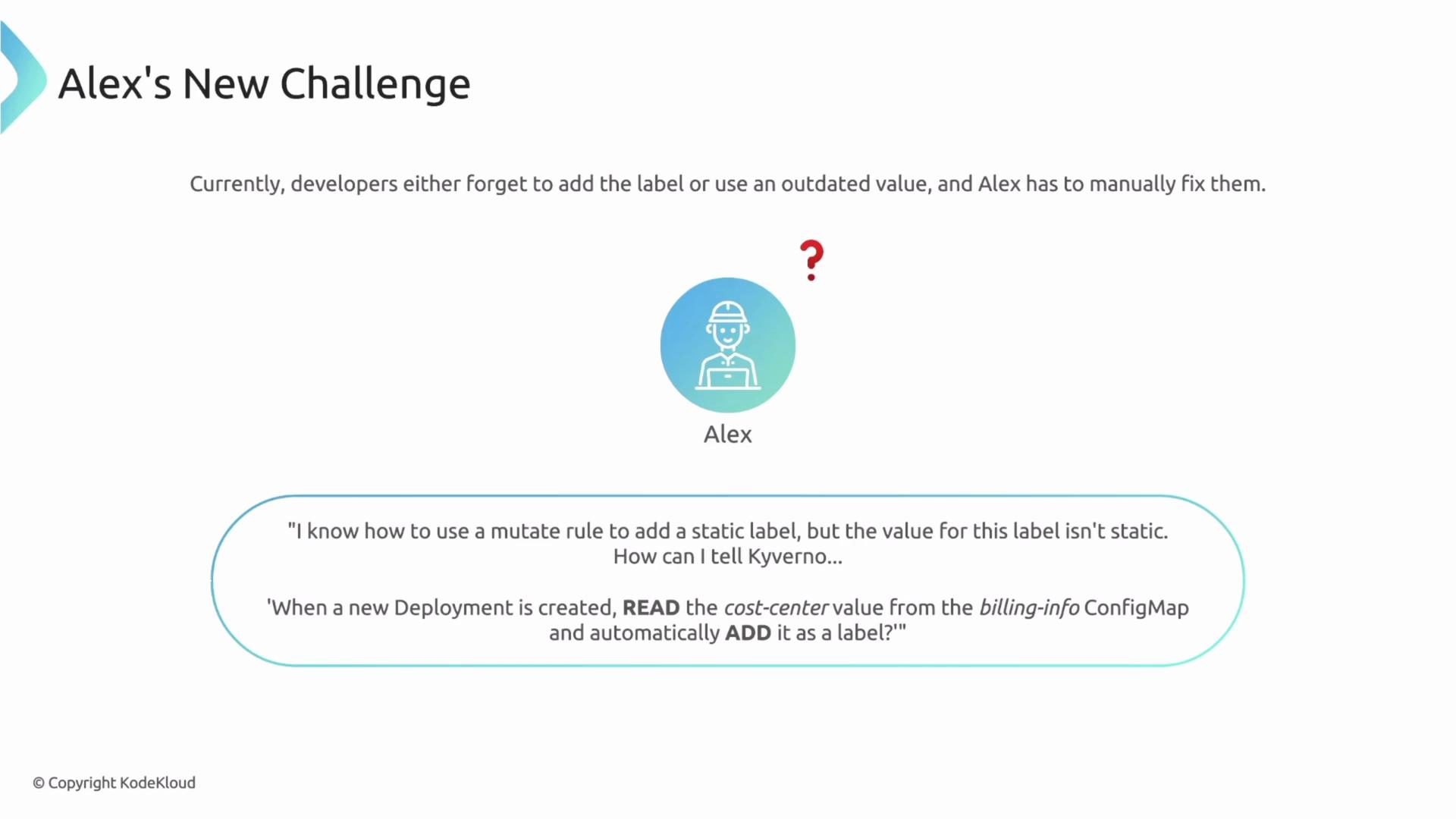

The image presents Alex's challenge of managing labels, highlighting issues with static labels and dynamic values, and the need to automate adding labels using Kyverno when a new deployment reads from a ConfigMap.

This lesson covers how Kyverno fetches and consumes external data. We’ll proceed through these mechanisms, with practical guidance and examples:

Use ConfigMaps and Secrets via the context block to access centrally managed configuration values.
Query the Kubernetes API (the API data source) to fetch other cluster resources when needed.
Leverage the global context to cache external data for better performance and lower API load.
Use image registry variables to fetch image metadata and make image-aware policy decisions.

Table of External Data Sources

Data source	Use case	Example
ConfigMap / Secret	Centralized configuration (labels, feature flags, keys)	Use `context` to load `billing-info` and reference `{{billing.data.<key>}}`
Kubernetes API	Fetch any cluster resource (Deployment, Service, NetworkPolicy)	Call the API from `context` for dynamic lookups
Global context	Cache frequently-read data to reduce repeated API calls	Store cost-center mappings in global context
Image registry variables	Make decisions based on image metadata (digest, labels)	Use registry variables to validate or mutate based on image info

Note: ConfigMap keys are case-sensitive; when referencing a key from billing-info, ensure you use the exact key name. Also ensure the ConfigMap name matches exactly (Kubernetes resource names are typically lowercase and must follow DNS label rules).

Example: reading a ConfigMap in a Kyverno policy

Use a context entry that points to the ConfigMap.
Reference the loaded data inside mutate using the context variable.

Example YAML snippet (simplified):

apiVersion: kyverno.io/v1
kind: ClusterPolicy
metadata:
  name: add-cost-center-from-configmap
spec:
  rules:
    - name: add-cost-center-label
      match:
        resources:
          kinds: ["Deployment"]
      context:
        - name: billing
          configMap:
            name: billing-info
            namespace: finance
      mutate:
        patchStrategicMerge:
          metadata:
            labels:
              cost-center: "{{billing.data.cost-center}}"

This pattern allows Kyverno to dynamically read cost-center from the billing-info ConfigMap in the finance namespace and apply it to matched Deployments. Further resources and references

Kyverno documentation: https://kyverno.io/docs/
Kubernetes ConfigMap docs: https://kubernetes.io/docs/concepts/configuration/configmap/
Kyverno tutorial on external data sources: https://kyverno.io/docs/writing-policies/external-data/

By the end of this lesson, you’ll be able to author Kyverno policies that consult ConfigMaps, query the Kubernetes API, cache values via the global context, and use image registry metadata to make automated, accurate policy decisions.
