Previously we learned how to read static data from a ConfigMap. That approach is powerful — but it breaks down when the data you need is dynamic. What if your policy must consider the current state of other cluster resources before allowing a request? Consider Alex’s problem: cloud costs are spiking because too many expensive LoadBalancer Services are being created.

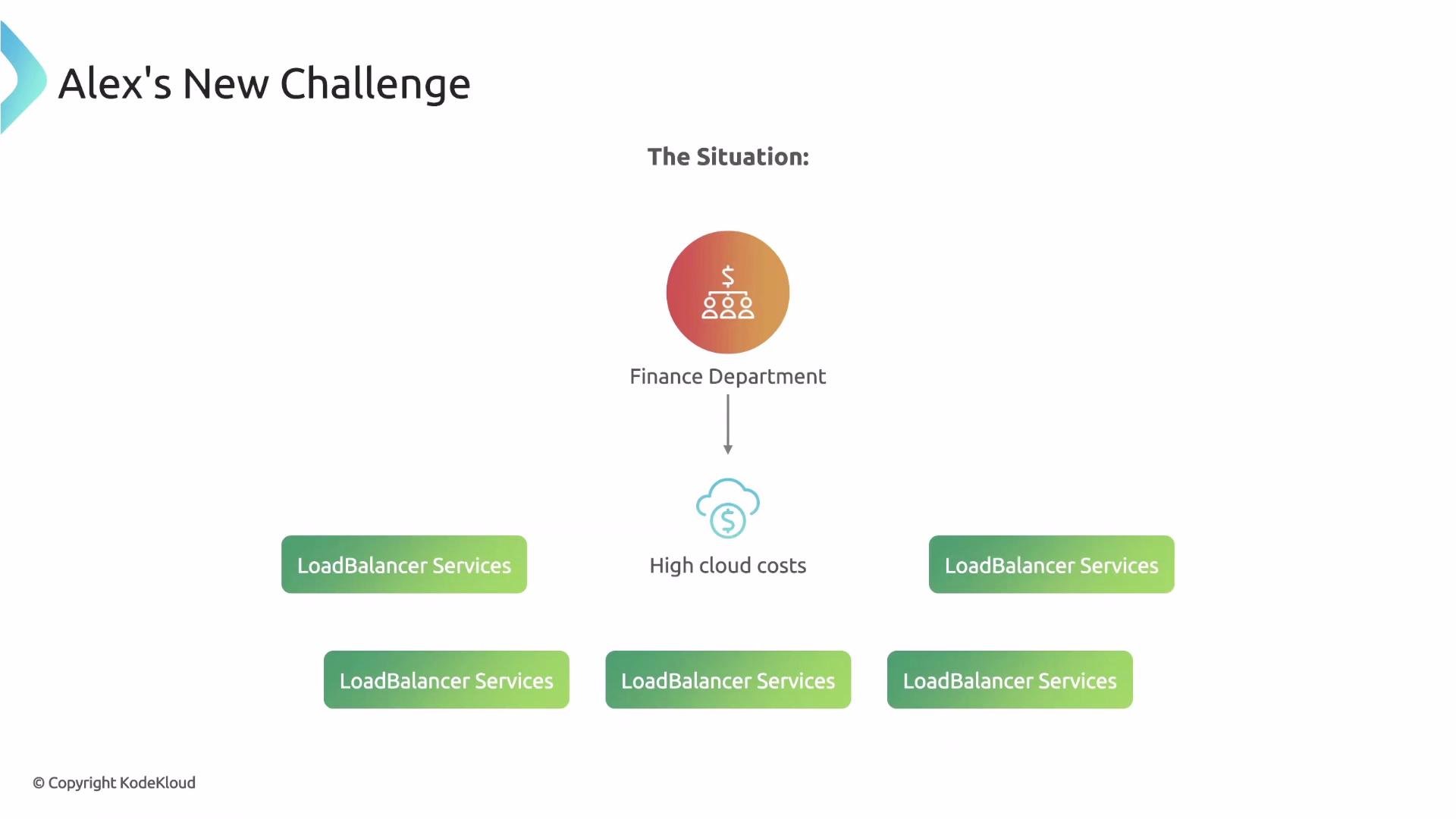

The image illustrates a challenge involving high cloud costs associated with multiple "LoadBalancer Services" managed by a finance department.
Alex wants to enforce a simple but stateful rule: allow only one Service of type LoadBalancer per Namespace to control costs.
The image presents a challenge titled "Alex's New Challenge" regarding a cost-control rule, allowing only one LoadBalancer service per namespace.
A ConfigMap is static and cannot answer “how many LoadBalancer Services already exist right now in this Namespace?” A plain validate rule also can’t look at other live resources. Alex needs the policy to query the Kubernetes API at policy-evaluation time, count Services of type LoadBalancer in the Namespace, and then allow or deny the incoming request accordingly.

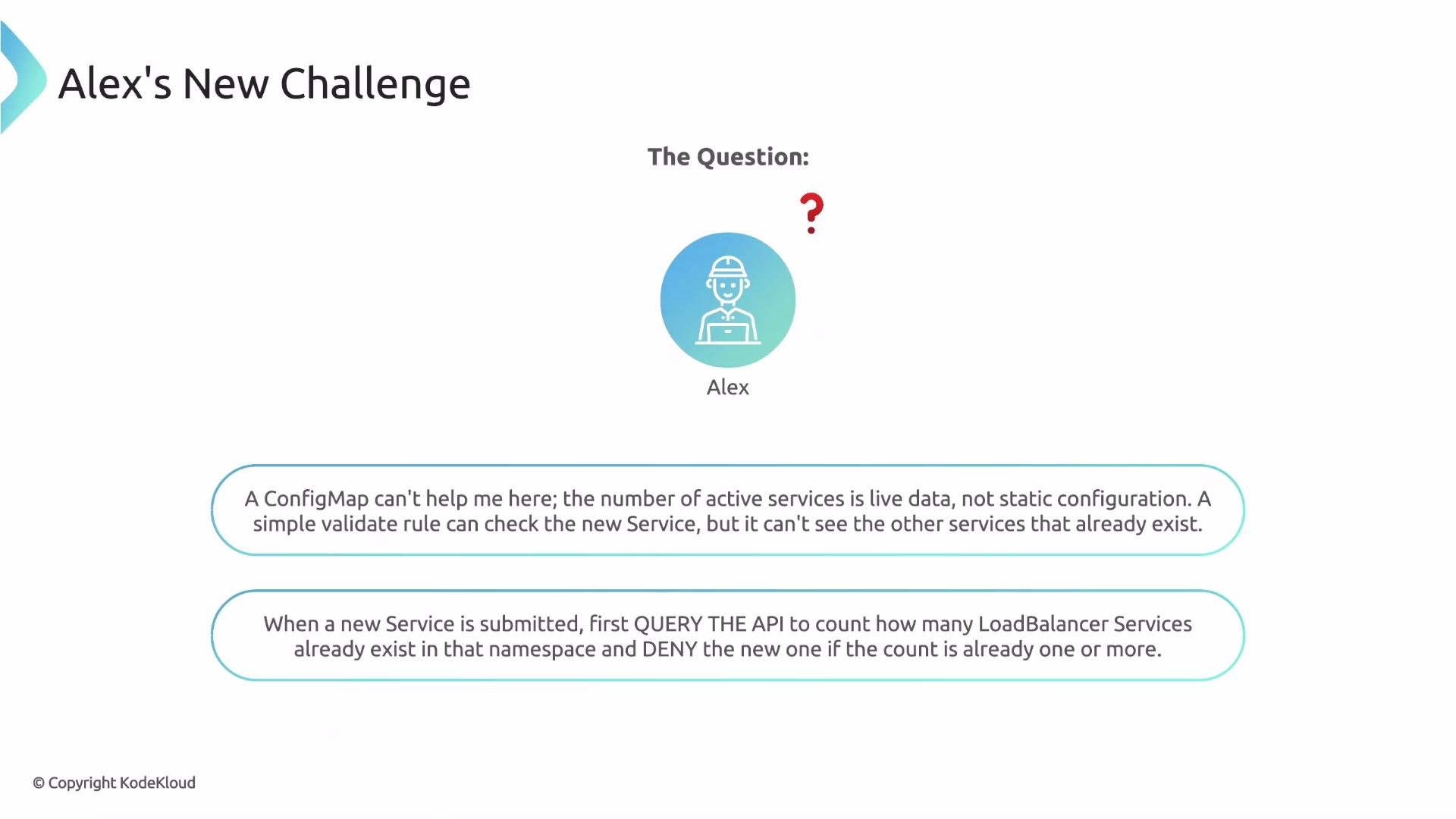

The image presents a challenge regarding managing active services using ConfigMaps, focusing on querying an API to count existing LoadBalancer services before adding a new one.
This is a stateful validation problem — exactly what Kyverno’s apiCall context entry is designed for. In this lesson we’ll build a policy that queries the API server, applies a JMESPath query to the returned JSON, and uses the result in validation. How apiCall works (high level)
  • Inside a rule’s context block you can add an apiCall entry. Kyverno will:
    1. Call the Kubernetes API server at the provided urlPath.
    2. Run a JMESPath expression against the JSON response.
    3. Store the transformed result in a named variable you can reference elsewhere in the rule.
  • Key fields:
    • name — variable name to store the API result.
    • apiCall.urlPath — the literal API path to request. You can interpolate request fields, e.g. {{request.namespace}}.
    • apiCall.jmesPath — a JMESPath expression to extract or compute the exact value you need.
Example: count Pods in the current namespace and store the result in podCount:
This apiCall requests /api/v1/namespaces/<namespace>/pods, selects items, and returns the list length as a simple integer. Understanding Kubernetes API URL paths Kubernetes groups resources into core and API-grouped resources. Use the following rules to craft the correct urlPath: If you need the entire collection, end the path with the plural resource name (for example, pods or services). To request a single resource, append /names/<name> or /<resourceName> as appropriate.
The image is a chart explaining URL path structures for different resource types in a Kubernetes context, detailing paths for core, grouped, and cluster-scoped resources.
How to discover the correct path Use kubectl discovery tools to find resource names and API group/version information: Example kubectl api-resources output:
The APIVERSION column determines the path prefix: v1 → /api/v1; apps/v1 → /apis/apps/v1.

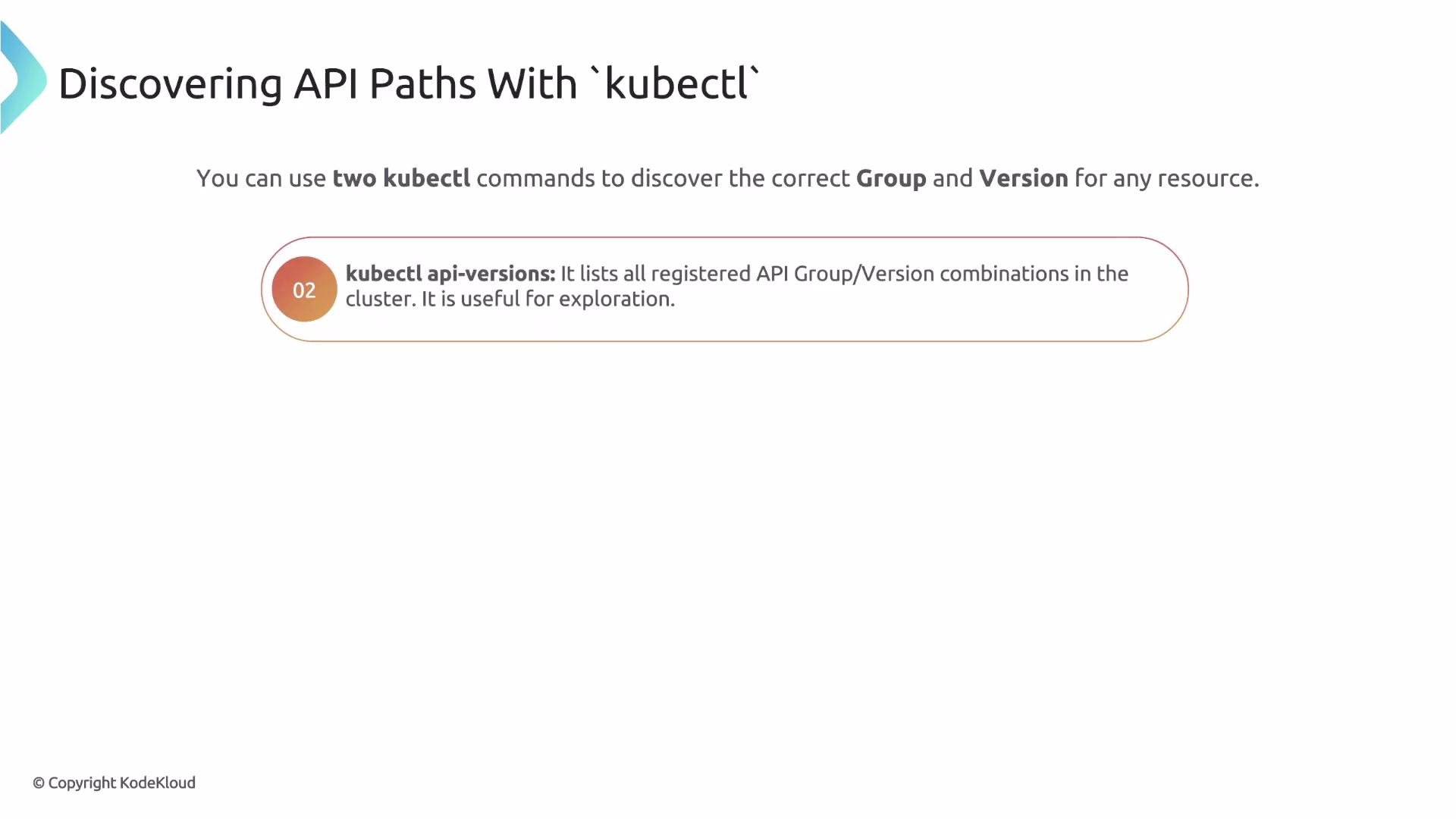

The image explains how to discover API paths using kubectl commands, specifically highlighting kubectl api-versions to list registered API Group/Version combinations in a cluster.
Putting it together: example for Deployments in default
  1. kubectl api-resources shows Deployments are apps/v1 and namespaced.
  2. Assemble the path:
    • /apis (grouped resource)
    • /apps/v1 (group + version)
    • /namespaces/default (target namespace)
    • /deployments (resource collection)
Final path:

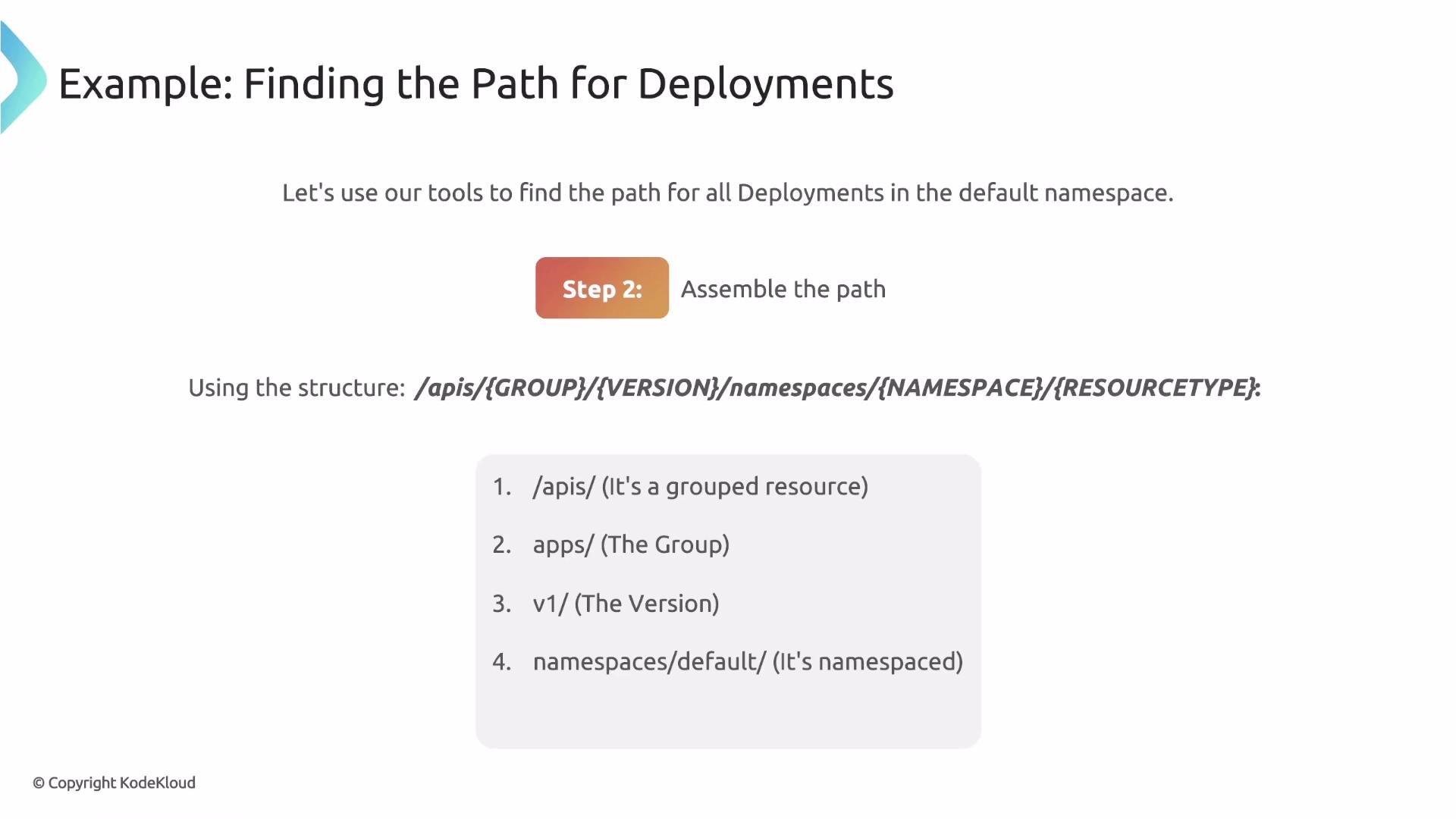

The image provides an example of finding a path for deployments in the default namespace, using a structured API path format with detailed breakdown of each component.
Test your URL path and JMESPath locally Before embedding an apiCall in a Kyverno policy, verify both the raw API JSON and the JMESPath expression. Kyverno provides a CLI helper kyverno jp query to evaluate JMESPath expressions against JSON — combine this with kubectl get --raw for a reliable test loop.
Use kubectl get --raw to fetch the raw API JSON, then pipe it into kyverno jp query to validate your JMESPath expression. Iterate until you get the exact value, then paste the working urlPath and jmesPath into your policy.
Example test command:
This two-step workflow (kubectl get --raw <urlPath> | kyverno jp query "<jmesPath>") quickly validates both the path and the JMESPath expression before you deploy the policy.

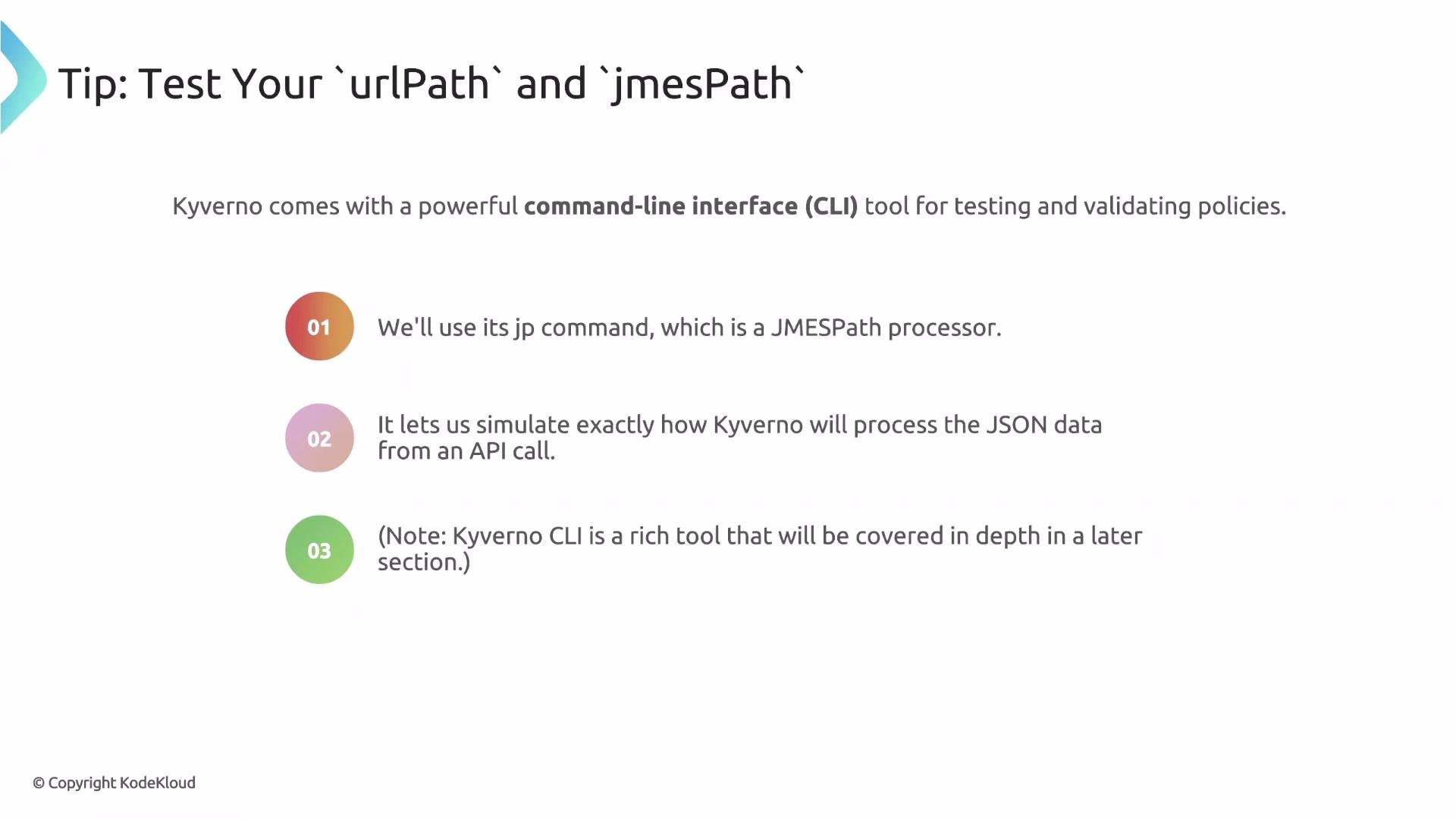

The image is a tip about testing urlPath and jmesPath using Kyverno's command-line interface tool, highlighting its capabilities for processing JSON data. It notes the use of the jp command and mentions future coverage on Kyverno CLI.
Complete policy example — enforce a single LoadBalancer per Namespace Below is a complete Kyverno rule that enforces Alex’s requirement. It runs on Service create/update, counts existing LoadBalancer Services in the same namespace via apiCall, and denies the request if one or more already exist.
How this policy works:
  • The apiCall fetches Services in the incoming request’s namespace.
  • The JMESPath expression items[?spec.type == 'LoadBalancer'] | length(@) filters to LoadBalancer Services and returns a count.
  • The validate/deny block compares the stored existing_lb_count against 1 and denies requests when the count is >= 1.
Important: when updating an existing Service, the apiCall result may include the Service currently being evaluated. To avoid falsely denying legitimate updates, filter out the item with the same metadata.name or metadata.uid as the request object in your JMESPath expression. Test both create and update flows to confirm correct behavior.
Performance and robustness tips
  • Use Kubernetes API query parameters (labelSelector or fieldSelector) in your urlPath to let the API server filter results. Benefits:
    1. Performance — less data returned and less client-side processing.
    2. Robustness — a selector query returns an empty items list when nothing matches (instead of a 404), avoiding evaluation errors.
Example: request a service by name using fieldSelector:
If the Service foo does not exist, this returns a successful response with an empty items list instead of an error.

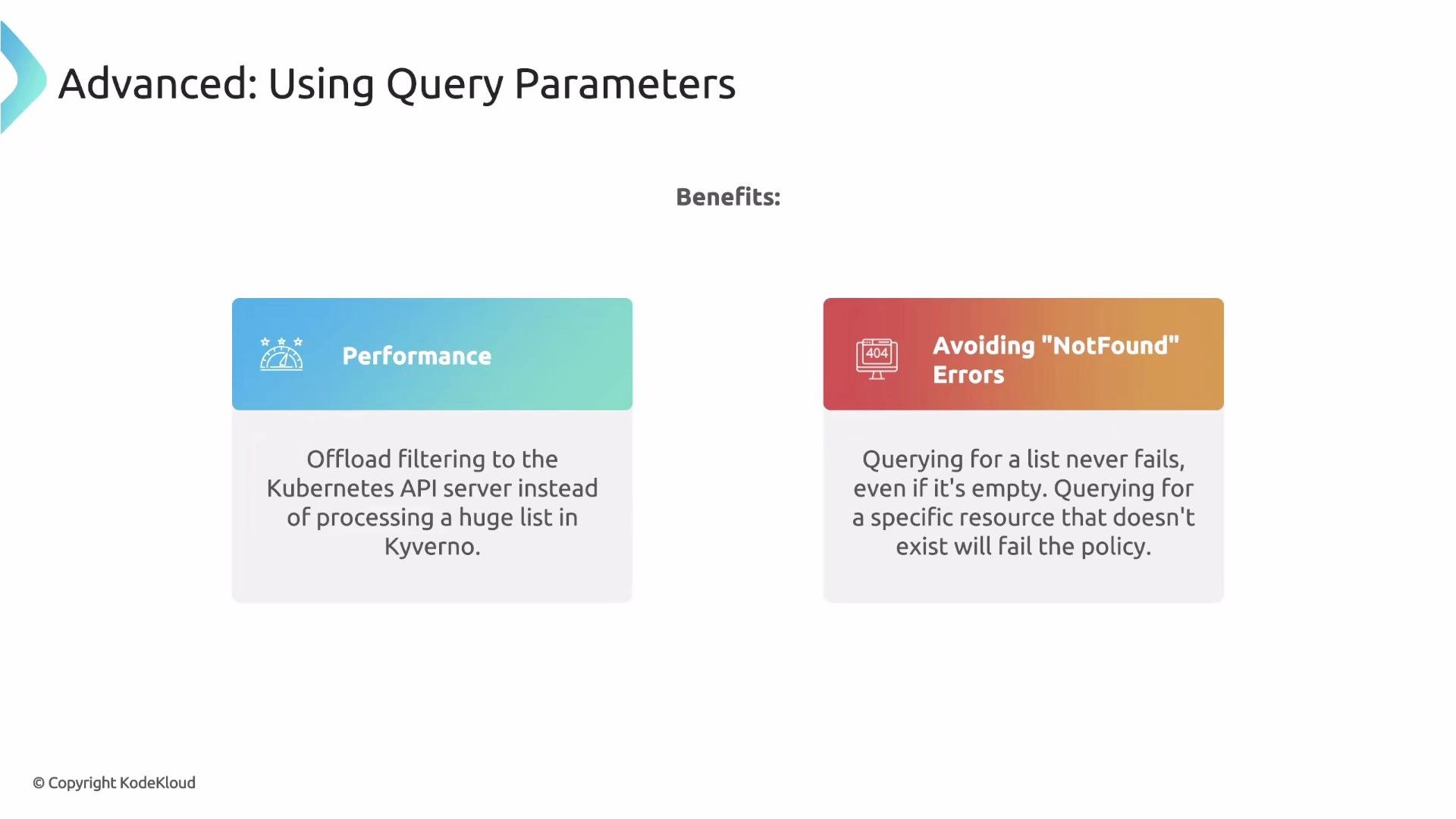

The image discusses the benefits of using query parameters in advanced settings, highlighting improved performance by offloading filtering to the Kubernetes API server and avoiding "NotFound" errors.
Recap and best practices
  • Kyverno’s apiCall context lets policies query the Kubernetes API server at runtime and store the processed result in a variable, enabling stateful validations.
  • Use kubectl api-resources and kubectl api-versions to discover the correct urlPath structure.
  • Test urlPath and JMESPath expressions locally with kubectl get --raw piped into kyverno jp query.
  • Prefer labelSelector/fieldSelector parameters for performance and to avoid NotFound errors.
  • When a policy needs to ignore the resource being evaluated (e.g., during updates), explicitly exclude it in the JMESPath filter.
  • For repeated or shared API data needs, consider using Kyverno’s GlobalContext to cache results across rules to improve efficiency.

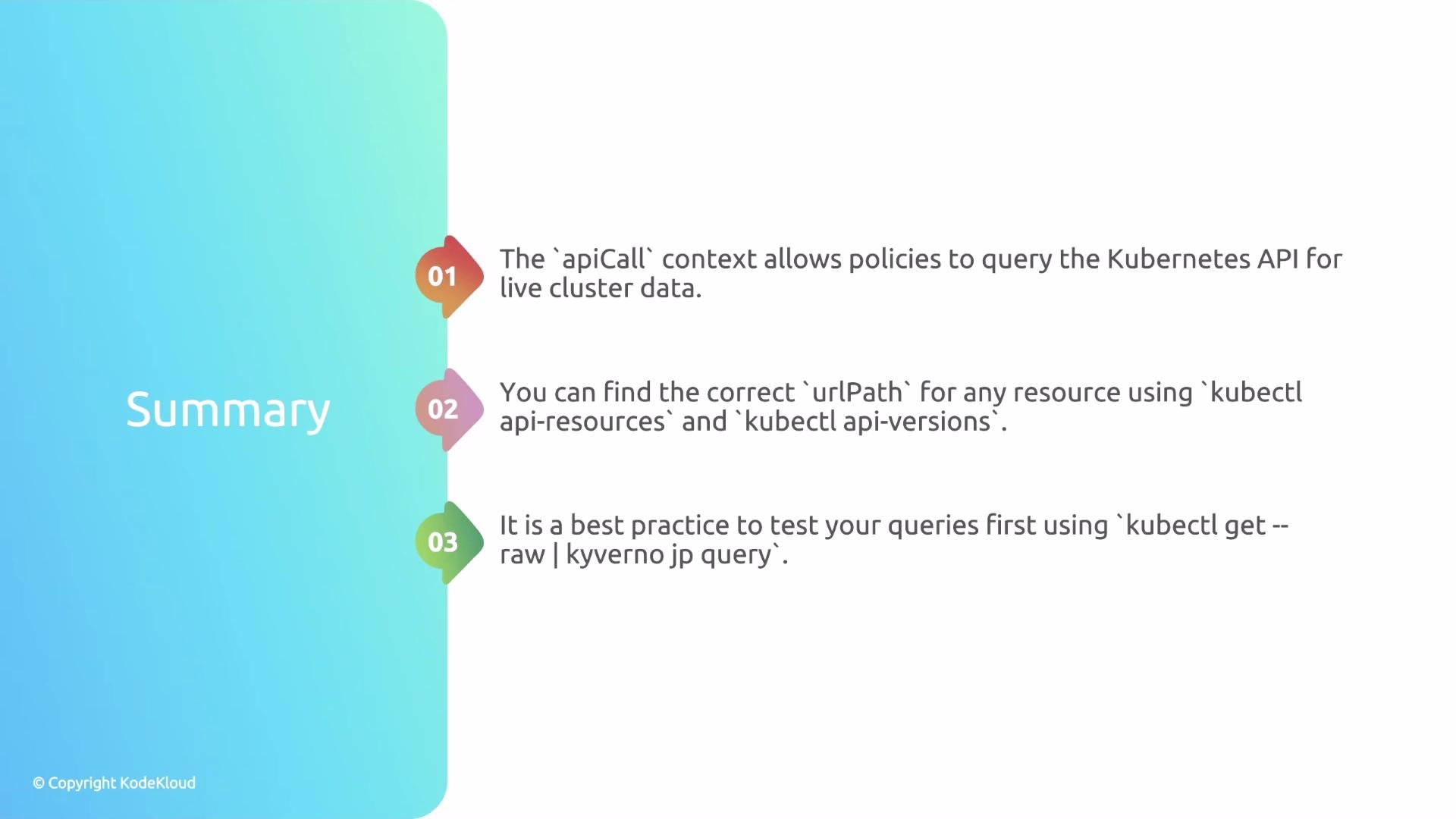

The image is a summary slide outlining key points about querying the Kubernetes API, including using the apiCall context, finding the correct urlPath for resources, and testing queries.
Further reading and references Efficiency when the same API data is needed repeatedly can be improved using the GlobalContext.
