Alright — we’ve set the stage for mutation and seen Alice’s need to go beyond simple validations. In this lesson/article we dive into JSON Patch: Kyverno’s most precise method for modifying resources. JSON Patch lets you provide Kyverno with a sequence of exact instructions. Each instruction specifies where to operate in the resource (path), what to do (op), and what value to use (value). JSON Patch is ideal when you must modify a specific element in a list (for example, update the second container), remove a particular field, or when a merge strategy is insufficient. Remember: mutations always run before validation. Kyverno will first apply mutations and then validate the final, mutated resource against any validation rules.

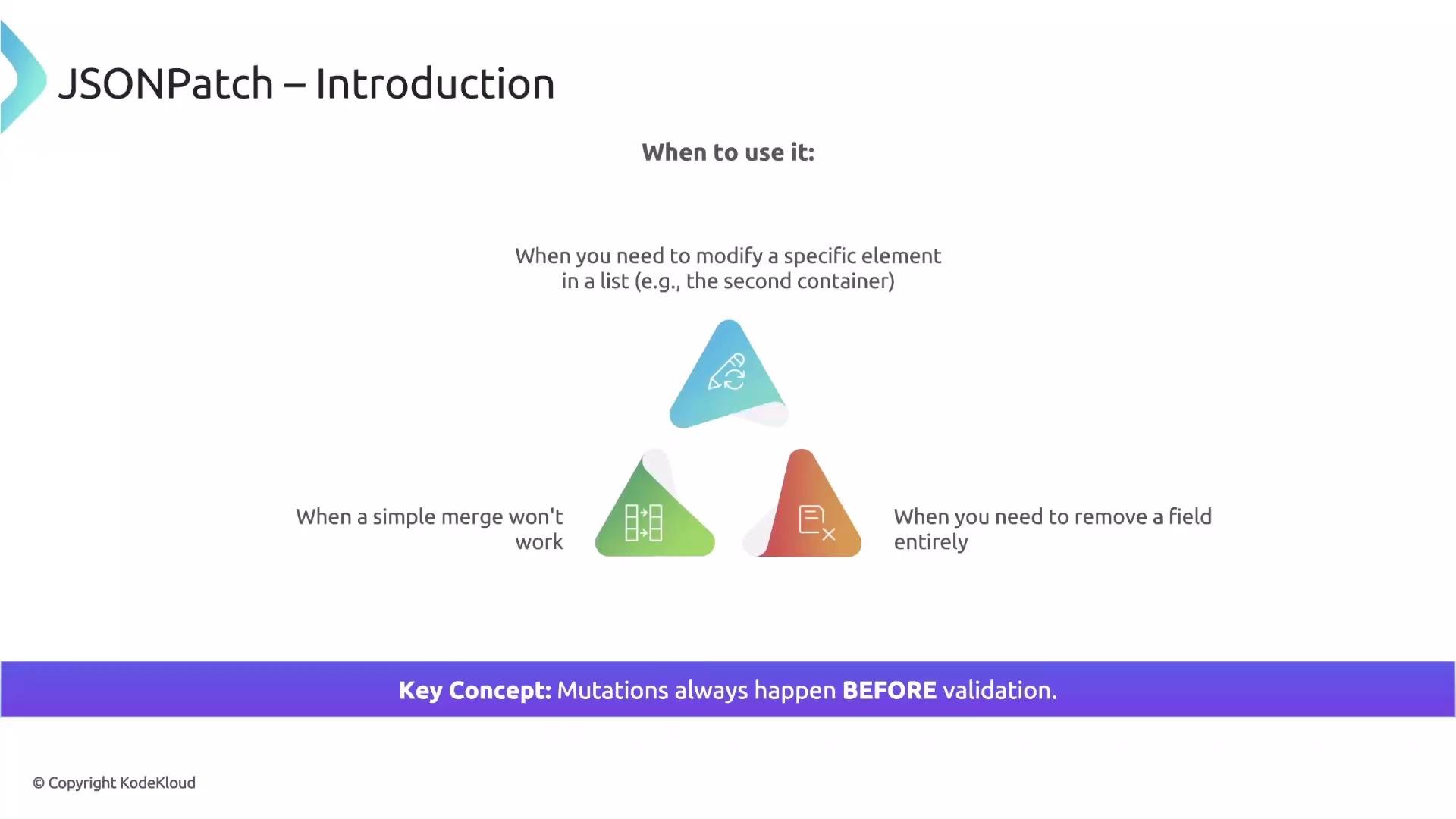

The image introduces JSONPatch, explaining when to use it for modifying elements, handling simple merges, and removing fields, highlighting the key concept that mutations occur before validation.

​
JSON Patch structure

A JSON Patch is a list of operations. In Kyverno you place these operations under a mutate block using patchesJson6902, which contains a multi-line string with the patch list. Each operation is an object with the following key fields:
  • op: the operation to perform. Common values: add, replace, remove.
  • path: a JSON Pointer indicating the target location (starts from the root, using / to separate keys).
  • value: the new value to insert (used with add and replace).
Example template:
Table: Common JSON Patch operations Notes about add vs replace:
  • Use add when you want to insert or overwrite a value (it creates the member if missing for objects).
  • Use replace when you must ensure the target exists and you only want to change existing values — otherwise the operation will fail.

​
Example: Adding or replacing ConfigMap data

Goal: Ensure a ConfigMap named config-game contains two specific keys under data.
  • The first add injects a multi-line value into /data/ship.properties. If that key already exists, this add will replace it.
  • The second add writes a simple string value to /data/newKey1.

​
Example: Removing a label from Secrets

Goal: Remove an unwanted label purpose from all Secrets.
When a Secret is created or updated, Kyverno will remove that label (if present) before the resource is persisted in etcd. Note: remove does not use a value field.

​
Working with lists and arrays

JSON Patch gives you precise control when working with arrays. You can target a specific index or append to the end.

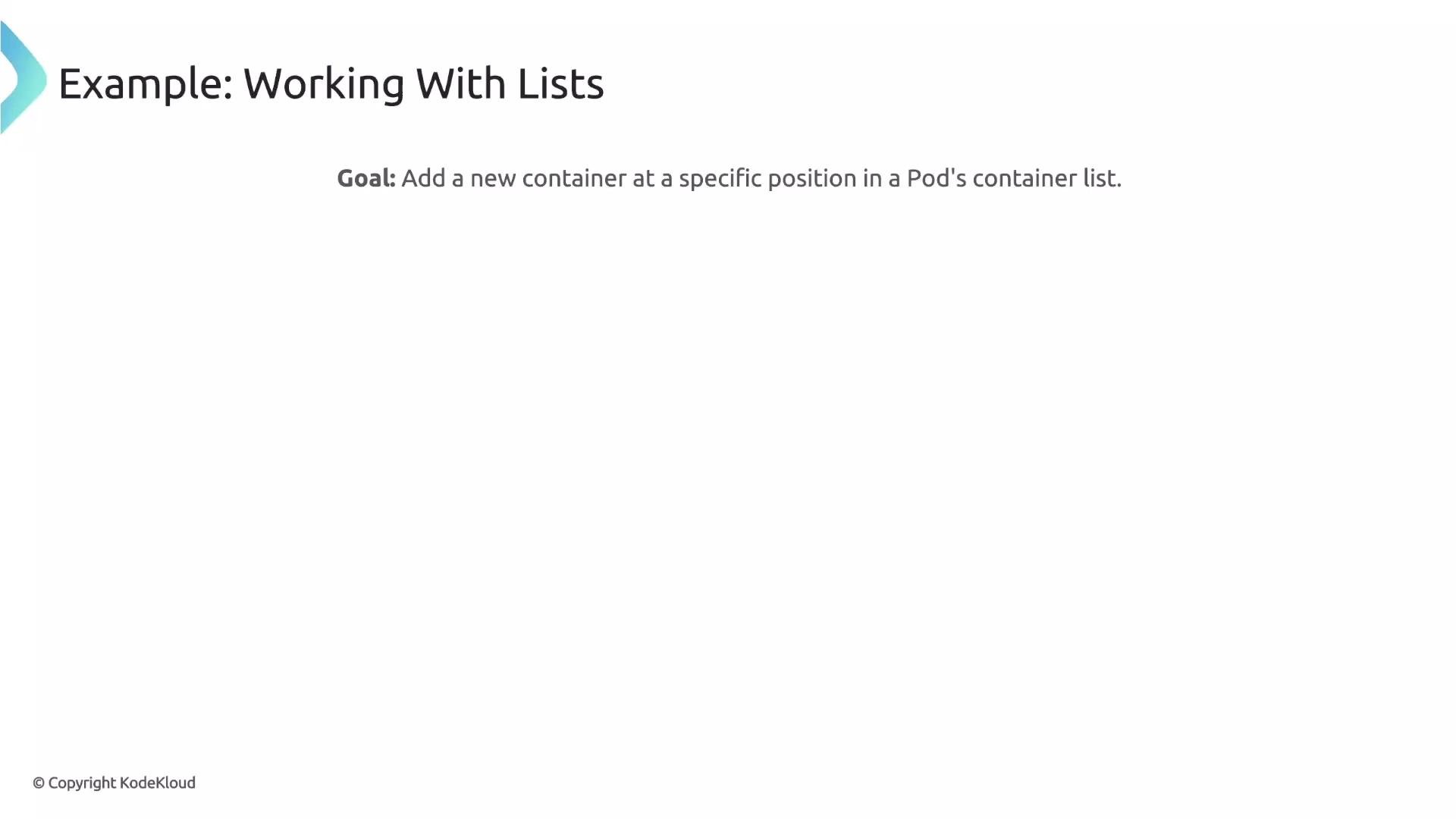

The image displays a lesson example titled "Working With Lists," focusing on the goal of adding a new container at a specific position in a Pod's container list.
Example: Insert a new container at index 1 (the second position) in a Pod’s containers list. Lists are zero-indexed, so /spec/containers/1 targets the second element:
This inserts the busybox container at position 1 and shifts existing containers at that position and beyond. Appending to the end of an array is more robust than targeting a fixed index. Use - at the end of the path to append:
Using - works whether the list is empty or already contains items and avoids errors when a specific index does not exist.

​
Handling special characters in JSON Pointer paths

Keys in Kubernetes annotations or labels may contain special characters such as / or ~. The JSON Pointer standard requires escaping:
  • ~ becomes ~0
  • / becomes ~1

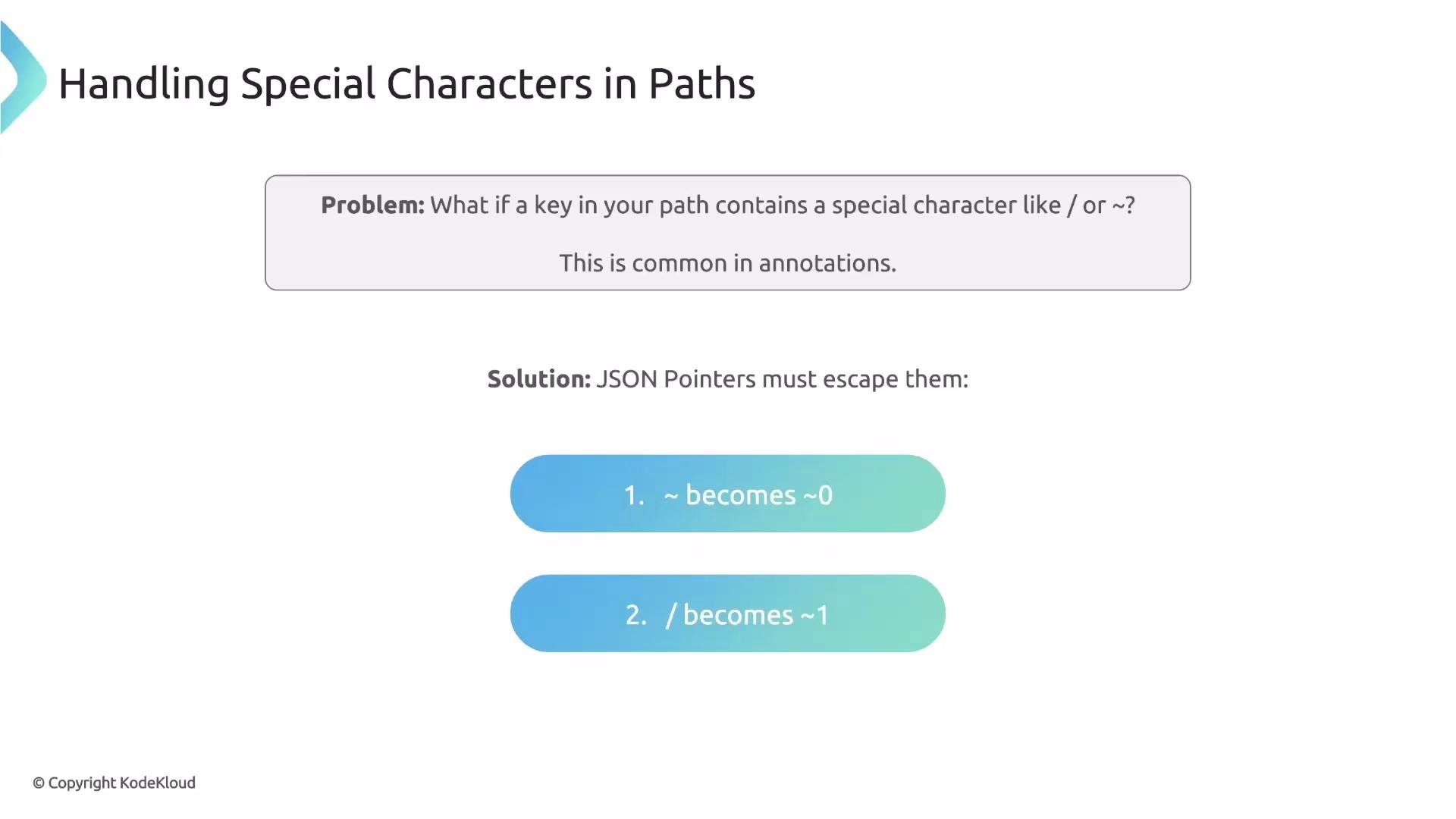

The image explains how to handle special characters in JSON paths, showing that ~ becomes ~0 and / becomes ~1.
Example: Adding a Linkerd annotation whose key contains a /:
Here the / in config.linkerd.io/skip-outbound-ports is encoded as ~1 in the JSON Pointer.
When constructing JSON Pointer paths, always escape ~ and / per RFC 6901. A wrong escape will cause the patch to target an incorrect path or fail entirely.

​
Limitations and best practices

JSON Patch is powerful for precise operations (replacing specific fields, removing labels, or inserting elements into arrays), but keep these important limitations in mind:
  • Autogen does not work for JSON patches. Because JSON Patch paths are exact, Kyverno cannot automatically translate pod-level patches to controller resources (Deployments, StatefulSets, DaemonSets, etc.). If you need to mutate pods created by controllers, write explicit rules for each controller kind.
  • Conditional anchors (inline conditions inside patch fragments) are not supported. If a patch should only apply under certain conditions, use a preconditions block at the rule level to control execution.
Best practices:
  • Prefer appending with - for arrays when possible to avoid index errors.
  • Use add when you want create-or-update behavior for object members.
  • Use replace when you must fail if the target path does not exist (safety check).
  • Test patches against representative manifests before applying them cluster-wide.

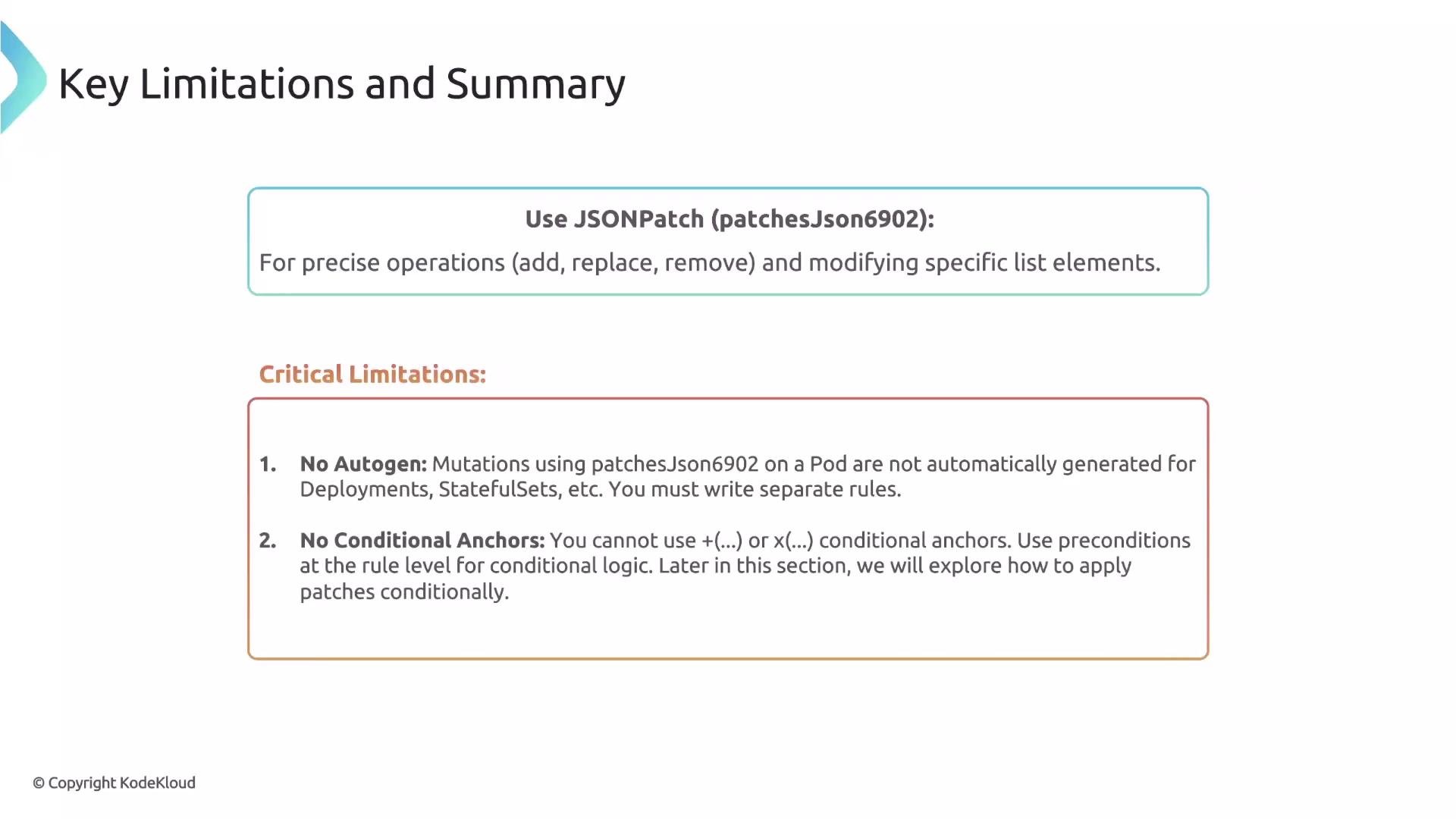

The image outlines key limitations and summary for using JSONPatch, highlighting its capability for precise operations and two critical limitations related to autogen and conditional anchors.
Remember: mutations occur before validation. Ensure your patches produce a valid final resource that will pass any subsequent validation rules.
