This guide walks through installing Istio on a Kubernetes cluster (EKS, GKE, AKS, or local clusters such as kind or Minikube). It covers the two common installation methods—istioctl and Helm—and shows how to enable sidecar injection (automatic and manual), deploy the Bookinfo sample, and validate your installation. Key topics:
  • Prerequisites
  • Downloading and configuring istioctl
  • Installing kubectl (if needed)
  • Installation profiles
  • Installing Istio with istioctl
  • Enabling automatic sidecar injection
  • Manual (offline) sidecar injection
  • Installing Istio with Helm
  • Validation and analysis
Prerequisites
RequirementWhy it’s needed
A running Kubernetes cluster and an authenticated kubeconfigIstio runs on top of Kubernetes and needs API access
kubectlTo interact with cluster resources
istioctl (or Helm)istioctl simplifies installation and validation. Helm is an alternative installer.
Always verify the istioctl client version and whether Istio pods are running. istioctl reports the client version even when Istio is not yet installed in the cluster.
Installation methods
MethodWhen to use
istioctlRecommended for single-command installs and built-in validation (istioctl install, istioctl analyze)
HelmUse when you need to integrate with existing Helm-based workflows or customize chart values at install time

​
Download istioctl (example: Istio 1.26.3)

For the Istio Service Mesh labs we use Istio 1.26.3. Download and install istioctl for that version with a single command:
# Download istioctl for version 1.26.3 (installs into a local directory)
curl -L https://istio.io/downloadIstio | ISTIO_VERSION=1.26.3 sh -
Then change into the downloaded directory and add istioctl to your PATH:
cd istio-1.26.3
export PATH=$PWD/bin:$PATH
Verify the istioctl client version:
istioctl version
Example output when Istio is not installed in the cluster:
no running Istio pods in "istio-system"
1.26.3
This output shows the istioctl client version (1.26.3) and that there are no running Istio pods in the istio-system namespace.

​
Install kubectl (if needed)

kubectl is required to manage Kubernetes resources. Example downloads for Linux:
# Linux amd64
curl -LO https://dl.k8s.io/release/v1.30.0/bin/linux/amd64/kubectl
chmod +x kubectl
sudo mv kubectl /usr/local/bin/

# Linux arm64
curl -LO https://dl.k8s.io/release/v1.30.0/bin/linux/arm64/kubectl
chmod +x kubectl
sudo mv kubectl /usr/local/bin/
On macOS you can use Homebrew (confirm the installed versions match your requirements):
brew install kubectl
brew install istioctl

​
Istio installation profiles

Istio provides multiple installation profiles (default, demo, minimal, remote, empty, preview, ambient). Each profile includes a different set of core components (istiod, ingress/egress gateways, CNI, ztunnel, etc.). For most labs we’ll use the demo profile (feature-rich, good for learning) or the ambient profile (sidecar-less ambient mesh).

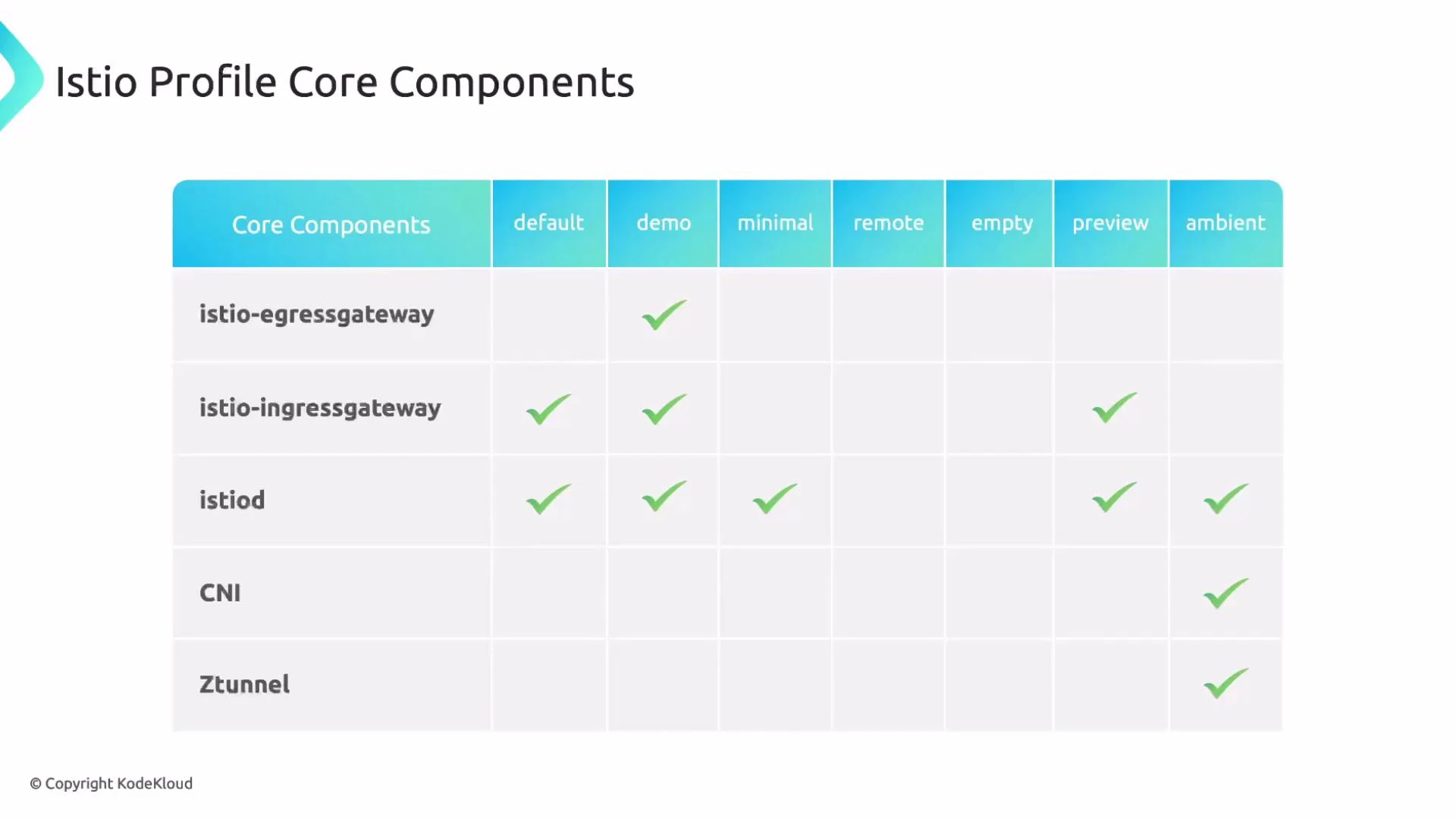

A table titled "Istio Profile Core Components" listing components like istio-egressgateway, istio-ingressgateway, istiod, CNI and Ztunnel. Green checkmarks in the grid show which components are included for each profile (default, demo, minimal, remote, empty, preview, ambient).
Quick reference: when to use each profile
ProfileUse case
demoLearning, labs, and examples (includes most components)
defaultStandard production-ready feature set
minimalSmall footprint, only essential components
ambientAmbient mesh (sidecar-less) architectures
remote / empty / previewAdvanced topologies or experimental options

​
Install Istio with istioctl

The simplest way to install Istio with the demo profile:
istioctl install --set profile=demo -y
Sample successful output:
✓ Istio core installed
✓ Istiod installed
✓ Egress gateways installed
✓ Ingress gateways installed
✓ Installation complete

Please verify that Istio is running:
  kubectl get pods -n istio-system

NAME                                     READY   STATUS    RESTARTS   AGE
istio-egressgateway-6db9994577-sn95p     1/1     Running   0          79s
istio-ingressgateway-58649bfdf4-cs4fk    1/1     Running   0          79s
istiod-dd4b7db5-nxrjv                    1/1     Running   0          111s
Note: Installing Istio adds the control plane and gateway resources to the cluster. It does not automatically inject sidecars into existing workloads unless you enable injection or redeploy those workloads.

​
Enabling automatic sidecar injection

Istio injects an Envoy sidecar container into pod definitions for classic sidecar-based deployments. To enable automatic sidecar injection for a namespace, label that namespace:
kubectl label namespace default istio-injection=enabled
Verify the label:
kubectl get ns default --show-labels
Example output:
NAME      STATUS   AGE    LABELS
default   Active   20h    istio-injection=enabled,kubernetes.io/metadata.name=default
After labeling a namespace, existing pods must be recreated (restart or reapply manifests) for the sidecar to be injected.
Note: The Ambient profile implements a sidecar-less ambient mesh. If you install Istio using the ambient profile, automatic sidecar injection (the istio-injection label) does not inject Envoy sidecars. The namespace labeling below applies to classic sidecar-based profiles such as demo or default.

​
Example: Deploy Bookinfo and observe sidecar injection

  1. Apply the Bookinfo sample (matching release-1.26):
kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-1.26/samples/bookinfo/platform/kube/bookinfo.yaml

kubectl get pods
  1. Before enabling injection you will see one container per pod (1/1):
NAME                           READY   STATUS    RESTARTS   AGE
details-v1-7c5d957895-mkflq    1/1     Running   0          8s
productpage-v1-f47f868c8-v6qdl 1/1     Running   0          7s
ratings-v1-85cf8d8647-8cqxs    1/1     Running   0          8s
reviews-v1-5fc87d67c-lpg76     1/1     Running   0          8s
reviews-v2-f6d449f65-hwtz9     1/1     Running   0          8s
reviews-v3-76f75877b9-q7d75    1/1     Running   0          8s
  1. Enable injection on the namespace:
kubectl label namespace default istio-injection=enabled
  1. Recreate the workload (restart the deployment or delete and reapply manifests). Example: delete and reapply Bookinfo:
kubectl delete -f https://raw.githubusercontent.com/istio/istio/release-1.26/samples/bookinfo/platform/kube/bookinfo.yaml

kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-1.26/samples/bookinfo/platform/kube/bookinfo.yaml

kubectl get pods
  1. After recreation you should see two containers per pod (2/2), indicating the application container plus the Istio sidecar:
NAME                                    READY   STATUS    RESTARTS   AGE
details-v1-7c5d957895-pss97             2/2     Running   0          8s
productpage-v1-f47f868c8-wtkx2          2/2     Running   0          7s
ratings-v1-85cf8d8647-tl6cr             2/2     Running   0          8s
reviews-v1-5fc87d67c-h8925              2/2     Running   0          7s
reviews-v2-f6d449f65-p4zwc              2/2     Running   0          7s
reviews-v3-76f75877b9-gn88k             2/2     Running   0          7s
Inspect a pod to confirm both containers and the istio-proxy image/version:
kubectl describe pod details-v1-7c5d957895-pss97
Example snippet from the pod description:
Containers:
  details:
    Image: docker.io/istio/examples-bookinfo-details-v1:1.20.2
    Port: 9080/TCP
    State: Running
  istio-proxy:
    Image: docker.io/istio/proxyv2:1.26.3
    Port: 15090/TCP

​
Manual (offline) sidecar injection

If you prefer not to enable automatic namespace injection, inject sidecars manually into manifests and then apply them:
wget https://raw.githubusercontent.com/istio/istio/release-1.26/samples/bookinfo/platform/kube/bookinfo.yaml

istioctl kube-inject -f bookinfo.yaml | kubectl apply -f -
Manual injection is useful for pipelines or environments where you control pod manifests before they reach the cluster.

​
Install Istio with Helm

When using Helm, install three charts in this recommended order:
  1. istio/base — cluster-wide resources (ServiceAccounts, ClusterRoles, CRDs when required)
  2. istiod — control plane
  3. istio/gateway — ingress/egress gateway(s)
Example Helm commands for Istio 1.26.3:
helm repo add istio https://istio-release.storage.googleapis.com/charts
helm repo update

helm install istio-base istio/base --namespace istio-system --version 1.26.3 --create-namespace

helm install istiod istio/istiod --namespace istio-system --version 1.26.3 --wait

helm install istio-ingress istio/gateway --namespace istio-ingress --version 1.26.3 --create-namespace --wait

helm ls -A
Sample Helm listing:
NAME          NAMESPACE     REVISION     UPDATED     STATUS     CHART          APP VERSION
istio-base    istio-system  1            ...         deployed   base-1.26.3    1.26.3
istiod        istio-system  1            ...         deployed   istiod-1.26.3  1.26.3
istio-ingress istio-ingress 1            ...         deployed   gateway-1.26.3 1.26.3
After a Helm install, the resulting cluster resources and runtime behavior are equivalent to an istioctl installation; you can inspect pods and services with kubectl.

​
Validation and analysis

Use these istioctl commands to validate and analyze Istio configuration and your installation:
# Validate an Istio YAML file
istioctl validate filename.yaml
# Verify the control plane installation
istioctl verify-install

# Analyze Istio configuration in all namespaces
istioctl analyze -A

# Or analyze a specific namespace
istioctl analyze -n default
istioctl analyze is especially helpful: it reports configuration problems, missing references, and other issues that can prevent Istio features from working correctly. Run it regularly during development and labs.
That covers the core steps for installing Istio with istioctl or Helm, enabling sidecar injection (automatic or manual), and validating your installation. Practice these commands in a terminal to become comfortable with Istio installation and troubleshooting.
