Demo Sidecars

Welcome to the Sidecars lab — the first hands-on exercise in Traffic Management. This guide preserves the original flow while clarifying steps, commands, and outcomes so you can reproduce and understand how Istio sidecars, PeerAuthentication (mTLS), and Sidecar resources interact.

Goals

Verify Istio injection labels on namespaces
Deploy the Bookinfo sample app
Observe sidecar injection behavior
Apply a PeerAuthentication (mTLS STRICT) to the default namespace and see the effect
Enable injection on a client namespace to restore connectivity
Create Sidecar resources to restrict egress for workloads and observe how workload selectors change behavior

1) Verify namespace labels and deploy Bookinfo

Confirm the default namespace has Istio injection enabled:

kubectl get ns --show-labels

Example output:

NAME              STATUS   AGE   LABELS
default           Active   4m2s  istio-injection=enabled,kubernetes.io/metadata.name=default
istio-system      Active   91s   kubernetes.io/metadata.name=istio-system
kube-node-lease   Active   4m2s  kubernetes.io/metadata.name=kube-node-lease
kube-public       Active   4m2s  kubernetes.io/metadata.name=kube-public
kube-system       Active   2m2s  kubernetes.io/metadata.name=kube-system

Apply the Bookinfo sample manifest:

kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml

You should see resources being created, e.g.:

service/details created
deployment.apps/details-v1 created
service/productpage created
deployment.apps/productpage-v1 created
# ... other services and deployments created

Check pods. Initially, some pods may show 0/2 while they initialize — those indicate the Envoy sidecar is being injected (1 container for your app + 1 for Envoy):

kubectl get pods

Example:

NAME                               READY   STATUS            RESTARTS   AGE
details-v1-65599dcf88-56xsj       2/2     Running           0          23s
productpage-v1-9487c9b5b-k91sp    2/2     Running           0          22s
ratings-v1-59b99c644-5shkc        0/2     PodInitializing   0          23s
reviews-v1-598599854-bvf9         0/2     PodInitializing   0          23s

2) Create a non-injected namespace and run a client pod

Create a new namespace test (by default it will not have the istio-injection=enabled label):

kubectl create ns test
kubectl get ns --show-labels

Example output showing test is not injected:

NAME              STATUS   AGE     LABELS
default           Active   5m11s  istio-injection=enabled,kubernetes.io/metadata.name=default
istio-system      Active   2m40s  kubernetes.io/metadata.name=istio-system
test              Active   8s     kubernetes.io/metadata.name=test

Run a simple nginx pod in the test namespace (no sidecar will be injected):

kubectl run test --image=nginx -n test
kubectl get pods -n test

Example:

NAME    READY   STATUS    RESTARTS   AGE
test    1/1     Running   0          12s

Exec into the test pod and curl the Bookinfo productpage service in the default namespace (productpage runs on port 9080):

kubectl exec -ti -n test test -- /bin/bash
# inside pod
curl --head productpage.default.svc.cluster.local:9080

You should get an HTTP 200 response proxied through Envoy, indicating the request reached Bookinfo (Envoy is the server in headers):

HTTP/1.1 200 OK
content-type: text/html; charset=utf-8
content-length: 1683
server: istio-envoy
x-envoy-upstream-service-time: 27

Note: Istio by default allows traffic to flow (so you can adopt policies later without breaking initial connectivity).

3) Apply PeerAuthentication (mTLS STRICT) in default namespace

Create a PeerAuthentication resource to enforce strict mTLS for the default namespace: peer_auth.yaml

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: default
  namespace: default
spec:
  mtls:
    mode: STRICT

Apply it:

kubectl apply -f peer_auth.yaml

Then from your non-injected test pod, try to curl productpage again:

kubectl exec -ti -n test test -- /bin/bash
# inside pod
curl --head productpage.default.svc.cluster.local:9080

You will see a failure like:

curl: (56) Recv failure: Connection reset by peer

This happens because default now requires mTLS. Only traffic routed through an Istio sidecar (Envoy) can satisfy that requirement — and the test pod currently has no sidecar.

Applying a PeerAuthentication with mtls: STRICT enforces mutual TLS for all workloads in the target namespace. Clients without an Envoy sidecar will fail to connect until they are inside an injected namespace or a policy allows plaintext.

4) Enable injection on the `test` namespace and re-run the client

Label the test namespace to enable automatic sidecar injection:

kubectl label namespace test istio-injection=enabled
kubectl get ns --show-labels

Example output:

NAME      STATUS   AGE     LABELS
test      Active   4m55s   istio-injection=enabled,kubernetes.io/metadata.name=test
default   Active   9m58s   istio-injection=enabled,kubernetes.io/metadata.name=default

Delete and recreate the test pod (or simply delete it and let the controller recreate it) so the sidecar gets injected:

kubectl delete pod -n test test
kubectl run test --image=nginx -n test
kubectl get pods -n test

You should now see 1/2 or 2/2 as the pod becomes injected and ready (1 app container + 1 envoy) — e.g. 1/2 then 2/2. Exec into the test pod and curl again:

kubectl exec -ti -n test test -- /bin/bash
# inside pod
curl --head productpage.default.svc.cluster.local:9080

Now the request should succeed because the Envoy sidecar on the client pod performs mTLS with the server sidecar. Example response:

HTTP/1.1 200 OK
content-type: text/html; charset=utf-8
content-length: 1683
server: envoy
x-envoy-upstream-service-time: 21

5) Introduce a Sidecar resource to restrict egress

A Sidecar resource allows you to restrict egress (outbound) and ingress for sidecars in a namespace or for selected workloads. Create a Sidecar that restricts egress to itself and the istio-system namespace: sidecar_default_namespace.yaml

apiVersion: networking.istio.io/v1
kind: Sidecar
metadata:
  name: default
  namespace: test
spec:
  egress:
  - hosts:
    - "./*"
    - "istio-system/*"

Apply it:

kubectl apply -f sidecar_default_namespace.yaml

Now exec into the test pod and try curling productpage (in default namespace):

kubectl exec -ti -n test test -- /bin/bash
# inside pod
curl --head productpage.default.svc:9080

You may see:

curl: (52) Empty reply from server

Why? Because the Sidecar resource limited egress to only workloads in the same namespace (./*) and istio-system/*. The default namespace is not allowed, so traffic to default is blocked.

Allow the `default` namespace in the Sidecar

Update the Sidecar to permit default/* as well: sidecar_default_namespace.yaml (updated)

apiVersion: networking.istio.io/v1
kind: Sidecar
metadata:
  name: default
  namespace: test
spec:
  egress:
  - hosts:
    - "./*"
    - "default/*"
    - "istio-system/*"

Apply and retry; the curl should return HTTP 200 again.

6) Restrict only selected workloads via workloadSelector

You can target only specific workloads (pods) in the namespace using workloadSelector and labels. Example: restrict egress for workloads labeled run=test: sidecar_default_namespace.yaml (workload-scoped)

apiVersion: networking.istio.io/v1
kind: Sidecar
metadata:
  name: default
  namespace: test
spec:
  workloadSelector:
    labels:
      run: test
  egress:
  - hosts:
    - "./*"
    - "istio-system/*"

Apply this configuration:

kubectl apply -f sidecar_default_namespace.yaml

Effect:

Pods in the test namespace with label run=test will be limited to ./* and istio-system/* — they cannot access default/*.
Other pods in the same namespace (for example, a pod labeled run=nginx) will not be affected and can still access default/* (unless another Sidecar matches them).

Demonstration:

Create another pod in test named nginx (default label will be run=nginx).
kubectl exec into nginx and curl productpage — it will succeed.
kubectl exec into the test pod (run=test) and curl productpage — it will fail with Empty reply from server.

This shows how Sidecars with workloadSelector allow per-workload egress control.

Sidecar quick reference

Field	Description	Example
`metadata.name`	Name of the Sidecar resource	`default`
`metadata.namespace`	Namespace where the Sidecar applies	`test`
`spec.egress`	List of allowed egress hosts (namespace/workload)	`["./", "default/", "istio-system/*"]`
`spec.workloadSelector`	Optional selector to target specific workloads by labels	`labels: { run: test }`
`spec.ingress`	Optional inbound ports/protocols and `defaultEndpoint` for UDS	See Istio docs

Useful commands summary

# List namespaces and labels
kubectl get ns --show-labels

# Deploy Bookinfo (example)
kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-1.11/samples/bookinfo/platform/kube/bookinfo.yaml

# Create namespace
kubectl create ns test

# Label namespace for injection
kubectl label namespace test istio-injection=enabled

# Create a test pod
kubectl run test --image=nginx -n test

# Exec into pod
kubectl exec -ti -n test test -- /bin/bash

# Curl productpage from pod
curl --head productpage.default.svc.cluster.local:9080

# Apply PeerAuthentication
kubectl apply -f peer_auth.yaml

# Apply Sidecar
kubectl apply -f sidecar_default_namespace.yaml

References and further reading

Helpful resources:

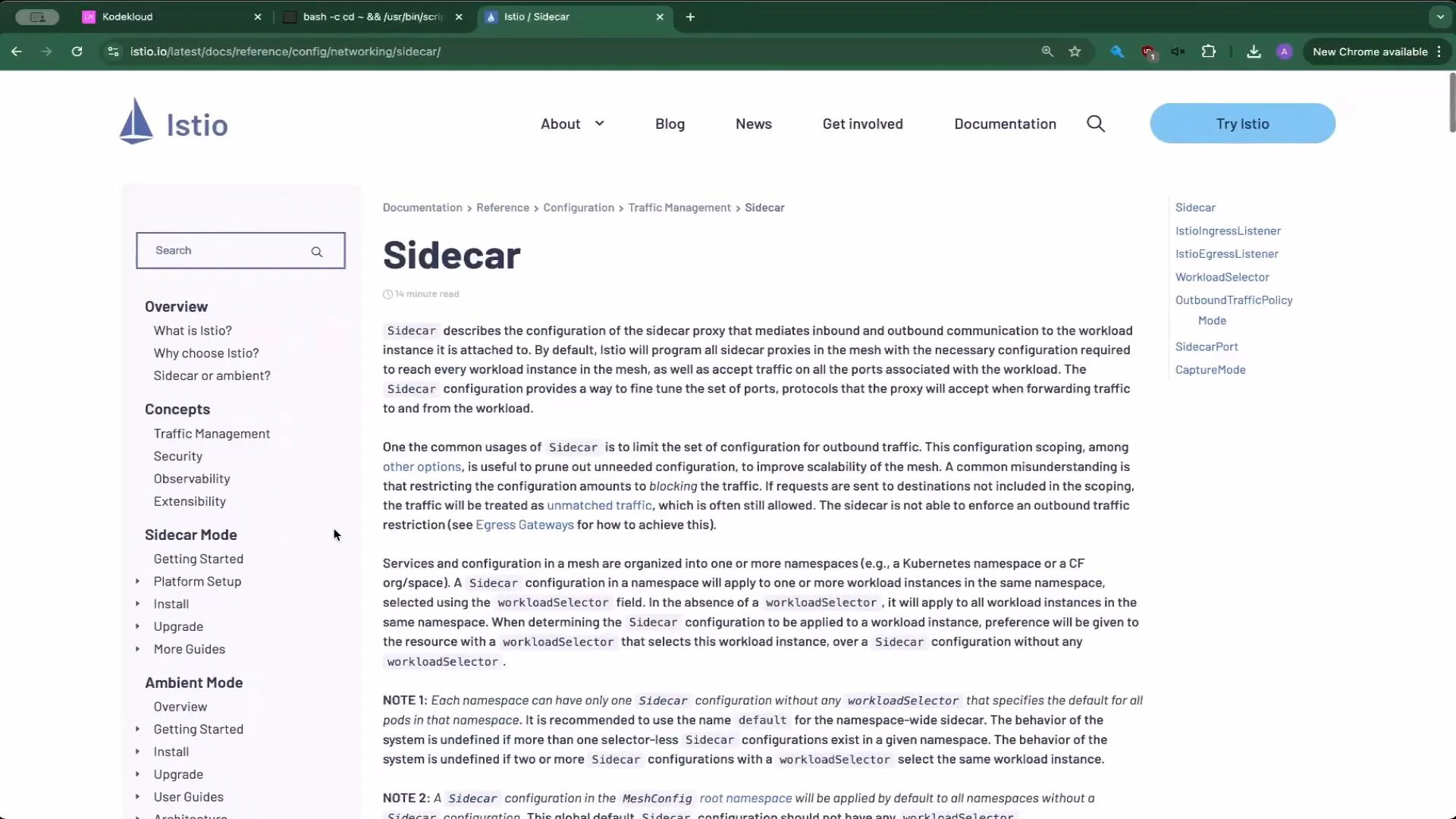

Istio Sidecar reference: https://istio.io/latest/docs/reference/config/networking/sidecar/
Istio PeerAuthentication reference: https://istio.io/latest/docs/reference/config/security/peer_authentication/

Wrap-up

Applying a PeerAuthentication with mtls: STRICT enforces mutual TLS and requires clients to use sidecars for encryption.
Enabling istio-injection=enabled on a namespace ensures sidecars are injected into pods and allows them to participate in mTLS.
Sidecar resources allow fine-grained egress and ingress control at namespace or workload level using egress, ingress, and workloadSelector.
Use the Istio docs to copy Sidecar/PeerAuth examples rather than typing them during troubleshooting or exams.

Next up: VirtualServices and traffic routing.
