This lesson explains what a service mesh is using a simple classroom analogy to illustrate the problems it solves and how it works in microservice environments. Imagine you’re back in elementary school, sitting at your desk while the teacher talks. Many of us wanted to pass private notes to friends. Before smartphones, paper notes were the simplest way to send a private message. A typical note contains a subject, a message, a timestamp, and the sender and receiver. Passing a note directly between two people is simple. With three people, the middle person can forward the note without much trouble. Now imagine delivering a note from the third student in the first row to the third student in the fifth row. The note must travel through many hands, and several issues can arise:
  • How long will delivery take?
  • What if the note is lost or dropped?
  • What happens if the reply fails?
  • What if a student refuses to pass the note?
  • How do you ensure no one else reads the note before it reaches the intended receiver?
  • What if a teacher catches you?
These concerns grow when moving between different classrooms or buildings.

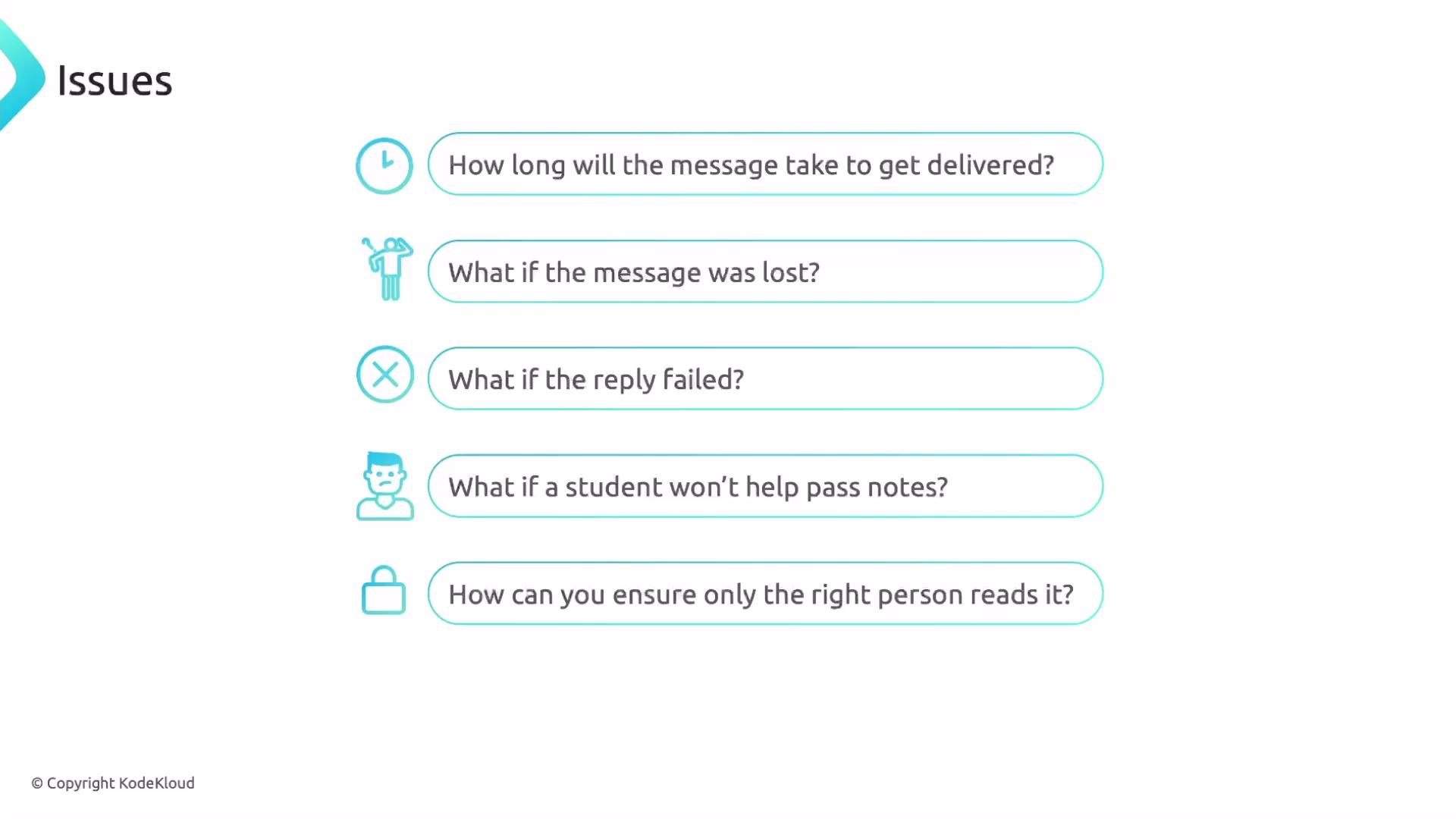

A slide titled "Issues" listing concerns about message delivery — e.g., how long delivery takes, lost messages, reply failures, uncooperative students passing notes, and ensuring only the right person reads it. Each issue is shown in a turquoise rounded textbox with a small icon.
A service mesh solves these problems. Think of a service mesh as a classroom assistant that organizes, secures, and tracks the notes being passed around. If student A wants to send a note to student C, A gives the note to the assistant. The assistant ensures delivery, handles forwarding, and prevents others from reading the note while it’s in transit. This assistant can operate within a single class, across multiple classes, or across buildings — each class (service) can have its own assistant that coordinates communication for its students (service instances).

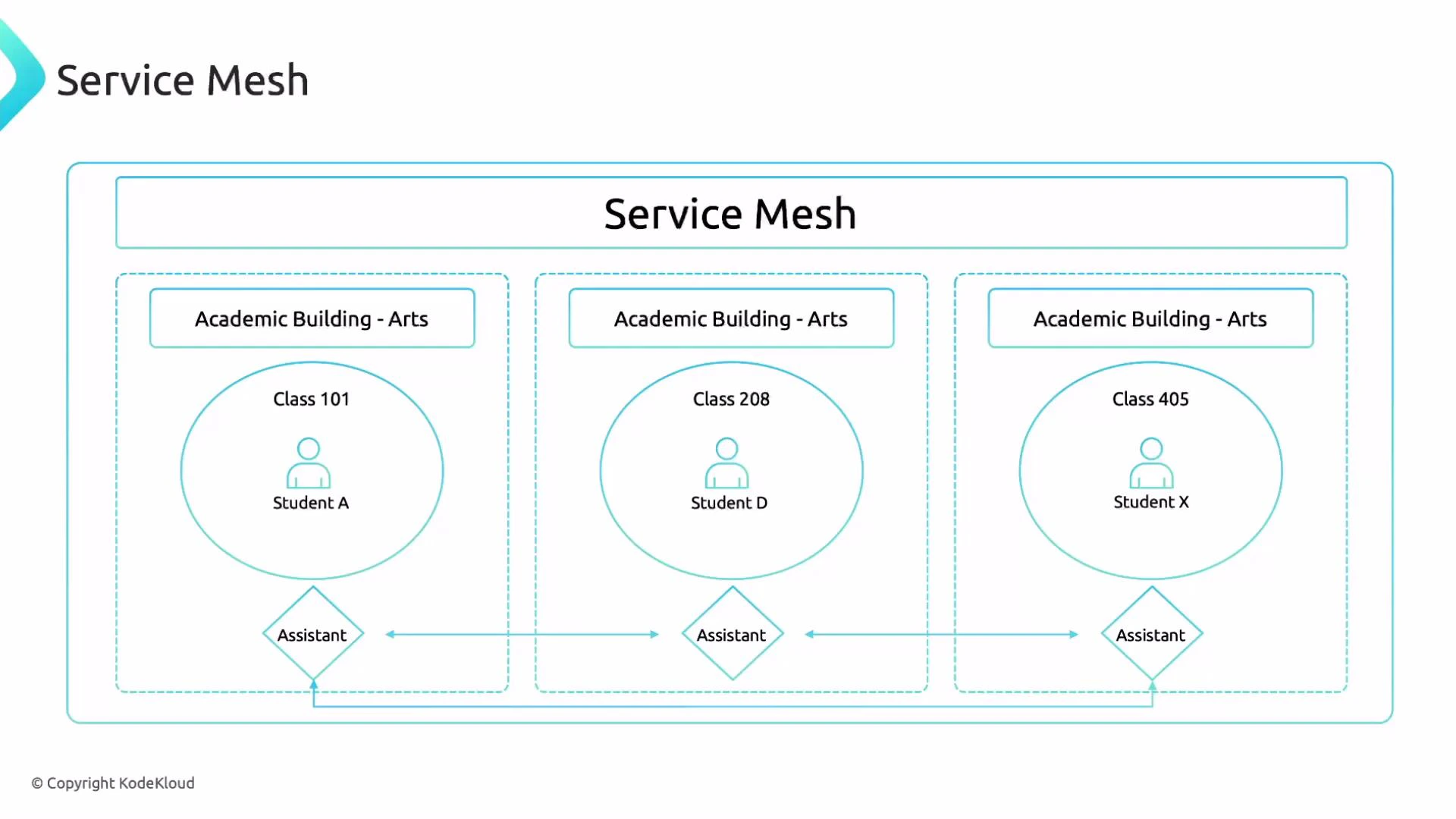

A diagram titled "Service Mesh" showing three side-by-side Academic Building - Arts sections, each containing a class circle with a student icon and class number. Diamonds labeled "Assistant" sit below each class and are connected by arrows indicating interactions between them.
Why a service mesh matters (summary):
  • Ensures privacy and secure delivery between parties.
  • Reduces message loss using retries, timeouts, and failure handling.
  • Provides observability by logging and tracing traffic.
  • Handles absent recipients, uncooperative intermediaries, and routing policies.
How it works in microservices In modern microservice architectures, these “assistants” are implemented as lightweight proxies called sidecars that run alongside application instances. Sidecars intercept and manage network communication, so developers focus on business logic while the mesh handles security, routing, retries, observability, and telemetry.

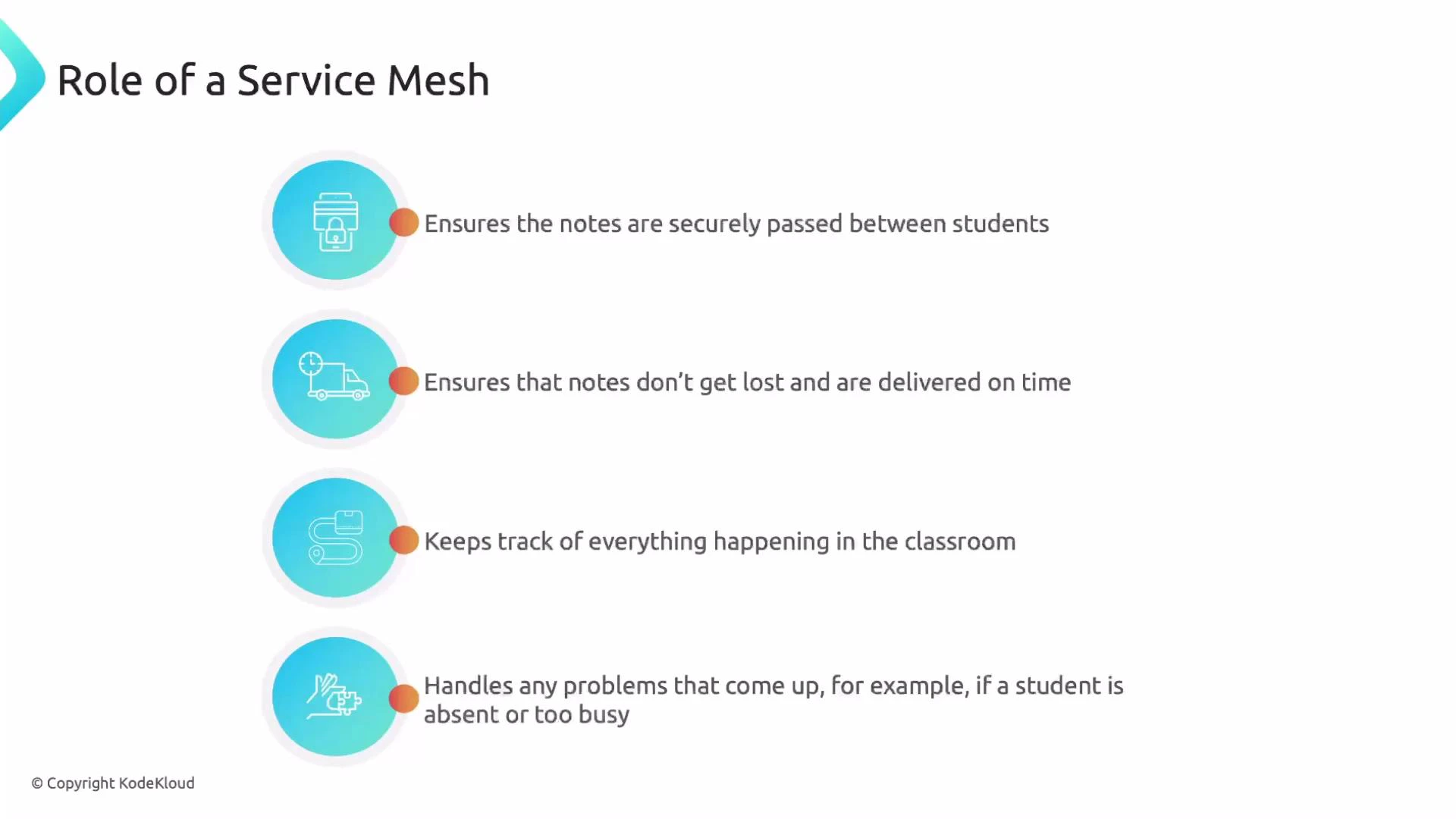

A slide titled "Role of a Service Mesh" showing four turquoise icon bullets with short descriptions comparing a service mesh to securely passing notes, ensuring timely delivery, tracking classroom activity, and handling problems like absences. The slide includes a small "© Copyright KodeKloud" notice at the bottom.
Common service-mesh implementations Below is a concise comparison of popular service meshes, their focus, and typical use cases.
ImplementationKey characteristicBest for / Notes
Istio (feature-rich)Full control plane, advanced policy and telemetryEnterprises that need RBAC, mTLS, rich observability and traffic management. Install example: istioctl install
LinkerdLightweight, focused on simplicity and performanceTeams prioritizing low latency and simple operation
CiliumeBPF-based, can implement networking in kernel (can be sidecarless)Environments wanting kernel-level networking & security with high performance
Traefik MeshSimple, developer-friendlySmall teams or projects prioritizing ease of use
Consul (HashiCorp)Service discovery + meshOrganizations using Consul for service discovery and configuration
AWS App MeshManaged mesh for AWSAWS-native environments that prefer managed control planes
NGINX Service Mesh / NGINX PlusNGINX-based proxyingTeams that already use NGINX for ingress or reverse proxying
A slide titled "Options" showing logos of service-mesh technologies. It includes Istio, Linkerd, Cilium, Traefik, Consul, AWS App Mesh and Nginx Service Mesh.
Notes on adoption and architecture
  • Feature-rich meshes (e.g., Istio) are widely adopted in enterprise environments where fine-grained policy, observability, and traffic control are required.
  • Linkerd is widely used where low overhead and simplicity are priorities.
  • Cilium’s eBPF approach reduces the need for per-pod sidecars for many networking and security features, enabling kernel-level enforcement and performance gains.
  • The service mesh market is growing rapidly. As organizations adopt distributed systems and microservices, demand for mesh skills and tools is increasing.
A service mesh provides operational primitives — security (mTLS), reliability (retries/timeouts), and observability (metrics/traces/logs) — so developers can build features without embedding infrastructure code into services.
Introducing a service mesh adds components and complexity (control plane, sidecars, policies). Plan for operational overhead: resource usage, configuration management, and security guarantees (e.g., certificate rotation for mTLS).
Quick reference and next steps Adopting a service mesh is a key step in modern cloud-native architecture: it centralizes cross-cutting concerns for service-to-service communication and frees application teams to focus on delivering business value.
