Demo Deploying Iris Trained Model on KServe

This guide shows how to run KServe locally on a Kind cluster and deploy a pre-trained scikit-learn Iris model. Step-by-step you’ll: confirm prerequisites, create a Kind cluster, install KServe, create an InferenceService, and test the model via kubectl port-forward.

Prerequisites (local)

Install the following CLI tools on your workstation:

Tool	Purpose	Install / Check
Docker	Container runtime (Docker Desktop recommended)	`docker --version`
kubectl	Kubernetes CLI (client)	`kubectl version --client` — on macOS: `brew install kubectl`
kind	Local Kubernetes (Kubernetes IN Docker)	`kind version` — on macOS: `brew install kind`

Quick checks:

# Docker
docker --version

# kubectl (client only)
kubectl version --client

# kind version
kind version

If you run into permission errors with Docker on Linux, ensure your user is in the docker group or use sudo for commands that need elevated privileges.

Create a local Kind cluster

Create a cluster with a default configuration:

kind create cluster

Example condensed output:

$ kind create cluster
Creating cluster "kind" ...
✅ Ensuring node image (kindest/node:v1.37.0) 🖼️
✅ Preparing nodes 📦
✅ Writing configuration 📜
✅ Starting control-plane 🕹️
✅ Installing CNI 🔧
✅ Installing StorageClass 💾
Set kubectl context to "kind-kind"
You can now use your cluster with:

kubectl cluster-info --context kind-kind

Verify the node(s):

kubectl get nodes

Expected output:

NAME                 STATUS   ROLES           AGE   VERSION
kind-control-plane   Ready    control-plane   33s   v1.37.0

Install KServe

KServe adds a CustomResourceDefinition (CRD) InferenceService and a controller that manages serving resources. Install the KServe release used in this demo:

curl -sL \
"https://github.com/kserve/kserve/releases/download/v0.20.0/kserve-standard-mode-full-install-with-manifests.sh" \
| bash

Verify the CRD is installed:

kubectl get crd | grep inferenceservice

Expected output:

inferenceservices.serving.kserve.io   Namespaced   v1beta1(storage)

A CRD extends Kubernetes with new resource types. Here, InferenceService lets KServe translate a high-level serving spec into Deployments, Services, and other Kubernetes resources for you.

Create a namespace for the demo

Use a dedicated namespace to keep demo resources isolated:

kubectl create namespace kserve-test

Deploy the Iris InferenceService

Create an iris.yaml with this InferenceService spec:

apiVersion: serving.kserve.io/v1beta1
kind: InferenceService
metadata:
  name: sklearn-iris
spec:
  predictor:
    model:
      modelFormat:
        name: sklearn
      storageUri: gs://kfserving-examples/models/sklearn/1.0/model

Apply it in the kserve-test namespace:

kubectl apply -n kserve-test -f iris.yaml

Verify the InferenceService:

kubectl get inferenceservice -n kserve-test

Sample output:

NAME          URL                                          READY   AGE
sklearn-iris  http://sklearn-iris-kserve-test.example.com  True    2m24s

KServe runtime and resources

KServe controller watches InferenceService CRs and creates the required resources (Deployments, Services, etc.). Check pods and services that KServe provisioned:

kubectl get pods -n kserve-test
kubectl get svc -n kserve-test

Example pods output:

NAME                                      READY   STATUS    RESTARTS   AGE
sklearn-iris-predictor-8489884bc5-4c5pm   1/1     Running   0          4m31s

Example services output:

NAME                     TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)
sklearn-iris-predictor   ClusterIP   10.96.201.53    <none>        80/TCP

Test the model (port-forward + curl)

Because ClusterIP services are only accessible inside the cluster, use kubectl port-forward to expose the predictor service on localhost for local testing. Start port-forwarding (run in one terminal):

kubectl port-forward -n kserve-test svc/sklearn-iris-predictor 8080:80

You should see:

Forwarding from 127.0.0.1:8080 -> 8080
Forwarding from [::1]:8080 -> 8080

Prepare the input file iris-input.json with two instances:

{
  "instances": [
    [6.8, 2.8, 4.8, 1.4],
    [6.0, 3.4, 4.5, 1.6]
  ]
}

From another terminal, call the model:

curl -X POST \
  -H "Content-Type: application/json" \
  http://localhost:8080/v1/models/sklearn-iris:predict \
  -d @iris-input.json

Expected response:

{
  "predictions": [1, 1]
}

Interpretation: 1 typically corresponds to the Versicolor class (class mapping depends on the trained model; commonly 0 = Setosa, 1 = Versicolor, 2 = Virginica).

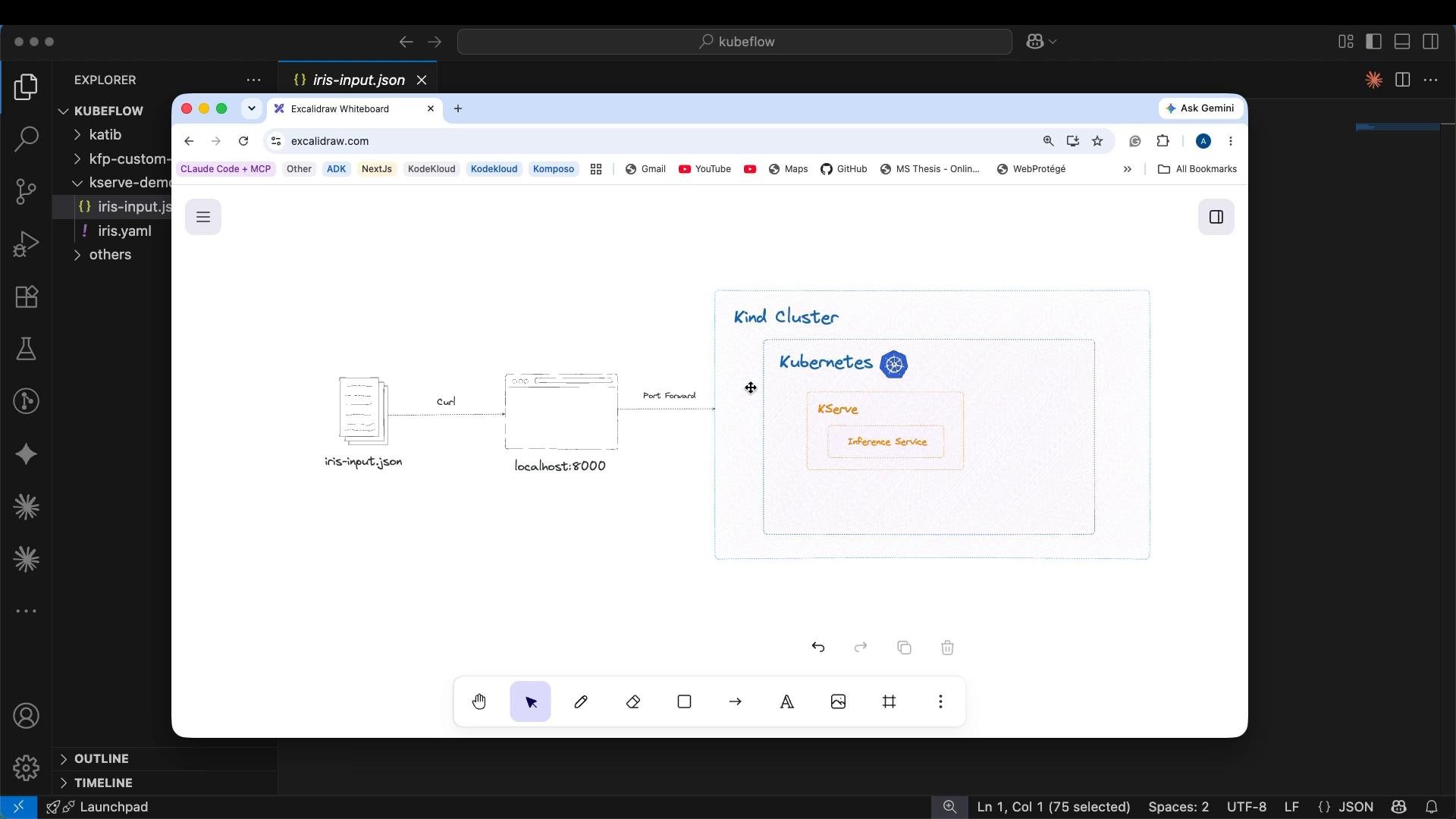

A screenshot of a browser-based Excalidraw diagram inside a code editor. The diagram shows iris-input.json being curl'ed to localhost:8000 which is port-forwarded into a Kind Kubernetes cluster running KServe with an inference service.

Summary of the request flow

Your curl targets localhost:8080, where kubectl port-forward exposes the predictor Service.
The ClusterIP Service routes the request to the predictor pod(s).
The KServe controller created those pods and the Service from the InferenceService spec.
The predictor runtime (scikit-learn server) returns the JSON predictions.

Next steps & tips

Expose an InferenceService externally for production using an Ingress, LoadBalancer, or NodePort depending on your cluster environment (this demo uses port-forward for local testing).
Inspect KServe controller logs if resources fail to come up:
- kubectl logs -n kserve-system deploy/kserve-controller
Customize the InferenceService spec to set resources, replicas, or advanced runtime settings for production workloads.
For more details, refer to the KServe docs: https://kserve.github.io

Avoid exposing models directly to the public without proper authentication, rate limiting, and monitoring. Use ingress authentication or API gateways in production.

This completes the basic demo of deploying an Iris-trained scikit-learn model using KServe on a local Kind cluster.
