Demo Passing Data Between Components Artifacts

In this lesson you’ll learn how to pass files and structured data between Kubeflow Pipelines components using artifacts. Artifacts are the recommended mechanism when you need to exchange datasets, trained models, or other files that are larger or structured. For small scalar values, pipeline parameters still make sense. This guide demonstrates a simple, end‑to‑end pipeline that uses artifacts to move:

a CSV dataset,
a processed CSV,
a pickled model file,
and logged metrics.

The typical flow in the example pipeline below is:

retrieve_data — generate and write a CSV dataset (artifact).
preprocess_data — read the CSV, add a feature, write a processed CSV.
train_model — read the processed CSV, train a trivial model, write a pickled model artifact.
evaluate_model — read the pickled model, compute and log a metric.

Use artifacts whenever you need to exchange files or structured data between components. Inside a component the artifact location is available via the .path attribute on Input[...] and Output[...] typed arguments.

When to use artifacts vs parameters:

Use artifacts for files, datasets, models, and any structured or large content.
Use parameters for scalars (strings, numbers, booleans) and small configuration values.

Quick reference table for commonly used artifact types:

Artifact Type	Typical use case	Example declaration
Dataset	CSVs, parquet, data files	`output_data: Output[Dataset]`
Model	Serialized model files (pickle, savedmodel)	`model: Output[Model]`
Metrics	Logging metrics for UI visualization	`metrics: Output[Metrics]`
Input counterpart	Read artifacts produced by upstream tasks	`raw_data: Input[Dataset]`

Complete example pipeline Below is a complete, cleaned example implementing the pipeline described above. Save it as pipeline_artifact.py and compile to YAML to upload to the Kubeflow Pipelines UI.

# pipeline_artifact.py
from kfp import compiler
from kfp.dsl import component, pipeline, Output, Input, Dataset, Model, Metrics

@component(
    packages_to_install=["pandas"]
)
def retrieve_data(output_data: Output[Dataset]):
    """Generate a small dataframe and write it to output_data.path as CSV."""
    import pandas as pd

    df = pd.DataFrame({
        "x": [1, 2, 3, 4, 5],
        "y": [2, 4, 6, 8, 10]
    })
    # Write CSV to the provided artifact location
    df.to_csv(output_data.path, index=False)


@component(
    packages_to_install=["pandas"]
)
def preprocess_data(raw_data: Input[Dataset], processed_data: Output[Dataset]):
    """Read raw CSV from raw_data.path, add a feature, and write processed CSV."""
    import pandas as pd

    df = pd.read_csv(raw_data.path)

    # Simple "feature engineering"
    df["x_squared"] = df["x"] ** 2

    # Write processed CSV to the provided artifact location
    df.to_csv(processed_data.path, index=False)


@component(
    packages_to_install=["pandas"]
)
def train_model(training_data: Input[Dataset], model: Output[Model]):
    """
    Read processed CSV from training_data.path, compute a trivial model (a coefficient),
    and serialize it to model.path as a pickle file.
    """
    import pandas as pd
    import pickle

    df = pd.read_csv(training_data.path)

    # "Training": learn a single coefficient (simple example)
    coef = (df["y"] / df["x"]).mean()

    # Save the model (a dict in this toy example) to the model artifact location
    with open(model.path, "wb") as f:
        pickle.dump({"coef": float(coef)}, f)


@component(
    packages_to_install=[]
)
def evaluate_model(model: Input[Model], metrics: Output[Metrics]):
    """
    Load the pickled model from model.path, compute a dummy accuracy, and log it.
    """
    import pickle

    with open(model.path, "rb") as f:
        model_data = pickle.load(f)

    coef = model_data["coef"]

    # Dummy evaluation: accuracy depends on coef value (illustrative only)
    accuracy = 1.0 if coef == 2.0 else 0.9

    # Log the metric so it appears in the Kubeflow UI
    metrics.log_metric("accuracy", accuracy)


@pipeline(name="dummy-artifact-pipeline")
def dummy_pipeline():
    # 1) Retrieve raw data
    data_task = retrieve_data()

    # 2) Preprocess: pass the 'output_data' artifact from retrieve_data to preprocess_data
    preprocess_task = preprocess_data(raw_data=data_task.outputs["output_data"])

    # 3) Train: pass the 'processed_data' artifact from preprocess_task to train_model
    train_task = train_model(training_data=preprocess_task.outputs["processed_data"])

    # 4) Evaluate: pass the 'model' artifact from train_task to evaluate_model
    evaluate_model(model=train_task.outputs["model"])


if __name__ == "__main__":
    # Compile to a YAML file you can upload to the Kubeflow Pipelines UI
    compiler.Compiler().compile(pipeline_func=dummy_pipeline,
                                package_path="artifact_pipeline.yaml")

Key implementation details and patterns

Declare artifact inputs and outputs as typed function arguments:
- Example outputs: output_data: Output[Dataset], model: Output[Model], metrics: Output[Metrics]
- Example inputs: raw_data: Input[Dataset], training_data: Input[Dataset], model: Input[Model]
Use the .path attribute inside the component to read/write the artifact contents:
- Write CSV: df.to_csv(processed_data.path, index=False)
- Read CSV: df = pd.read_csv(raw_data.path)
- Save model: with open(model.path, "wb") as f: pickle.dump(..., f)
- Load model: with open(model.path, "rb") as f: model_data = pickle.load(f)
Wire components in the pipeline by referencing a producer task’s outputs by name:
- preprocess_data(raw_data=data_task.outputs["output_data"])
- train_model(training_data=preprocess_task.outputs["processed_data"])
- evaluate_model(model=train_task.outputs["model"])

Avoid passing large files as parameters. Parameters are for small scalar values — use Input[...] / Output[...] artifacts for files and structured data to prevent serialization and size issues.

Compile, upload, and inspect

Compile the pipeline: python pipeline_artifact.py will generate artifact_pipeline.yaml.
Upload artifact_pipeline.yaml to the Kubeflow Pipelines UI and run the pipeline.
In the UI you can inspect:
- Input/output artifacts for each task,
- Object storage locations (e.g., MinIO),
- Previews of supported artifact types,
- Logged metrics such as accuracy.

You should see artifacts in the run UI for the original CSV, the processed CSV (with x_squared), the pickled model file, and the metrics output.

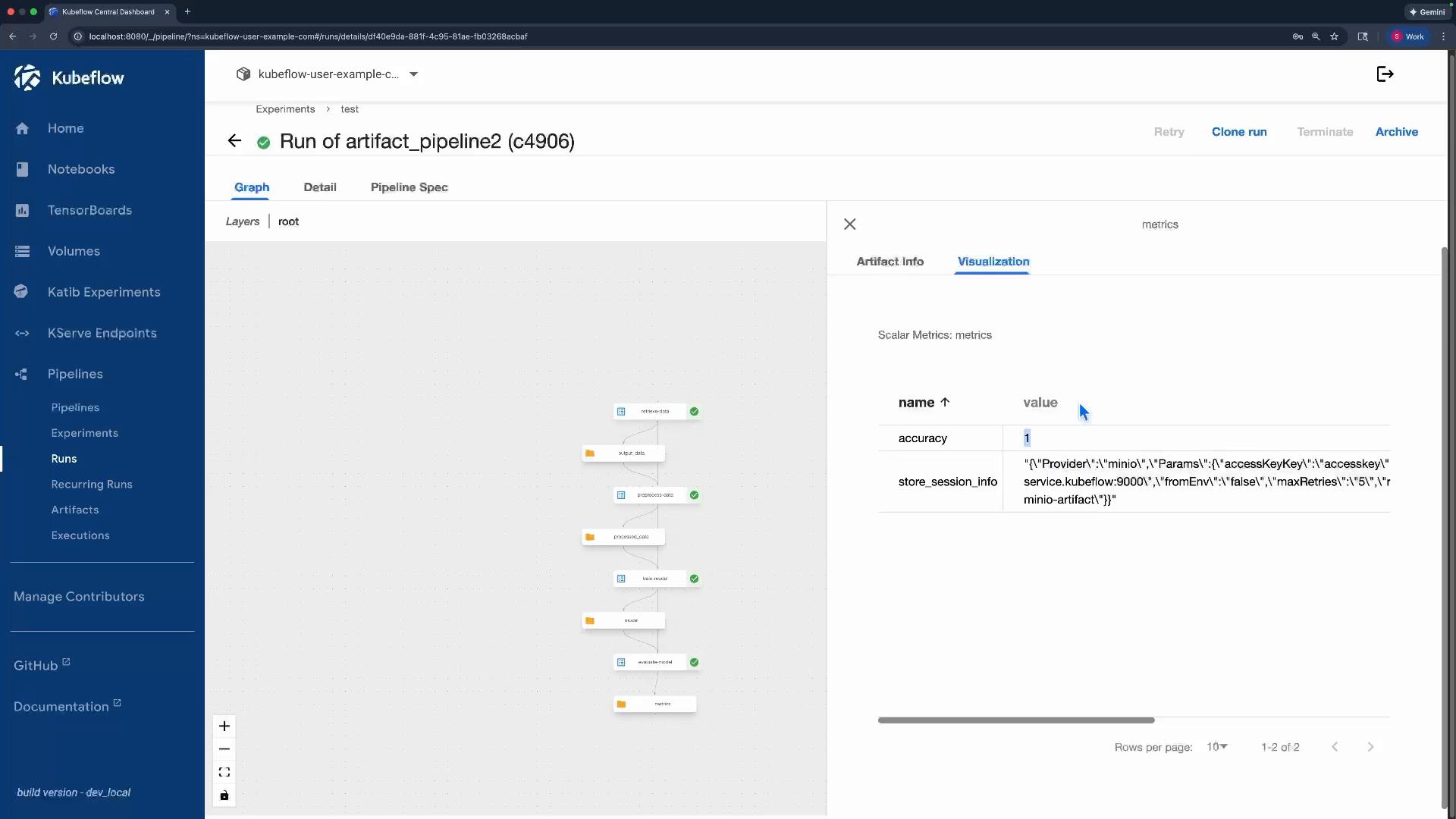

A screenshot of the Kubeflow Central Dashboard showing a pipeline run graph on the left and an Artifact Visualization panel on the right. The panel lists scalar metrics including "accuracy" with a value of 1.

Links and references

Kubeflow Pipelines documentation
MinIO (object storage example)
KFP SDK: component, pipeline, Input/Output typing patterns (see the Kubeflow Pipelines SDK docs)
