Pipeline Control Flow

This lesson covers control flow patterns in Kubeflow Pipelines (KFP): conditional execution (If / Else) and parallel execution with result aggregation (ParallelFor + Collected). These primitives let you build robust ML pipelines that make decisions (promote or notify) and scale tasks (hyperparameter sweeps) while keeping downstream logic simple.

Conditional execution (If / Else)

Use conditional blocks when some pipeline stages should only run when a condition is met. A typical example: after training and evaluation, register and deploy a model only if its evaluation accuracy meets a threshold; otherwise, notify the team of failure. The example below demonstrates this pattern. It assumes the components train_model, evaluate_model, register_model, deploy_model, and notify_failure are available in your environment.

from kfp.dsl import pipeline, component, If, Else

@pipeline(name="conditional-model-promotion")
def ml_pipeline(accuracy_threshold: float = 0.90):
    train_task = train_model()
    eval_task = evaluate_model(
        model=train_task.outputs["model"]
    )

    # If accuracy meets threshold, register & deploy; otherwise notify failure
    with If(eval_task.outputs["accuracy"] >= accuracy_threshold):
        register_task = register_model(
            model=train_task.outputs["model"],
            accuracy=eval_task.outputs["accuracy"]
        )
        deploy_model(
            model=register_task.outputs["registered_model"]
        )

    with Else():
        notify_failure(
            accuracy=eval_task.outputs["accuracy"]
        )

How it works:

train_model() runs first, producing a model output.
evaluate_model() consumes that model and produces an accuracy output.
The If block checks eval_task.outputs["accuracy"] against accuracy_threshold. If true, register_model and deploy_model run. If false, the Else block runs notify_failure.

Make sure your components expose the output names you reference (for example: "model", "accuracy", "registered_model"). The If / Else control flow evaluates expressions based on component outputs.

Parallel runs and collecting results (ParallelFor / Collected)

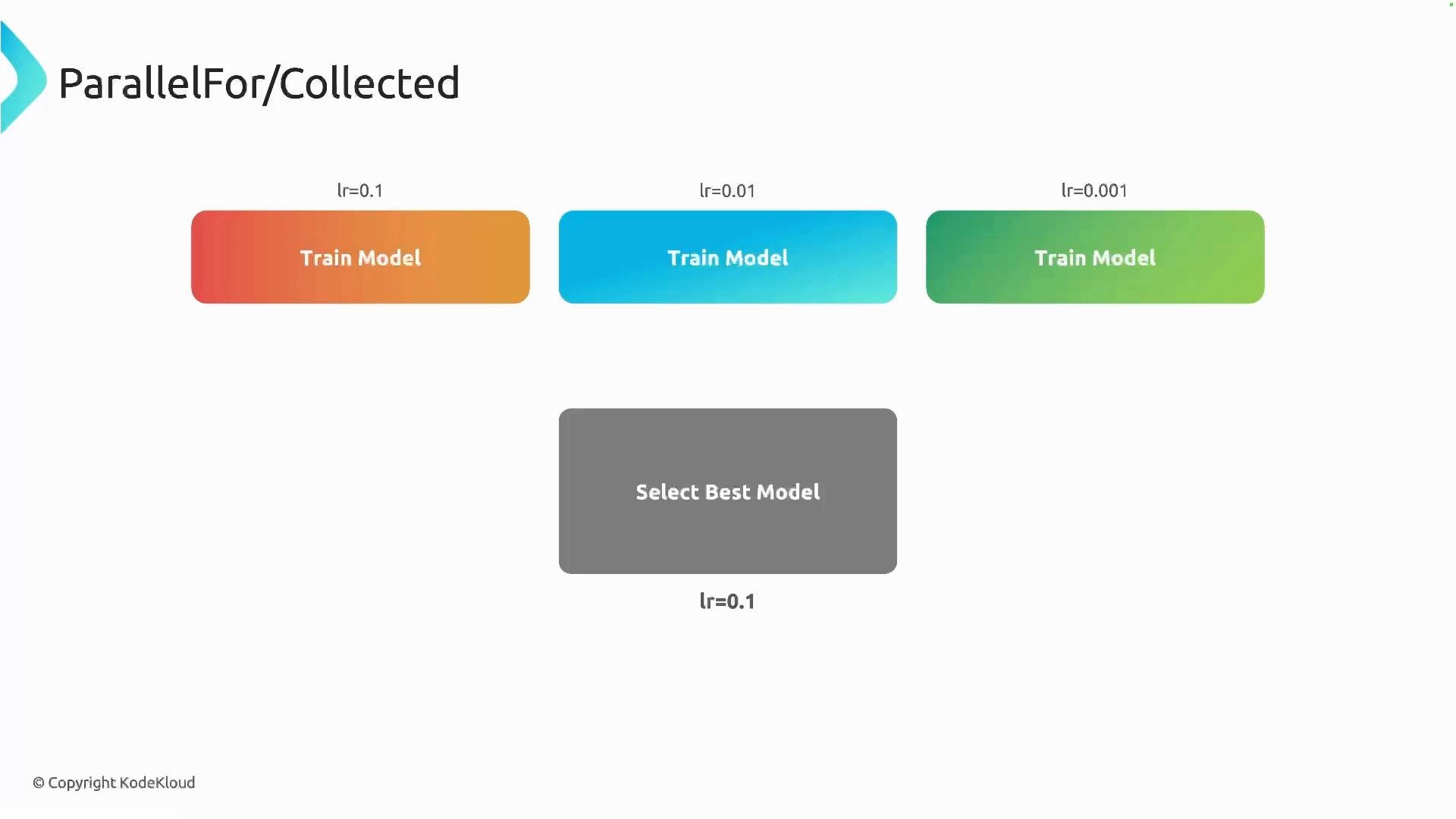

ParallelFor runs the same component multiple times (one iteration per input value) and Collected aggregates simple outputs (scalars, small JSON-serializable values) across those parallel iterations. This pattern is ideal for hyperparameter sweeps and parameter search. The diagram below illustrates running the “Train Model” component three times with different learning rates, then passing results to a “Select Best Model” component.

A slide titled "ParallelFor/Collected" showing three colored rounded boxes labeled "Train Model" with learning rates lr=0.1, lr=0.01, and lr=0.001, and a gray rounded box below labeled "Select Best Model." The slide has a © KodeKloud mark in the corner.

Example: run train_and_evaluate in parallel for multiple learning rates, collect the outputs, and select the best learning rate.

from typing import NamedTuple
from kfp.dsl import component, pipeline, ParallelFor, Collected

@component
def train_and_evaluate(
    learning_rate: float,
) -> NamedTuple(
    "Outputs",
    [
        ("accuracy", float),
        ("learning_rate", float),
    ],
):
    import random
    # Simulate training and return an accuracy and the learning rate used
    accuracy = random.uniform(0.90, 1.00)
    return accuracy, learning_rate

@component
def pick_best_learning_rate(
    accuracies: list,
    learning_rates: list
) -> float:
    # Pair learning rates with their accuracies
    pairs = list(zip(learning_rates, accuracies))

    # Find the pair with the maximum accuracy
    best_pair = max(pairs, key=lambda x: x[1])
    print(f"Best LR = {best_pair[0]} with accuracy = {best_pair[1]}")
    return best_pair[0]

@pipeline(name="lr-sweep-metrics-only")
def ml_pipeline():
    learning_rates = [0.001, 0.01, 0.1]

    # Run train_and_evaluate once per learning rate (in parallel)
    with ParallelFor(learning_rates) as lr:
        run = train_and_evaluate(
            learning_rate=lr
        )

    # Collected aggregates the outputs from all runs into lists
    best_lr = pick_best_learning_rate(
        accuracies=Collected(run.outputs["accuracy"]),
        learning_rates=Collected(run.outputs["learning_rate"])
    )

Key points:

ParallelFor(learning_rates) launches one task for each learning rate in parallel.
Each iteration returns a task reference (here run), representing the per-iteration outputs.
Collected(run.outputs["accuracy"]) and Collected(run.outputs["learning_rate"]) gather scalar outputs across iterations into lists for downstream consumption by pick_best_learning_rate.

Use Collected() only for small, JSON-serializable outputs (metrics, scalars, short strings). Do not use Collected() for large artifacts (models, large files). For artifacts, store them in artifact storage (e.g., MinIO, GCS) and pass references instead.

Comparison: If / Else vs ParallelFor / Collected

Control Primitive	Best for	Example usage
`If` / `Else`	Conditional branching based on task outputs	Promote model only if accuracy ≥ threshold
`ParallelFor`	Parallel iterations over a list of values	Hyperparameter sweep across learning rates
`Collected`	Aggregate simple outputs from ParallelFor iterations	Gather accuracies into a list for selection

Common pitfalls and tips

Ensure component outputs are named and typed consistently; mismatched names are a common source of runtime errors.
Keep Collected payloads small to avoid serialization/memory issues.
When running many parallel tasks, watch cluster resource limits (CPU, memory, GPU) and set concurrency or resource requests/limits appropriately.
For reproducible experiments, fix random seeds or use deterministic training where possible.

Links and references

Kubeflow Pipelines SDK documentation: https://kubeflow-pipelines.readthedocs.io/
Kubeflow official docs: https://www.kubeflow.org/docs/
KFP control-flow examples and patterns: https://github.com/kubeflow/pipelines/tree/master/samples

Use these control-flow patterns to make your ML pipelines more modular, scalable, and production-ready.
