Demo Adding Users in Dex

In this guide we’ll show how to add test users to Dex (the OpenID Connect provider deployed with Kubeflow) so you can verify profiles and permissions in Kubeflow. Kubeflow itself does not manage user accounts; authentication is handled by an external identity provider (IDP). For this demo we use the Dex instance already deployed with Kubeflow to create a few static users. This keeps the example self-contained and avoids configuring Google, GitHub, or other third-party providers.

Do not use static passwords or static password configuration in production. This approach is for local testing and demos only.

Prerequisites:

Kubectl configured for the cluster that hosts Kubeflow (RBAC permissions to view/edit resources in the auth namespace).
A local editor configured for kubectl edit or an ability to export and reapply a ConfigMap.
htpasswd (from Apache tools) for generating bcrypt hashes, or another bcrypt tool.

Overview

High-level steps:

Inspect the cluster and locate Dex resources in the auth namespace.
Export or edit the Dex ConfigMap (dex) and find data.config.yaml.
Generate unique userID values and bcrypt password hashes.
Add entries under staticPasswords and save the ConfigMap.
Restart the Dex deployment to pick up changes.
Log in via the Kubeflow / Dex page and verify authentication; mapping to Kubeflow profiles (namespaces) is a separate step.

Inspect the cluster

Use these commands to confirm Dex is running in the auth namespace and to export the ConfigMap for editing:

# list namespaces
kubectl get ns

# list all resources in the auth namespace
kubectl get all -n auth

# list config maps in the auth namespace
kubectl get cm -n auth

# export the Dex ConfigMap to a file
kubectl get cm dex -n auth -o yaml > dex.yaml

Useful kubectl commands (quick reference):

Command	Purpose
`kubectl get all -n auth`	Show pods, services, deployments in the `auth` namespace
`kubectl get cm dex -n auth -o yaml`	Export the Dex ConfigMap as YAML
`kubectl edit cm dex -n auth`	Edit the Dex ConfigMap in your default editor
`kubectl rollout restart deployment/dex -n auth`	Restart Dex to pick up ConfigMap changes
`kubectl rollout status deployment/dex -n auth`	Watch restart progress

A trimmed example of kubectl get all -n auth (illustrative):

NAME                         READY   STATUS    RESTARTS   AGE
pod/dex-645bd8ffb-xf8vw      1/1     Running   1          6m

NAME         TYPE        CLUSTER-IP      PORT(S)     AGE
service/dex  ClusterIP   10.96.246.61    5556/TCP    6m

NAME                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/dex       1/1     1            1           6m

Locate the Dex configuration

Open the exported dex.yaml or view the data.config.yaml field from the ConfigMap. The Dex configuration is embedded at data.config.yaml. Dex supports a staticPasswords section you can populate with local users. Example excerpt:

# inside dex ConfigMap -> data.config.yaml
issuer: http://dex.auth.svc.cluster.local:5556/dex
storage:
  type: kubernetes
  config:
    inCluster: true
web:
  http: 0.0.0.0:5556
logger:
  level: "debug"
  format: text
oauth2:
  skipApprovalScreen: true
enablePasswordDB: true
staticPasswords:
- email: user@example.com
  hashFromEnv: DEX_USER_PASSWORD
  username: user
  userID: "15841185641784"
staticClients:
# https://github.com/dexidp/dex/pull/1664
- idEnv: OIDC_CLIENT_ID
  redirectURIs: ["/oauth2/callback"]
  name: 'Dex Login Application'
  secretEnv: OIDC_CLIENT_SECRET

Add static users

Each entry under staticPasswords should include the following required fields:

Field	Description
`email`	User email address (used during login)
`username`	A short username for display/identification
`userID`	A unique string identifying the user (wrap in quotes)
`hash` or `hashFromEnv`	A bcrypt hash of the user’s password, or an env var reference

Generate a unique userID (you can use a timestamp or UUID). Example (timestamp):

# generate a high-resolution timestamp to use as a userID
date +%s%N
# example output:
# 1769061201674451000

Generate a bcrypt password hash. On Debian/Ubuntu install the Apache utilities (provides htpasswd):

sudo apt-get update
sudo apt-get install -y apache2-utils

On macOS with Homebrew install the Apache httpd package:

brew install httpd

Create a bcrypt hash for the password (replace password123 with your desired password):

# generate bcrypt hash for password 'password123'
htpasswd -bnBC 10 "" 'password123' | tr -d ':\n'
# example output (bcrypt hash):
# $2y$10$U3vIjksn8VwcPqW7k0wFfuLr0TijDRfvNCXAAPy2wk.VNXuCqwLWa

Note: The htpasswd command prints a leading colon; tr -d ':\n' removes that and the newline so you get only the hash.

Edit the Dex ConfigMap

You can edit the ConfigMap directly:

kubectl edit cm dex -n auth

Under data.config.yaml → staticPasswords, add your entries using the bcrypt hashes and userIDs generated above. Example:

staticPasswords:
- email: user@example.com
  hashFromEnv: DEX_USER_PASSWORD
  username: user
  userID: "15841185641784"
- email: john@example.com
  hash: $2y$10$U3vIjksn8VwcPqW7k0wFfuLr0TijDRfvNCXAAPy2wk.VNXuCqwLWa
  username: john
  userID: "1769061047101563000"
- email: mark@example.com
  hash: $2y$10$U3vIjksn8VwcPqW7k0wFfuLr0TijDRfvNCXAAPy2wk.VNXuCqwLWa
  username: mark
  userID: "1769061201674451000"

Save and exit your editor.

Apply changes: restart Dex

After editing the ConfigMap, restart the Dex deployment so the running pod will mount the new configuration:

kubectl rollout restart deployment/dex -n auth

# optionally watch rollout status
kubectl rollout status deployment/dex -n auth

Log in via Kubeflow / Dex

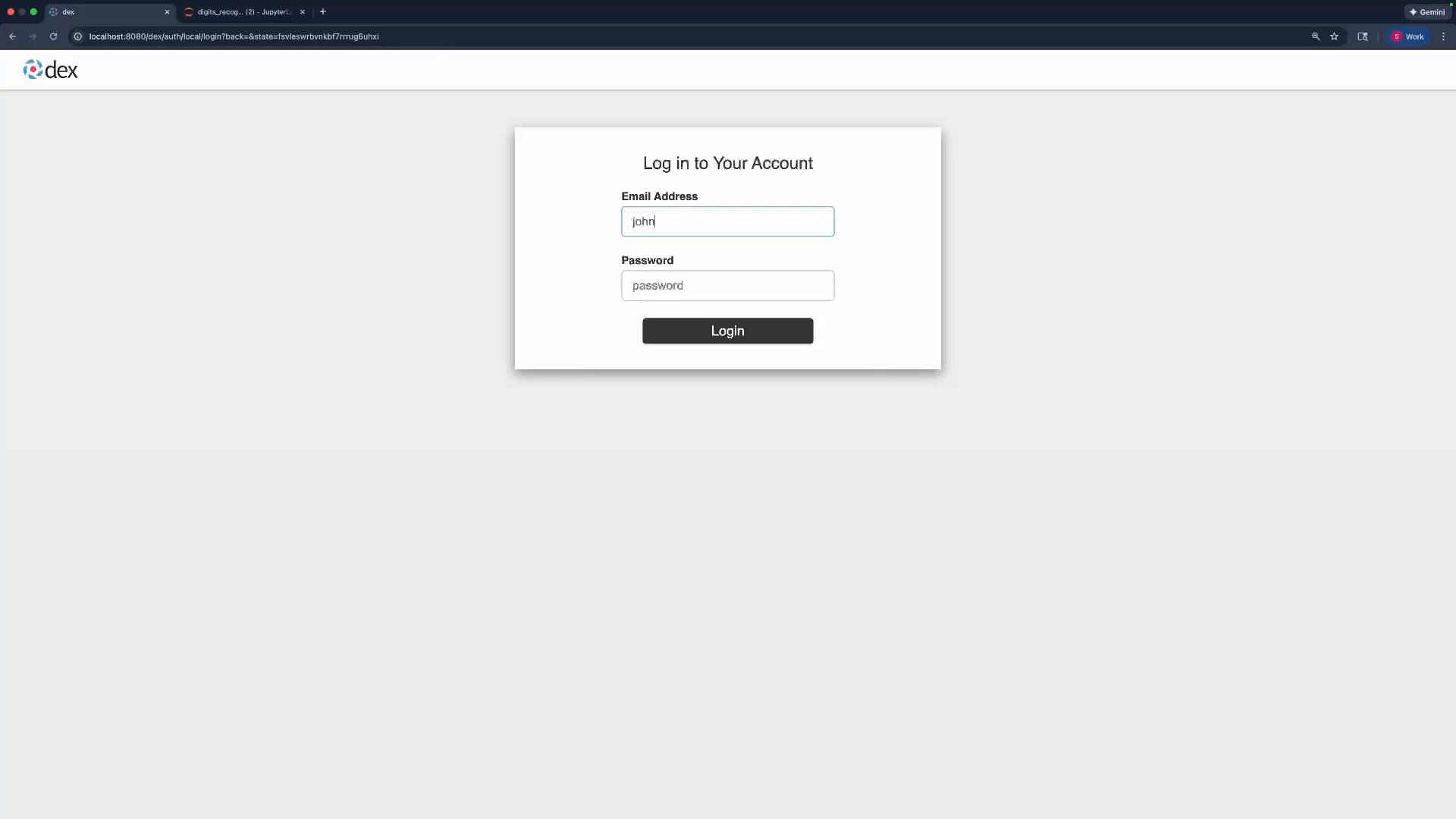

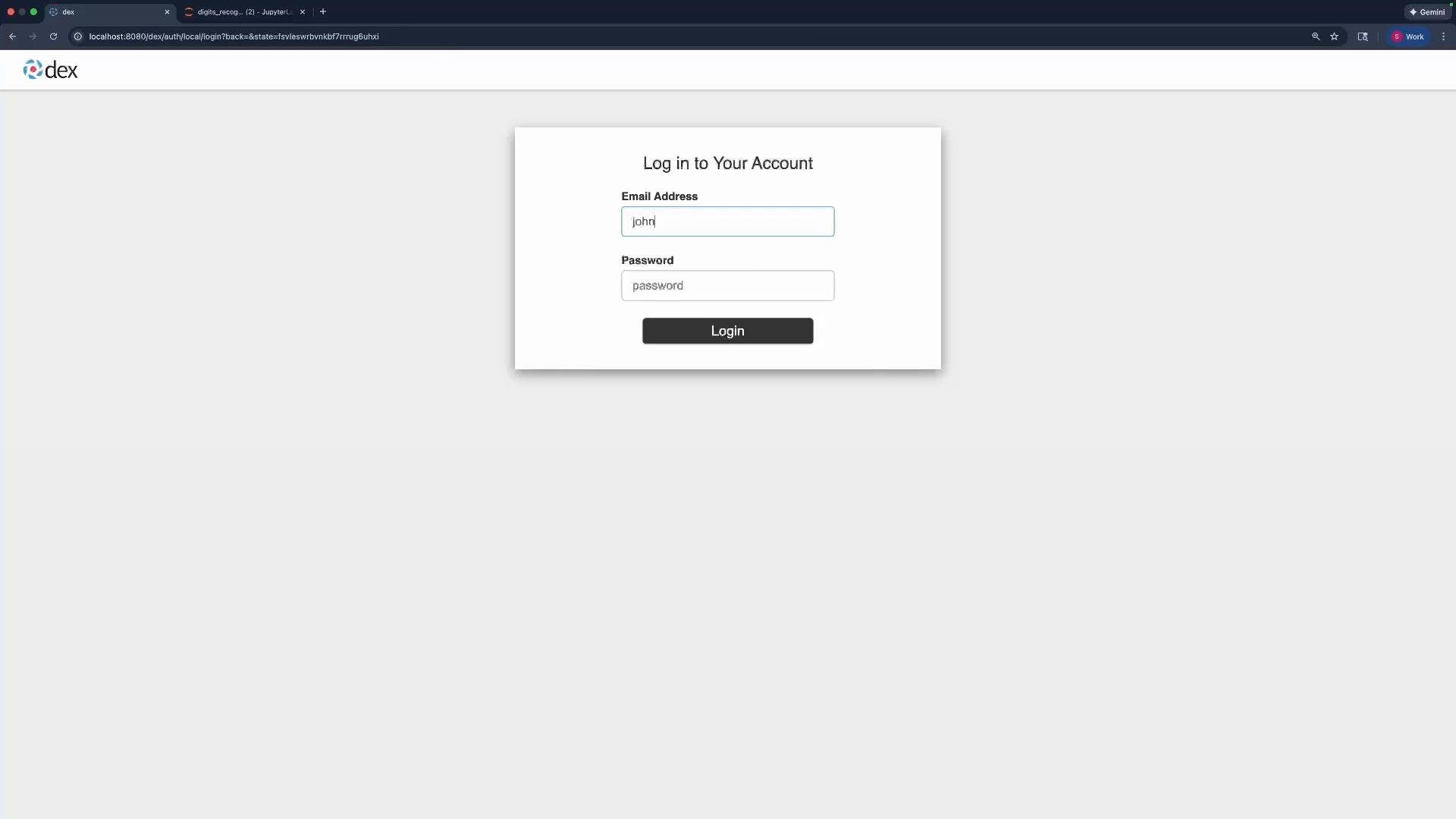

After Dex restarts, open the Kubeflow login page (the cluster’s Kubeflow address) and sign in using one of the new accounts. Example credentials used in this demo:

Email: john@example.com
Password: password123

If you sign in as john@example.com (or mark@example.com), authentication will succeed, but you will not see any selectable Kubeflow profiles (namespaces) because those accounts are not yet mapped to Kubeflow profiles. The default example user (user@example.com) was created when Kubeflow deployed a demo profile and is mapped to the kubeflow-user-example-com profile/namespace; that user can select and operate in that namespace:

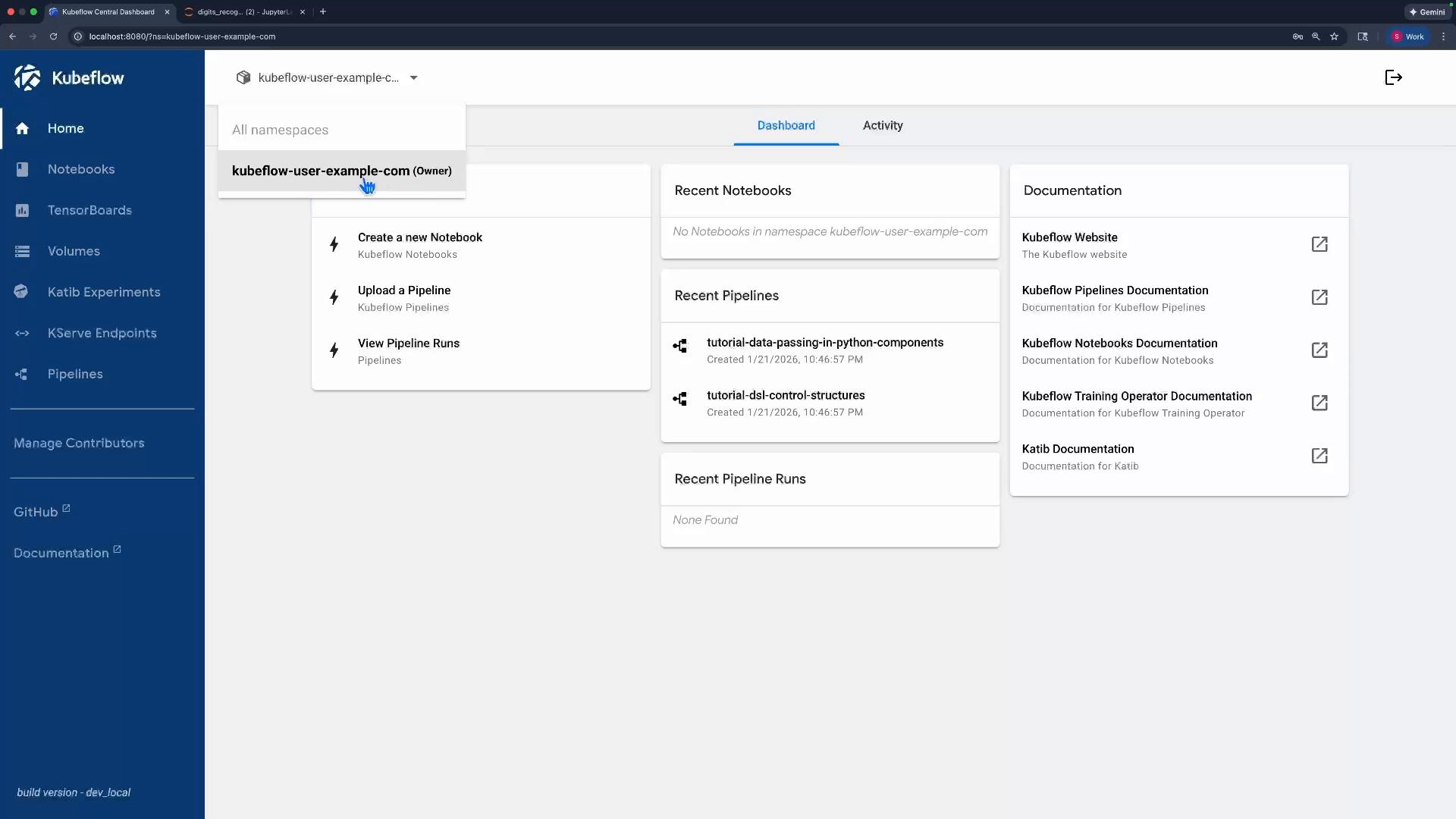

A screenshot of the Kubeflow web dashboard showing the namespace "kubeflow-user-example-com" with a left navigation bar and dashboard panels. The main area lists actions like creating notebooks, recent pipelines, and documentation links.

Next steps

To give a user access to a Kubeflow profile, map their identity (email / userID) to a Kubeflow Profile (which corresponds to a Kubernetes namespace). See Kubeflow Profiles and Multi-Tenancy documentation for details.
Consider integrating a managed IDP (OIDC/LDAP/GitHub/Google) for production authentication rather than using static passwords.

Summary

Dex can act as a simple, local authentication provider for creating test users when evaluating Kubeflow.
Add users by editing the Dex ConfigMap at data.config.yaml.staticPasswords with email, username, quoted userID, and a bcrypt hash (or hashFromEnv).
Restart the Dex deployment to apply changes.
Mapping users to Kubeflow profiles (namespaces) is a separate configuration step inside Kubeflow.

Links and references

Kubeflow
Dex documentation: https://dexidp.io/
Kubernetes documentation: https://kubernetes.io/docs/
htpasswd (Apache utils) info: https://httpd.apache.org/docs/current/programs/htpasswd.html
