Demo Cilium Gateway API

This guide shows how to enable Gateway API support in Cilium, install the required Gateway API CRDs, enable the feature in the Cilium Helm chart, and configure a Gateway + HTTPRoute to expose multiple apps (shopping.com and blogger.com) plus a default backend.

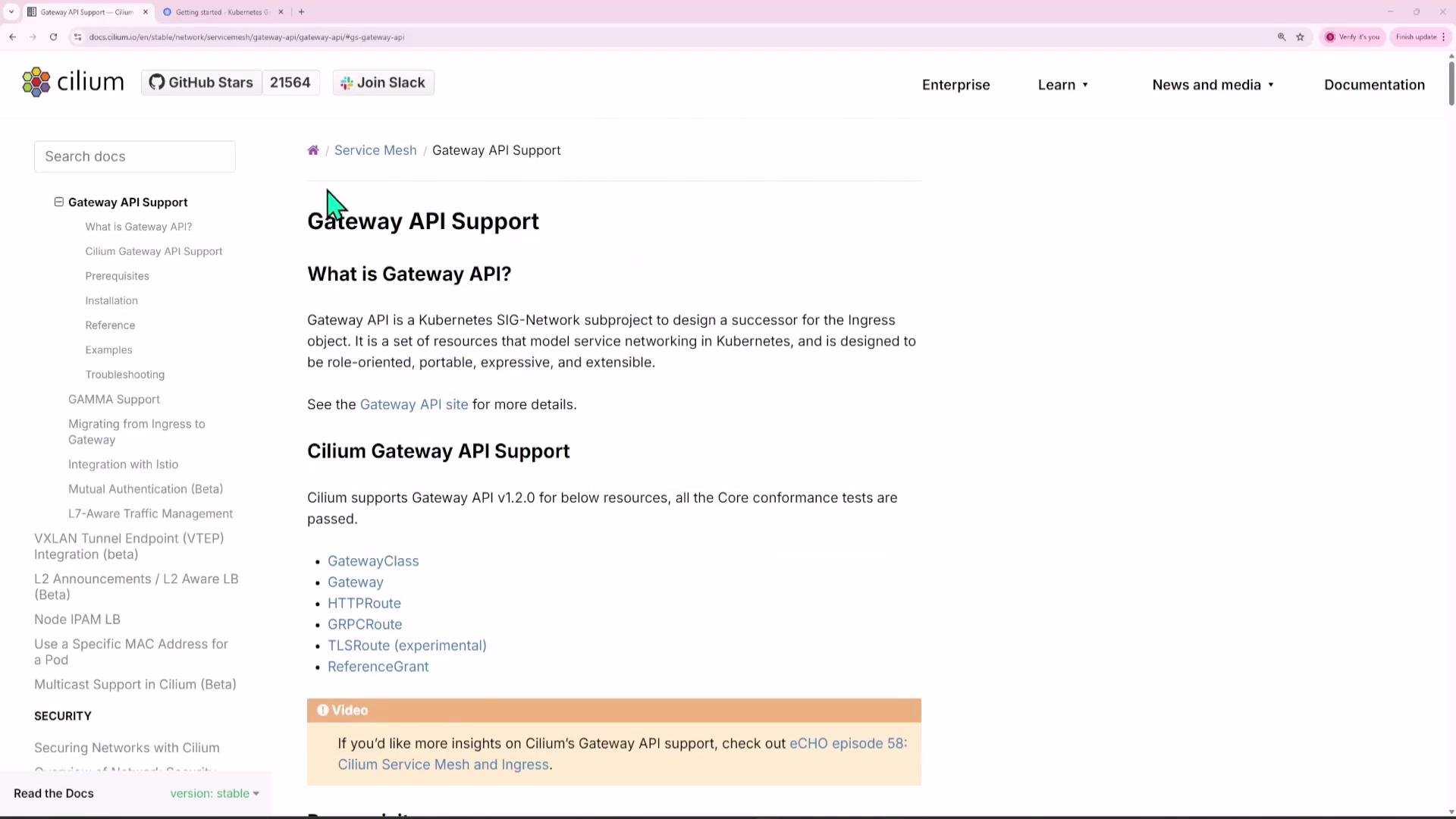

A screenshot of the Cilium documentation page titled "Gateway API Support," showing explanatory text about the Gateway API and a list of supported resources. A left-hand navigation menu with other documentation links is also visible.

Overview

High-level steps covered:

Install Gateway API CRDs (use experimental CRDs for full TCP/TLS/UDP support).
Enable Gateway API in the Cilium Helm values and restart Cilium pods.
Deploy demo applications and ClusterIP services.
Create a Gateway resource (Cilium-provided GatewayClass) and a LoadBalancer service for external access.
Create HTTPRoute resources to route host/path combinations to different backends.
Test with curl or browser (use /etc/hosts for testing DNS to the gateway IP).

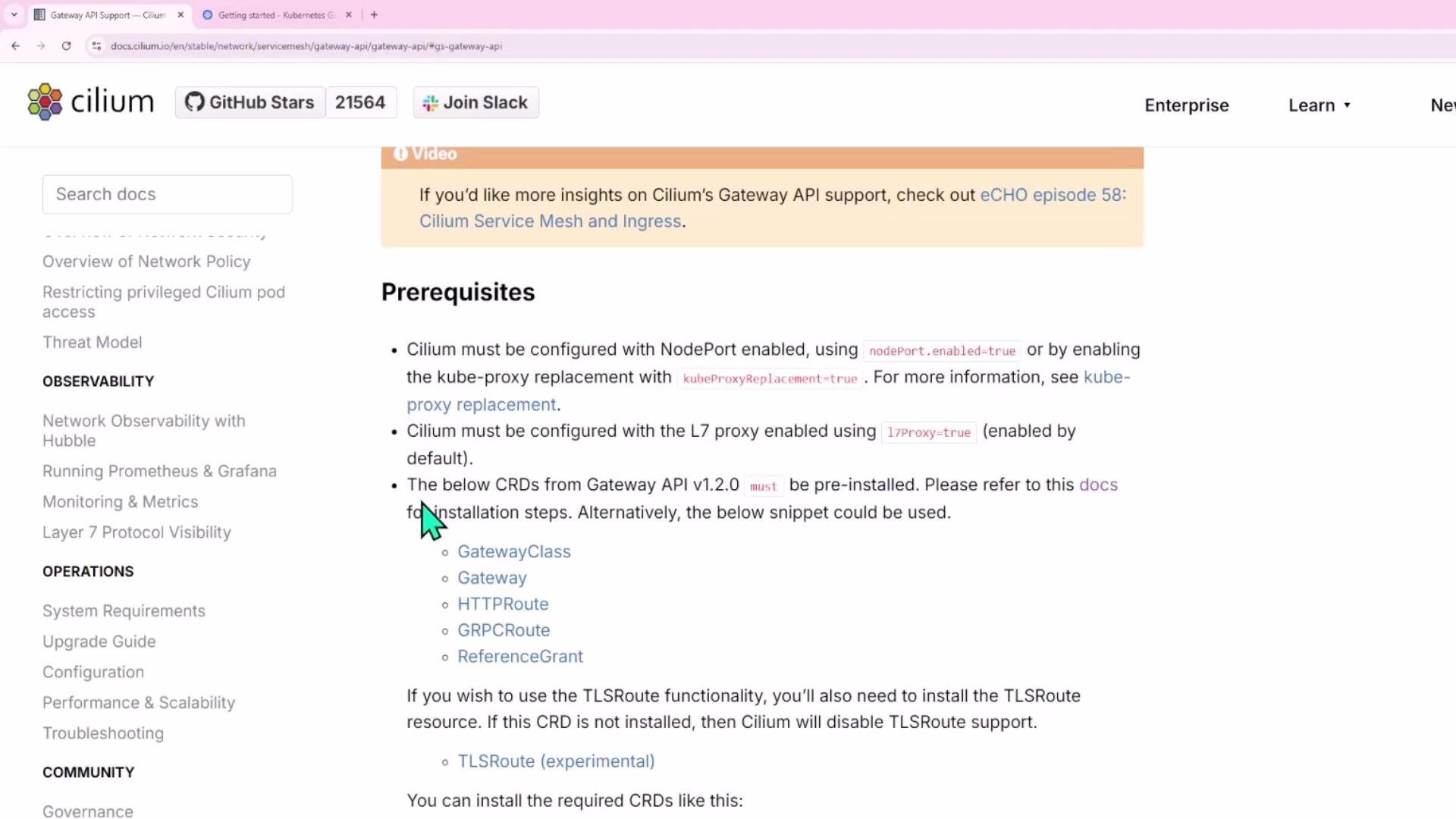

Prerequisites

Follow the Cilium Gateway API docs for full details: Cilium Gateway API docs.

Cilium expects the experimental Gateway API CRDs in many environments because they include TCPRoute/TLSRoute/UDPRoute support. Install the experimental release to avoid missing-CRD errors. Install the experimental Gateway API CRDs (example):

# Install experimental Gateway API CRDs (includes TCP/TLS/UDP routes)
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.3.0/experimental-install.yaml

You should see CRDs created; trimmed expected output:

customresourcedefinition.apiextensions.k8s.io/backendtlspolicies.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/gatewayclasses.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/gateways.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/grpcroutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/httproutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/tcproutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/tlsroutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/udproutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/xbackendtrafficpolicies.gateway.networking.x-k8s.io created
customresourcedefinition.apiextensions.k8s.io/xlistenersets.gateway.networking.x-k8s.io created

Verify CRDs are present:

kubectl get crd | grep gateway

Cilium requires either nodePort.enabled=true (Cilium NodePort implementation) or kubeProxyReplacement=true. This prerequisite is also required when enabling ingress support in Cilium. Pick one of these two options in your Helm values.

Enable Gateway API support in Cilium (Helm)

Update Cilium Helm values to enable Gateway API support. Example snippet from values.yaml:

# enable Channel: either enable NodePort or kube-proxy replacement
nodePort:
  enabled: true
# or
gatewayAPI:
  # Enable support for Gateway API in cilium
  enabled: false
  enableProxyProtocol: false
  enableAppProtocol: false
  # ... other gatewayAPI options ...

To enable Gateway API (and optionally enable kube-proxy replacement), run:

helm upgrade cilium cilium/cilium --version 1.17.3 \
  --namespace kube-system \
  --reuse-values \
  --set kubeProxyReplacement=true \
  --set gatewayAPI.enabled=true

Restart the operator and agents so they pick up the new configuration:

kubectl -n kube-system rollout restart deployment/cilium-operator
kubectl -n kube-system rollout restart ds/cilium

Check Cilium status:

cilium status

After rollout, the Cilium controller will create a GatewayClass for you. Confirm with:

kubectl get gatewayclass

Expected:

NAME     CONTROLLER                       ACCEPTED   AGE
cilium   io.cilium/gateway-controller     True       2m

Demo applications and services (what to expose)

This demo deploys three apps and a default catch-all backend:

App / Host	Routes	Service name	Service port
shopping.com	/products -> ecom-products	ecom-products-service	3000
shopping.com	/cart -> ecom-carts	ecom-carts-service	3000
blogger.com	/ -> blog	blog-service	3000
catch-all	all unmatched -> default-backend	default-backend-service	80

Apply the following YAML manifests in your cluster (examples below). Each block contains a Deployment + ClusterIP Service. ecom-products deployment + service:

# ecom-products deployment + service
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ecom-products
spec:
  selector:
    matchLabels:
      app: ecom-products
  template:
    metadata:
      labels:
        app: ecom-products
    spec:
      containers:
      - name: ecom-products
        image: sanjeevkt720/350-ecom-products
        ports:
        - containerPort: 3000
---
apiVersion: v1
kind: Service
metadata:
  name: ecom-products-service
spec:
  type: ClusterIP
  selector:
    app: ecom-products
  ports:
    - port: 3000
      targetPort: 3000

ecom-carts deployment + service:

# ecom-carts deployment + service
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ecom-carts
spec:
  selector:
    matchLabels:
      app: ecom-carts
  template:
    metadata:
      labels:
        app: ecom-carts
    spec:
      containers:
      - name: ecom-carts
        image: sanjeevkt720/350-ecom-cart:v3
        ports:
        - containerPort: 3000
---
apiVersion: v1
kind: Service
metadata:
  name: ecom-carts-service
spec:
  type: ClusterIP
  selector:
    app: ecom-carts
  ports:
    - port: 3000
      targetPort: 3000

blog deployment + service:

# blog deployment + service
apiVersion: apps/v1
kind: Deployment
metadata:
  name: blog
spec:
  selector:
    matchLabels:
      app: blog
  template:
    metadata:
      labels:
        app: blog
    spec:
      containers:
      - name: blog
        image: sanjeevkt720/350-blog
        ports:
        - containerPort: 3000
---
apiVersion: v1
kind: Service
metadata:
  name: blog-service
spec:
  type: ClusterIP
  selector:
    app: blog
  ports:
    - port: 3000
      targetPort: 3000

default backend (nginx) deployment + service:

# default backend deployment + service
apiVersion: apps/v1
kind: Deployment
metadata:
  name: default-backend
spec:
  selector:
    matchLabels:
      app: default-backend
  template:
    metadata:
      labels:
        app: default-backend
    spec:
      containers:
      - name: nginx
        image: nginx
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: default-backend-service
spec:
  type: ClusterIP
  selector:
    app: default-backend
  ports:
  - port: 80
    targetPort: 80

Verify deployments and services:

kubectl get deploy
kubectl get svc

You should see the ClusterIP services for each demo app.

Create the Gateway

Create a Gateway that uses the Cilium GatewayClass and listens on HTTP port 80. Save as gateway.yaml:

apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
  name: my-gateway
spec:
  gatewayClassName: cilium
  listeners:
  - protocol: HTTP
    port: 80
    name: web-gw

Apply:

kubectl apply -f gateway.yaml

Check gateway status:

kubectl get gateway

Example output:

NAME         CLASS   ADDRESS         PROGRAMMED   AGE
my-gateway   cilium  172.19.255.92   True         10s

When the Gateway is created, Cilium automatically creates a LoadBalancer-type Service named cilium-gateway-<gateway-name>. That Service exposes an EXTERNAL-IP you can point DNS at:

kubectl get svc

Example snippet:

NAME                            TYPE           CLUSTER-IP       EXTERNAL-IP      PORT(S)
cilium-gateway-my-gateway       LoadBalancer   10.96.161.102    172.19.255.92    80:30269/TCP

Use that EXTERNAL-IP (172.19.255.92 in the example) for DNS records or /etc/hosts entries when testing.

Create HTTPRoute resources

Create an HTTPRoute that attaches to the Gateway and maps host/path combinations to backend services. Save as httproute.yaml:

apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
  name: my-routes
spec:
  parentRefs:
    - name: my-gateway
      namespace: default

  rules:
    # shopping.com -> /products -> ecom-products-service:3000
    - matches:
        - path:
            type: PathPrefix
            value: /products
          headers:
            - name: Host
              value: shopping.com
      backendRefs:
        - name: ecom-products-service
          port: 3000

    # shopping.com -> /cart -> ecom-carts-service:3000
    - matches:
        - path:
            type: PathPrefix
            value: /cart
          headers:
            - name: Host
              value: shopping.com
      backendRefs:
        - name: ecom-carts-service
          port: 3000

    # blogger.com -> / -> blog-service:3000
    - matches:
        - path:
            type: PathPrefix
            value: /
          headers:
            - name: Host
              value: blogger.com
      backendRefs:
        - name: blog-service
          port: 3000

    # catch-all -> default-backend-service:80
    - backendRefs:
        - name: default-backend-service
          port: 80

Apply the HTTPRoute:

kubectl apply -f httproute.yaml

Verify the HTTPRoute and inspect details:

kubectl get httproute
kubectl describe httproute my-routes

Test routes (DNS / hosts + curl)

For local testing, add /etc/hosts entries that map the demo hostnames to the gateway EXTERNAL-IP:

19.255.92 shopping.com
19.255.92 blogger.com
19.255.92 testing123.com

Then test with curl:

# shopping.com /products
curl -s shopping.com/products
# shopping.com /cart
curl -s shopping.com/cart
# blogger.com /
curl -s blogger.com/
# an unmatched host -> default backend (nginx HTML)
curl -s testing123.com/
# => <!DOCTYPE html><html> ... Welcome to nginx! ... </html>

Example snippet from the default nginx page (trimmed):

<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto; font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<p>For online documentation and support please refer to <a href="http://nginx.org/">nginx.org</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>

Seeing the correct JSON responses and the nginx default page confirms that the Gateway + HTTPRoute configuration is forwarding traffic as expected.

Troubleshooting tips

Ensure Gateway API CRDs were installed (use the experimental manifest if you need TCP/TLS/UDP routes).
Verify Cilium has gatewayAPI.enabled=true in its Helm values and that you restarted the operator/agents after upgrading.
Confirm the gateway service (cilium-gateway-<name>) has an EXTERNAL-IP and that DNS or /etc/hosts points to that IP.
Inspect Gateway and HTTPRoute resources for events and status:
- kubectl describe gateway my-gateway
- kubectl describe httproute my-routes
Check Cilium logs and controller events if the GatewayClass or Gateway is not being programmed.
