CRD Design Patterns Versioning Status and Printer Columns

Now that you can author CustomResourceDefinitions (CRDs), move beyond prototypes and make them production-ready. This guide covers four essential patterns that keep CRDs maintainable, discoverable, and safe in production:

API versioning using served and storage flags
The status subresource to separate controller-managed state from user intent
Additional printer columns to improve kubectl get output
The scale subresource for kubectl scale and Horizontal Pod Autoscaler (HPA) integration

By the end you’ll have a practical checklist to validate CRDs before they run in production.

Example: costly lack of versioning

A team created a Database CRD with a single v1 version and no status subresource. Six months later they added a new required backup field to the schema. Because existing resources were stored without it, applying the change broke those resources. The team had to:

Create a new CRD database.v2
Manually migrate resources
Update callers across the codebase

This single oversight cost three weeks of engineering time and created operational risk that proper versioning would have avoided.

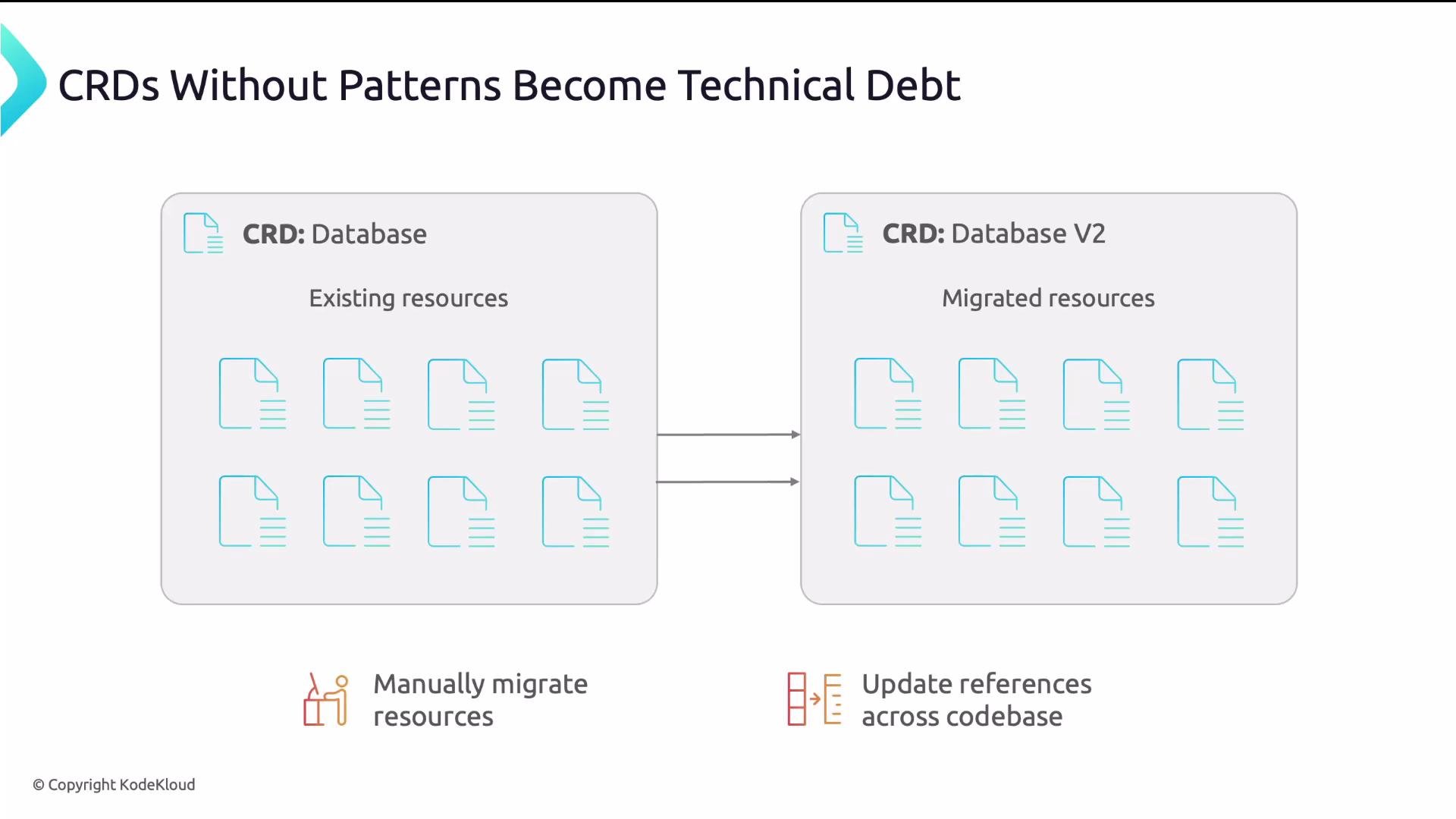

The image illustrates the concept of CRDs (Custom Resource Definitions) transitioning from an existing database to Database V2, highlighting the need for manual migration of resources and updating references across the codebase to avoid technical debt.

Common problems when design patterns are skipped

No versioning strategy: adding or changing required fields can invalidate existing resources and break clients.
No status separation: users or kubectl can accidentally overwrite controller-managed status fields, creating race conditions.
Poor kubectl UX: default kubectl get shows only NAME and AGE — forcing extra commands to check health, size, or replicas.

Kubernetes provides built-in patterns for each problem. Below we explain them in sequence and show how to apply them.

API versioning

Kubernetes versioning commonly follows: v1alpha1 (experimental) → v1beta1 (pre-release) → v1 (stable). Plan versioning from day one even if you only ship a single version initially. Two flags control each CRD version’s runtime behavior:

Flag	Effect
`served: true`	The API server accepts requests for this version.
`storage: true`	Resources are stored in etcd using this version’s representation. Only one version can have `storage: true`.

Typical evolution:

Start with v1alpha1 (served: true, storage: true).
Add v1beta1 as served: true, set v1beta1 to storage: true, and switch v1alpha1 to storage: false. The API server migrates stored resources.
Promote to v1 once stable and repeat the migration process.

Use deprecated and deprecationWarning to notify users when a version will be removed:

served: true
storage: true
deprecated: true
deprecationWarning: "This version will be removed in a future release; please migrate to v1."

For non-trivial schema changes between versions, implement a conversion webhook to transform objects across versions. For small additive changes (e.g., optional fields), a webhook may not be necessary. Resources:

Kubernetes CRD versioning and conversion docs: https://kubernetes.io/docs/tasks/extend-kubernetes/custom-resources/custom-resource-definitions/#conversion

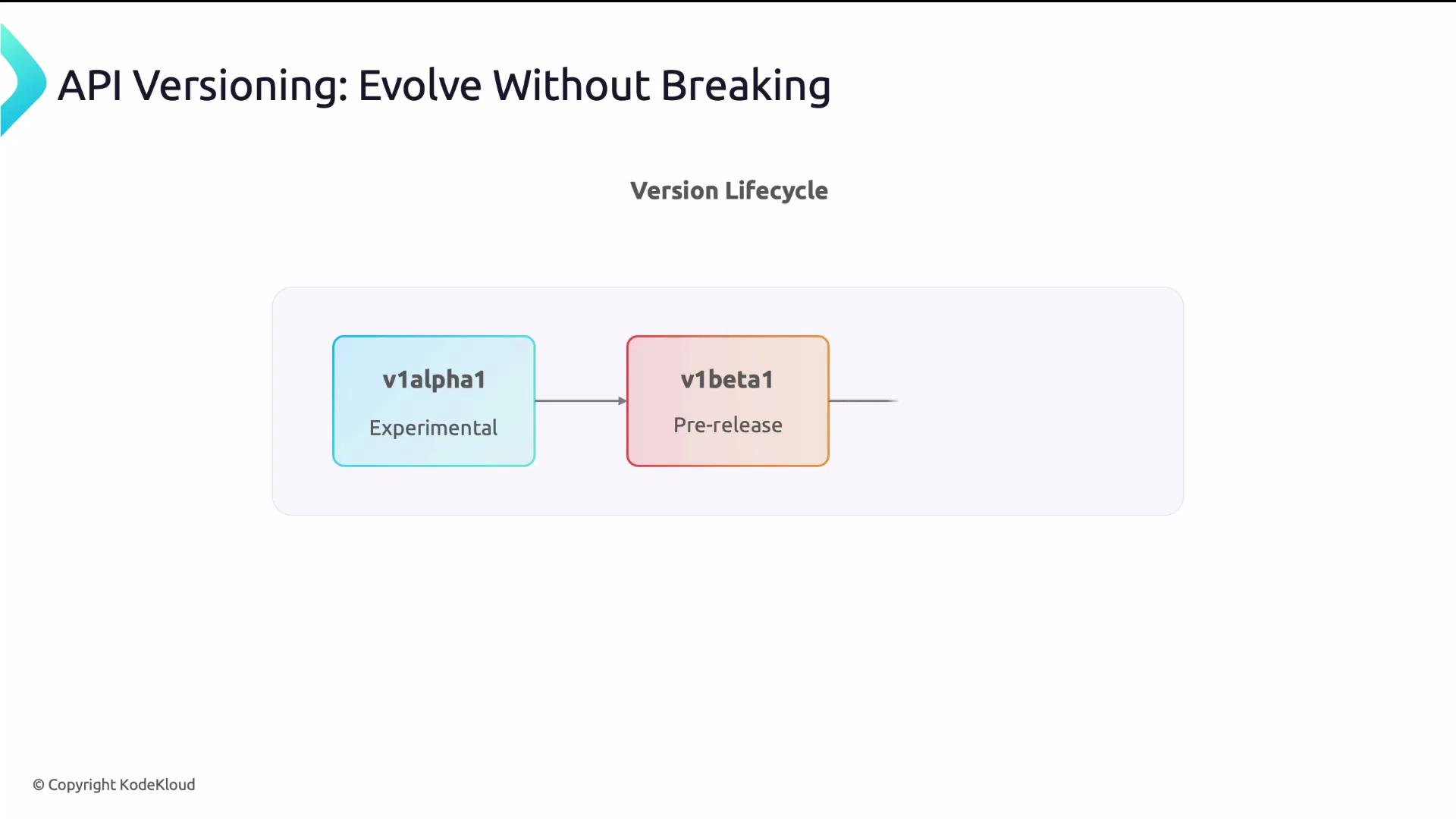

The image shows a version lifecycle diagram for API versioning, transitioning from an experimental stage "v1alpha1" to a pre-release stage "v1beta1."

Status subresource

Without a dedicated status subresource, a single PUT can overwrite both spec and status. This allows users or controllers to inadvertently clobber controller-managed state. When you enable status, the API server exposes two distinct endpoints:

Update spec only:
- PUT /apis/<group>/<version>/namespaces/<ns>/<plural>/<name>
Update status only:
- PUT /apis/<group>/<version>/namespaces/<ns>/<plural>/<name>/status

This enforces a clean separation of concerns: spec is user intent and status is controller-observed state. Enable status simply in the CRD version:

subresources:
  status: {}

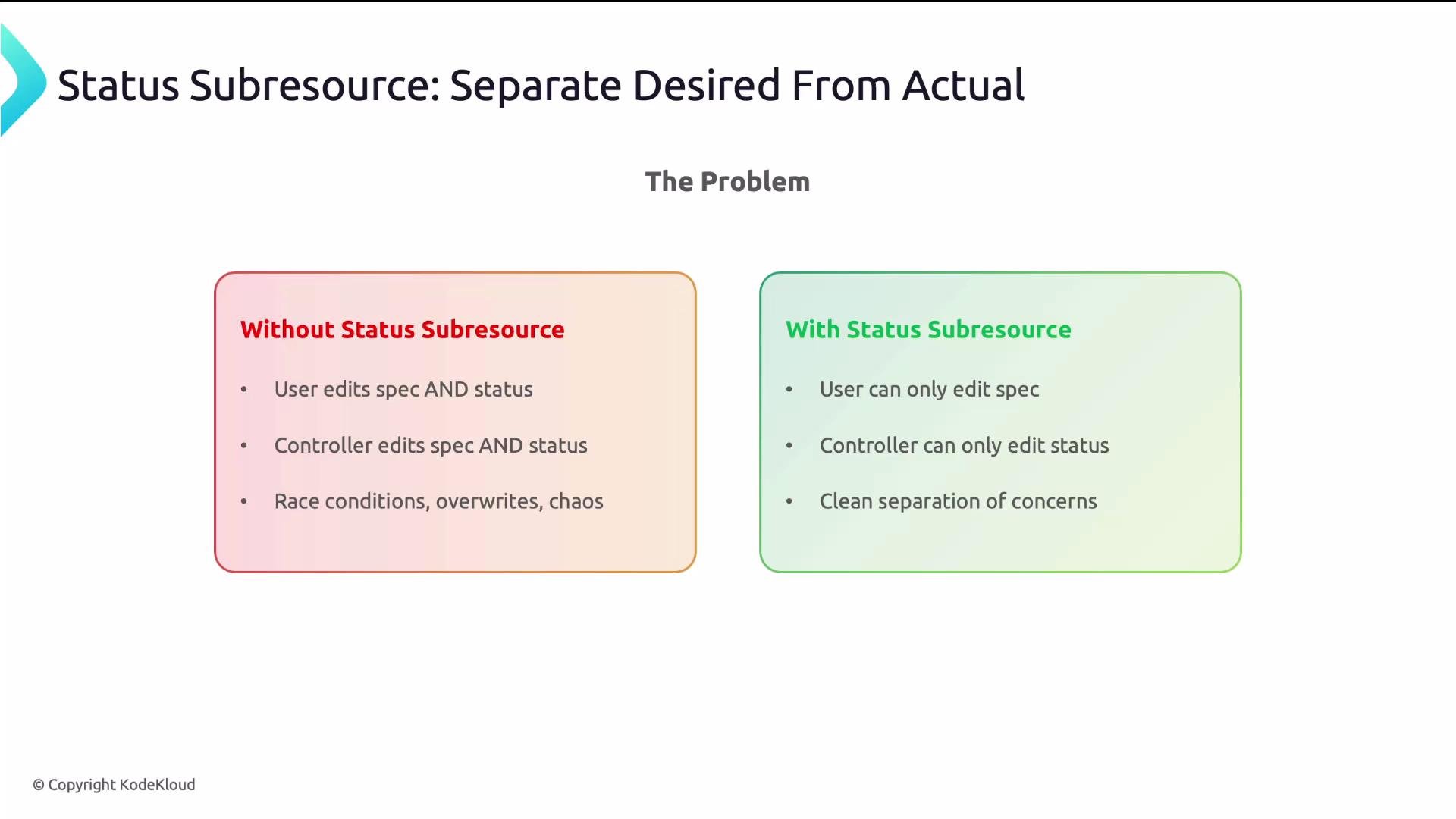

The image compares two approaches to handling resources, highlighting problems without a status subresource (chaos and overwrites) and benefits with it (clear separation of concerns).

Always enable the status subresource for controller-managed CRs. Without it, controllers and users can overwrite each other’s fields, causing hard-to-debug race conditions.

Observed generation pattern

Use metadata.generation and status.observedGeneration to communicate reconciliation progress.

metadata.generation increments when the spec changes.
The controller sets status.observedGeneration to the last generation it has reconciled.

When they differ, users and tools know the controller has not processed the latest change. Example status snippet:

status:
  phase: Ready
  conditions:
    - type: Available
      status: "True"
      reason: ProvisioningComplete
      lastTransitionTime: "2024-01-15T10:30:00Z"
  observedGeneration: 3
  endpoint: db.prod.svc:5432

Principle: spec is what you want; status is what you have. Controllers reconcile the difference.

Additional printer columns

Printer columns give operators a quick glance at important fields in kubectl get output (e.g., size, phase, replicas). Add them to the CRD versions entry. Each column requires name, type, and a jsonPath referencing resource fields (you can use .spec and .status). Example:

additionalPrinterColumns:
  - name: Size
    type: string
    jsonPath: .spec.size
  - name: Status
    type: string
    jsonPath: .status.phase
  - name: Age
    type: date
    jsonPath: .metadata.creationTimestamp

This improves day-to-day observability and reduces the number of kubectl calls operators must run.

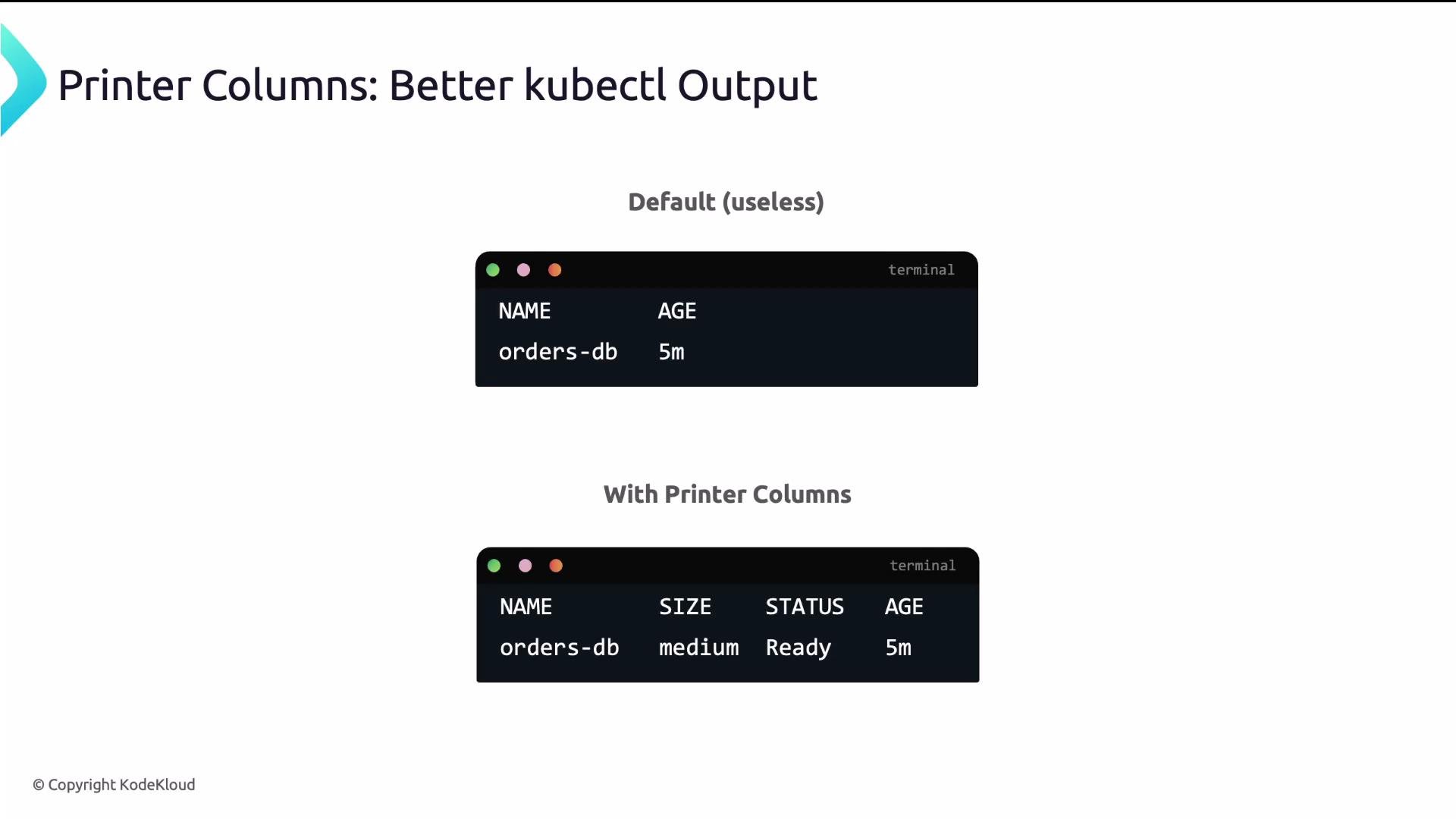

The image illustrates the improvement in Kubernetes command-line output when using printer columns, showing more detailed information compared to the default output.

Scale subresource

If your CR exposes replicas, enable the scale subresource so kubectl scale works and the HPA can target your CR. The scale mapping wires your CR fields into the standard kubernetes Scale API:

subresources:
  status: {}
  scale:
    specReplicasPath: .spec.replicas
    statusReplicasPath: .status.replicas
    labelSelectorPath: .status.selector

What these fields do:

specReplicasPath: where users set the desired count.
statusReplicasPath: where the controller reports current count.
labelSelectorPath (optional): HPA uses this to locate pods if needed.

With this in place you can run:

kubectl scale database orders-db --replicas=3
kubectl autoscale database orders-db --min=1 --max=5

The HPA can then autoscale based on CPU, memory, or custom metrics. Resources:

HPA documentation: https://kubernetes.io/docs/tasks/run-application/horizontal-pod-autoscale/

Production-ready CRD example

A consolidated CRD that applies versioning, status, printer columns, and schema validation:

apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  name: databases.platform.acme.io
spec:
  group: platform.acme.io
  scope: Namespaced
  names:
    plural: databases
    kind: Database
    shortNames:
      - db
  versions:
    - name: v1
      served: true
      storage: true
      subresources:
        status: {}
      additionalPrinterColumns:
        - name: Size
          type: string
          jsonPath: .spec.size
        - name: Status
          type: string
          jsonPath: .status.phase
        - name: Age
          type: date
          jsonPath: .metadata.creationTimestamp
      schema:
        openAPIV3Schema:
          type: object
          required: ["spec"]
          properties:
            spec:
              type: object
              required: ["size"]
              properties:
                size:
                  type: string
                  enum: ["small", "medium", "large"]

Design checklist

Use this checklist before promoting a CRD to production:

Area	Recommendation
Short names	Provide `shortNames` (e.g., `db`) for quick `kubectl` usage.
Versioning	Implement `served` and `storage` flags and plan upgrade/migration paths.
Status	Enable `subresources.status` to separate user intent from controller state.
Observability	Add `additionalPrinterColumns` for common fields (status, size, age).
Scaling	Consider `subresources.scale` when exposing replicas for `kubectl scale` and HPA.
Validation	Use `openAPIV3Schema` for input validation and guardrails.

Plan for versioning and status separation from day one. These patterns prevent expensive migrations and help CRDs behave like native Kubernetes APIs.

Key takeaways

Version your APIs early and make upgrades deliberate.
Enable the status subresource to prevent accidental overwrites and enable safe controller updates.
Improve operator experience with additionalPrinterColumns.
Enable scale for resources that manage replicas so kubectl scale and HPA work naturally.
A well-designed CRD should feel and behave like a native Kubernetes API—discoverable, safe, and operable at scale.
