In multi-tenant Kubernetes clusters, ResourceQuota and LimitRange are the essential guardrails that keep shared infrastructure reliable. This article is a focused deep dive into how these two Kubernetes objects operate, how they interact in the admission pipeline, and how you can apply them to prevent noisy-neighbor issues and resource sprawl. By the end of this lesson you will be able to:
  • Describe the purpose of ResourceQuota and LimitRange.
  • Set namespace-level limits using ResourceQuota.
  • Apply default container limits using LimitRange.
  • Explain how the two interact.
The image lists four learning objectives related to ResourceQuota and LimitRange, including describing their purpose, setting namespace-level limits, applying container limits, and explaining the linking rule.
Why governance matters Without guardrails, a shared staging cluster can quickly become unusable. For example: a developer runs a load test and scales an application to 500 replicas on a cluster with only 100 CPUs. Those replicas consume CPU and memory, leaving other teams’ pods Pending or evicted—this is the noisy neighbor problem.

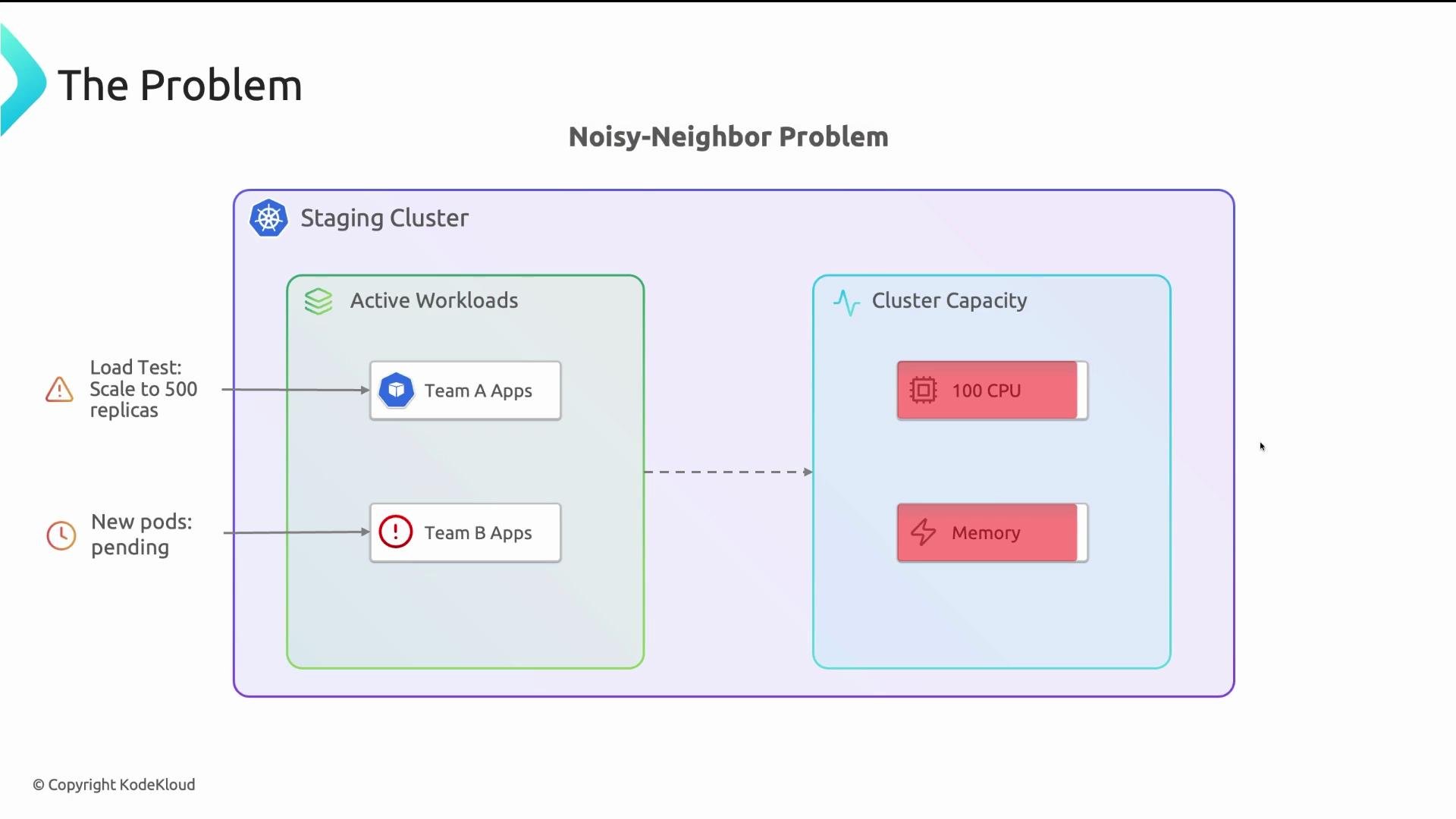

The image illustrates the "Noisy-Neighbor Problem" in a staging cluster by showing how Team A's applications scale to 500 replicas during a load test, affecting Team B's applications due to limited cluster capacity of 100 CPU and memory constraints.
Common causes:
  • Accidental large replica counts.
  • CI/CD pipelines that spawn many pods.
  • Namespaces without limits or defaults.
Kubernetes by design will attempt to schedule everything it is asked to—there is no built-in fairness principle. ResourceQuota and LimitRange provide that fairness and predictability.

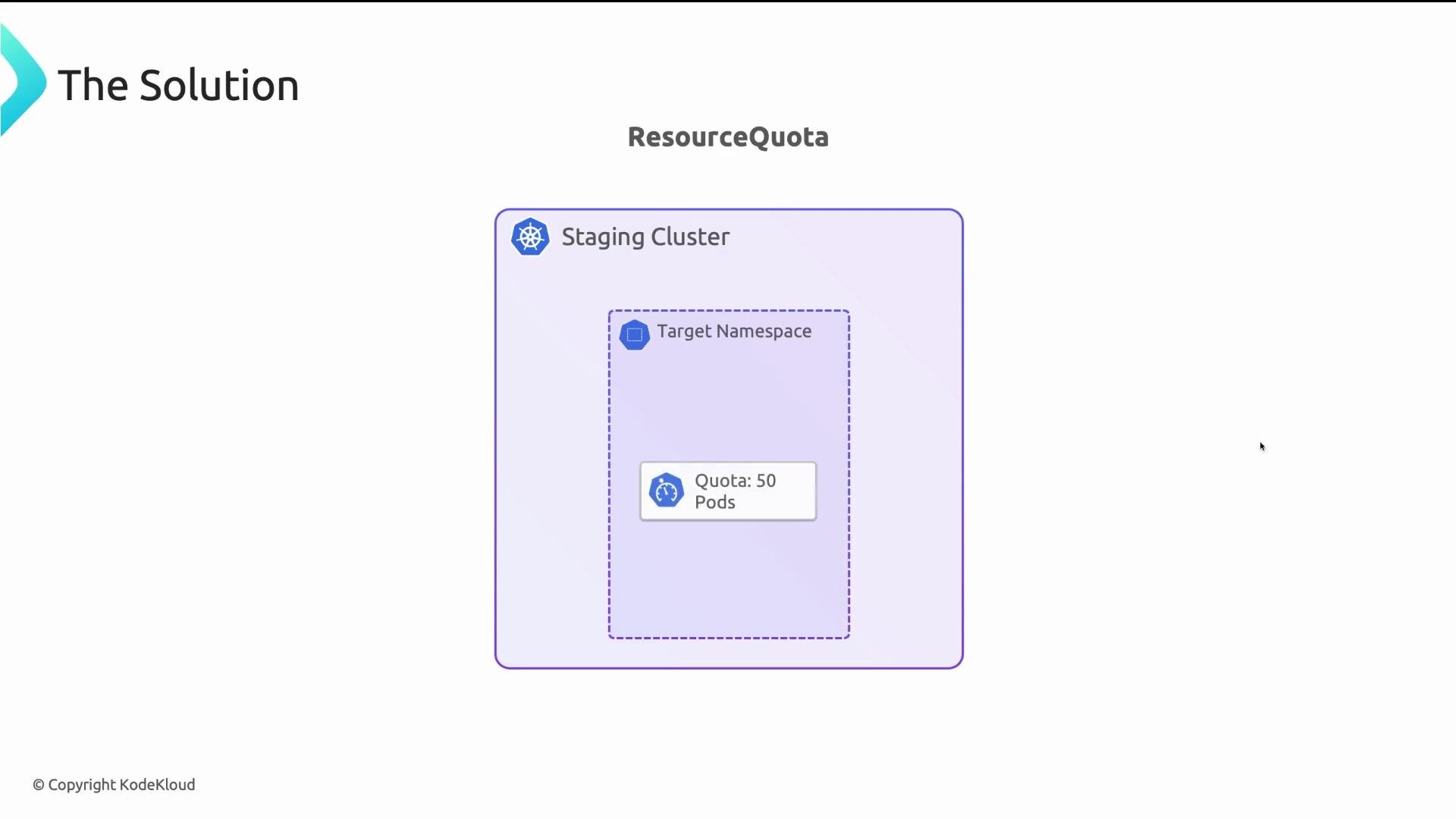

The image shows a diagram titled "ResourceQuota," illustrating a Kubernetes "Staging Cluster" with a "Target Namespace" that has a quota of 50 pods.
If a request would exceed a quota, the API server rejects it at admission time with a 403 Forbidden response; the pod is never created.

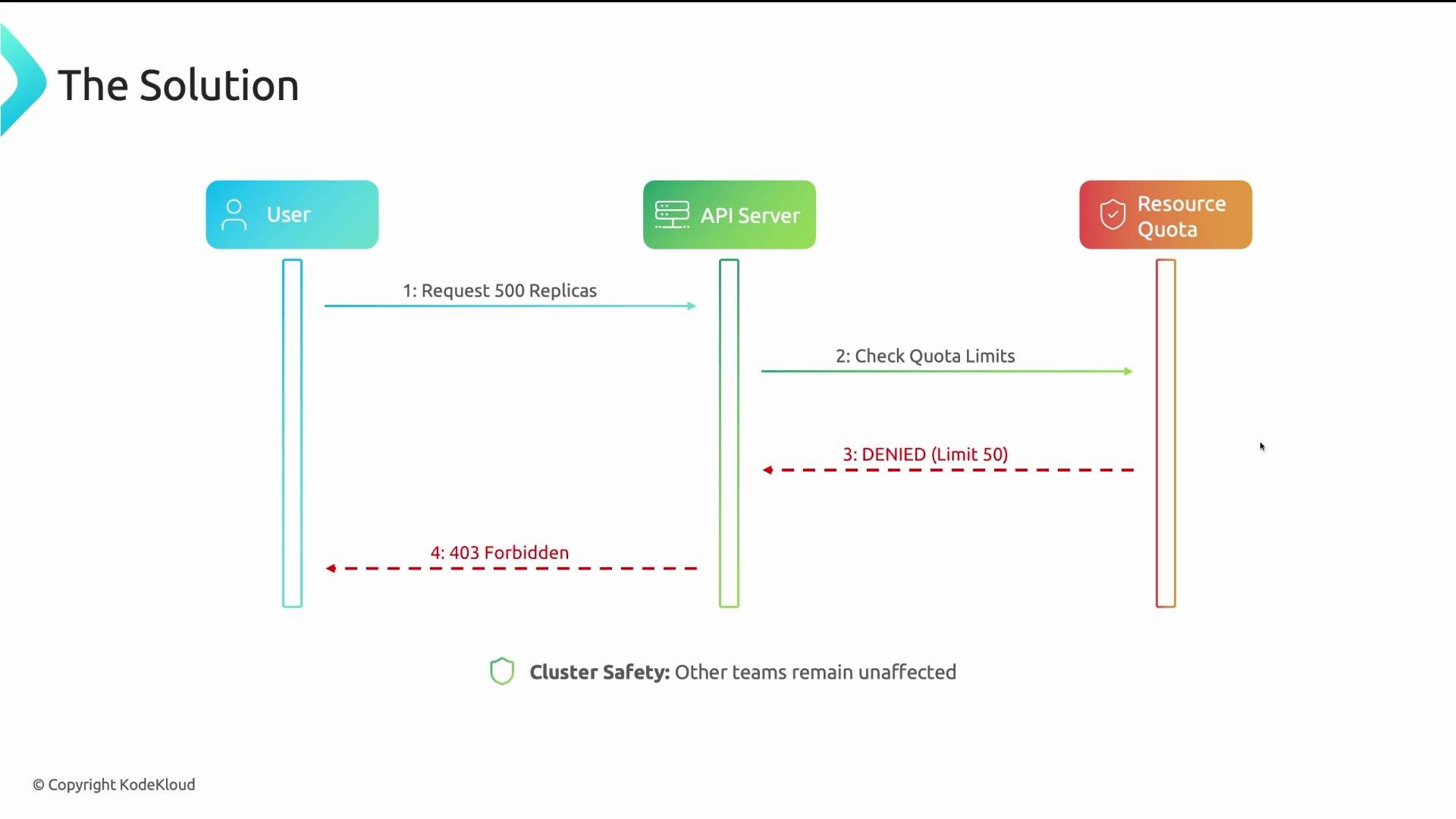

The image is a flowchart showing a sequence of interactions between a user, an API server, and a resource quota, resulting in a denied request due to exceeding the quota limit. It highlights a "403 Forbidden" response to maintain cluster safety.
Default cluster behavior (no quotas, no defaults): CPU, memory, and pod counts are effectively unlimited. Whoever deploys first consumes available resources. That may work for single-team clusters, but it breaks down for shared environments.

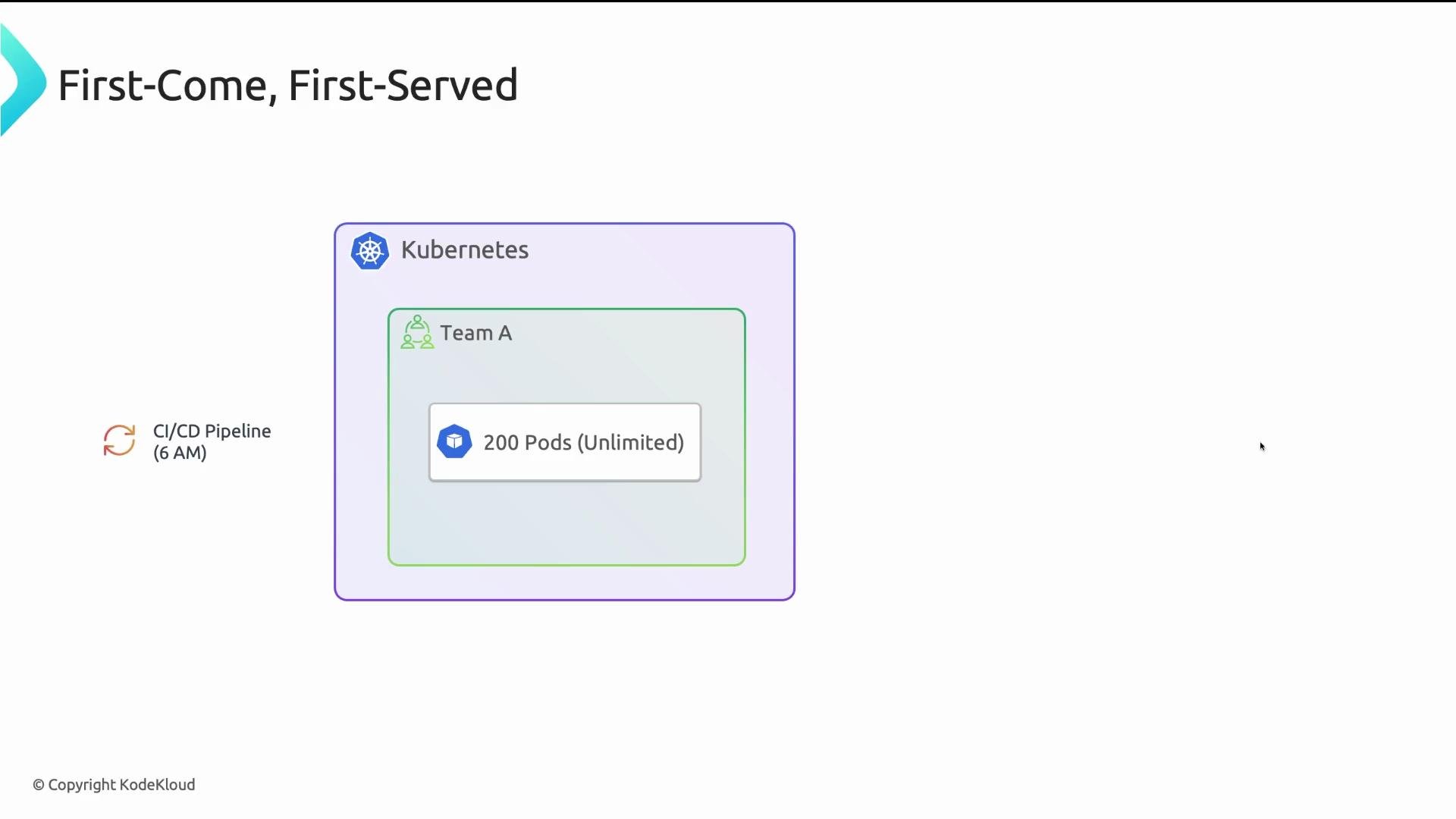

The image is a diagram illustrating a Kubernetes cluster setup with a CI/CD pipeline scheduled at 6 AM for Team A, featuring 200 pods with unlimited capacity.
Often governance is only added after an incident. Using ResourceQuota and LimitRange proactively prevents such incidents.

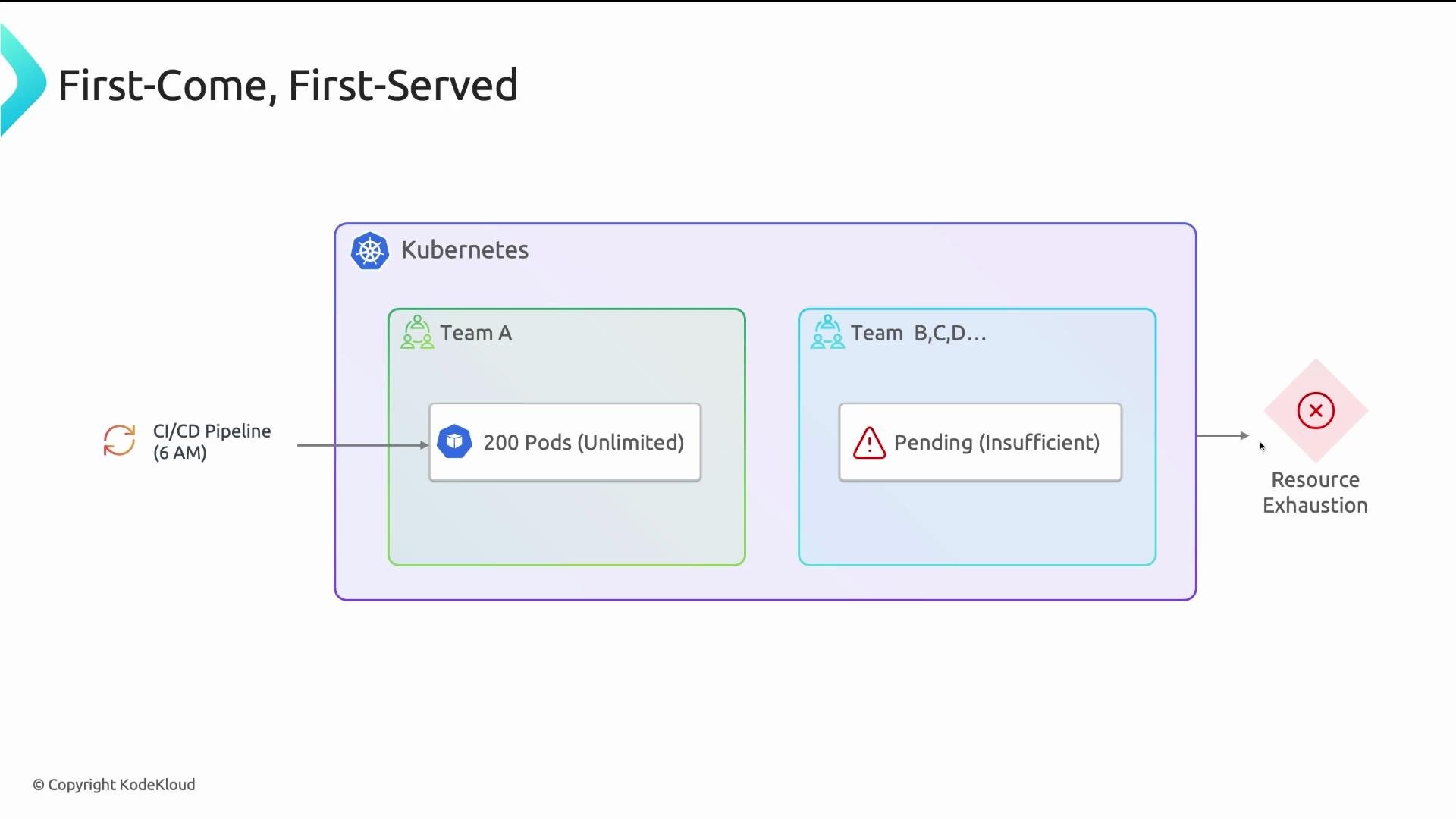

The image illustrates a Kubernetes cluster scenario where Team A, using a CI/CD pipeline at 6 AM, is allocated 200 pods with unlimited resources, leading to resource exhaustion, causing Teams B, C, D, etc., to have pending resources due to insufficiency.
Summary: for multi-tenant environments, ResourceQuota + LimitRange = minimal, effective governance. Think of them as allocation rules for a shared office. ResourceQuota — namespace budget caps A ResourceQuota sets aggregate limits for a namespace. It caps total resources consumed across all objects in that namespace, including:
  • Compute totals: requests.cpu, limits.memory, etc.
  • Object counts: pods, configmaps, services to prevent sprawl.
  • Storage: total storage requested and number of PersistentVolumeClaims.
Example: a ResourceQuota that caps CPU requests, memory requests, and total pods in a namespace:

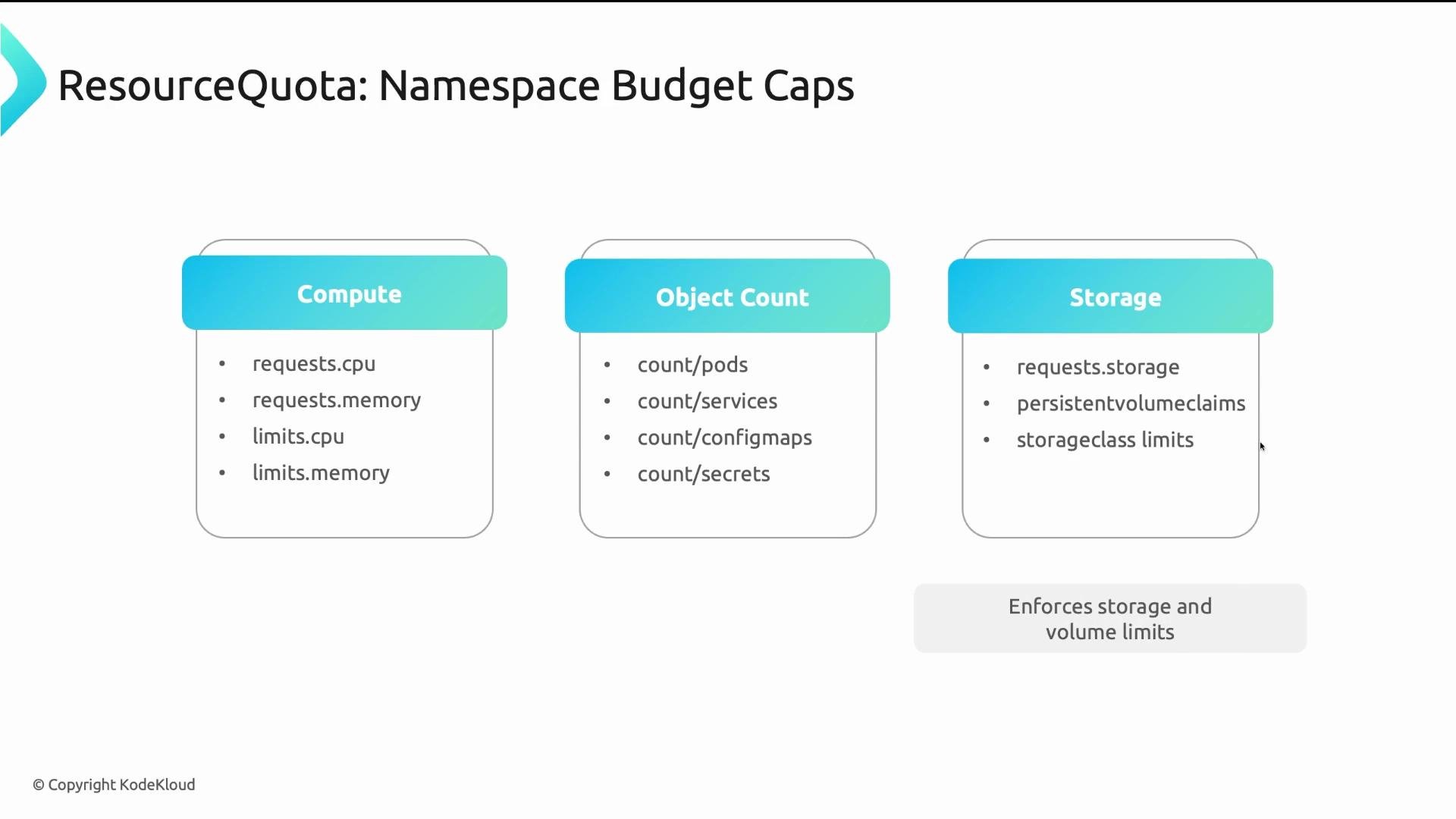

The image illustrates the concept of "ResourceQuota: Namespace Budget Caps," detailing limits on compute, object count, and storage resources within a namespace.
Enforcement mechanism ResourceQuota is enforced by the API server at admission time. The API server evaluates whether admitting a new object would push the namespace totals past the quota. If it would, the API server returns 403 Forbidden. These checks occur before scheduling—pods violating quotas are rejected before reaching the scheduler.

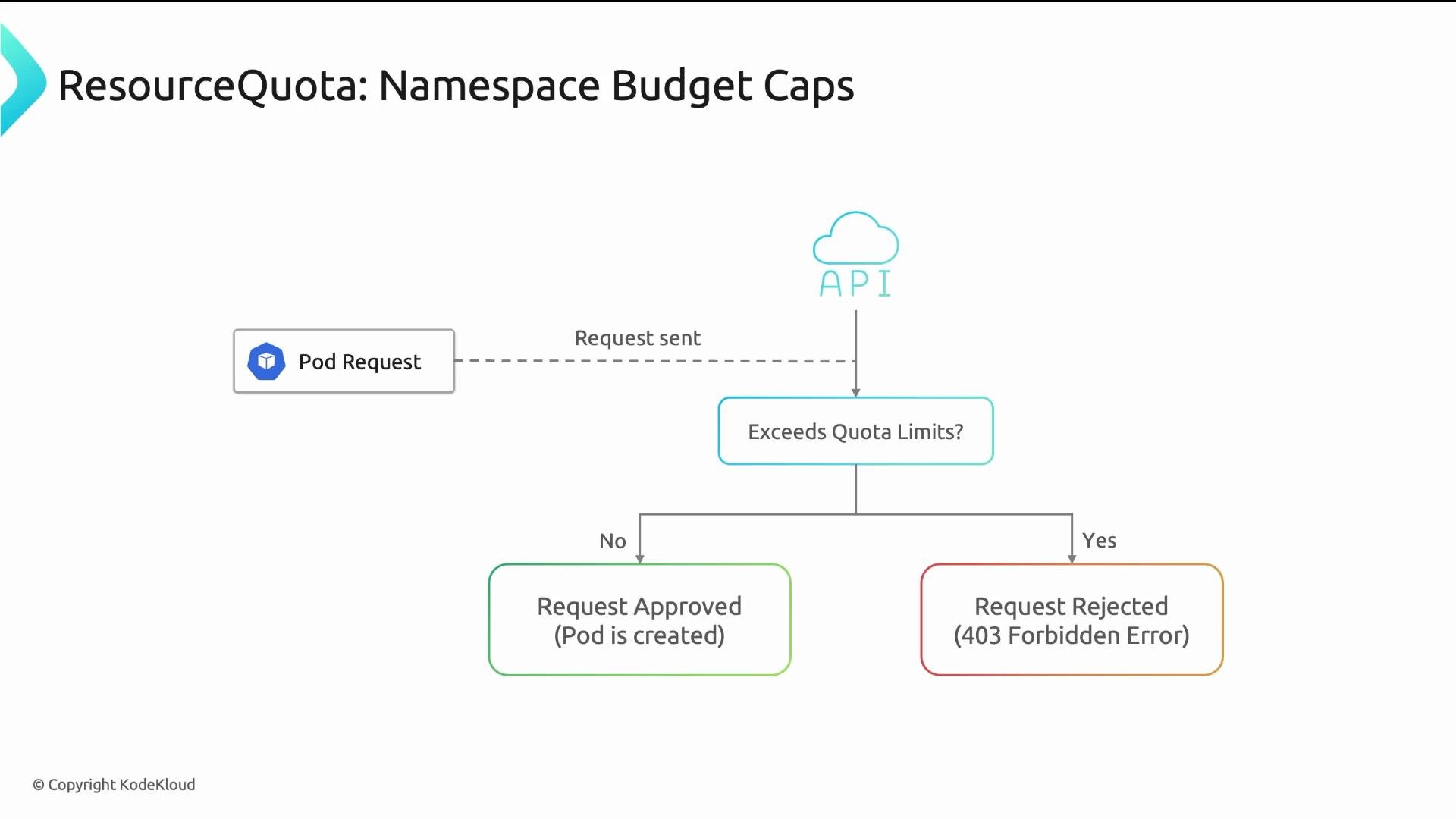

The image is a flowchart showing the process of handling a pod request in terms of Kubernetes resource quotas. It indicates that if the request exceeds quota limits, it is rejected with a 403 error; otherwise, it is approved and the pod is created.
LimitRange — per-object defaults and bounds LimitRange ensures individual pods and containers have sane resource requests and limits. Its main uses:
  • Inject defaults (default and defaultRequest) when containers omit requests/limits.
  • Enforce minimum and maximum per-object values (min, max).
Common fields:
  • default: default limit values applied when a container does not specify limits.
  • defaultRequest: default request values used when a container leaves requests empty.
  • min / max: hard per-container or per-pod bounds.
Applicable types: Container, Pod, PersistentVolumeClaim. The Container type is the most common. Example LimitRange that sets per-container min/max and defaults:

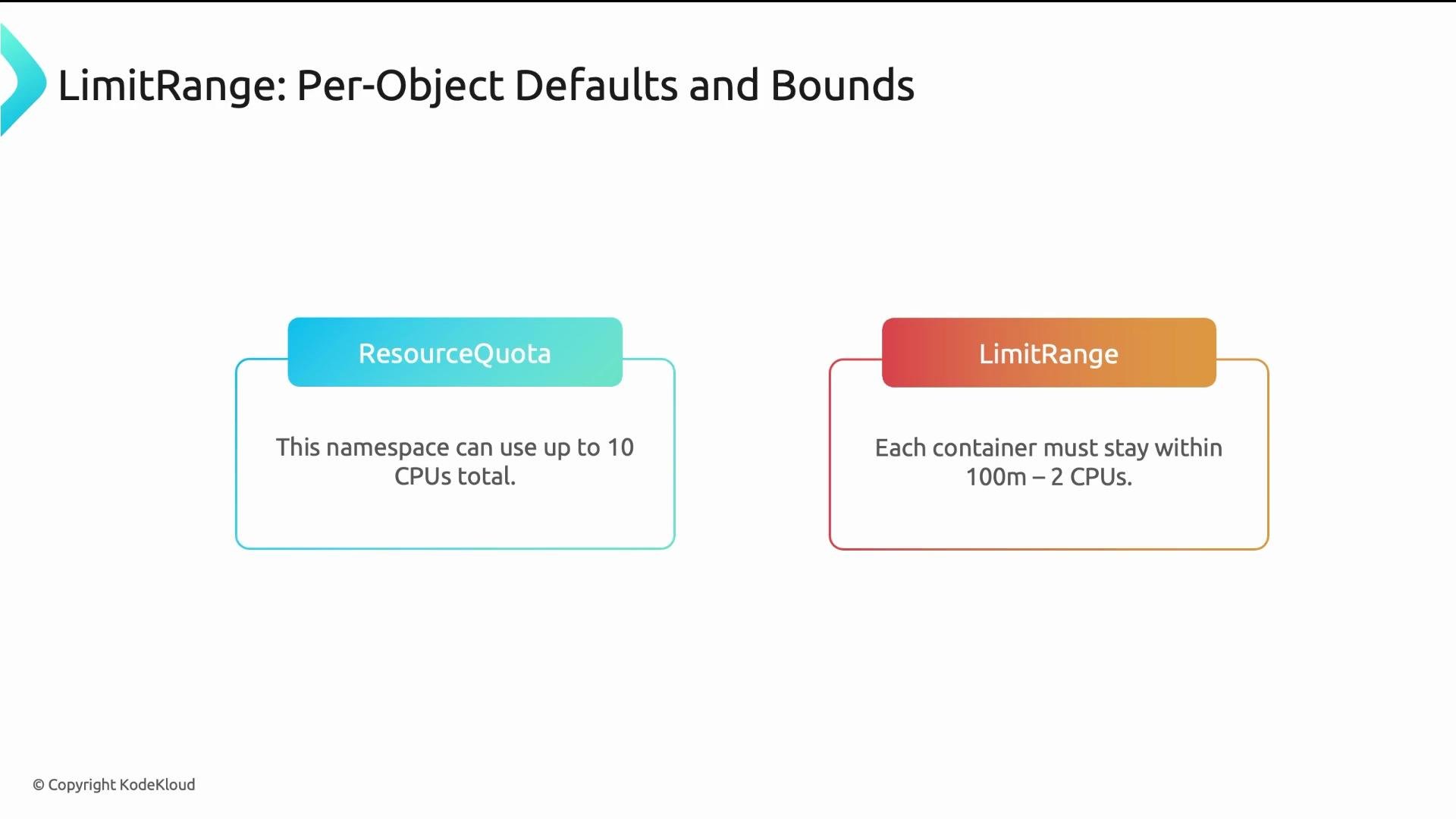

The image explains "LimitRange: Per-Object Defaults and Bounds," detailing ResourceQuota and LimitRange, with specific CPU usage limits for a namespace and individual containers.
How ResourceQuota and LimitRange work together Admission pipeline flow when creating a pod:
  1. The pod spec is submitted to the API server (e.g., kubectl apply, controllers).
  2. LimitRanger (LimitRange admission controller) runs first:
    • If containers omit requests/limits, LimitRange injects defaultRequest/default.
    • If a request violates min/max, the request is rejected.
  3. ResourceQuota admission controller runs next:
    • It checks whether admitting the pod (including injected defaults) would exceed the namespace quotas.
    • If it would exceed quotas, the request is rejected with 403 Forbidden.
  4. If both checks pass, the pod is admitted and sent to the scheduler.

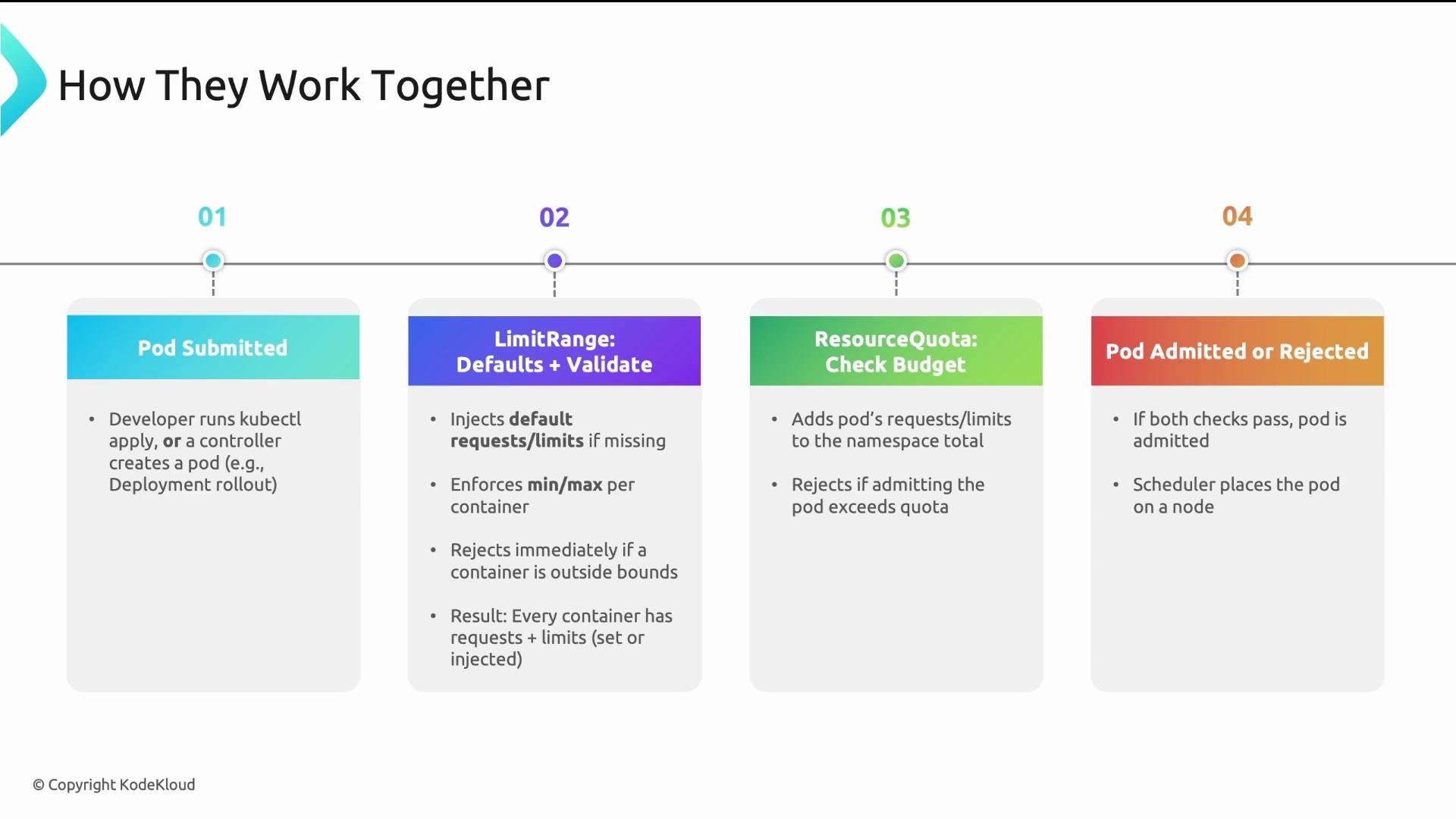

The image is a flowchart illustrating the process of how pods are managed in Kubernetes, showing the steps of submission, validation, quota checking, and admission or rejection. Each step includes a brief description of its function, highlighting the interaction between components like LimitRange and ResourceQuota.
Practical examples
  • Limit pod count in development namespaces:
    • Prevents a developer from scaling a Deployment to hundreds of replicas in a single namespace.
  • Team budget in production multi-tenant clusters:
    • Caps requests and limits so teams get fair allocation across compute and memory.
  • Container defaults to ensure QoS and measurable quotas:
    • Apply a LimitRange in every namespace so pods never default to BestEffort QoS and ResourceQuota can compute totals accurately.
Combine a LimitRange that injects sensible defaults with a ResourceQuota that caps totals to provide comprehensive governance: LimitRange ensures per-container constraints and ResourceQuota enforces namespace-wide budgets.
LimitRange runs before ResourceQuota in the admission pipeline. This lets LimitRange inject defaults so the ResourceQuota sees complete resource requests and can correctly enforce namespace totals.
Common pitfalls and tips
If you set ResourceQuota but do not apply LimitRange defaults, pods without requests may end up in BestEffort QoS and ResourceQuota cannot reliably account for them. Always apply LimitRange defaults in namespaces where you use ResourceQuota.
Quick comparison Four takeaways
  • ResourceQuota caps total namespace consumption (compute, object counts, storage).
  • LimitRange sets per-container/pod defaults and enforces min/max bounds.
  • Use LimitRange and ResourceQuota together to provide reliable multi-tenant governance.
  • Apply sensible defaults (LimitRange) in every namespace and set ResourceQuota values appropriate to your environment (e.g., dev vs prod).
