Now let’s build our first policy engine. Gatekeeper is a Kubernetes-native policy engine built on top of Open Policy Agent. Gatekeeper uses a two-resource model—ConstraintTemplates and Constraints—to define and apply policies at the Kubernetes API server admission stage. This guide walks through the concepts, a practical Rego example, safe rollout practices, and debugging tips so you can write, test, and enforce policies reliably. A real-world motivation: a healthcare company required HIPAA-compliant configurations across twelve namespaces. Their CI/CD pipeline scanned YAMLs, but developers could still run kubectl apply directly and bypass checks. In two months they logged three incidents: a pod missing encryption labels, a container running as root with direct patient-data access, and an unscanned image pulled from Docker Hub. Gatekeeper would have enforced these checks at the API server, preventing such resources regardless of how they were created.
The image features an illustration related to HIPAA compliance in a healthcare setting, mentioning issues like a pod without encryption labels and a container running as root. It also highlights CI/CD scripts, security concerns, and Docker Hub.

​
How Gatekeeper’s two-resource model works

Gatekeeper separates policy logic from policy instances:
  • ConstraintTemplate: authored by the platform or security team. Contains the Rego policy logic and registers a new CRD (CustomResourceDefinition) when applied.
  • Constraint: an instance of that CRD that specifies where the policy should be applied and supplies parameters.
Write the logic once in a ConstraintTemplate and create multiple Constraints with different parameters to apply the same policy across multiple scopes.

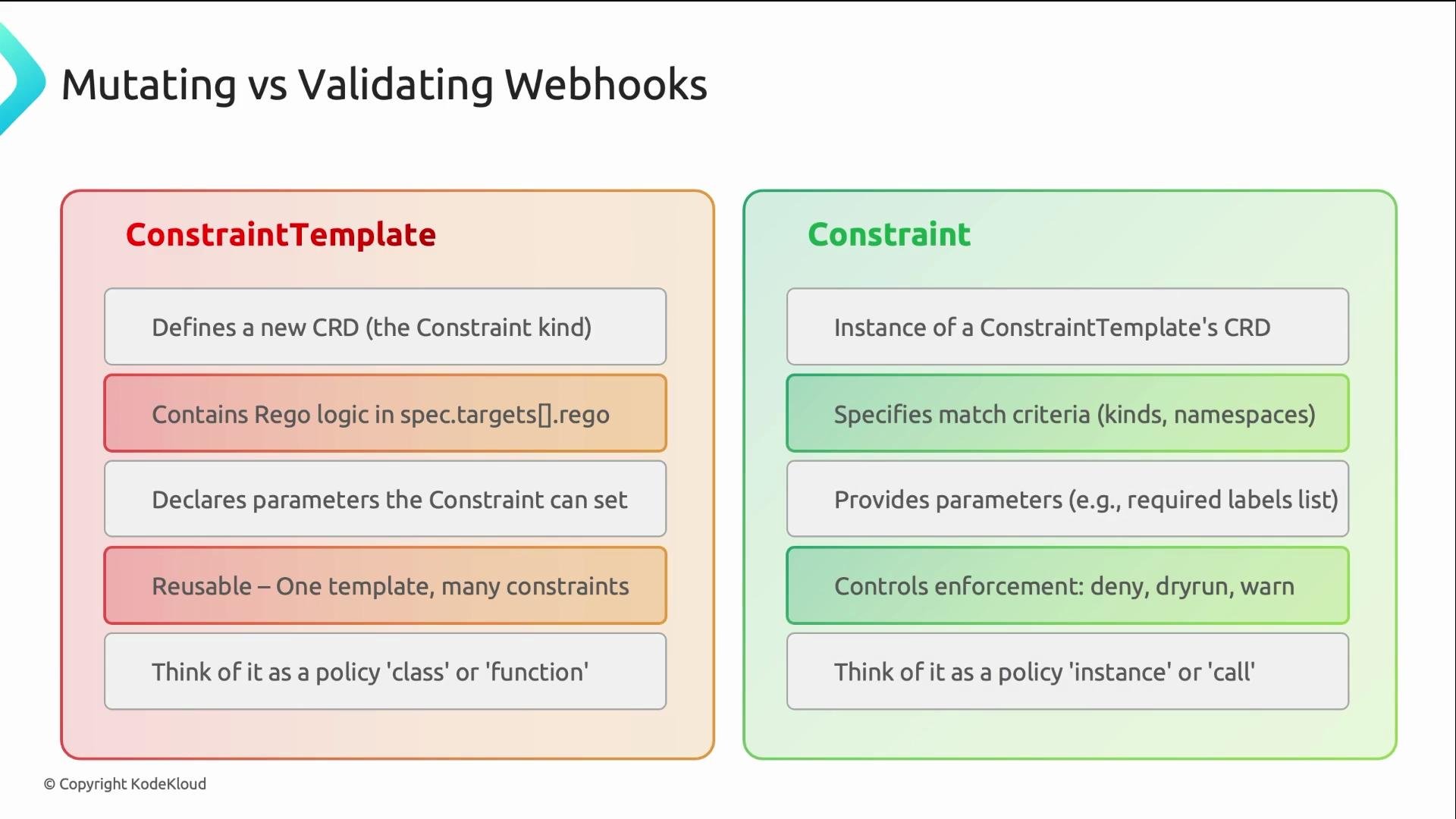

The image is a comparison between "ConstraintTemplate" and "Constraint" in the context of mutating vs. validating webhooks, highlighting the functions and features of each.

​
Example: Required labels policy (ConstraintTemplate + Constraint)

The following example shows a ConstraintTemplate that enforces required labels on a resource. Key points:
  • spec.crd creates a new kind: K8sRequiredLabels.
  • spec.targets.rego contains the Rego logic.
  • Rego inputs to know:
    • input.review — the admissionReview object; the resource under validation/ mutation is input.review.object.
    • input.parameters — parameters provided by the Constraint.
ConstraintTemplate:
Explanation:
  • The violation rule iterates the labels parameter and checks whether each required label exists on the requested resource (input.review.object.metadata.labels).
  • When a label is missing, the rule emits a violation message, and Gatekeeper will act according to the Constraint’s enforcementAction (e.g., deny, warn, dryrun).
Now create a Constraint that uses the template. The kind must match the K8sRequiredLabels CRD registered by the template. The enforcementAction controls behavior:
  • dryrun: record violations but allow the request.
  • warn: allow the request, but return a warning to the caller.
  • deny: reject the request.
Constraint:
With the constraint above, attempts to create a Namespace without the team label will be rejected with a helpful message:
A staged rollout prevents sudden breakage across clusters and teams:
  1. Start with enforcementAction: dryrun — captures violations without blocking resources.
  2. Move to warn — surfaces issues to users while still allowing requests.
  3. Finally switch to deny — fully enforce the policy once remediation is complete.
Rollout checklist: apply the ConstraintTemplate, create Constraints in dryrun mode, monitor recorded violations and fix offending resources, switch to warn for visibility, then set enforcementAction: deny when remediation is complete.
Important: Applying deny without a phased rollout can cause outages. Always run dryrun first and ensure teams have time to remediate violations before enforcing.

​
Debugging Gatekeeper

  • If a ConstraintTemplate fails to register, inspect its status for Rego syntax or schema errors.
  • Use kubectl get and kubectl describe to inspect ConstraintTemplates, Constraints, and recorded violations.
  • Gatekeeper records violations even when rejecting requests — violations appear in the Constraint status.
  • Check the Gatekeeper controller logs for runtime errors, webhook connectivity issues, or other controller-side problems.
Common troubleshooting steps:
  • Verify the ConstraintTemplate is Ready and has no Rego compile errors.
  • Confirm the constraint kind exactly matches the CRD name created by the template.
  • Ensure the Gatekeeper controller pods and webhook services are healthy and reachable by the API server.

​
Useful commands and examples

​
Common issues

  • Rego syntax errors or invalid schema in the ConstraintTemplate (check kubectl describe constrainttemplate <name> and .status).
  • Misconfigured webhook or API server connectivity problems.
  • Gatekeeper controller pods not running or crashing — check pod status and logs.

​
Summary

Gatekeeper enforces policies using a clear two-resource model:
  • ConstraintTemplates define Rego logic once and register a CRD.
  • Constraints instantiate that CRD to define where and how to apply the logic using parameters.
Key Rego inputs for admission policies:
  • input.review — the admissionReview object; input.review.object is the resource.
  • input.parameters — values supplied by the Constraint.
Always follow a phased rollout: dryrun → warn → deny. Practice authoring ConstraintTemplates and Constraints, test them in dryrun, and monitor violations before enforcing to prevent surprises.
