We have already secured who can access the cluster (RBAC), what configurations are allowed (Admission Control), and what pods can do at runtime (Pod Security Standards). The next layer is securing network traffic between workloads inside the cluster. Mutual TLS (mTLS) encrypts all pod-to-pod communication and gives each workload a cryptographic identity. Without mTLS, traffic inside the cluster is plaintext and a compromised pod could sniff sensitive data or impersonate other services. In this article we use Istio Service Mesh as an example to demonstrate:
  • How mTLS works with sidecar proxies and SPIFFE identities.
  • How to configure mTLS modes with PeerAuthentication.
  • How to apply service-level access control using AuthorizationPolicy and SPIFFE identities.

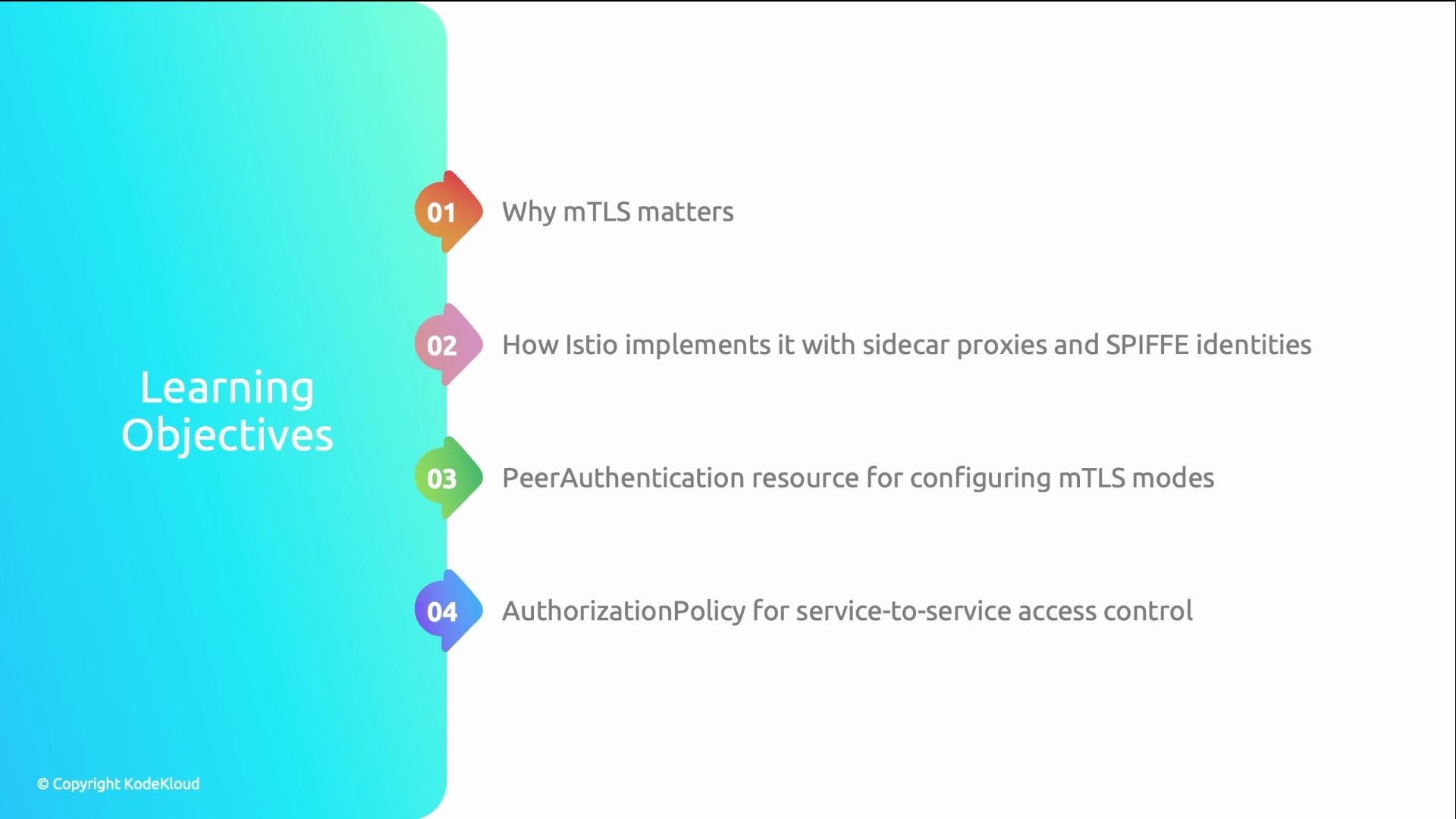

The image lists learning objectives related to mTLS and Istio, including its importance, implementation with sidecar proxies and SPIFFE identities, PeerAuthentication for configuring modes, and AuthorizationPolicy for access control.

​
Why mTLS matters

Kubernetes networking is plaintext by default. That creates three main risks:
  • A compromised pod can sniff node-local traffic — exposing API keys, credentials, and user data.
  • There is no built-in service identity, so pods can impersonate one another.
  • There is no native, easy way to enforce which services are allowed to call which.
mTLS addresses these problems by providing:
  • Encryption: traffic is encrypted in transit.
  • Identity: each workload receives a SPIFFE certificate that encodes its trust domain, namespace, and service account.
  • Authentication: callers are verified before connections are established.
Learn more about SPIFFE: https://spiffe.io/

​
How Istio implements mTLS

Istio’s control plane (Istiod) acts as a certificate authority. It issues short-lived X.509 certificates to each pod’s Envoy sidecar. Each certificate contains a SPIFFE URI identity such as: spiffe://cluster.local/ns/frontend/sa/web-app When pod A talks to pod B, the Envoy sidecars perform mutual TLS and validate each other’s certificates. Application code doesn’t need changes — apps continue to send plain HTTP. Encryption and identity verification happen at the sidecar layer.

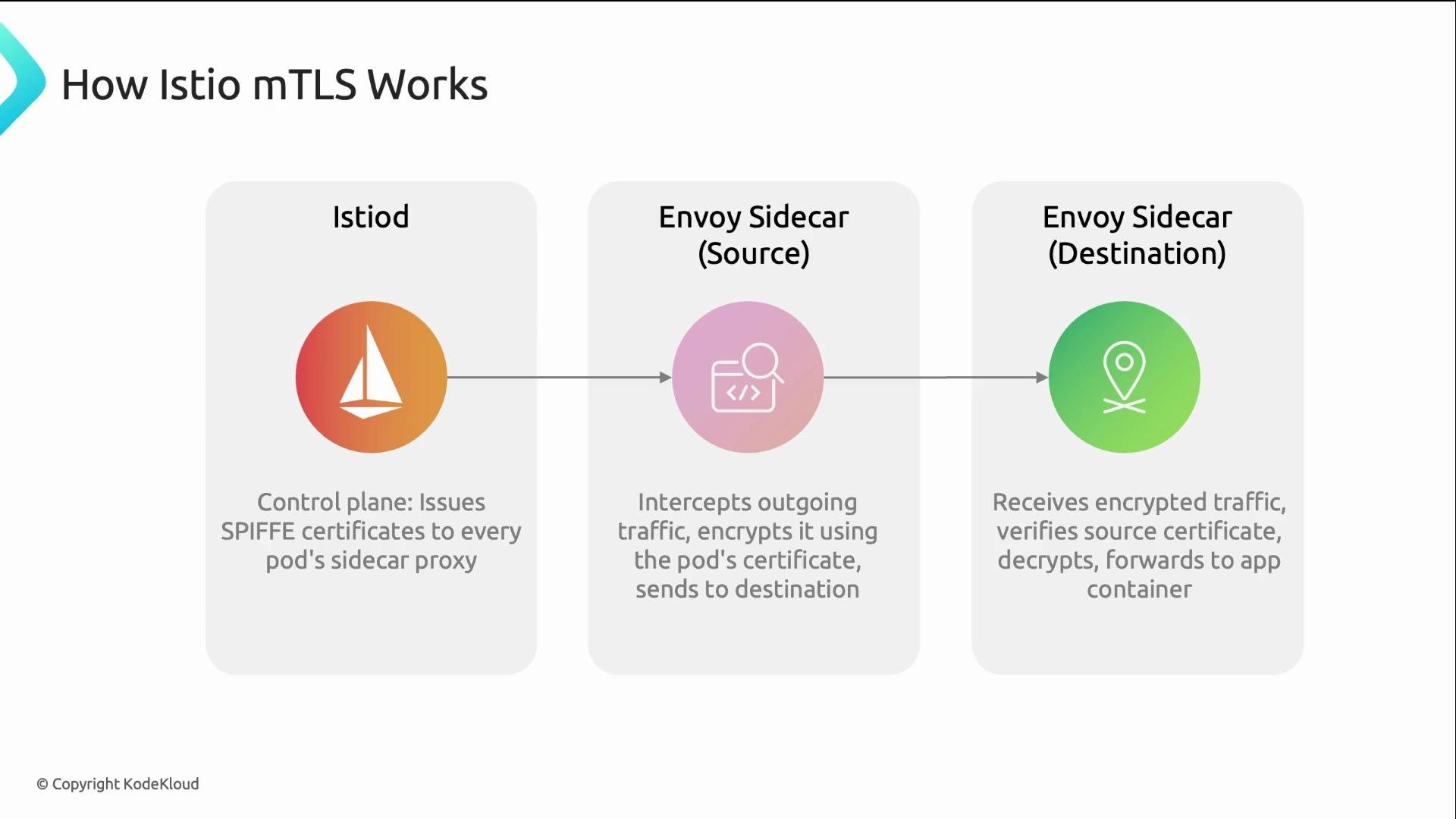

The image illustrates how Istio mTLS works, showing the flow from Istiod issuing certificates, to the Envoy Sidecar (Source) encrypting and sending traffic, and the Envoy Sidecar (Destination) receiving, verifying, and forwarding the traffic.

​
Controlling mTLS with PeerAuthentication

Istio’s PeerAuthentication resource determines the mTLS mode for inbound traffic. The key field is spec.mtls.mode. Common modes and recommended usage: Example PeerAuthentication to enforce strict mTLS for the payments namespace:
Scope rules for PeerAuthentication:
  • A PeerAuthentication named default in istio-system typically sets a mesh-wide default.
  • A PeerAuthentication named default in a namespace affects only that namespace.
  • A PeerAuthentication with a selector applies only to matching workloads (labels).
If you want strict mTLS for a specific namespace, create a PeerAuthentication named default in that namespace with mode: STRICT.

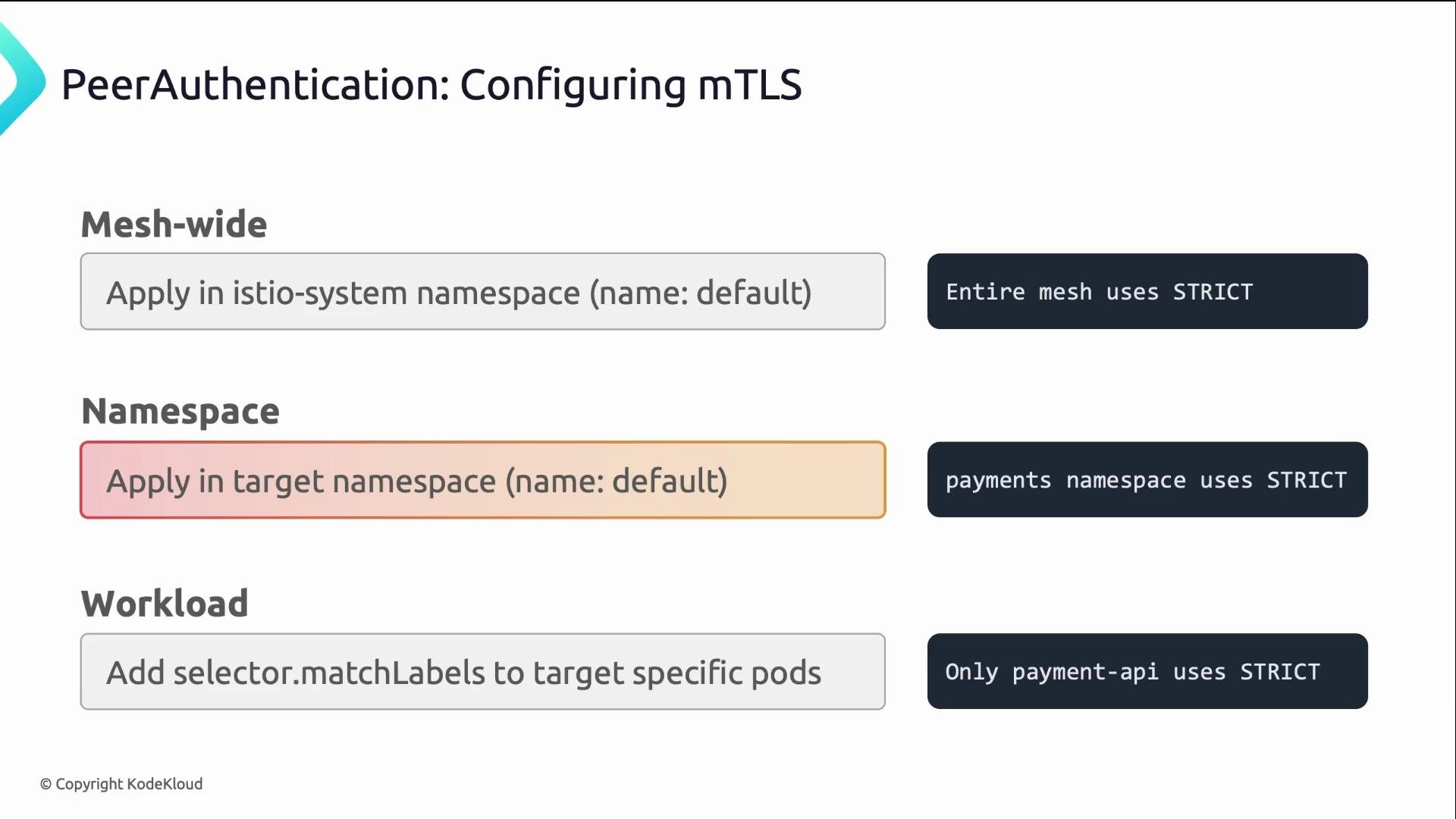

The image is about configuring mTLS with PeerAuthentication in different scopes: mesh-wide, namespace, and workload levels. It details how each scope enforces the STRICT policy.

​
AuthorizationPolicy: service-level RBAC using SPIFFE identities

While PeerAuthentication ensures encryption and identity, Istio’s AuthorizationPolicy enforces access control based on those identities. Policies reference SPIFFE URIs from mTLS certificates inside the principals field. Example: allow only the web-app service account in the frontend namespace to call the payment-api service, and permit only GET and POST to /api/*:
Notes:
  • The principals value is the SPIFFE URI that the Envoy sidecars present during mTLS.
  • The default trust domain is often cluster.local in typical Istio installs; adjust if your cluster uses a different trust domain.

​
Verifying mTLS and sidecar injection

Check that PeerAuthentication resources are present and inspect their modes:
Use istioctl to inspect a pod and see the applied mTLS settings and relevant policies:
Verify sidecar injection (the sidecar is the istio-proxy container). A 2/2 READY indicates the application container plus the istio-proxy sidecar:
If you see 1/1, no sidecar is injected and mTLS will not be applied for that pod.

​
Rolling out strict mTLS safely

Follow a staged rollout to avoid outages:
  1. Enable automatic sidecar injection for the target namespace(s) and restart pods so they pick up the sidecar.
  2. Start with PERMISSIVE mode at the mesh or namespace level so both mTLS and plaintext are accepted. This allows services not yet meshed to continue communicating.
  3. Monitor traffic, Istio telemetry, and logs to detect and remediate failures.
  4. Once all workloads show sidecars and traffic is healthy, change the mode to STRICT for full enforcement.
This approach mirrors standard safe rollout patterns used for security and policy enforcement.

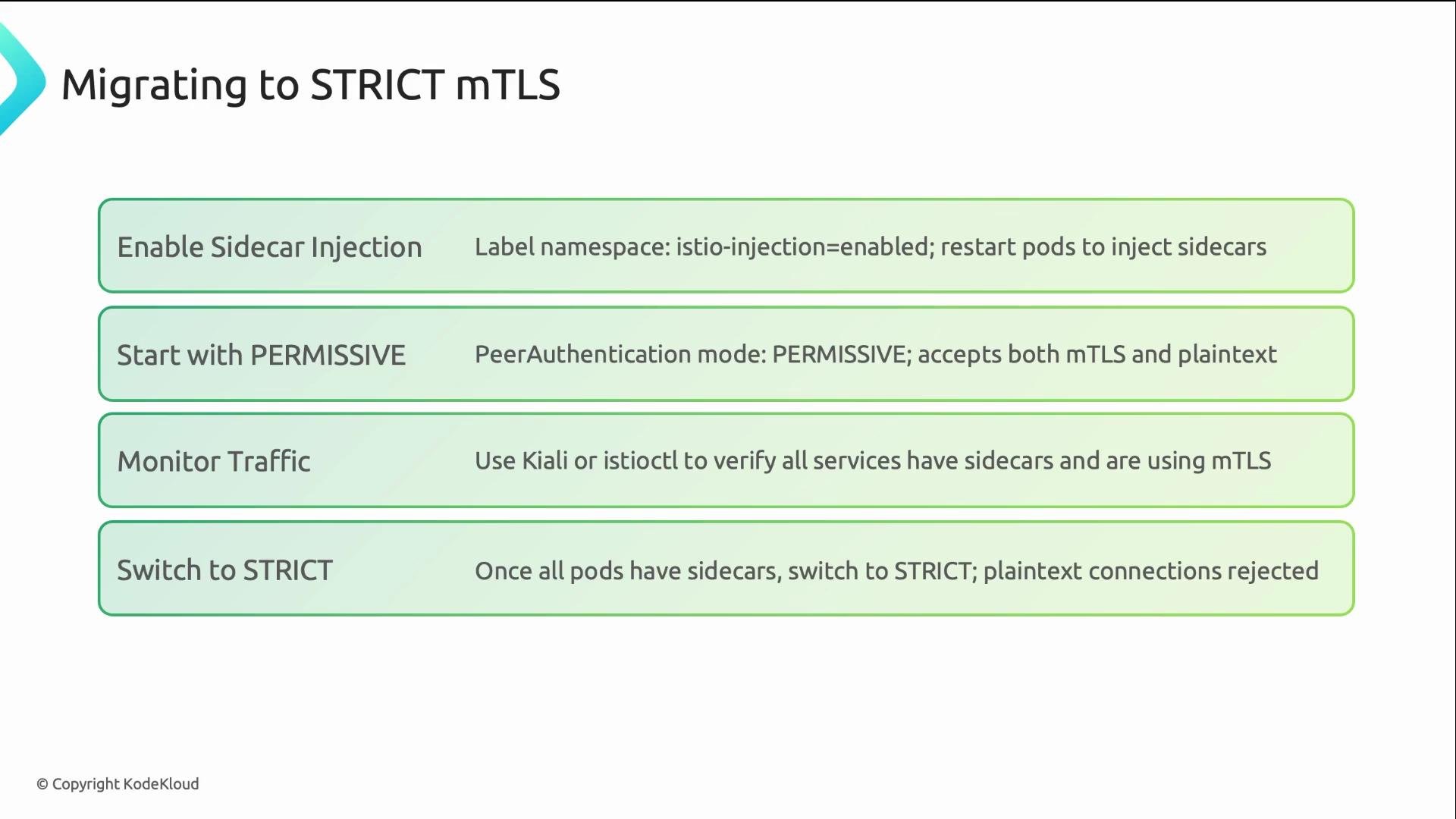

The image outlines steps for migrating to strict mutual TLS (mTLS) in a Kubernetes environment, including enabling sidecar injection, starting with a permissive mode, monitoring traffic, and switching to strict mode.

​
Quick checklist

  • Ensure sidecar injection is enabled for target namespaces.
  • Confirm pods show 2/2 READY (application + istio-proxy).
  • Start with PERMISSIVE to avoid breaking traffic during migration.
  • Apply PeerAuthentication (STRICT) once all workloads are meshed.
  • Use AuthorizationPolicy to enforce service-to-service access using SPIFFE principals.
  • Validate with istioctl x describe pod and kubectl commands.
Enable sidecar injection for the target namespaces and validate with kubectl get pods -n <namespace> (look for 2/2 READY) before switching PeerAuthentication to STRICT.

​
