Canary deployments let you route a small fraction of production traffic (for example, 5%) to a new release while you monitor behavior and metrics. This reduces blast radius for changes and enables validation on real traffic. However, vanilla Kubernetes Services operate at layer 4 (TCP) and perform simple endpoint load balancing (typically round-robin), so they cannot provide precise, HTTP-aware traffic splits required for robust canary strategies. Kubernetes services rely on pod counts to approximate traffic percentages, which leads to several practical limitations:
  • You can only approximate percentages by changing replica counts — not control them precisely.
  • No user- or header-based routing (can’t target specific users or sessions).
  • No traffic mirroring (can’t shadow production traffic to a canary for testing).
  • No HTTP-layer routing decisions (paths, headers, cookies, or fault injection).
A real-world example: a team deployed 19 stable pods (v1) and only 1 canary pod (v2), expecting that single canary to receive ~5% of traffic. Because the Kubernetes Service load-balances across endpoints without L7 awareness, that expectation is unreliable.

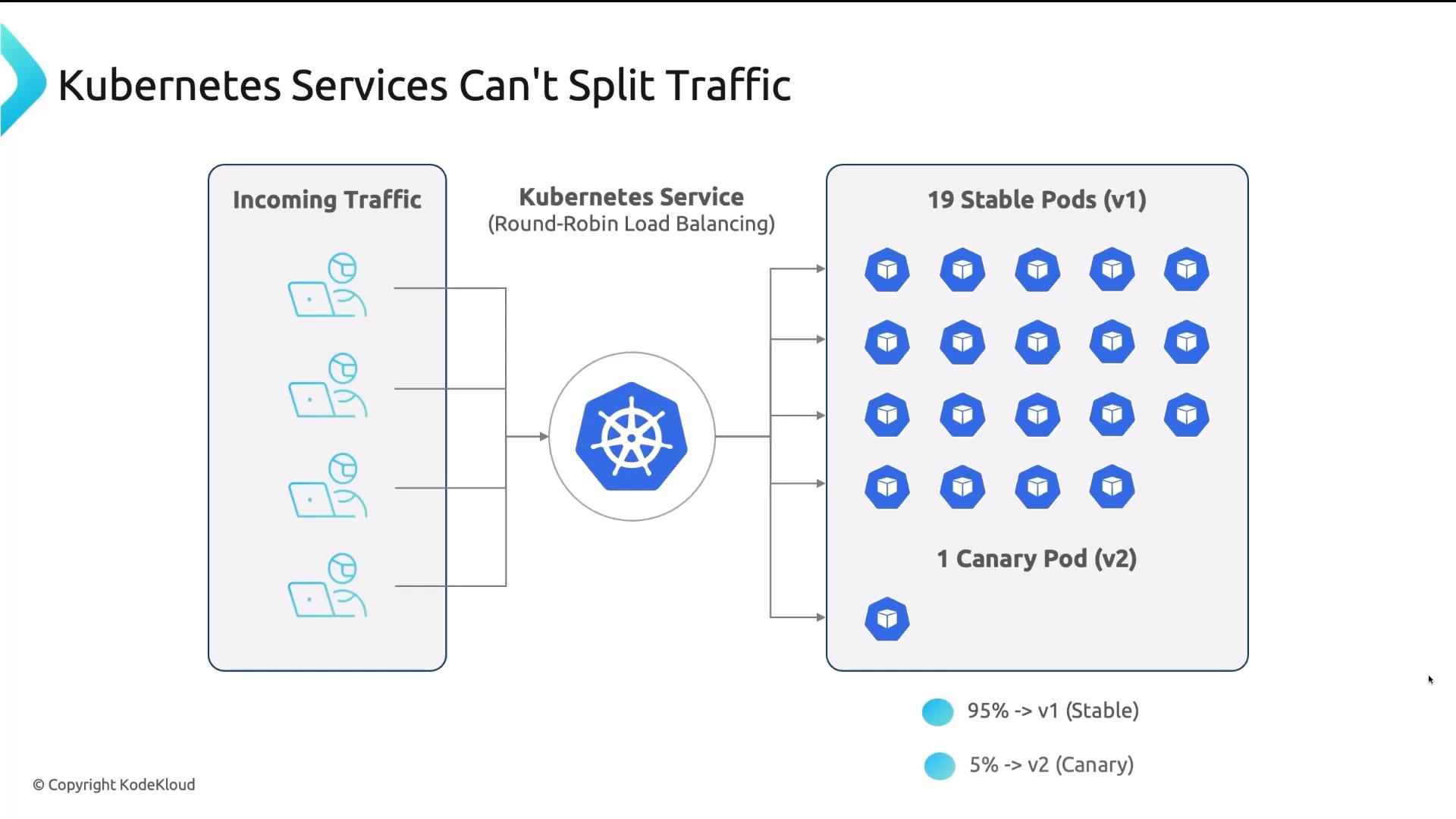

A diagram titled "Kubernetes Services Can't Split Traffic" showing incoming users routed through a Kubernetes service (round‑robin load‑balancer) to 19 stable v1 pods and 1 canary v2 pod. It illustrates that traffic cannot be percentage‑split by the service (95% v1 vs 5% v2 is not enforced).
Why this matters: canary control, targeted experiments, and reliable progressive delivery require HTTP-layer routing decisions that are independent of replica counts. The standard solution is to adopt a service mesh. Service meshes (for example, Istio) inject a sidecar proxy (Envoy) into every pod so that all inbound and outbound traffic flows through the proxy. A mesh control plane (Istiod for Istio) configures those proxies with high-level routing rules. Because Envoy operates at L7 (HTTP) it can apply precise routing logic regardless of how many pod endpoints exist.

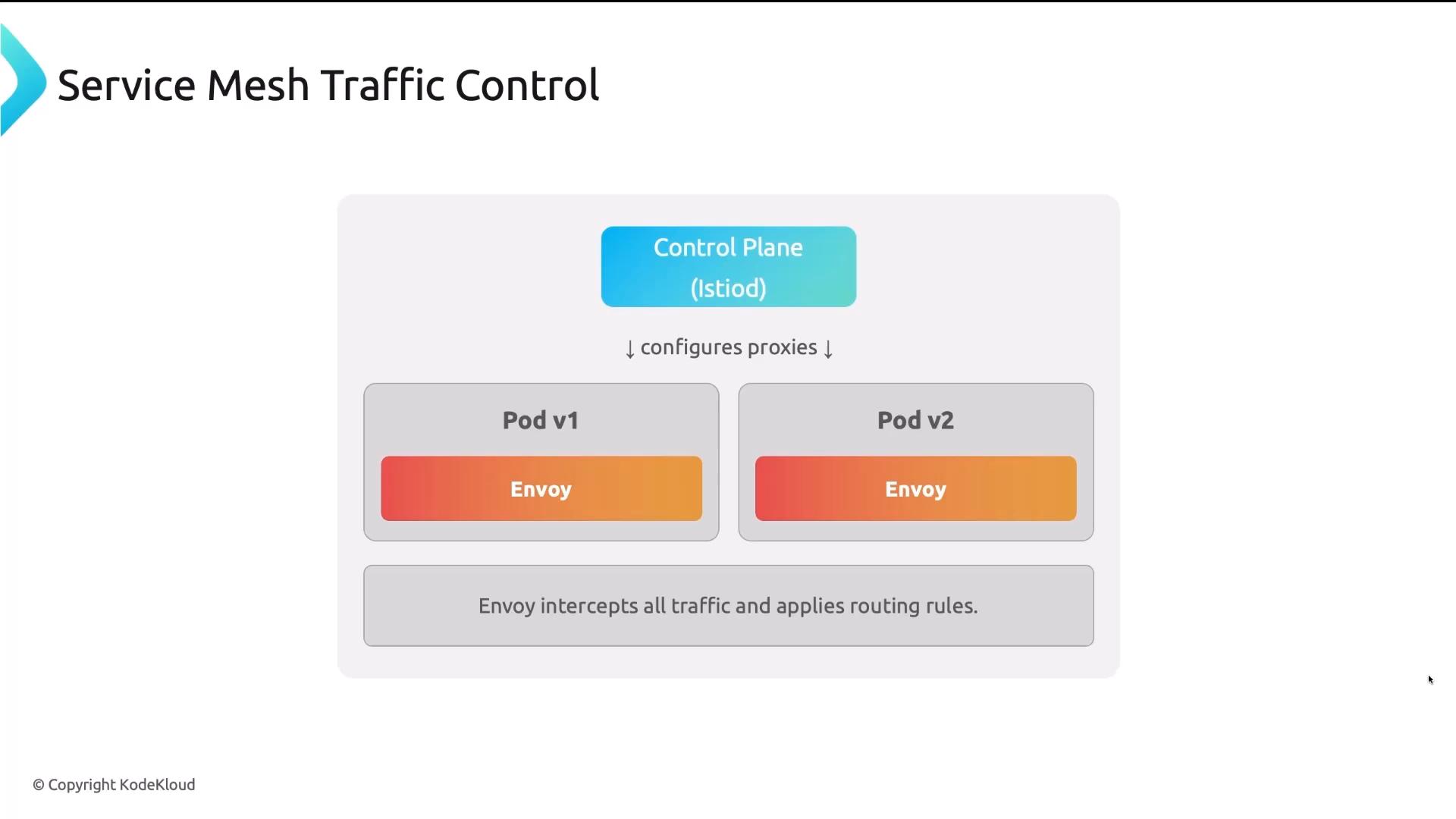

A slide diagram titled "Service Mesh Traffic Control" showing a control plane (Istiod) that configures Envoy sidecar proxies. It depicts two pods (v1 and v2) with Envoy intercepting all traffic and applying routing rules.
Service mesh traffic-management capabilities (important for progressive delivery):
  • Weighted routing: enforce exact percentages (e.g., 95% stable, 5% canary) independent of replica counts.
  • Header/cookie-based routing: target segments such as beta testers using headers like x-beta: true.
  • Traffic mirroring (shadowing): duplicate production requests to a canary without impacting user responses.
  • Fault injection: simulate delays or errors to validate resilience and observability.
Below is a concise comparison that highlights why a service mesh is a better fit for canaries than a plain Kubernetes Service. All mesh behaviors can be defined declaratively in YAML and managed in Git for reproducible, auditable progressive delivery.

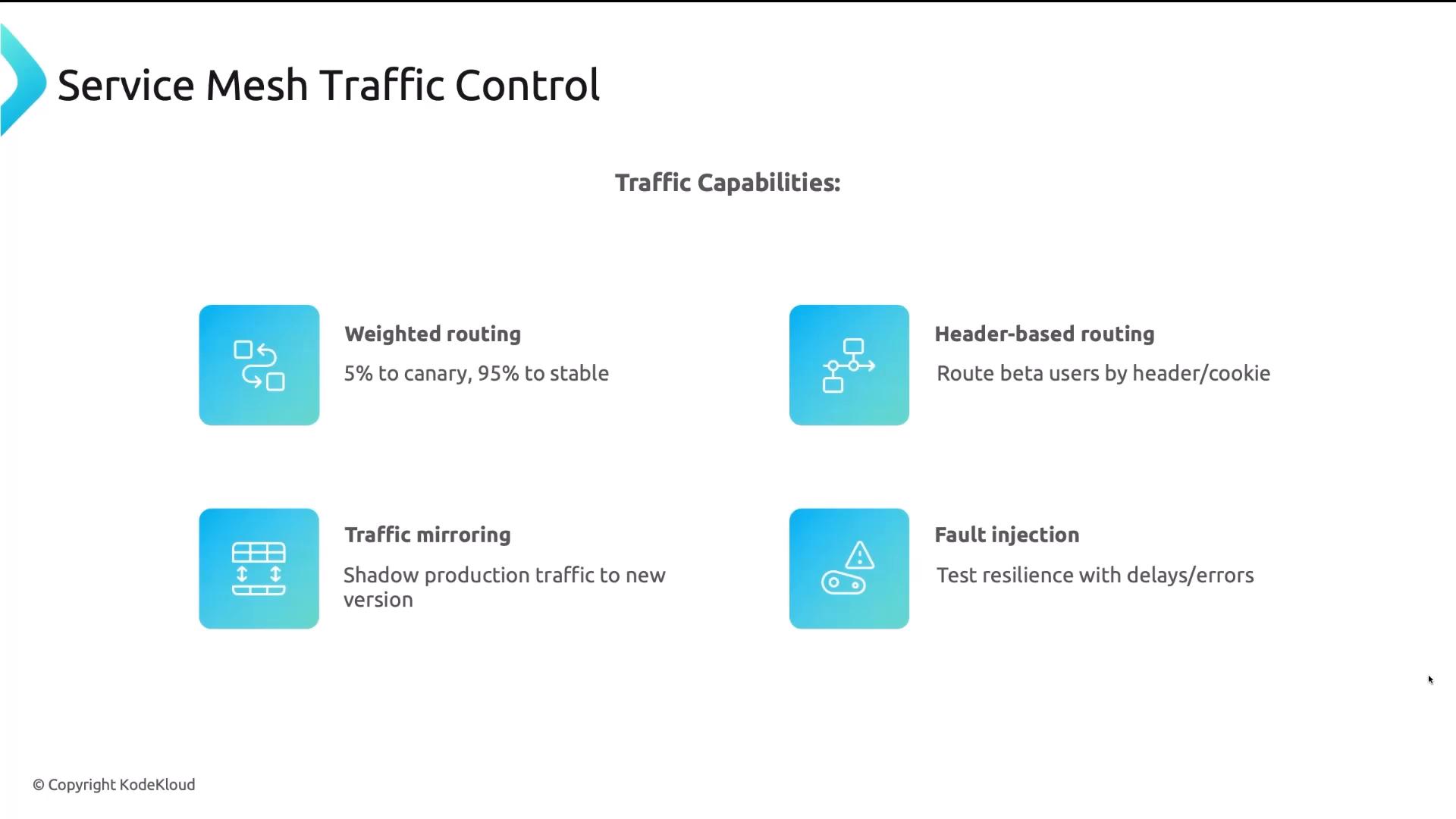

A presentation slide titled "Service Mesh Traffic Control" that lists traffic capabilities. It shows four features: weighted routing (5% canary, 95% stable), header-based routing (route by header/cookie), traffic mirroring (shadow traffic), and fault injection (test with delays/errors).
Istio canary routing typically uses three resources together:
  • VirtualService — declares HTTP routing rules and traffic weights.
  • DestinationRule — defines named subsets (for example, stable and canary) that select pods using labels.
  • Kubernetes Service — still used for DNS and basic service discovery, but the mesh performs L7 routing decisions.

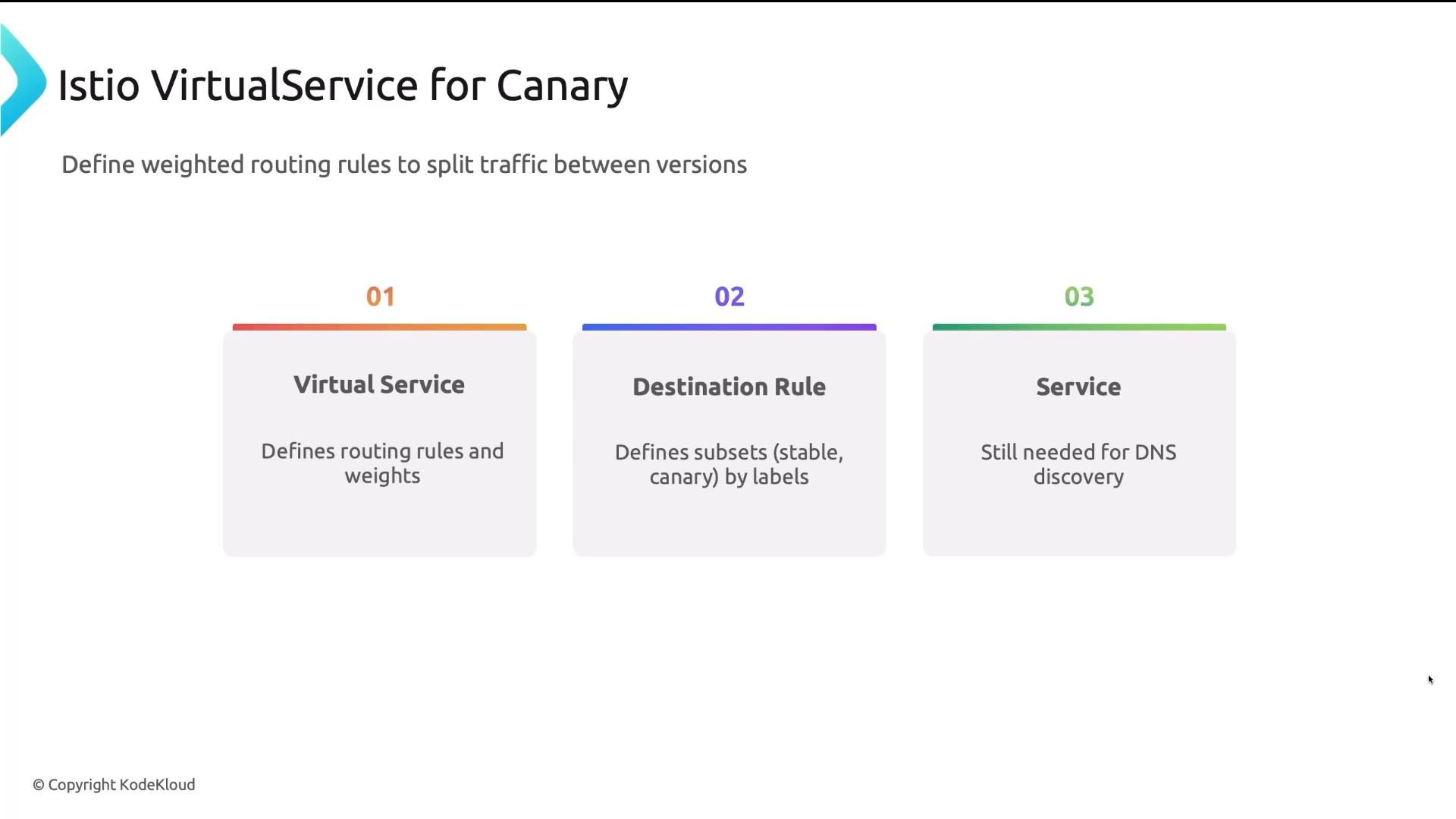

A presentation slide titled "Istio VirtualService for Canary" explaining weighted routing to split traffic between versions. It shows three boxes: Virtual Service (defines routing rules and weights), Destination Rule (defines subsets like stable/canary by labels), and Service (still needed for DNS discovery).
Key insight: The service mesh enforces routing at L7 (HTTP) and can maintain precise traffic splits regardless of replica counts. You can configure a single canary pod to receive 5% of traffic; while short-term variance occurs due to request granularity, the mesh will route according to configured weights over time.
Example YAML manifests for a weighted canary in Istio. VirtualService: define the HTTP route and integer weights that should sum to 100.
DestinationRule: map stable and canary subset names to pod label selectors so the VirtualService can route to the correct pod groups.
After applying these manifests, Istio’s control plane programs the Envoy sidecars and they enforce the configured L7 routing.

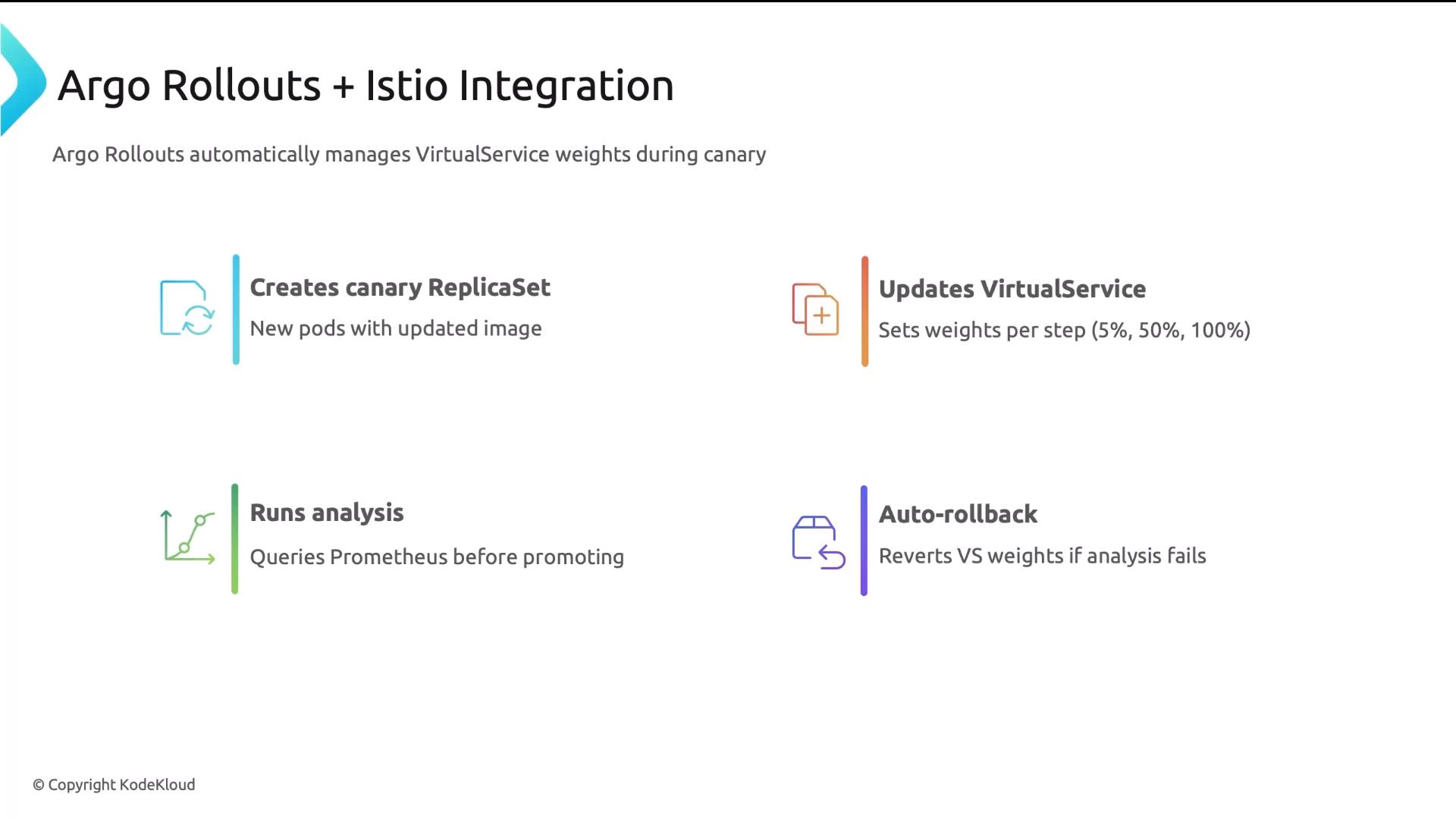

A presentation slide titled "Argo Rollouts + Istio Integration" that outlines the canary deployment workflow: creates a canary ReplicaSet, updates VirtualService traffic weights (5%, 50%, 100%), runs Prometheus analysis, and auto-rolls back if checks fail.
Automation with Argo Rollouts and Istio Argo Rollouts integrates with Istio to automate weight adjustments during a canary rollout. Typical automated flow:
  1. Argo Rollouts creates a canary ReplicaSet with the new pods.
  2. It updates the Istio VirtualService weights for each rollout step (for example: 5% → 50% → 100%).
  3. At every step, Argo runs analysis using metric providers (commonly Prometheus) to validate SLOs such as error rate, latency, and request volume.
  4. If analysis fails, Argo automatically rolls back the release: it restores VirtualService weights to route 100% to stable and scales down the canary ReplicaSet.
Combining a service mesh with rollout automation gives you precise traffic control, targeted user testing, safe validation on real traffic, and automatic rollbacks when metrics indicate regressions. Further reading and references
