Platform Building Blocks Crossplane XRs Compositions and Functions

We have CRDs and controllers to model custom APIs and their behavior, plus orchestration workflows for complex systems. Yet many organizations still have a painful gap: application delivery happens through a Kubernetes-native GitOps workflow, but infrastructure provisioning uses separate tooling. Two tools. Two workflows. Two mental models. Crossplane extends Kubernetes so you can manage infrastructure using the same declarative YAML, kubectl commands, RBAC, and GitOps patterns you already use. This article explains how Crossplane closes the gap and helps platform teams expose self-service, Kubernetes-native platform APIs using Composite Resource Definitions (XRDs) and Compositions.

The image lists four learning objectives related to app and infrastructure workflows, providers, XRDs, platform APIs, and mapping APIs, with a colorful numbered design.

In this guide you will learn to:

Explain why separate app and infrastructure workflows are problematic.
Understand Crossplane’s core concepts and architecture.
Define platform APIs with XRDs and map those APIs to concrete resources using Compositions.
Compose Kubernetes resources and cloud infrastructure together in a single abstraction.

Why separate app and infra workflows cause friction A typical developer flow at many organizations looks like:

Push application code to Git; Argo CD deploys the app.
Need a database → switch to Terraform, author HCL.
Infrastructure team reviews and applies the Terraform plan (multi-day SLA).
Platform team or devops manually creates Kubernetes Secrets with connection strings.
Argo CD syncs the secret; app finally connects.

From “I need a database” to a connected app often takes days — and requires multiple tools and mental models.

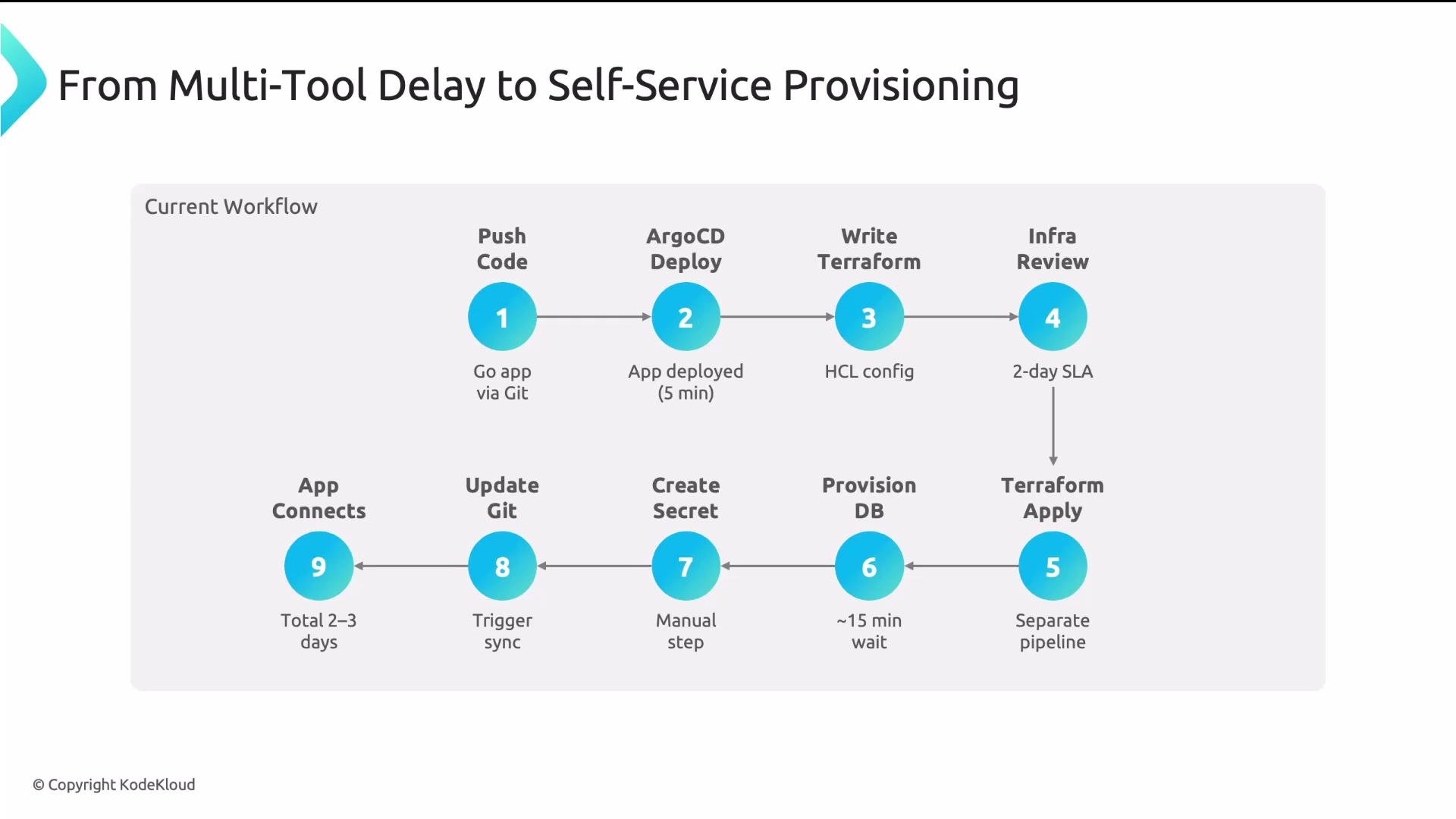

The image illustrates a step-by-step workflow for self-service provisioning, highlighting nine stages from pushing code to app connectivity, with approximate durations and specific actions involved at each step.

Contrast that with a Kubernetes-native workflow: a developer applies a single manifest and Crossplane (running in-cluster) provisions cloud resources, injects Secrets, and the app connects within minutes.

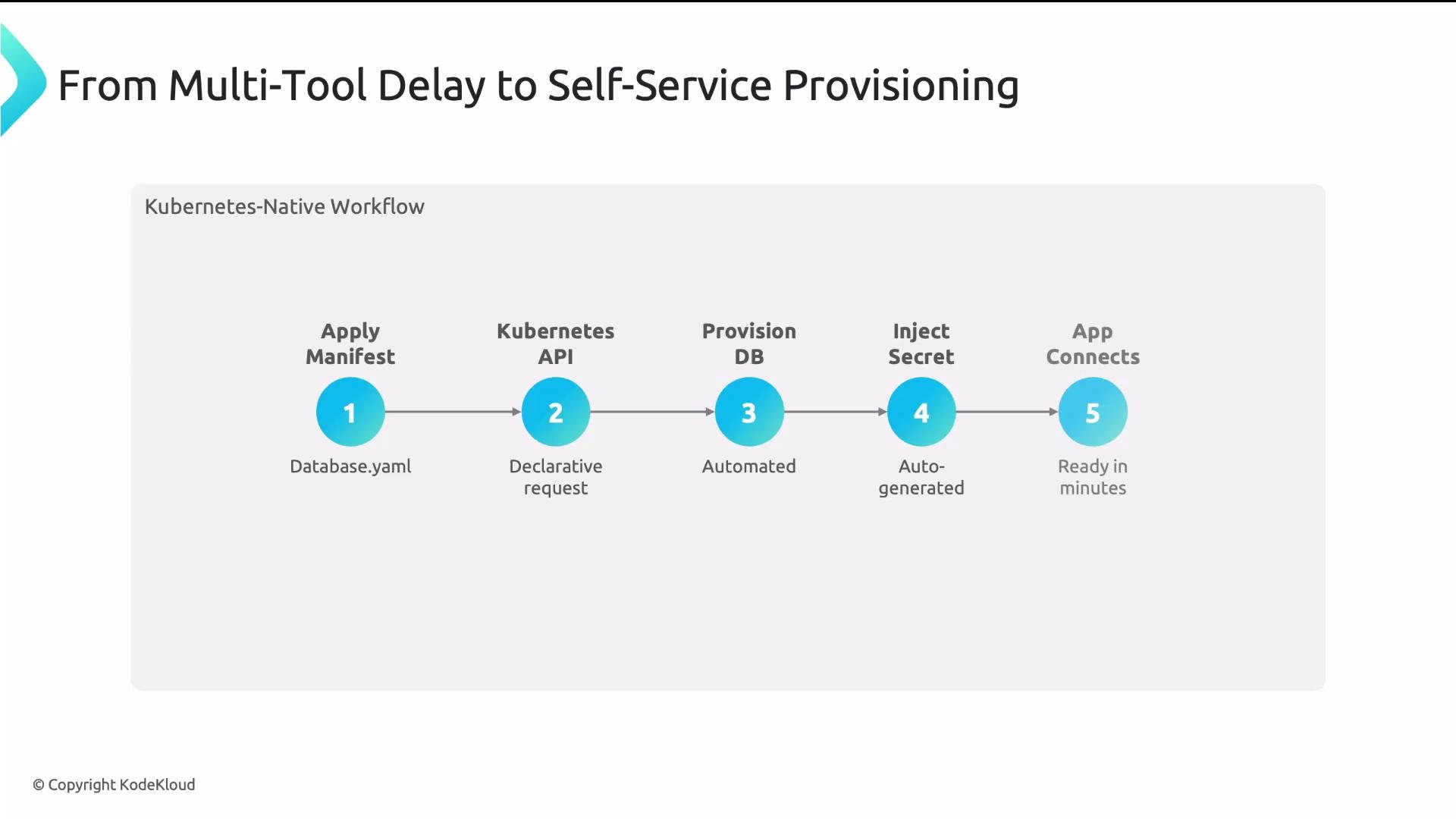

The image shows a five-step Kubernetes-native workflow for transitioning from multi-tool delays to self-service provisioning, including applying a manifest, using the Kubernetes API, provisioning a database, injecting a secret, and connecting an app.

Common requirements for platform teams

Single abstraction: one YAML file to declare app + DB + networking + security.
Namespace isolation: teams operate in their own namespaces with RBAC boundaries.
Continuous reconciliation: detect drift and self-heal cloud and Kubernetes resources.

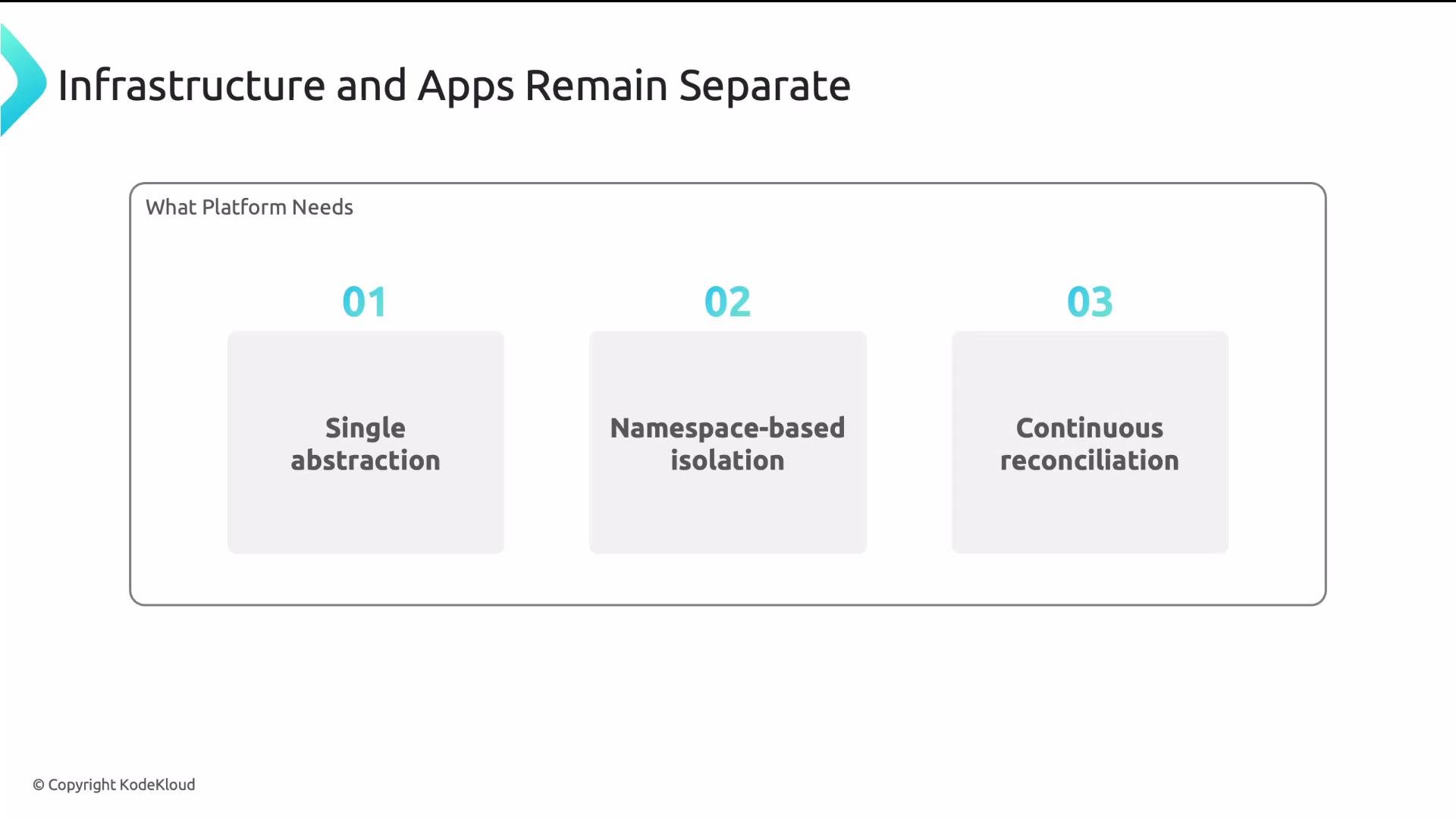

The image is a diagram titled "Infrastructure and Apps Remain Separate," listing three platform needs: single abstraction, namespace-based isolation, and continuous reconciliation.

Crossplane provides these capabilities by treating Kubernetes as the universal control plane and extending it with a few key primitives. Callout icon example to highlight the main benefit:

Crossplane lets platform teams create Kubernetes-native platform APIs so developers use the same GitOps, kubectl, and YAML workflows they already know — simplifying self-service and reducing mean time to provision.

Crossplane’s core concepts Kubernetes already offers a strong control plane model: declarative APIs, reconciliation loops, RBAC, and a vibrant ecosystem. Crossplane leverages that model and extends it to provision and reconcile external infrastructure. The four core Crossplane concepts are:

Concept	Purpose	Example
Providers	Adapters that connect Crossplane to cloud APIs (AWS, GCP, Azure) or other control planes. Providers install CRDs for managed resources and act like drivers.	`provider-aws` package
Managed resources	Kubernetes representations of real cloud resources (S3 bucket, RDS instance). Created by Crossplane using provider APIs.	`Bucket`, `RDSInstance` CRDs
Composite resources (XRs)	Higher-level, opinionated abstractions developers request (e.g., Database). An XR may represent multiple managed resources.	`Database` XR that encapsulates RDS + SecurityGroup + Secret
CompositeResourceDefinitions (XRDs)	CRD-like definitions that declare the API schema for XRs — the platform API that developers use.	`CompositeResourceDefinition` for `databases.platform.example.com`

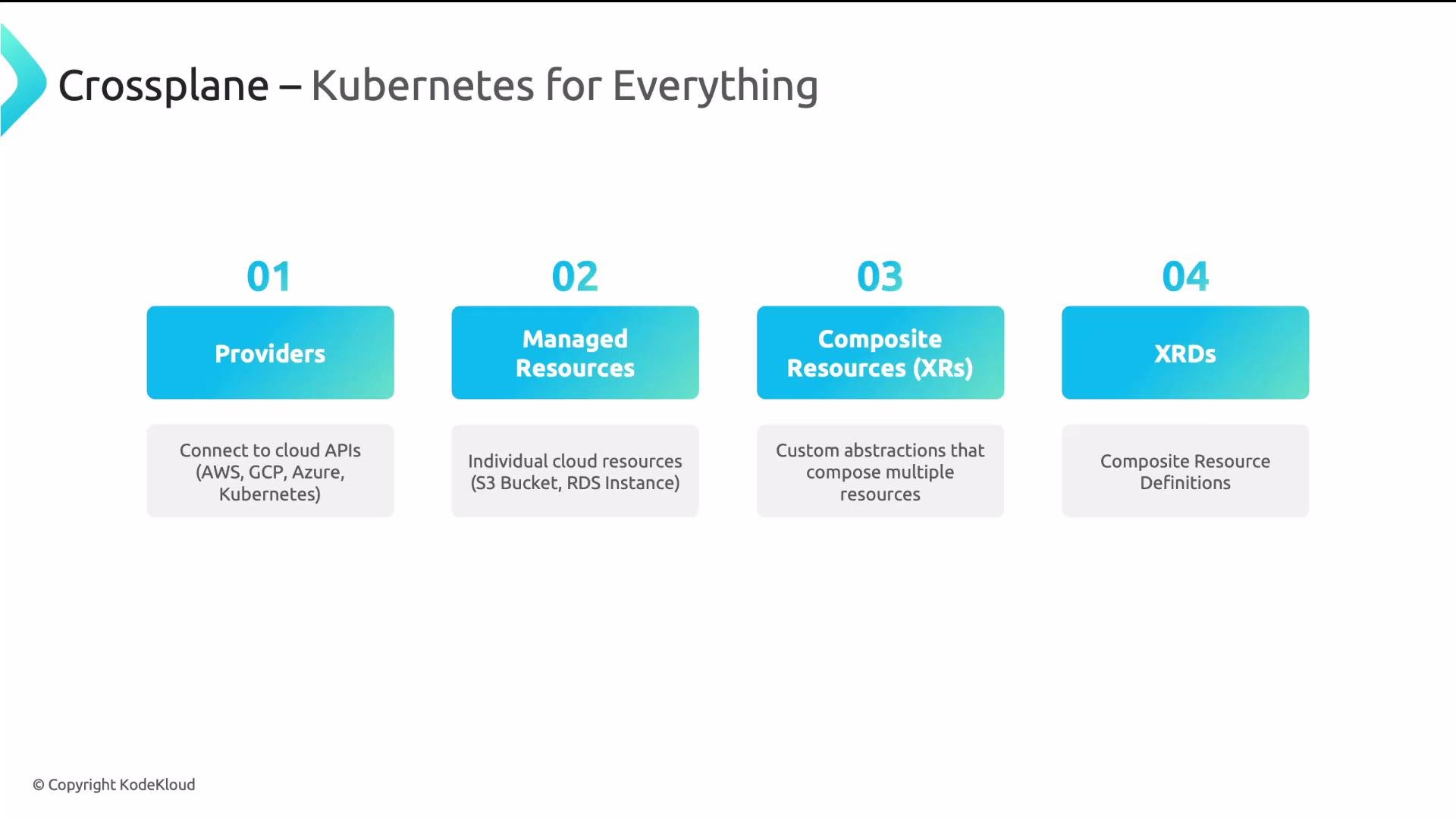

The image is an infographic titled "Crossplane – Kubernetes for Everything," showing four components: Providers, Managed Resources, Composite Resources (XRs), and XRDs, each with a brief description.

High-level Crossplane flow (platform team → developer)

Platform team authors an XRD to define a platform API (schema, fields, defaults).
Platform team creates one or more Compositions that map the XRD to concrete resources.
Developers create instances of the XR (Composite Resources) in their namespaces; Crossplane matches the XR to a Composition and provisions everything automatically.

Providers Providers are installed as packages and supply the managed resource CRDs required by Compositions. Example Provider installation:

apiVersion: pkg.crossplane.io/v1
kind: Provider
metadata:
  name: provider-aws
spec:
  package: xpkg.upbound.io/upbound/provider-aws:v1.0.0

Once a provider is installed and configured (with credentials via a ProviderConfig), you can create managed resources as Kubernetes objects. Managed resources typically include a spec.forProvider section containing provider-specific configuration. Crossplane performs the cloud API calls and continuously reconciles state. Example managed resource (S3 bucket):

apiVersion: s3.aws.upbound.io/v1beta2
kind: Bucket
metadata:
  name: my-bucket
  namespace: team-frontend
spec:
  forProvider:
    region: us-east-1
    providerConfigRef:
      name: aws-creds

XRDs: define the developer-facing platform API XRDs declare what developers can request and the schema for those requests. Think of an XRD as a CRD focused on Crossplane composition. XRDs:

Describe fields, types, required properties, and defaults.
Set the scope to Namespaced or Cluster. Namespaced XRs enable multi-tenancy by allowing teams to create XRs directly in their namespaces (no claims/proxy objects required).

Example XRD snippet:

apiVersion: apiextensions.crossplane.io/v1
kind: CompositeResourceDefinition
metadata:
  name: databases.platform.example.com
spec:
  group: platform.example.com
  names:
    kind: Database
    plural: databases
  scope: Namespaced

Developer-facing XR example (requesting a database):

apiVersion: platform.example.com/v1
kind: Database
metadata:
  name: orders-db
  namespace: team-orders
spec:
  engine: postgresql
  size: medium

Compositions: map XRs to concrete resources A Composition maps an XR schema to one or more composed resources (managed resources, Kubernetes resources, or both). Compositions generally execute as pipelines: each step runs a function that renders or transforms a composed resource. The most-used function is function-patch-and-transform, which maps values from the XR into the composed resources. Typical Composition pipeline flow:

Developer creates an XR instance.
Crossplane selects a matching Composition.
The Composition pipeline runs functions that render composed resource manifests.
Crossplane creates and continuously reconciles those composed resources.

Example mapping behavior: function-patch-and-transform can map spec.size from an XR to spec.forProvider.instanceClass in an RDS managed resource, translating friendly sizes (e.g., medium) into provider-specific instance classes (e.g., db.r5.large). Compose Kubernetes resources and cloud infrastructure together Compositions are not limited to cloud managed resources. Any Kubernetes resource can be composed — Deployments, Services, ConfigMaps, Ingresses, Secrets — alongside cloud resources such as RDS instances and SecurityGroups. This enables a single platform API to provision an entire microservice stack: app Deployment, network routing, DB instance, and the Secret with credentials.

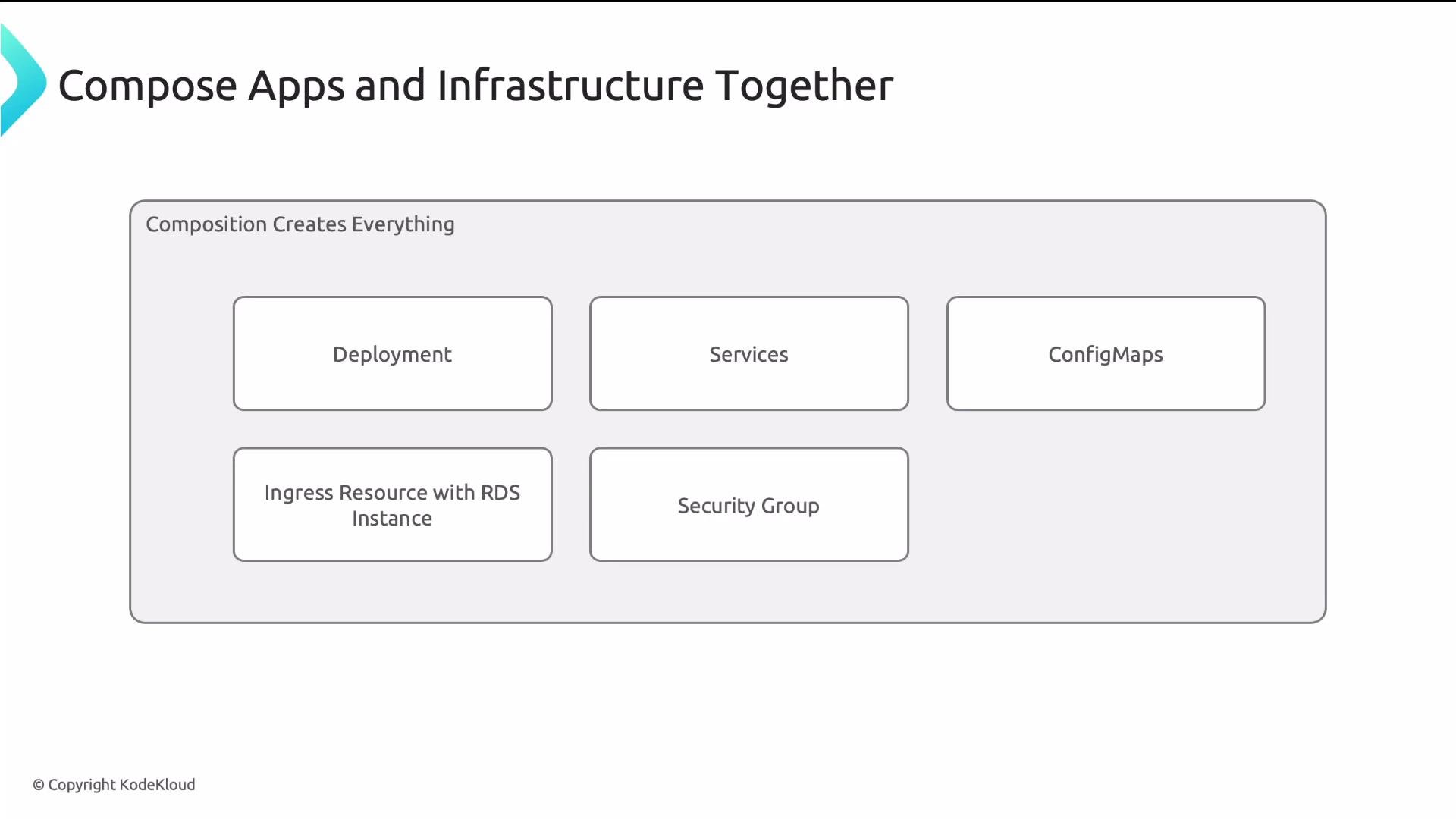

The image is a diagram titled "Compose Apps and Infrastructure Together," illustrating components such as Deployment, Services, ConfigMaps, Ingress Resource with RDS Instance, and Security Group.

Example developer XR for a microservice (one apply creates everything):

apiVersion: platform.acme.io/v1
kind: Microservice
metadata:
  name: user-api
  namespace: team-backend
spec:
  image: acme/user-api:v2
  replicas: 3
  database: postgresql
  ingress: true

A Composition for this XR could render:

A Kubernetes Deployment and Service
An Ingress resource
An RDS instance (managed resource)
A Security Group and network configuration
A Secret containing the DB connection string (populated by Crossplane)

One resource, one kubectl apply, continuous reconciliation — that’s the platform API experience Crossplane enables. Best practices and operational notes

Use Namespaced XRs for team multi-tenancy; set RBAC to control who can create which XRs.
Keep Compositions declarative and idempotent; prefer pipeline functions for transformation logic.
Install Providers as packages and centralize ProviderConfig credentials in platform-managed namespaces.
Treat XRDs and Compositions as platform code: version, review, and store them in Git to enable GitOps workflows.

Summary / Key takeaways

XRDs define your platform API and the schema developers use.
XRs (Composite Resources) are instances of that API; namespaced XRs simplify multi-tenancy.
Compositions map XRs to concrete Kubernetes and cloud managed resources, typically using pipeline mode with functions for rendering and transformation.
You can compose any Kubernetes resource alongside cloud infrastructure to provide unified, GitOps-friendly platform APIs.

The image lists four key takeaways related to platform API, multi-tenancy, pipeline compositions, and Kubernetes resources, highlighted with numbered colored markers.
