Demo Compositions with Crossplane

Crossplane enables platform engineering by letting platform teams expose simple, user-facing APIs that automatically provision cloud and Kubernetes resources. A platform user declares a single Kubernetes custom resource (for example, a Database). Crossplane reconciles that request and provisions everything underneath — no need for the user to know about ConfigMaps, namespaces, or cloud-specific instance classes. This walkthrough will:

Verify what Crossplane components are running in the cluster.
Inspect the Composite Resource Definition (XRD) that defines the user-facing API.
Inspect the Composition that implements the XRD and applies patches/transforms.
Create two composite resources with different inputs and observe the composed Kubernetes resources.

High-level architecture:

The XRD defines the API users consume (which fields they can set).
The Composition describes how to build concrete resources from that API.

What is running in the cluster

First, verify the Crossplane controllers, the RBAC manager, the function used for patch/transform, and the Kubernetes provider:

kubectl get pods -n crossplane-system

Example output:

NAME                                                            READY   STATUS    RESTARTS   AGE
crossplane-5cb76b766d-zh6fd                                     1/1     Running   0          24m
crossplane-rbac-manager-74494c4b9f-55wgx                        1/1     Running   0          24m
function-patch-and-transform-0a59aad149b-5bf6d68d-qwr2          1/1     Running   0          21m
provider-kubernetes-ed54bcb787-574d9bbd9-g9dx                   1/1     Running   0          23m

Check which XRDs are offered by the platform:

kubectl get xrd

Example output:

NAME                           ESTABLISHED   OFFERED     AGE
databases.platform.example.com  True          20m

Inspect the XRD (Database)

An XRD looks like a Kubernetes CRD: it contains group, names, scope, versions, and an OpenAPI schema describing the spec users can provide. Below is a representative excerpt of the XRD YAML for databases.platform.example.com:

apiVersion: apiextensions.crossplane.io/v1
kind: CompositeResourceDefinition
metadata:
  name: databases.platform.example.com
spec:
  group: platform.example.com
  names:
    kind: Database
    plural: databases
  scope: Namespaced
  versions:
    - name: v1
      referenceable: true
      served: true
      schema:
        openAPIV3Schema:
          type: object
          properties:
            spec:
              type: object
              properties:
                engine:
                  type: string
                  enum:
                    - postgresql
                    - mysql
                environment:
                  type: string
                size:
                  type: string
                  enum:
                    - small
                    - medium
                    - large
                targetNamespace:
                  type: string
              required:
                - engine
                - size
                - environment
                - targetNamespace

The XRD defines the user-facing API surface (the fields users can set). The Composition maps those fields into concrete resources, using patches and transforms to translate user-friendly values into provider-specific details.

Note about scope:

scope: Namespaced — composite resource instances must be created in a namespace and the composed resources will be created according to composition logic.
scope: Cluster — composite resources would be cluster-scoped. This impacts where users create resources and which RBAC permissions are required.

Inspect the Composition

The Composition named database-kubernetes implements the Database composite type. It runs in pipeline mode and calls a function (patch-and-transform) to apply patches and transforms to the composed resources. A simplified excerpt of the Composition:

apiVersion: apiextensions.crossplane.io/v1
kind: Composition
metadata:
  name: database-kubernetes
spec:
  compositeTypeRef:
    apiVersion: platform.example.com/v1
    kind: Database
  mode: Pipeline
  pipeline:
    - functionRef:
        name: function-patch-and-transform
      input:
        apiVersion: pt.fn.crossplane.io/v1beta1
        kind: Resources
        resources:
          - base:
              apiVersion: kubernetes.m.crossplane.io/v1alpha1
              kind: Object
              spec:
                forProvider:
                  manifest:
                    apiVersion: v1
                    kind: ConfigMap
                    metadata:
                      name: db-config
                      namespace: default
                    data: {}
                providerConfigRef:
                  name: default
            patches:
              - fromFieldPath: spec.targetNamespace
                toFieldPath: spec.forProvider.manifest.metadata.namespace
                type: FromCompositeFieldPath
              - fromFieldPath: spec.engine
                toFieldPath: spec.forProvider.manifest.data.engine
                type: FromCompositeFieldPath
              - fromFieldPath: spec.environment
                toFieldPath: spec.forProvider.manifest.data.environment
                type: FromCompositeFieldPath
              - fromFieldPath: spec.size
                toFieldPath: spec.forProvider.manifest.data.instanceClass
                type: FromCompositeFieldPath
                transforms:
                  - type: map
                    map:
                      large: db.r5.large
                      medium: db.t3.medium
                      small: db.t3.micro
    step: patch-and-transform

Key implementation details:

The composition creates a Kubernetes ConfigMap (kubernetes.m.crossplane.io/v1alpha1 Object) via the Kubernetes provider.
patches map fields from the composite resource spec (spec.engine, spec.size, etc.) into the ConfigMap manifest.
The map transform converts user-friendly size values (small/medium/large) into concrete instance classes (db.t3.micro, db.t3.medium, db.r5.large).

Example: create a Database composite resource

Create a composite resource orders-db.yaml that a platform user might apply:

apiVersion: platform.example.com/v1
kind: Database
metadata:
  name: orders-db
  namespace: default
spec:
  engine: postgresql
  size: large
  environment: prod
  targetNamespace: team-frontend

Apply it:

kubectl apply -f orders-db.yaml

Check the composite resource and the composition selection:

kubectl get database orders-db

Example output:

NAME       SYNCED   READY   COMPOSITION               AGE
orders-db  True     True    database-kubernetes      17s

Crossplane composes the resource. The Kubernetes provider creates a ConfigMap in the target namespace team-frontend. Inspect the created ConfigMap:

kubectl get configmaps -n team-frontend -oyaml

Representative output for the created ConfigMap:

apiVersion: v1
items:
- apiVersion: v1
  kind: ConfigMap
  metadata:
    name: db-config
    namespace: team-frontend
    creationTimestamp: "2026-04-13T03:33:04Z"
    resourceVersion: "9044"
    uid: b53a553a-5c5f-4e8e-a0a7-607ef629fd63
    annotations:
      kubectl.kubernetes.io/last-applied-configuration: |
        {"apiVersion":"v1","data":{"engine":"postgresql","environment":"prod","instanceClass":"db.r5.large"},"kind":"ConfigMap","metadata":{"name":"db-config","namespace":"team-frontend"}}
  data:
    engine: postgresql
    environment: prod
    instanceClass: db.r5.large

Notice how size: large from the composite resource was transformed into instanceClass: db.r5.large via the composition’s map transform — the user provided a meaningful size value and the platform supplied the concrete instance class.

Create a second composite resource with different inputs

Create small-db (copy orders-db.yaml and update fields):

apiVersion: platform.example.com/v1
kind: Database
metadata:
  name: small-db
  namespace: default
spec:
  engine: mysql
  size: small
  environment: dev
  targetNamespace: team-backend

Apply it:

kubectl apply -f small-db.yaml

Confirm the composite and the composed ConfigMap:

kubectl get database small-db
kubectl get configmap db-config -n team-backend -oyaml

Representative output for the created ConfigMap:

apiVersion: v1
kind: ConfigMap
metadata:
  name: db-config
  namespace: team-backend
  creationTimestamp: "2026-04-13T03:16:32Z"
  resourceVersion: "9548"
  uid: ce60db0b-b1e7-4548-8db5-3420d54b569
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |-
      {"apiVersion":"v1","data":{"engine":"mysql","environment":"dev","instanceClass":"db.t3.micro"},"kind":"ConfigMap","metadata":{"name":"db-config","namespace":"team-backend"}}
data:
  engine: mysql
  environment: dev
  instanceClass: db.t3.micro

Crossplane used the same composition but different composite inputs, producing a different concrete instanceClass (db.t3.micro) via the map transform.

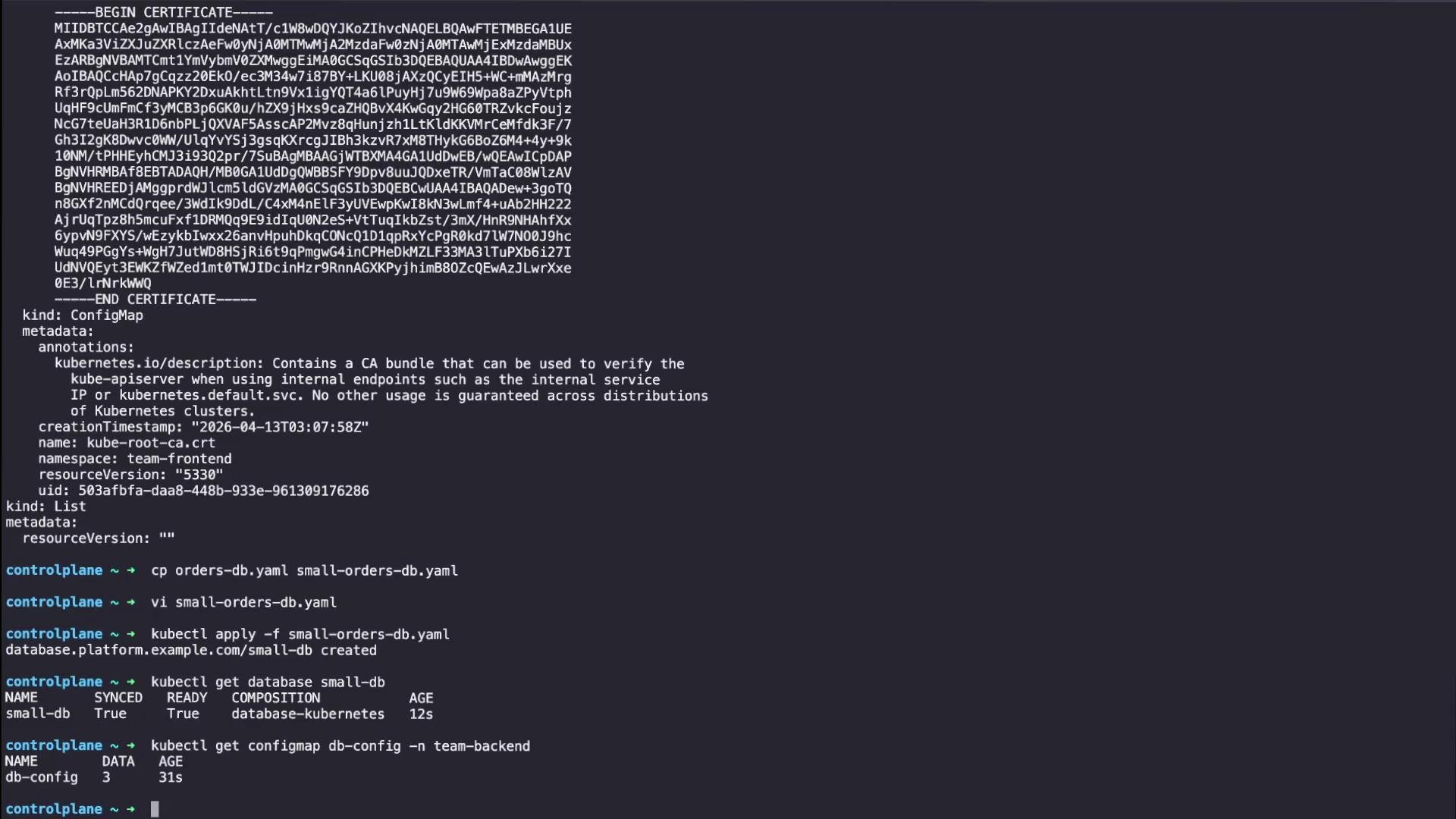

The image shows a terminal window displaying Kubernetes commands and configurations, including a certificate block and the setup for config maps and databases.

Inspect the composite resource status

To inspect status and conditions (same pattern as many Kubernetes operators):

kubectl describe database orders-db

Important fields to check:

Conditions — Synced, Ready, Responsive: indicate reconcile success and resource availability.
Events — useful to debug composition selection, composition revision, or composed resource readiness.

If provisioning fails:

Ready will be False.
Review Events and Conditions — they often include explanatory error messages. Start troubleshooting by checking the composite resource’s conditions and related events.

If your composition creates resources in target namespaces, ensure the Crossplane provider and RBAC permissions allow the provider to create resources in those namespaces. Incorrect RBAC or namespace permissions are a common cause of provisioning failures.

Quick summary

Concept	Purpose	Example
XRD (CompositeResourceDefinition)	Defines user-facing API fields and schema	`databases.platform.example.com`
Composition	Implements the XRD — maps fields to concrete resources	`database-kubernetes` Composition with pipeline & map transform
Composite Resource	Resource created by users to request a platform resource	`Database` instance `orders-db`
Composed Resource	Concrete resource created by the provider	Kubernetes `ConfigMap` in `team-frontend` with `instanceClass`
