Kubernetes exposes a rich API, but its built-in primitives (Pods, Services, Deployments, etc.) are generic. Platform teams and developers think in higher-level, domain-specific concepts — for example, “database” — which Kubernetes does not natively represent. Modeling those domain concepts using only primitive resources produces complexity, duplication, and operational gaps. In this lesson you will learn how to extend the Kubernetes API with domain-specific concepts using CustomResourceDefinitions (CRDs). We’ll cover why built-in resources fall short for platform abstractions, how the API extension model works, how to author CRDs (group, names, scope, versions, and schema), and how to validate resources with OpenAPI v3 schemas. Finally, you’ll understand the lifecycle between CRD, Custom Resource (CR), and the controller that reconciles them.
The image outlines learning objectives related to Kubernetes, detailing steps such as understanding built-in resources, API extension models, defining CRDs, and validating resources with openAPIV3Schema.

​
Problem: Mapping platform concepts to primitives

A common anti-pattern is modeling a single domain concept (e.g., a database) with multiple unrelated Kubernetes objects. For example, a single database might be represented by five separate resources: StatefulSet, ConfigMap, Secret, ServiceAccount, and NetworkPolicy.

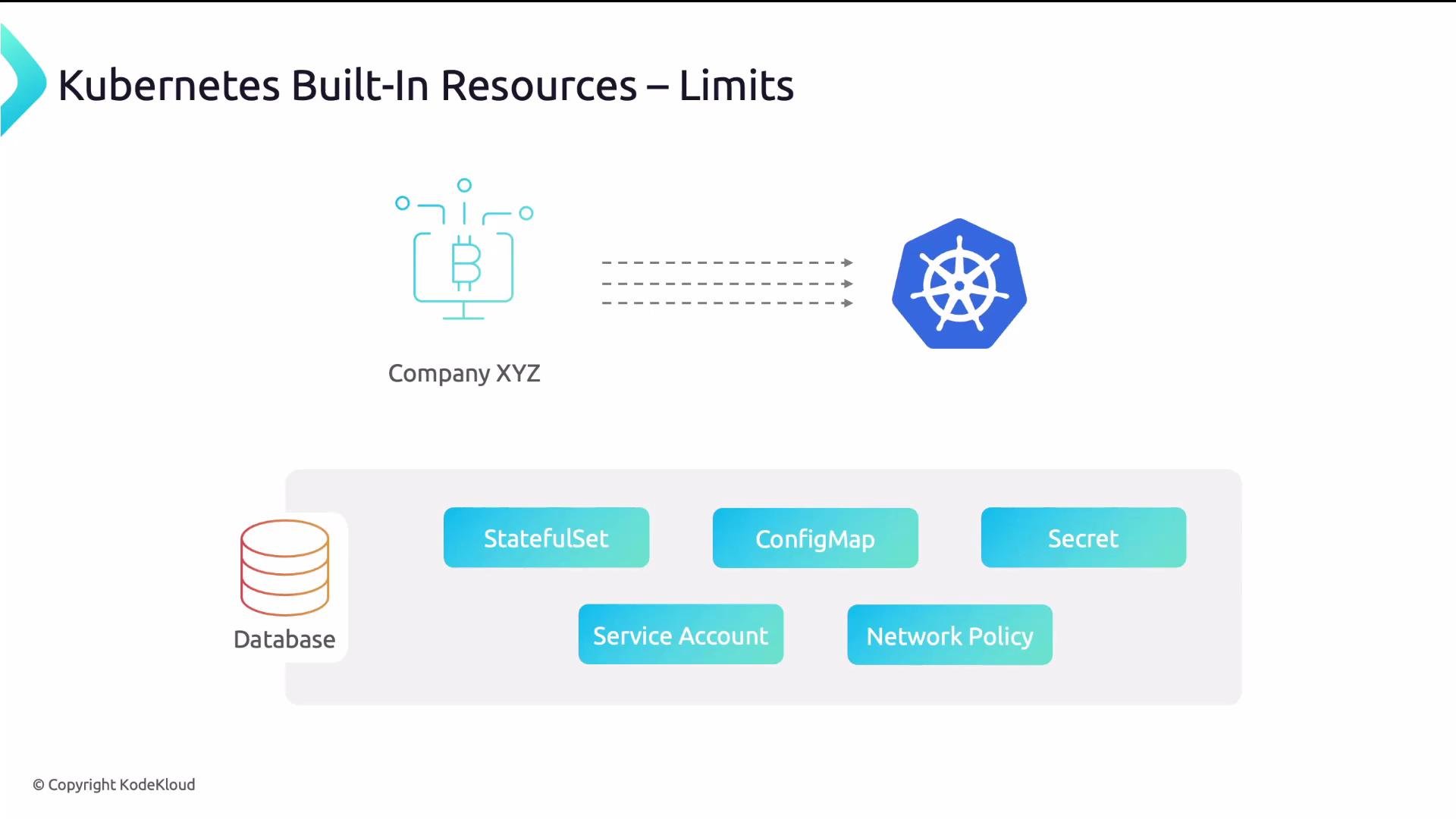

The image is an infographic illustrating Kubernetes built-in resources and their limits, featuring icons and terms like StatefulSet, ConfigMap, Secret, and others.
With 40 microservices each needing a database, that anti-pattern can produce 200 database-related objects that have no single logical representation or lifecycle. That makes discovery, validation, governance, and automation harder. Four key limitations when using only built-in resources:
  • No domain-specific abstractions: you cannot represent a Database as a single, first-class object.
  • No custom validation beyond primitive field checks (for example, you cannot require “production databases must have backups enabled” at the API layer).
  • No simple trigger point for platform workflows when a logical resource changes.
  • Platform concepts like teams, environments, and cost centers are not represented natively.

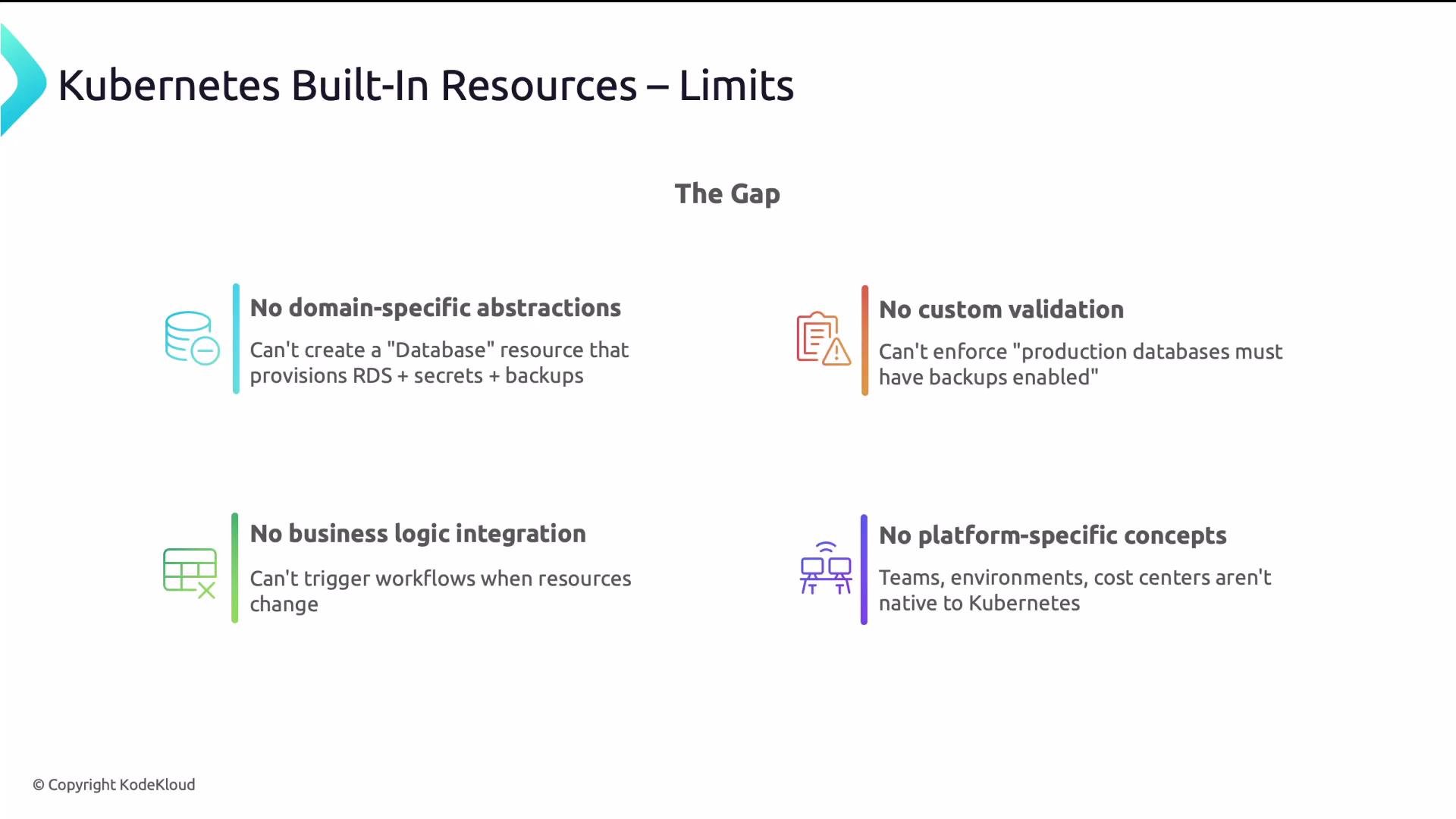

The image outlines the limitations of Kubernetes built-in resources, highlighting gaps such as lack of domain-specific abstractions, custom validation, business logic integration, and platform-specific concepts.
Before CRDs, answering “which databases do we have?” required custom scripts that correlated multiple objects by labels. After introducing a Database CRD, teams could run kubectl get databases and see meaningful results directly.

​
Kubernetes extension model — same API, new types

Kubernetes APIs follow a consistent URL pattern: group, version, namespace (if namespaced), and resource. For built-in Deployments the path is: /apis/apps/v1/namespaces/default/deployments Custom resources follow the same pattern. For example, a Database custom resource could be served at: /apis/platform.acme.io/v1/namespaces/dev/databases Because custom APIs use the same API server, they are first-class:
  • kubectl can get/list/describe/delete CRs.
  • RBAC can secure them.
  • GitOps tools (ArgoCD, Flux) can sync them.
  • Policy engines (Gatekeeper/Open Policy Agent) can enforce rules.
Creating a CRD registers the new type with the API server — you get these integrations without building a separate API server.

​
CRD anatomy

A CRD defines a new resource type. Key fields include group, names, scope, versions, and the openAPIV3Schema. Below is a concise reference table for the most important CRD fields. Each version in spec.versions can be served: true/false and one version can be storage: true (the persisted version).

​
Example CRD (illustrative)

This CRD demonstrates group, names, version, and an openAPIV3Schema for validation.
Notes on schema and fields:
  • metadata.name must be <plural>.<group> (e.g., databases.platform.acme.io).
  • group is typically your company or platform domain to avoid naming collisions.
  • names.plural is used for URLs and kubectl get.
  • kind is the manifest kind (e.g., Database).
  • scope determines whether objects are cluster-scoped or namespaced.
  • versions let you evolve APIs; storage: true marks which version is stored in etcd.
  • openAPIV3Schema enables API-server level validation (types, enums, required fields, numeric constraints, and defaults where supported).

​
Validation with OpenAPI v3 schemas

openAPIV3Schema is the first line of defense: the API server validates objects before passing them to controllers. The schema supports:
  • Type validation: string, integer, boolean, array, object.
  • Enums: restrict allowed values (e.g., size: enum [small, medium, large]).
  • Required fields: enforce mandatory inputs.
  • Numeric constraints: minimum, maximum.
  • Defaults: where supported, the API server can apply default values.
Example: if spec.size is restricted by an enum, sending xlarge will be rejected with a validation error. If replicas has maximum: 10, creating a resource with 100 replicas will be rejected.

​
CRD lifecycle and reconciliation loop

The lifecycle consists of three main players:
  1. CRD — the class definition (schema and metadata) registered with the API server.
  2. CR (Custom Resource) — an instance that conforms to the CRD.
  3. Controller — code that watches CRs and reconciles desired state into real resources (StatefulSets, Secrets, external provisioning operations), and updates status.

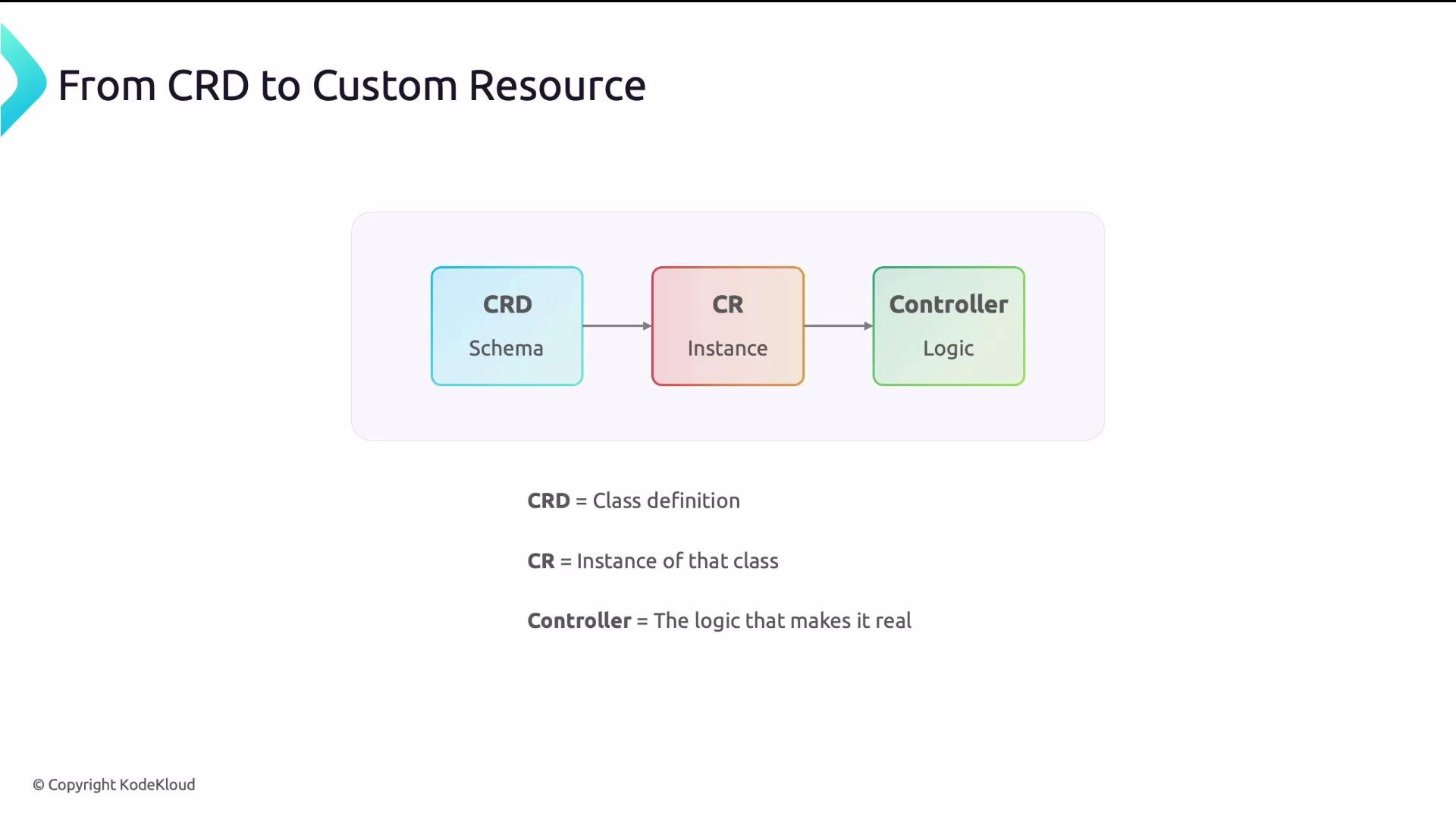

The image is a flowchart illustrating the transition from Custom Resource Definition (CRD) to Custom Resource (CR) and Controller, with CRD representing the schema, CR as the instance, and the Controller as the logic. It includes definitions for each component.
A simple mental model: the CRD is the menu, the CR is your order, and the controller is the kitchen that makes the order real.

​
Example Custom Resource

An instance that conforms to the CRD shown above:
Apply the CR with kubectl:
Typical interactions after applying the CR:
The controller watches Database resources and drives the provisioning workflow:
  • Create Kubernetes objects (Secrets, StatefulSets, Services) or external resources (cloud DB instances).
  • Update the CR status with progress and conditions.
  • Reconcile changes (scaling, backups, configuration updates).
  • Clean up resources when the CR is deleted.

​
Takeaways

  • CRDs extend Kubernetes without modifying the control plane — they register new types with the API server.
  • Custom resources use the same API URL patterns and kubectl tooling as built-in resources.
  • OpenAPI v3 validation enforces correctness at the API layer before controller logic runs.
  • The lifecycle is simple but powerful: CRD defines the schema, CR is the instance, and the controller implements the actions required to realize the instance.
CRDs make your platform concepts first-class Kubernetes resources so platform teams can expose domain-specific APIs that integrate seamlessly with kubectl, RBAC, GitOps, and policy engines — all without building a separate API server.

​
