Demo Workflow Automation with Argo Workflows

Argo Workflows is a Kubernetes-native workflow orchestration engine for running complex, containerized job sequences (data pipelines, automation, kubectl, Python, Bash, etc.). It is often compared with other CNCF projects — here’s a quick comparison to clarify roles:

Project	Typical use case	Key focus
Argo CD	GitOps — sync cluster state to Git	Continuous delivery / cluster reconciliation
Tekton	CI/CD pipelines	Build, test, and push artifacts
Argo Workflows	General-purpose workflow orchestration	Orchestrate multi-step tasks and dependencies in Kubernetes

This guide assumes Argo Workflows is already installed in your Kubernetes cluster. If you need installation instructions, refer to the official docs: Argo Workflows installation.

In this article we build progressively more advanced workflows to demonstrate common Argo constructs:

A simple container task
Steps (sequential and parallel), with parameters
DAG-based dependencies
Running kubectl from inside a workflow (with RBAC considerations)

1) Simple “hello” workflow

Create hello-workflow.yaml. Notice generateName gives each submission a unique suffix:

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  generateName: hello-world-
  namespace: argo
spec:
  entrypoint: hello
  templates:
  - name: hello
    container:
      image: alpine:3.18
      command: [echo]
      args: ["Hello from KodeKloud!"]

Submit and watch the run with the Argo CLI:

argo submit hello-workflow.yaml -n argo --watch

Or inspect pods and logs with kubectl:

kubectl get pods -n argo
kubectl logs <pod-name> -n argo

When the workflow completes you’ll see a generated name, Succeeded status, and the steps that ran.

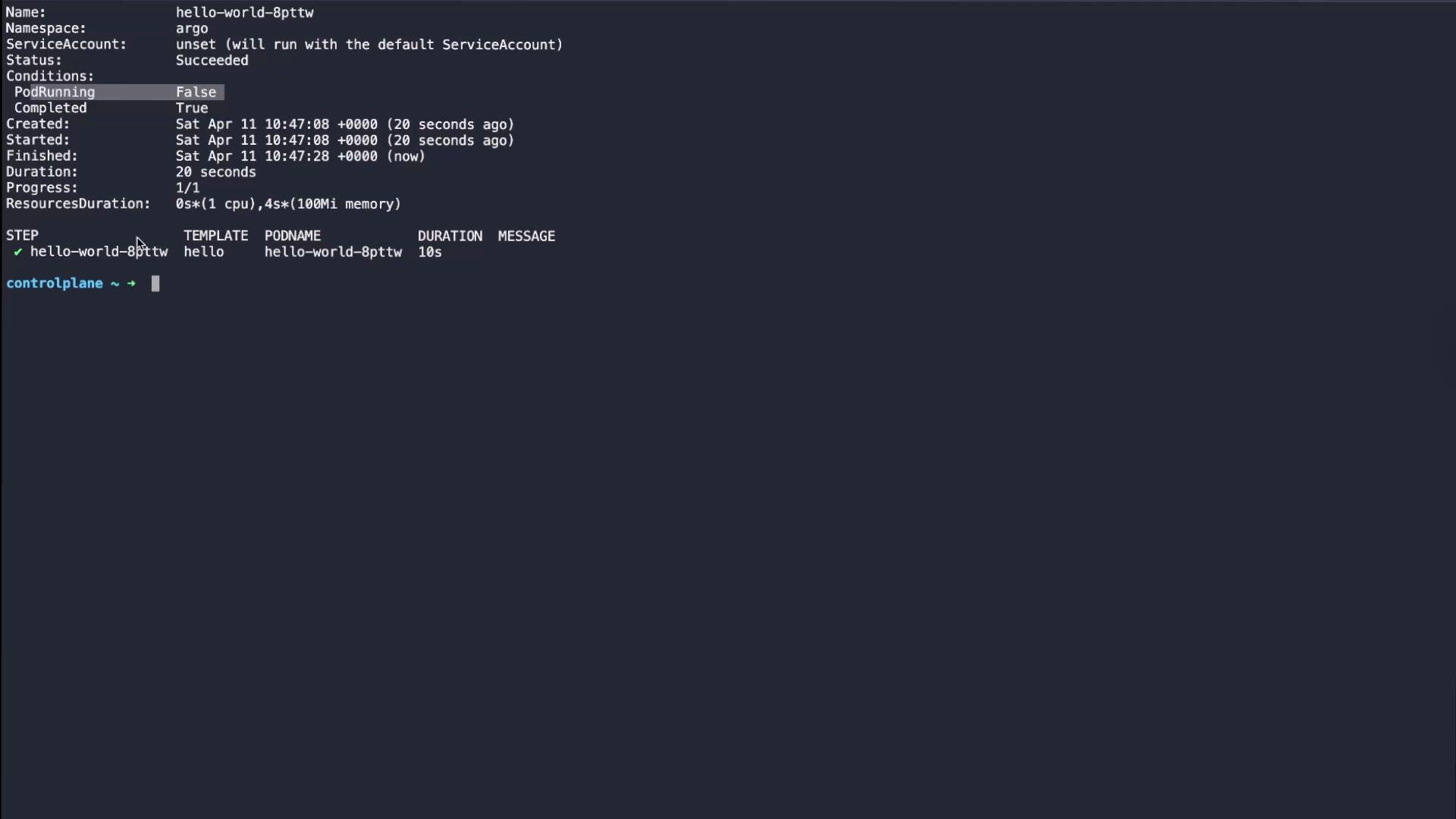

The image shows a terminal displaying the status of a Kubernetes job named "hello-world-8pttw." The job has successfully started, completed in 20 seconds, and is not currently running.

Example argo get output (abridged):

Name:               hello-world-8pttw
Namespace:          argo
ServiceAccount:     unset (will run with the default ServiceAccount)
Status:             Succeeded
Created:            Sat Apr 11 10:47:08 +0000 (20 seconds ago)
Finished:           Sat Apr 11 10:47:28 +0000 (now)
Duration:           20 seconds
Progress:           1/1

STEP                    TEMPLATE    PODNAME                    DURATION
✔ hello-world-8pttw     hello       hello-world-8pttw          10s

Example pod logs:

kubectl logs hello-world-8pttw -n argo
time="2026-04-11T10:47:16.379Z" level=info msg="capturing logs" argo=true
Hello from KodeKloud!
time="2026-04-11T10:47:17.380Z" level=info msg="sub-process exited" argo=true error="<nil>"

2) Steps: sequential and parallel steps, with parameters

Use steps when you want ordered or grouped tasks. Steps are an array of arrays:

Each inner array represents tasks that run in parallel.
Outer array elements run sequentially.

Create steps-workflow.yaml. This example defines a reusable print-message template that accepts a message parameter, and a pipeline entrypoint that runs two sequential steps:

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  generateName: steps-demo-
  namespace: argo
spec:
  entrypoint: pipeline
  templates:
  - name: pipeline
    steps:
    - - name: step-one
        template: print-message
        arguments:
          parameters:
          - name: message
            value: "Hello from KodeKloud!"
    - - name: step-two
        template: print-message
        arguments:
          parameters:
          - name: message
            value: "Hello from Nourhan!"
  - name: print-message
    inputs:
      parameters:
      - name: message
    container:
      image: alpine:3.18
      command: [echo]
      args: ["{{inputs.parameters.message}}"]

Submit:

argo submit steps-workflow.yaml -n argo --watch

Notes:

With the YAML above, step-one runs first, then step-two.
To run step-one and step-two in parallel, place them in the same inner array (see the parallel example below).

Parallel example (only the pipeline.steps portion shown):

# parallel example (only the pipeline.steps portion shown)
steps:
- - name: step-one
    template: print-message
    arguments:
      parameters:
      - name: message
        value: "Hello from KodeKloud!"
  - name: step-two
    template: print-message
    arguments:
      parameters:
      - name: message
        value: "Hello from Nourhan!"

Argo will show progress while steps execute (e.g., 1/2, 2/2) and list completed steps when finished.

3) DAG (Directed Acyclic Graph) workflows

DAGs express explicit dependencies between tasks. Tasks with no dependencies start immediately; dependent tasks wait for their dependencies to succeed. Use DAGs for complex pipelines where dependency relationships matter (e.g., build → tests → deploy). Example dag-workflow.yaml models a build → tests → deploy pipeline. test-unit and test-integration both depend on build and run in parallel; deploy depends on both tests:

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  generateName: dag-demo-
  namespace: argo
spec:
  entrypoint: pipeline
  templates:
  - name: pipeline
    dag:
      tasks:
      - name: build
        template: run-step
        arguments:
          parameters:
          - name: message
            value: "Building"
      - name: test-unit
        template: run-step
        dependencies: [build]
        arguments:
          parameters:
          - name: message
            value: "Unit testing"
      - name: test-integration
        template: run-step
        dependencies: [build]
        arguments:
          parameters:
          - name: message
            value: "Integration testing"
      - name: deploy
        template: run-step
        dependencies: [test-unit, test-integration]
        arguments:
          parameters:
          - name: message
            value: "Deploying"
  - name: run-step
    inputs:
      parameters:
      - name: message
    container:
      image: alpine:3.18
      command: [echo]
      args: ["{{inputs.parameters.message}}"]

Submit the DAG:

argo submit dag-workflow.yaml -n argo --watch

Expected execution order:

build runs first.
test-unit and test-integration start once build completes (they run concurrently).
deploy runs after both tests succeed.

Example argo get summary when finished:

Name:            dag-demo-btns6
Namespace:       argo
Status:          Succeeded
Duration:        30 seconds
Progress:        4/4

STEP                         TEMPLATE        DURATION
✔ build                      run-step        3s
✔ test-integration           run-step        4s
✔ test-unit                  run-step        4s
✔ deploy                     run-step        4s

4) Running kubectl from a workflow (RBAC considerations)

Workflows can run images that include kubectl to query or modify cluster resources. To interact with the cluster, the workflow’s ServiceAccount must have the proper RBAC permissions. Example kubectl-workflow.yaml uses bitnami/kubectl to check a deployment rollout and then list pods in the argo namespace:

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  generateName: kubectl-pipeline-
  namespace: argo
spec:
  entrypoint: pipeline
  serviceAccountName: default
  templates:
  - name: pipeline
    steps:
    - - name: check-rollout
        template: rollout-status
    - - name: get-pods
        template: list-pods
  - name: rollout-status
    container:
      image: bitnami/kubectl:latest
      command: [kubectl]
      args: [rollout, status, deployment/nginx-app, -n, argo]
  - name: list-pods
    container:
      image: bitnami/kubectl:latest
      command: [kubectl]
      args: [get, pods, -n, argo]

Submit and watch:

argo submit kubectl-workflow.yaml -n argo --watch

View combined logs from the latest workflow run:

argo logs -n argo @latest

Example argo logs output (abridged):

kubectl -n argo rollout status -w deployment "nginx-app"
deployment "nginx-app" successfully rolled out

kubectl -n argo get pods
NAME                                READY   STATUS      RESTARTS  AGE
argo-server-xxxxxx                  1/1     Running     0         28m
hello-world-xxxx                    0/2     Completed   0         67s
...

Do not run workflows with overly permissive credentials. Avoid using the cluster-admin default ServiceAccount in production. Create a dedicated ServiceAccount with only the RBAC rules it needs (Role/ClusterRole and RoleBinding/ClusterRoleBinding).

Key concepts and quick reference

Concept	Purpose	Notes / Example
Workflow	Top-level Argo object	Defines `spec.entrypoint` and `templates`
Template	Reusable unit (container/script/DAG/steps)	Templates accept `inputs.parameters` and produce tasks
steps	Sequential + grouped parallel execution	Array of arrays — inner arrays run in parallel
dag	Dependency graph	Tasks use `dependencies: [name]` for ordering
serviceAccountName	Identity for Pod actions	Bind minimal RBAC permissions to this account

Summary

Argo Workflows runs containerized tasks as Kubernetes pods to orchestrate automation, pipelines, and arbitrary job sequences.
Use templates to create reusable task definitions with parameters.
steps provide ordered and parallel grouping via arrays of arrays.
dag defines explicit dependency-based execution with dependencies.
For workflows that interact with the cluster, set serviceAccountName and grant only necessary RBAC permissions.
