Backstage Architecture

This article explains the architecture of Backstage and how its pieces fit together. If you already know how typical web applications are structured, Backstage will feel familiar: it follows the same frontend → backend → storage pattern, but it is built as a plugin-oriented developer portal.

How a typical web app works (quick recap)

A standard website usually has:

A frontend that runs in the user’s browser and renders UI.
A backend that exposes APIs and persists data to a database.
The frontend requests data from the backend, which queries storage or external services and returns results.

Example requests a frontend might make:

GET http://backend-url/products

POST http://backend-url/auth/signin

The backend validates and processes requests, then returns data so the frontend can update the UI. In short: frontend → backend API → database/service → backend returns data → frontend renders it

Backstage follows the same pattern

Backstage is a web application with a frontend and a backend, but it is designed as a modular system of plugins. Each plugin implements a feature (a catalog, CI/CD integrations, observability panels, etc.). Plugins may include:

a frontend component (UI rendered in Backstage), and
an optional backend component (server-side logic, API endpoints, secrets handling, or integrations with external services).

A frontend plugin asks for data either directly from a backend plugin or from third-party APIs. For instance, a GitLab plugin’s frontend might call its backend, which in turn calls the GitLab API, processes results, and returns structured data for the UI.

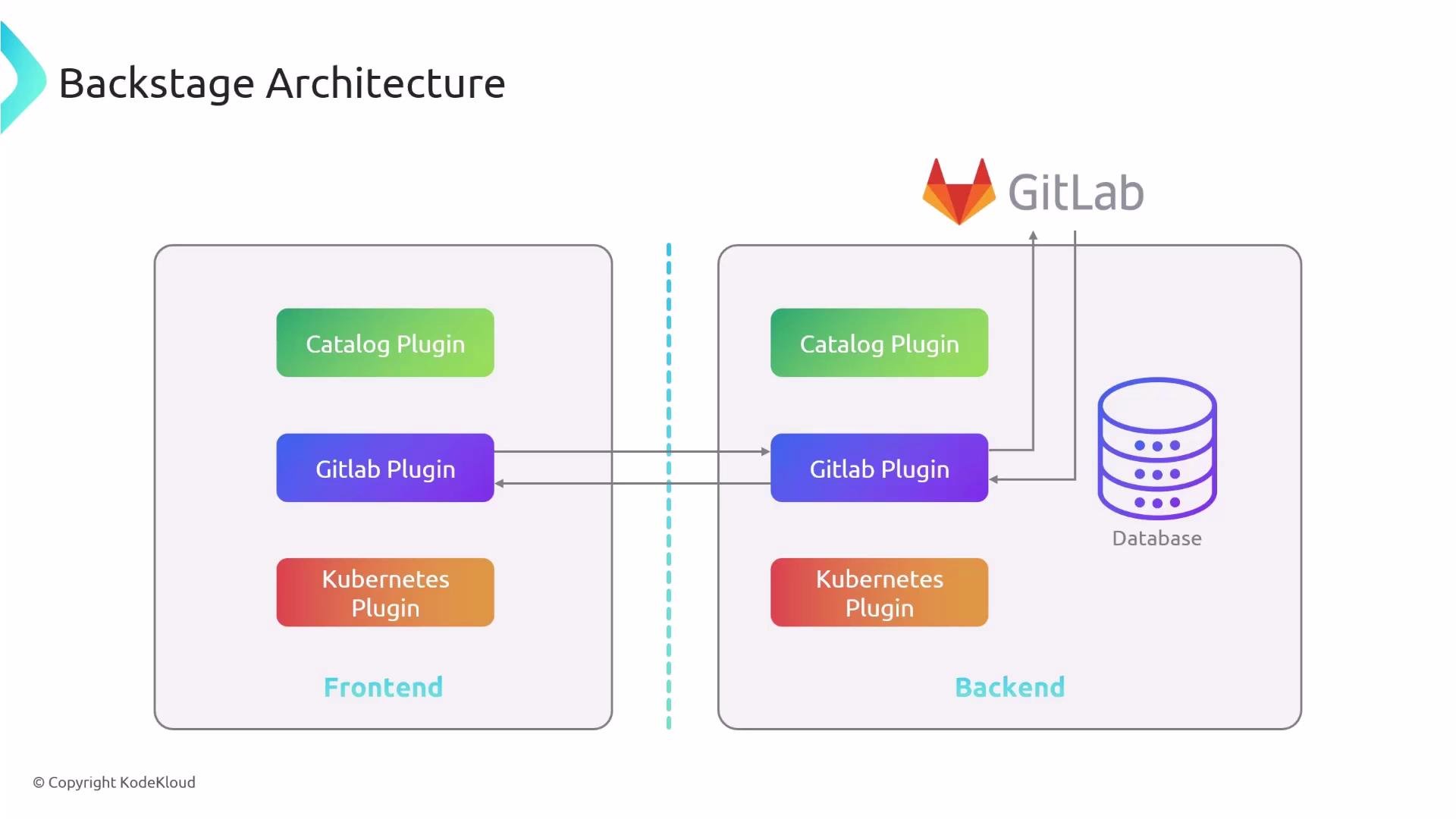

A diagram titled "Backstage Architecture" showing frontend and backend sections with colored plugin blocks (Catalog, GitLab, Kubernetes). Arrows indicate interactions with an external GitLab service and a backend database.

Think of each plugin as a small, self-contained app: a frontend UI that can optionally be backed by server-side code. Backstage stitches those frontend plugin UIs into a single, unified web UI and aggregates backend plugin endpoints into one server surface.

Plugin routes

Each plugin is reachable under its own route. Common examples:

/catalog — service and component catalog
/lighthouse — Lighthouse audits UI

Navigate to those paths in the Backstage UI to open the plugin pages.

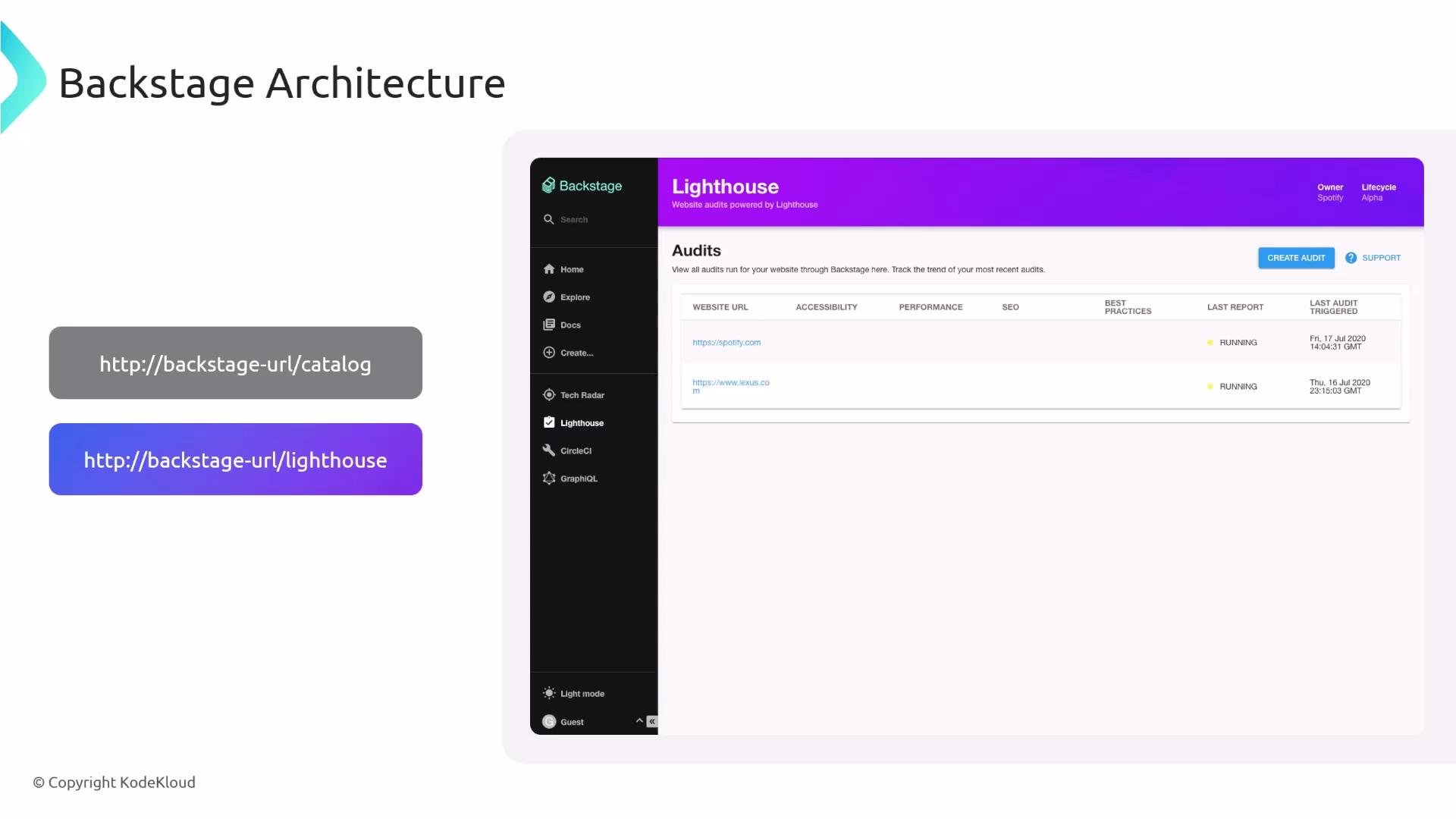

A slide titled "Backstage Architecture" showing a screenshot of Backstage's Lighthouse plugin with a dark left navigation bar and an "Audits" table in the main pane. Two rounded buttons on the left display example URLs: http://backstage-url/catalog and http://backstage-url/lighthouse.

Typical Backstage project layout (monorepo)

When you create a Backstage app you often get a monorepo: frontend and backend code live in the same repository, typically under a packages folder.

Package	Purpose	Example / Notes
`app`	Frontend application	The React-based Backstage app rendered in the browser (`packages/app`)
`backend`	Backend server and backend plugins	Server-side endpoints, integrations, and services (`packages/backend`)

You can develop and deploy the frontend and backend independently, but keeping them in a single repository simplifies local development and plugin wiring.

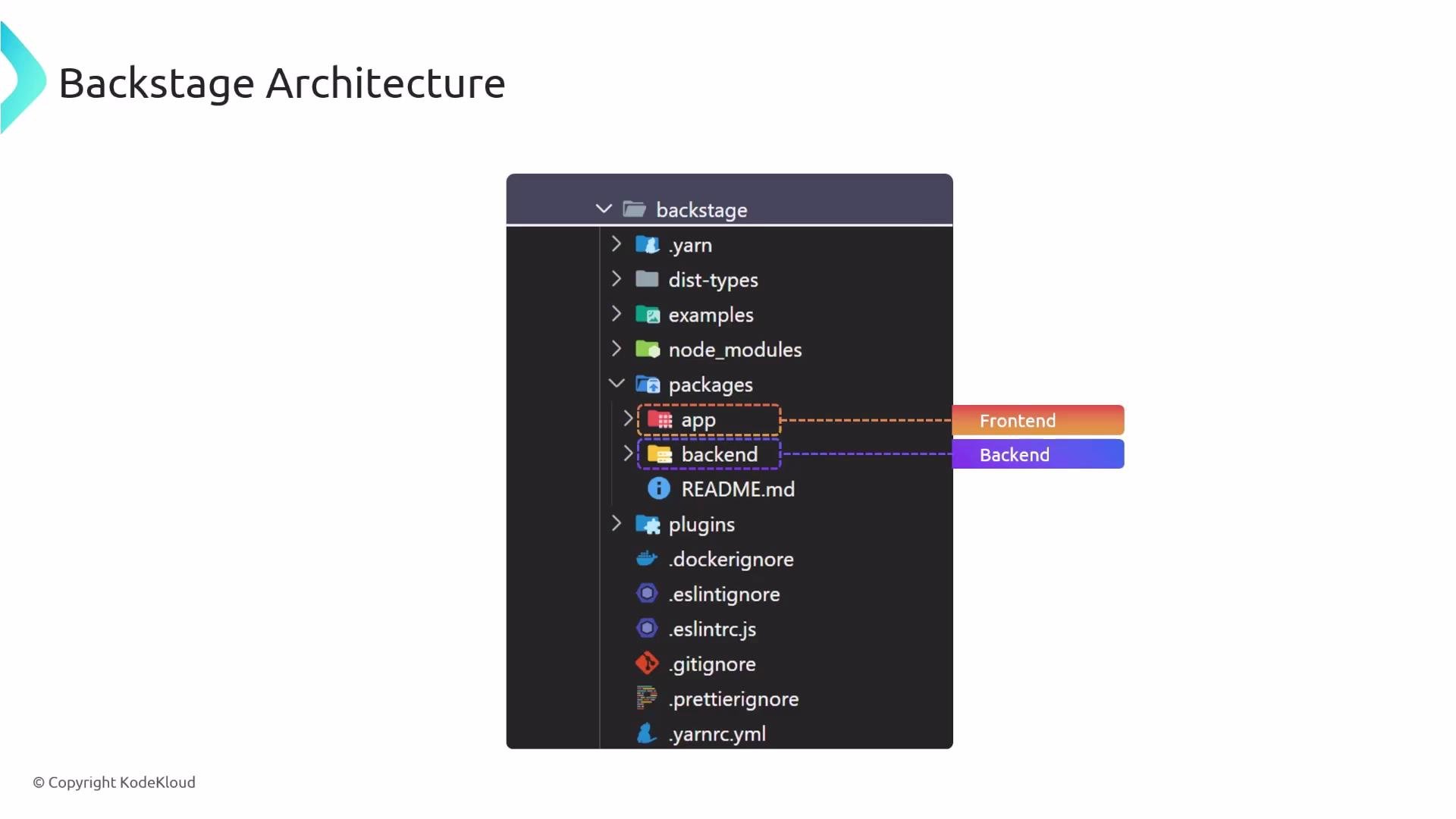

A screenshot of a project file tree titled "Backstage Architecture" showing folders like .yarn, dist-types, examples, node_modules and a packages folder. The packages folder contains "app" and "backend" entries, with visual labels linking "app" to Frontend and "backend" to Backend.

Plugins may include only a frontend if no server-side logic or secrets are required. Add a backend component when you need to access databases, store secrets, or call third-party services securely.

Frontend: React and components

Backstage frontends are built using React. If you are comfortable with React concepts—components, props, state, and composition—you will find Backstage plugin development straightforward. A typical website stacks three core technologies:

HTML — structure
CSS — presentation
JavaScript — behavior

React organizes UI into reusable components that encapsulate markup, styles, and behavior. Example terminal and system information (for context):

$ kubectl get nodes
NAME               STATUS   ROLES                 AGE      VERSION
ru-node-1          Ready    control-plane,master  2y269d   v1.23.5

$ uptime
12:05:54 up 1000 days, 5:32, 1 user, load average: 0.18, 0.42, 0.73

Simple React component example (JSX):

import React from 'react';

export const Button = () => {
  const handleClick = () => {
    alert('Button clicked!');
  };

  return (
    <div>
      <h1>Don't Click The Button!!!</h1>
      <button onClick={handleClick}>Click Me</button>
    </div>
  );
};

export const MyForm = () => {
  return (
    <div>
      <input id="login" type="text" />
      <input id="password" type="password" />
      <Button />
    </div>
  );
};

Components compose: a parent renders child components, and each child manages its own markup and behavior. This composition makes it easy to build complex plugin UIs from small, testable pieces.

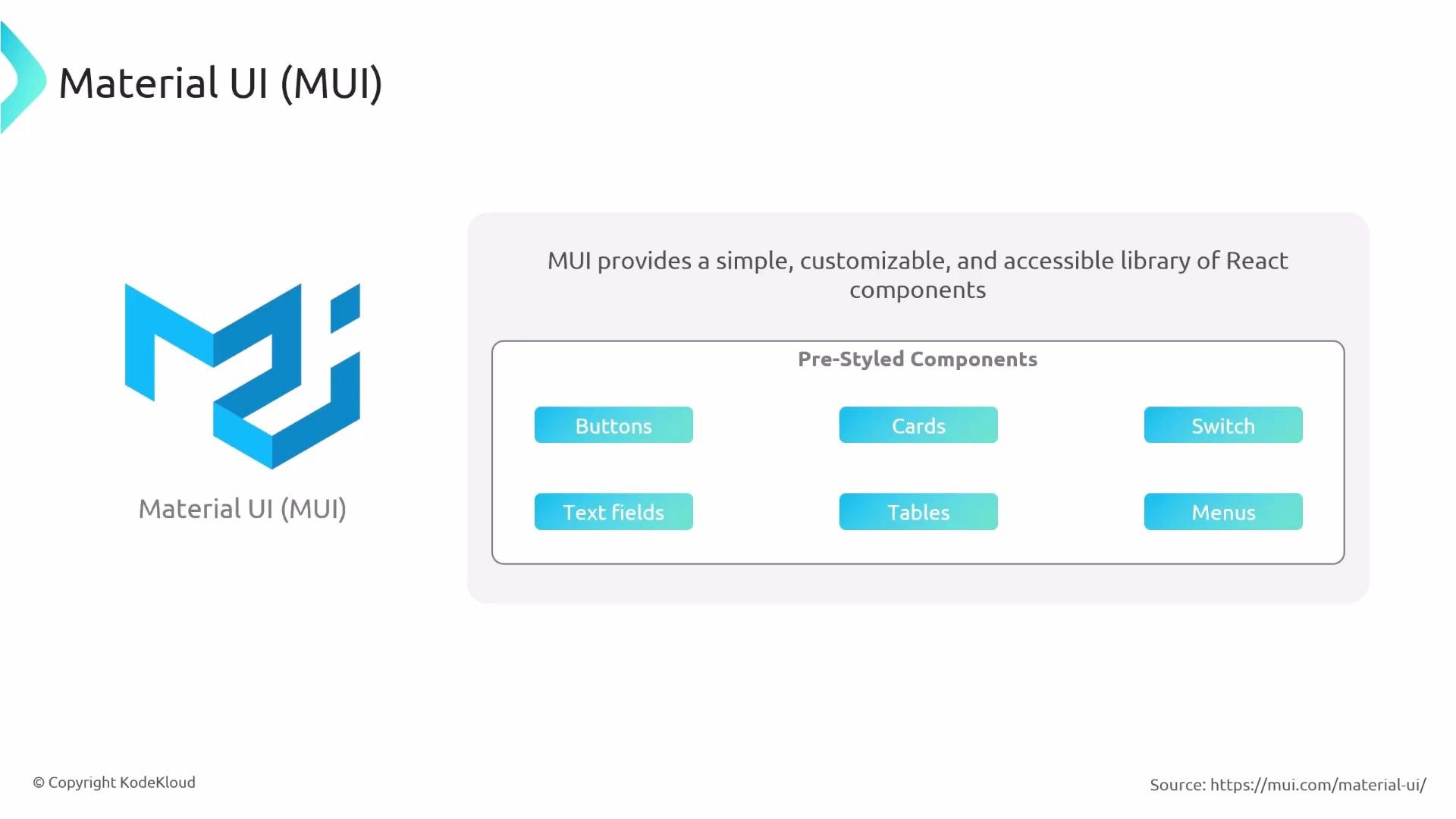

UI design system: Material UI (MUI)

Backstage uses Material UI (MUI) to maintain a consistent look-and-feel and provide pre-built, accessible React components (buttons, cards, tables, text fields, switches, menus, etc.). Using MUI speeds development and reduces styling work for plugin authors.

Summary (key takeaways)

Backstage is a web application composed of a React frontend, a Node-based backend, and persistent storage or third-party integrations.
Plugins are the primary unit of functionality; each plugin can have a frontend and an optional backend.
Plugins are reachable by their own routes (for example, /catalog or /lighthouse).
Typical Backstage projects are organized as a monorepo with packages/app (frontend) and packages/backend (server).
Backstage frontends are React-based and commonly use Material UI (MUI) for UI components.

Links and References

Backstage Documentation: https://backstage.io/docs
Material UI (MUI): https://mui.com/
Kubernetes Concepts: https://kubernetes.io/docs/concepts/overview/what-is-kubernetes/
