Demo Backstage Configuration

In this guide you’ll find a focused workflow to resolve a common Backstage development issue: the frontend and backend are configured to use localhost, which prevents accessing Backstage from an external browser using the server’s IP or DNS. This article preserves the original configuration examples and shows the minimal changes required to make Backstage reachable externally while keeping local overrides manageable. What you’ll learn

Why localhost bindings block external access
Which config keys to update (app.baseUrl, backend.baseUrl, backend.listen, backend.cors.origin)
How to apply changes safely with app-config.local.yaml
How to restart and verify the dev server

Problem overview

The frontend is configured with app.baseUrl: http://localhost:3000. Generated URLs and the webpack dev server advertise localhost, so requests sent to the server’s external IP are rejected by the host checks or by the server binding.
The backend uses localhost for baseUrl and may bind to the loopback interface, or its CORS config may not allow the external frontend origin, causing the browser to block API calls.
Solution: switch the frontend app.baseUrl and backend baseUrl to the server IP or DNS name, ensure the backend listens on an interface that accepts external requests (commonly 0.0.0.0), and add the frontend origin to backend.cors.origin.

Example shortened console output showing the dev server running locally:

# Start dev server
> yarn dev
[app]: Loaded config from app-config.yaml
[app]: NOTE: Did not compute git version or commit hash, could not execute the git command line utility
[app]: [webpack-dev-server] Project is running at: http://localhost:3000/
[backend]: Loading config from MergedConfigSource{FileConfigSource{path="/root/demo/backstage/app-config.yaml"}, FileConfigSource{path="/root/demo/backstage/app-config.local.yaml"}, EnvConfigSource{count=0}}
[backend]: 2025-02-13T00:04:45.134Z rootHttpRouter info Listening on :7007
[backend]: 2025-02-13T00:04:45.136Z backstage info Plugin initialization started

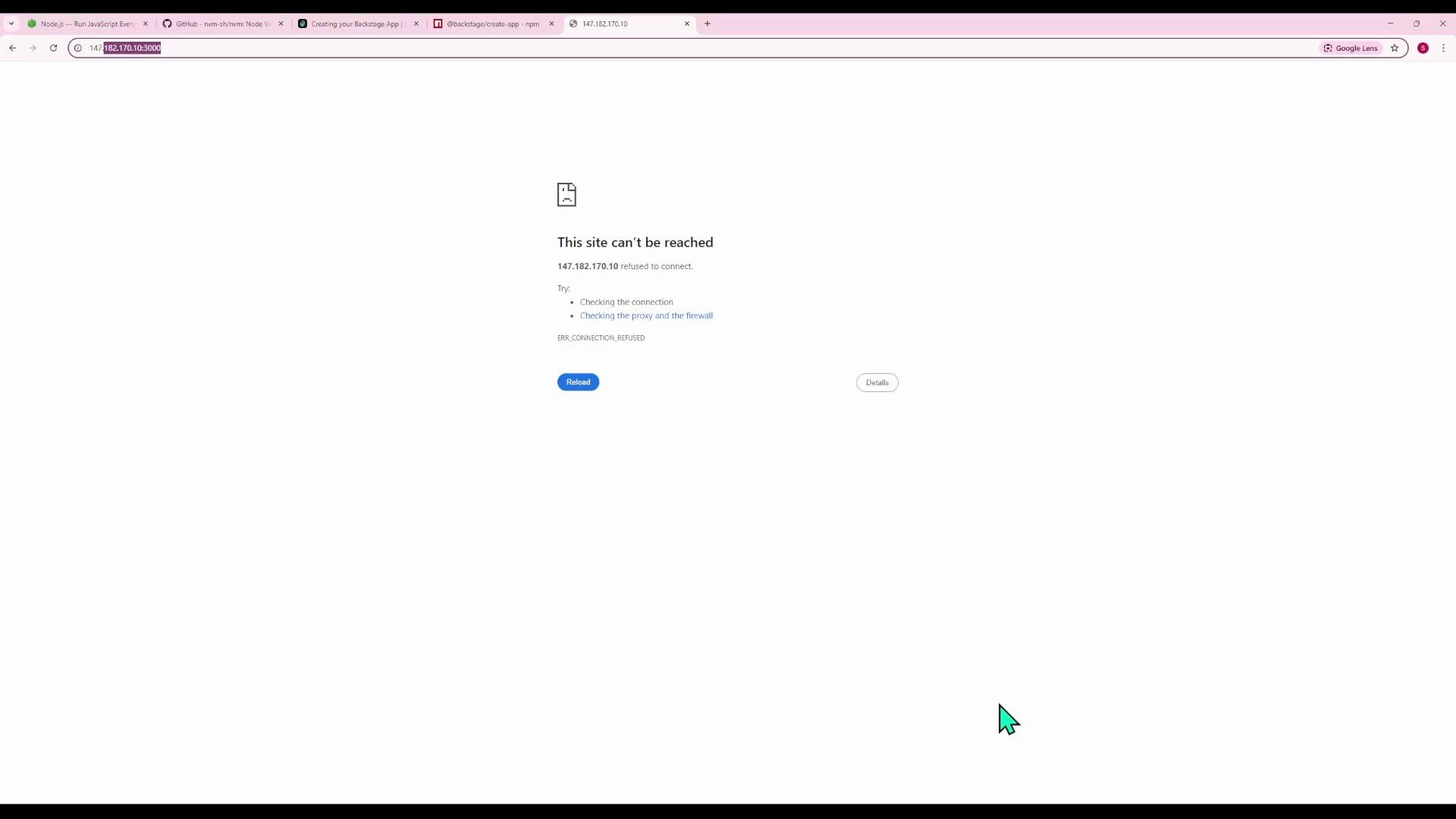

You may see the browser show a connection refused error when navigating to the server IP on port 3000 (because app.baseUrl is localhost):

A Chrome browser window displaying a "This site can't be reached" error (147.182.170.10 refused to connect, ERR_CONNECTION_REFUSED) with a reload button and troubleshooting suggestions. The address bar and several tabs are visible at the top and a teal mouse cursor is near the bottom right.

Initial (problematic) app-config snippet

app:
  title: Scaffolded Backstage App
  baseUrl: http://localhost:3000

organization:
  name: My Company

backend:
  # Used for enabling authentication, secret is shared by all
  # backend plugins
  # See https://backstage.io/docs/auth/service-to-service-auth for
  # information on the format
  # auth:
  #   keys:
  #     - secret: ${BACKEND_SECRET}

Fix: update the shared app-config to use the server IP or DNS Follow these steps to allow external browser access and correct frontend↔backend communication:

Set app.baseUrl to the server IP or DNS with port 3000.
Set backend.baseUrl to the same server IP or DNS with port 7007.
Configure the backend listen.host to 0.0.0.0 (or remove host to bind all interfaces) so it accepts external connections.
Add the frontend origin to backend.cors.origin so the browser is allowed to call the backend.

Example updated app-config.yaml for this demo (replace 147.182.170.10 with your server IP or DNS name):

app:
  title: Scaffolded Backstage App
  baseUrl: http://147.182.170.10:3000

organization:
  name: My Company

backend:
  # Used for enabling authentication, secret is shared by all
  # backend plugins
  # See https://backstage.io/docs/auth/service-to-service-auth for
  # information on the format
  # auth:
  #   keys:
  #     - secret: ${BACKEND_SECRET}
  baseUrl: http://147.182.170.10:7007
  listen:
    host: 0.0.0.0
    port: 7007
  cors:
    origin:
      - http://147.182.170.10:3000

csp:
  connect-src: ["'self'", 'http:', 'https:']

Configuration quick reference

Setting	Purpose	Example value (demo)
`app.baseUrl`	URL advertised to users and used for frontend routing	`http://147.182.170.10:3000`
`backend.baseUrl`	Backend URL used by frontend for API calls	`http://147.182.170.10:7007`
`backend.listen.host`	Interface the backend binds to	`0.0.0.0`
`backend.cors.origin`	Allowed origins for browser requests	`http://147.182.170.10:3000`

Note: If you have a DNS name for your server, prefer that instead of a raw IP address for better maintainability and SSL/HTTPS compatibility. Restart the dev server After changing configuration files you must restart Backstage to load the new settings. Steps:

Stop the running dev server (Ctrl+C in the terminal; press again if necessary to force exit).
Start it again:

yarn dev

You should see the backend and frontend log successful startup and listening on the configured addresses. After restarting, the frontend should be reachable at http://147.182.170.10:3000 and be able to communicate with the backend at http://147.182.170.10:7007. Using app-config.local.yaml for local overrides

Prefer placing machine-specific or development-only overrides in app-config.local.yaml so the shared app-config.yaml remains suitable across environments.
Backstage merges configuration files; app-config.local.yaml (if present during development) overrides keys in app-config.yaml.

Example app-config.local.yaml with minimal overrides:

app:
  baseUrl: http://147.182.170.10:3000

backend:
  baseUrl: http://147.182.170.10:7007
  cors:
    origin:
      - http://147.182.170.10:3000

Restore the shared app-config.yaml to scaffold defaults for portability:

app:
  title: Scaffolded Backstage App
  baseUrl: http://localhost:3000

organization:
  name: My Company

backend:
  # Shared defaults; local overrides will take precedence in dev
  baseUrl: http://localhost:7007
  listen:
    port: 7007

Because app-config.local.yaml has precedence in development, the effective configuration used by yarn dev is the merge of app-config.yaml and the local overrides. After creating or modifying app-config.local.yaml, restart the dev server.

Use app-config.local.yaml for developer- or machine-specific settings (like using an external IP for a demo server). Keep app-config.yaml for defaults shared among environments, and use production-specific files (e.g., app-config.production.yaml) when deploying to production.

Security reminder

Exposing a development server on a public IP can expose sensitive endpoints or secrets. Avoid using production secrets in development configs and secure access with firewall rules or VPNs when demoing externally.

Troubleshooting checklist

Confirm the server firewall/security group allows ports 3000 and 7007.
Verify Backstage logs show the backend listening on 0.0.0.0:7007 (or expected host/port).
Inspect browser DevTools Console and Network tab for CORS errors; adjust backend.cors.origin as needed.
If the frontend still advertises localhost, clear caches and ensure yarn dev restarted after config changes.

Summary

The frontend refused external connections because app.baseUrl was set to localhost. The backend may also have been bound only to localhost or rejected cross-origin requests.
Update app.baseUrl, backend.baseUrl, and backend.cors.origin to the server IP or DNS name and ensure the backend binds to an interface that accepts external connections.
Prefer app-config.local.yaml for local overrides to keep shared configuration environment-agnostic.
Always restart Backstage after modifying configuration and double-check firewall and CORS settings.

References and further reading

Backstage Configuration: https://backstage.io/docs/configuration/overview
Backstage Dev Mode: https://backstage.io/docs/development/dev-setup
CORS and browser security: https://developer.mozilla.org/en-US/docs/Web/HTTP/CORS
