Creating Your Own Plugin

In this guide, you’ll learn how to build a simple Backstage frontend plugin called advice that fetches random tips from an external API and displays them on an entity page. This pattern applies equally well to any REST or GraphQL API, GitHub integrations, or custom backends.

Overview

The advice plugin will:

Provide a full-page route at /advice
Expose a reusable AdviceCard component
Fetch random advice from the Advice Slip JSON API and render it inside an InfoCard

The image shows a webpage for the "Advice Slip JSON API," detailing how to use the API to get random advice, including HTTP methods, URLs, and descriptions. It also includes a sidebar with various endpoints and objects related to the API.

Every time you open or refresh an entity page, the AdviceCard will display a fresh nugget of wisdom.

1. Scaffold the Plugin

Backstage’s CLI can generate all the boilerplate for you. In your Backstage root directory, run:

yarn new --select plugin

When prompted, choose:

? What do you want to create? › plugin - A new frontend plugin
? Enter the ID of the plugin [required] advice

Once complete, you’ll have a directory structure like this:

Path	Purpose
`plugins/advice/src/components`	React components
`plugins/advice/src/index.ts`	Entry point re-exports
`plugins/advice/src/plugin.ts`	Plugin definition and extensions
`plugins/advice/src/routes.ts`	Route references for routing
`plugins/advice/package.json`	Plugin dependencies and metadata

The plugin ID (advice) is used for routing, packaging, and yarn workspace commands.

2. Inspect Generated Files

package.json

{
  "name": "@internal/backstage-plugin-advice",
  "version": "0.1.0",
  "backstage": { "role": "frontend-plugin" },
  "dependencies": {
    "@backstage/core-components": "^0.16.3",
    "@backstage/core-plugin-api": "^1.10.3",
    "@material-ui/core": "^4.9.13",
    "react-use": "17.2.4"
  }
}

routes.ts

Defines a route reference for full-page navigation:

import { createRouteRef } from '@backstage/core-plugin-api';

export const rootRouteRef = createRouteRef({
  id: 'advice-root',
});

plugin.ts

Registers the plugin and its full-page extension:

import {
  createPlugin,
  createRoutableExtension,
} from '@backstage/core-plugin-api';
import { rootRouteRef } from './routes';

export const advicePlugin = createPlugin({
  id: 'advice',
  routes: { root: rootRouteRef },
});

export const AdvicePage = advicePlugin.provide(
  createRoutableExtension({
    name: 'AdvicePage',
    component: () =>
      import('./components/ExampleComponent').then(m => m.ExampleComponent),
    mountPoint: rootRouteRef,
  }),
);

ExampleComponent (Placeholder)

Located at plugins/advice/src/components/ExampleComponent.tsx:

import {
  Page,
  Header,
  HeaderLabel,
  Content,
  ContentHeader,
  SupportButton,
} from '@backstage/core-components';
import { Grid, InfoCard, Typography } from '@material-ui/core';

export const ExampleComponent = () => (
  <Page themeId="tool">
    <Header title="Welcome to advice!" subtitle="Your daily tip">
      <HeaderLabel label="Owner" value="Team X" />
      <HeaderLabel label="Lifecycle" value="Alpha" />
    </Header>
    <Content>
      <ContentHeader title="Plugin overview">
        <SupportButton>
          A description of your plugin goes here.
        </SupportButton>
      </ContentHeader>
      <Grid container spacing={3} direction="column">
        <Grid item>
          <InfoCard title="Info">
            <Typography variant="body1">
              Replace this with real functionality.
            </Typography>
          </InfoCard>
        </Grid>
      </Grid>
    </Content>
  </Page>
);

3. Register the `/advice` Route

In your application’s main routing file (e.g. packages/app/src/App.tsx), import and add the AdvicePage:

import { AdvicePage } from '@internal/backstage-plugin-advice';

const routes = (
  <FlatRoutes>
    {/* ...other routes */}
    <Route path="/advice" element={<AdvicePage />} />
  </FlatRoutes>
);

Now, visiting http://localhost:3000/advice shows your placeholder page.

4. Create the AdviceCard Component

We’ll build a compact card that can be embedded in any entity page.

4.1 Define the Component

Create plugins/advice/src/components/AdviceCard.tsx:

import React from 'react';

export const AdviceCard = () => {
  return <div>This is my advice for the day</div>;
};

Add an index.ts for easy imports:

export { AdviceCard } from './AdviceCard';

The image shows a Visual Studio Code interface with a project directory open, displaying various TypeScript files and folders in the explorer panel. The main editor area is open to an empty index.ts file.

4.2 Expose the Extension

In plugins/advice/src/plugin.ts, add:

import { createComponentExtension } from '@backstage/core-plugin-api';
import { advicePlugin } from './plugin';

export const AdviceCard = advicePlugin.provide(
  createComponentExtension({
    name: 'AdviceCard',
    component: {
      lazy: () =>
        import('./components/AdviceCard').then(m => m.AdviceCard),
    },
  }),
);

Update plugins/advice/src/index.ts to re-export:

export { advicePlugin, AdvicePage, AdviceCard } from './plugin';

5. Embed on an Entity Page

Open packages/app/src/components/catalog/EntityPage.tsx (or your custom entity page) and add:

import { AdviceCard } from '@internal/backstage-plugin-advice';

// ...

const overviewContent = (
  <Grid container spacing={3} alignItems="stretch">
    {/* existing cards */}
    <Grid item md={3} xs={12}>
      <AdviceCard />
    </Grid>
  </Grid>
);

Reload your app—AdviceCard now appears alongside other overview cards.

6. Style with InfoCard

Swap the <div> for Backstage’s InfoCard for a polished look:

import React from 'react';
import { InfoCard } from '@backstage/core-components';

export const AdviceCard = () => (
  <InfoCard title="Random Advice">
    This is my advice for the day
  </InfoCard>
);

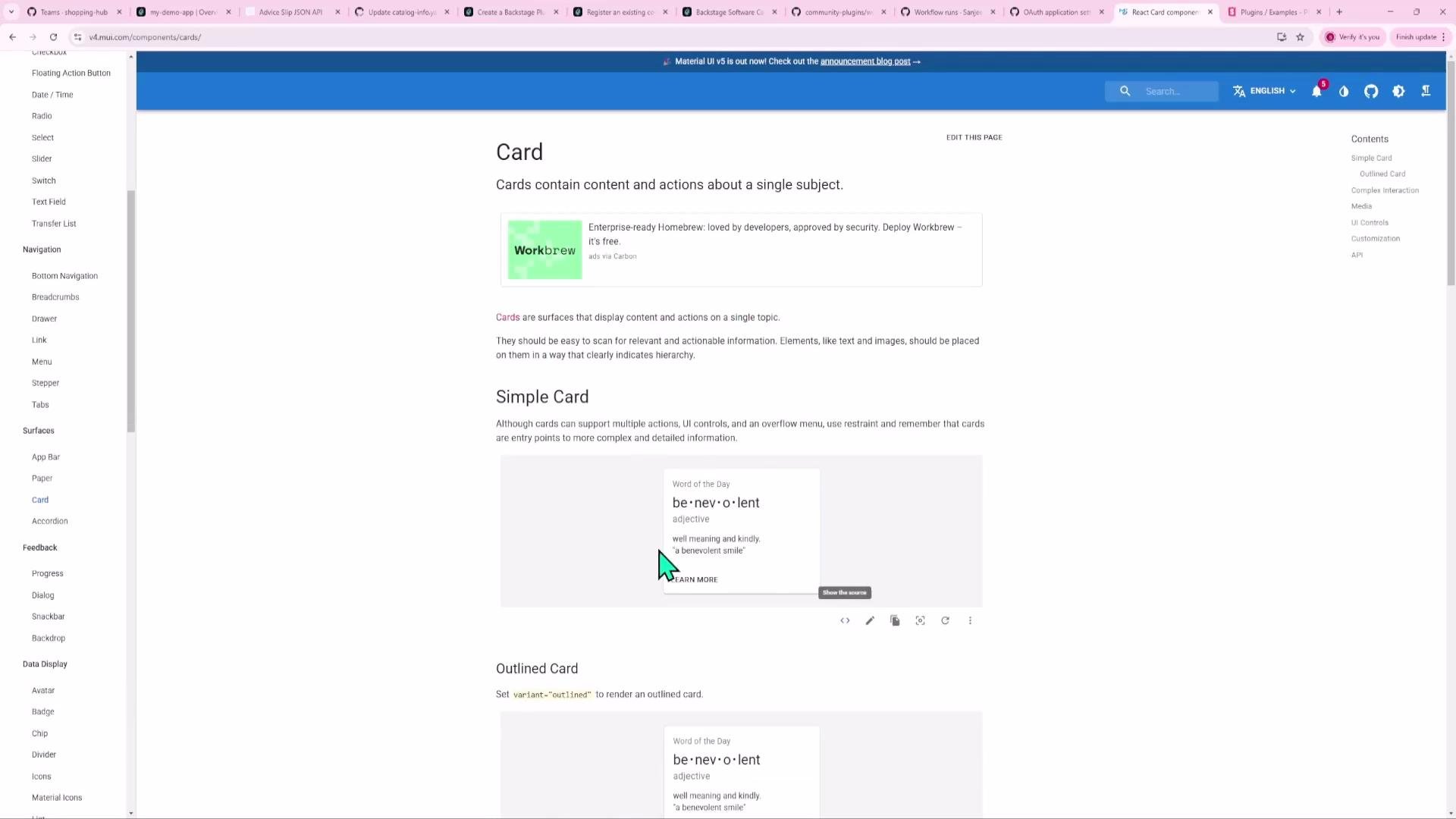

The image shows a webpage from Material UI documentation, specifically about "Card" components, with examples and descriptions of different card types like "Simple Card" and "Outlined Card." The page includes navigation links on the left and a contents section on the right.

Explore Backstage Storybook for pre-built layouts:

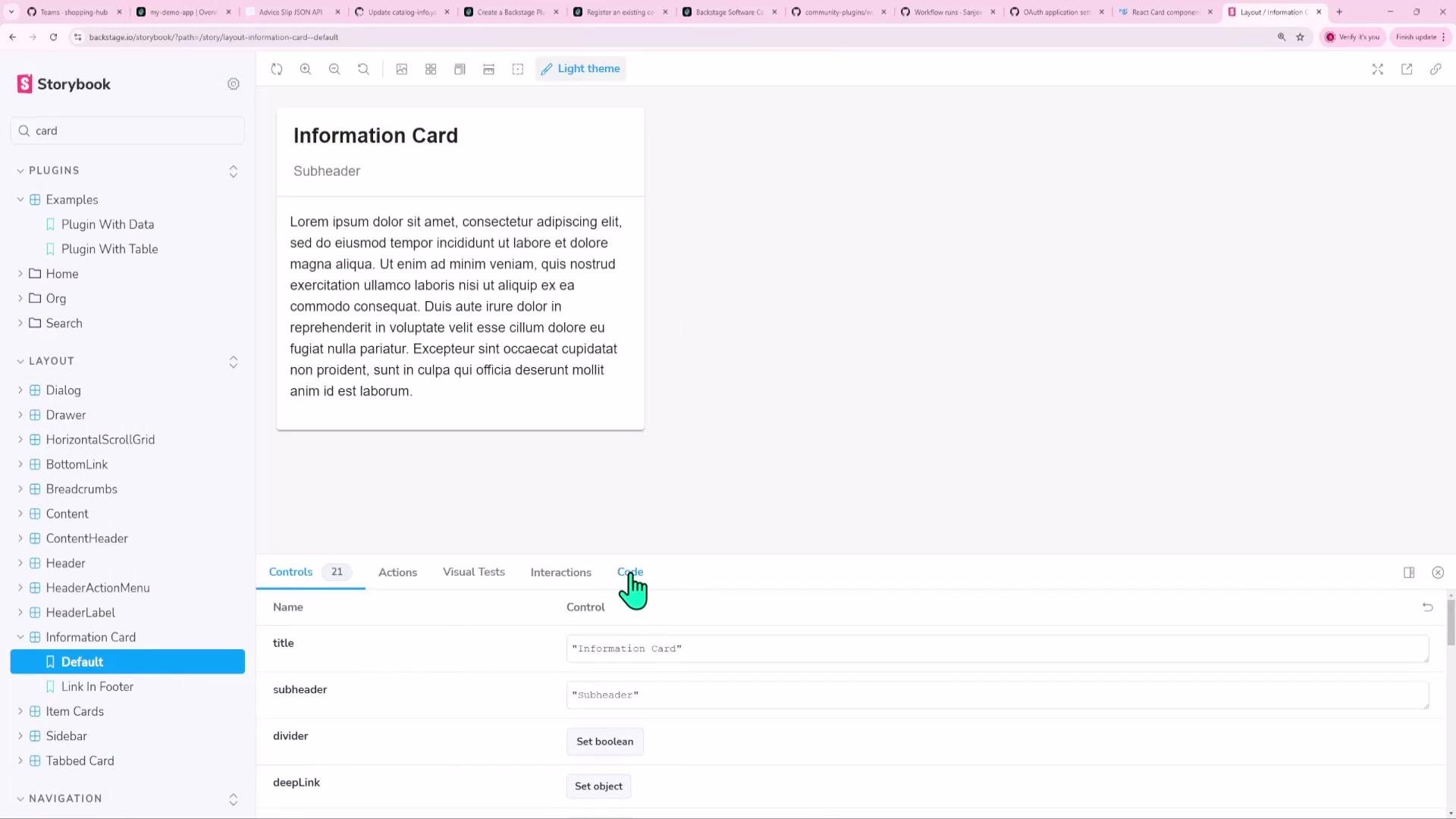

The image shows a Storybook interface displaying an "Information Card" component with a subheader and placeholder text. The sidebar lists various layout options, and there are controls for customizing the card's properties.

7. Fetch Live Advice

Integrate Backstage’s API abstraction using useApi and fetchApiRef:

import React, { useEffect, useState } from 'react';
import { InfoCard } from '@backstage/core-components';
import { fetchApiRef, useApi } from '@backstage/core-plugin-api';

export const AdviceCard = () => {
  const fetchApi = useApi(fetchApiRef);
  const [advice, setAdvice] = useState<string>();

  useEffect(() => {
    fetchApi
      .fetch('https://api.adviceslip.com/advice')
      .then(res => res.json())
      .then(data => setAdvice(data.slip.advice))
      .catch(() => setAdvice('Failed to load advice'));
  }, [fetchApi]);

  return (
    <InfoCard title="Random Advice">
      {advice ?? 'Loading advice...'}
    </InfoCard>
  );
};

The Advice Slip API may cache responses. To force fresh data on each request, consider appending a timestamp query (e.g. ?timestamp=${Date.now()}).

The image shows a screenshot of a web application interface, likely a developer tool, with a sidebar menu on the left and a main content area displaying component details. On the right, there is a browser developer console with code and logs.

8. Run the Plugin Independently

You can develop the plugin without running the entire Backstage app:

# From the plugin folder
cd plugins/advice
yarn start

# Or from the monorepo root
yarn workspace @internal/backstage-plugin-advice start

A minimal dev server will launch:

[webpack-dev-server] Project is running at http://localhost:3000/

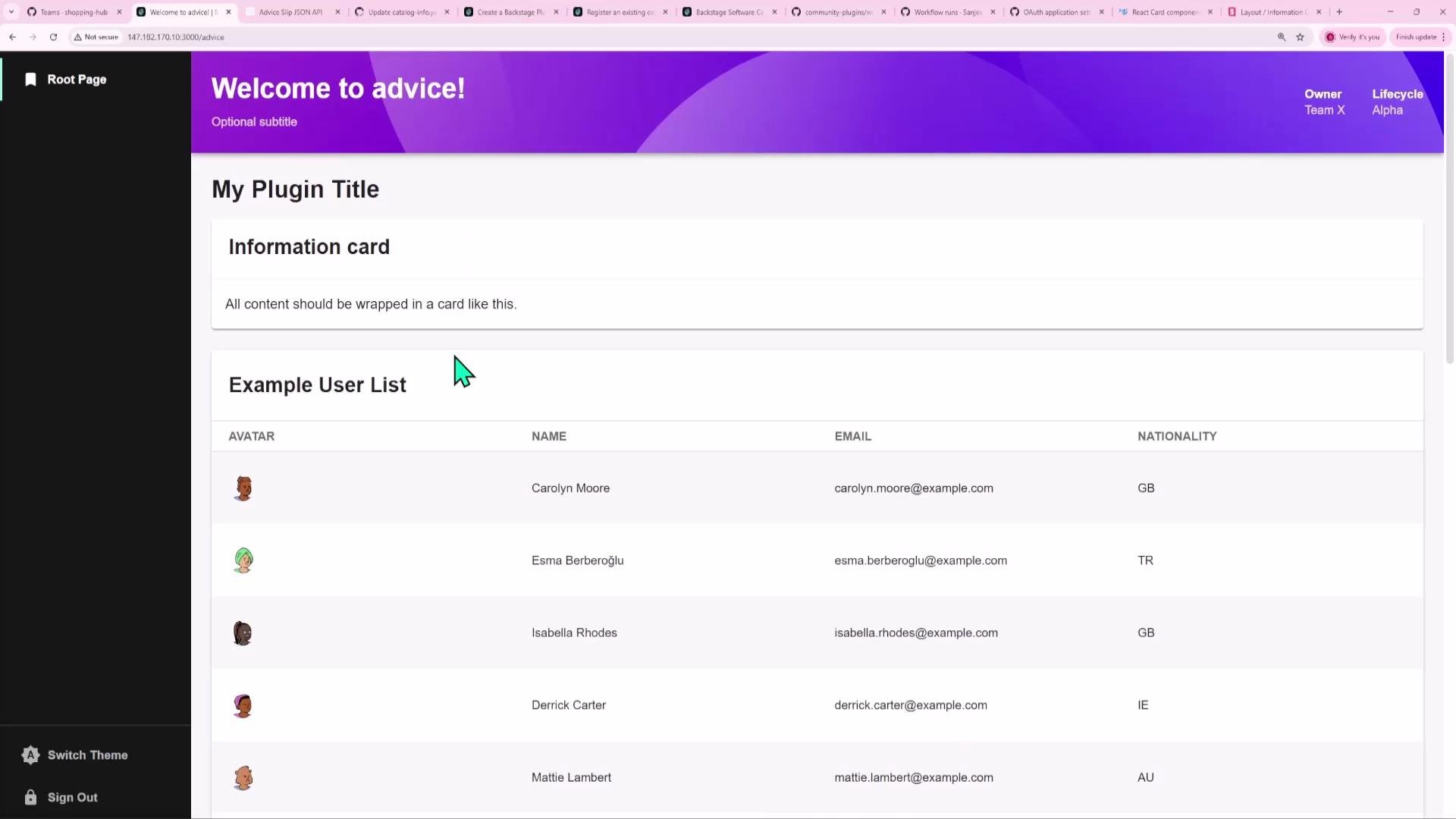

The image shows a webpage with a header titled "Welcome to advice!" and a section displaying an example user list with avatars, names, emails, and nationalities.

Conclusion

You have successfully:

Scaffolded a Backstage frontend plugin
Exposed both a full-page route and a reusable card extension
Styled the component with InfoCard
Fetched live data using useApi and fetchApiRef
Embedded the card on an entity overview page
Ran the plugin independently in development mode

Use this blueprint to build data-driven, reusable components in your Backstage ecosystem. Happy coding!
