Relationships

This article explains how to model relationships between Backstage catalog entities. Backstage lets you define and visualize how components, systems, APIs, resources, users, and groups relate to each other. Establishing these relationships enables impact analysis (what changes affect what), clarifies ownership, and makes navigating your software catalog easier.

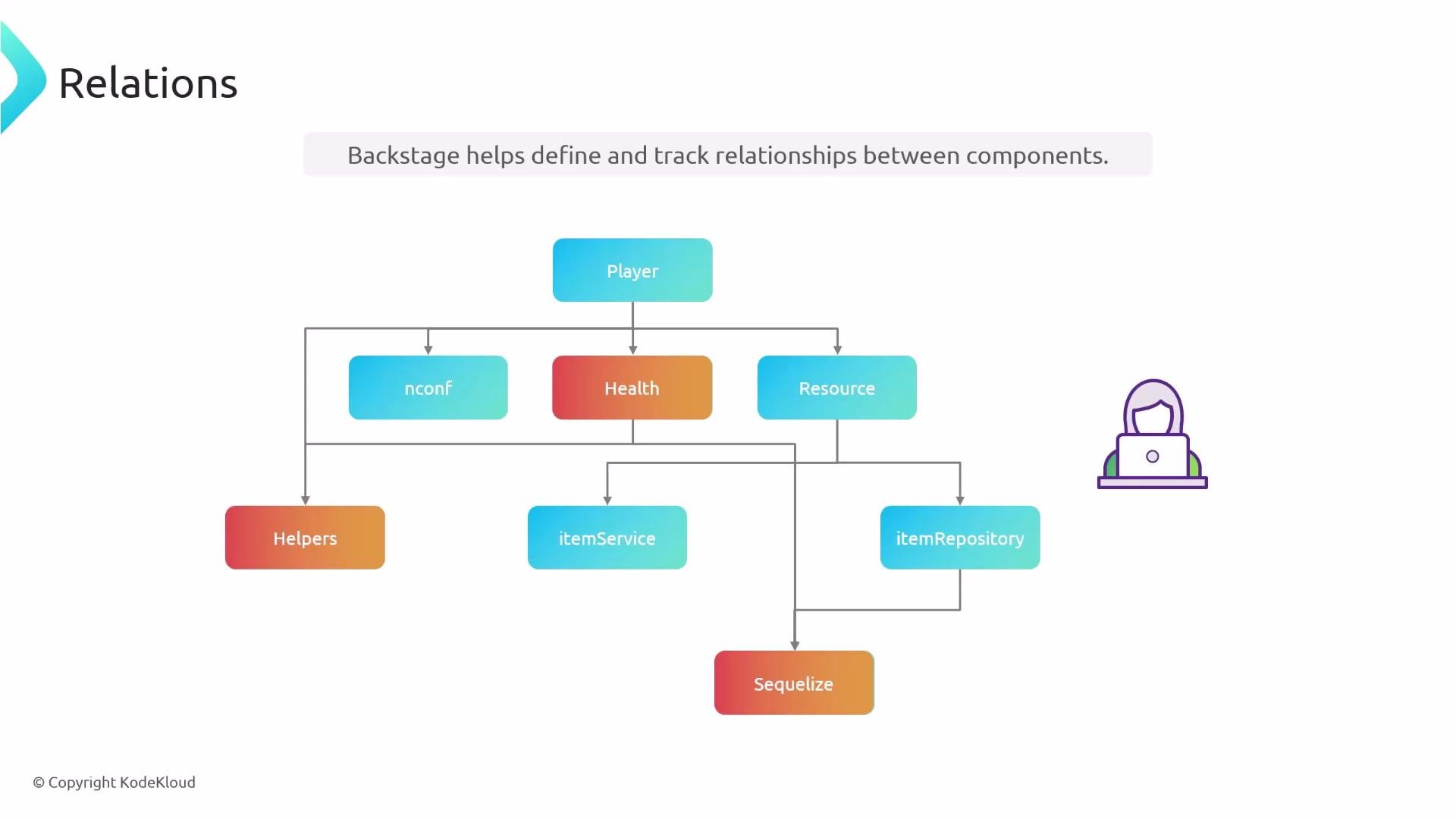

A presentation slide titled "Relations" showing a component relationship diagram with "Player" at the top connected to modules like nconf, Health, Resource, Helpers, itemService, itemRepository and Sequelize. A small icon of a person using a laptop appears on the right.

Below we cover the most common relationship types and show the YAML fields used to express them in Backstage. Callouts, code examples, and diagrams are placed alongside each relationship type to help you author correct catalog descriptors. Summary of common relationships

Relationship	Backstage field(s)	Typical use
User ↔ Group membership	`memberOf`, `members`	Assign users to teams or groups
Group hierarchy	`parent`, `children`	Model organizational group structure
Ownership	`owner` / `ownedBy` (use `user:` prefix for users)	Declare responsible team or person
Component ↔ API	`providesApis`, `consumesApis`, `apiProvidedBy`	Map API providers and consumers
Direct dependency	`dependsOn`	Hard dependency on components, resources, systems, etc.
System membership	`system`	Assign components/APIs/resources to a System
Domain hierarchy	`domain`, `subdomainOf`	Group systems into domains and subdomains

User ↔ Group (memberOf / members)

Users and groups are connected either through the user’s memberOf list or the group’s members list. You only need to declare the relationship on one side — Backstage will infer and display the link from either perspective.

Define membership on whichever source of truth your organization maintains. Use memberOf on User entities or members on Group entities — you do not need both.

Example: user declares membership

apiVersion: backstage.io/v1alpha1
kind: User
metadata:
  name: jdoe
spec:
  profile:
    displayName: Jenny Doe
    email: jenny-doe@example.com
    picture: https://example.com/staff/jenny-with-party-hat.jpeg
  memberOf: [infrastructure, auth]

Example: group declares members

apiVersion: backstage.io/v1alpha1
kind: Group
metadata:
  name: infrastructure
  description: The infra business unit
spec:
  type: business-unit
  children: []
  profile:
    displayName: Infrastructure
    email: infrastructure@example.com
    picture: https://example.com/groups/bu-infrastructure.jpeg
  members: [jdoe]

Choose the approach that matches your identity source (e.g., LDAP, SCIM, or a managed team registry).

Group hierarchy (parent / children)

Groups can be nested to represent organizational structure. Use parent to reference a single parent group and children to list any number of child groups. Example: group with parent and children

apiVersion: backstage.io/v1alpha1
kind: Group
metadata:
  name: infrastructure
  description: The infra business unit
spec:
  type: business-unit
  parent: ops
  children: [cloud, onPrem]
  profile:
    displayName: Infrastructure
    email: infrastructure@example.com
    picture: https://example.com/groups/bu-infrastructure.jpeg
  members: [jdoe]

A group may have only one parent but can list multiple children. Model parents where applicable to reflect reporting or organizational ownership.

Ownership (owner / ownedBy)

Declare who is responsible for an entity using owner (or ownedBy in some contexts). By default, owner refers to a Group name. Prefix with user: to indicate an individual user. Example: component owned by a team (default)

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
  description: Authentication service
  tags:
    - javascript
  links:
    - url: https://google.com
      title: Admin Dashboard
      icon: dashboard
      type: admin-dashboard
spec:
  type: service
  lifecycle: production
  owner: auth-team
  system: authentication-authorization

Example: component owned by an individual user

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
  description: Authentication service
  tags:
    - javascript
spec:
  type: service
  lifecycle: production
  owner: user:jdoe
  system: authentication-authorization

Use clear ownership to speed incident response and clarify who to contact for changes.

Component ↔ API (providesApis / consumesApis / apiProvidedBy)

Map which components provide APIs and which components consume them. This separation helps identify API providers and consumers in the catalog visualization. Example: component declares provided APIs and API entity declares the provider

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
  description: Authentication service
  tags:
    - javascript
spec:
  type: service
  lifecycle: production
  owner: guests
  system: authentication-authorization
  providesApis:
    - auth-api

apiVersion: backstage.io/v1alpha1
kind: API
metadata:
  name: auth-api
  description: Verify user authentication status
spec:
  type: openapi
  lifecycle: production
  owner: guests
  apiProvidedBy: auth-service
  definition:
    $text: https://raw.githubusercontent.com/Sanjeev-Thiyagarajan/backstage-auth/main/openapi/auth-api-spec.yaml

Example: component consuming an API

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: shopping-cart
  description: Shopping cart service
  annotations:
    backstage.io/techdocs-ref: dir:.
  tags:
    - javascript
  links:
    - url: https://google.com
      title: Admin Dashboard
      icon: dashboard
      type: admin-dashboard
spec:
  type: service
  lifecycle: production
  owner: shopping-team
  consumesApis:
    - auth-api

consumesApis accepts a list so a component can consume multiple APIs.

dependsOn (component/resource/other entity dependencies)

Use dependsOn to declare hard, direct dependencies required for an entity to function. Each dependency item is typed so you can reference different entity kinds using type: name in the mapping (e.g., component: auth-service, resource: auth-db). Example: shopping-cart depends on auth-service component

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: shopping-cart
  description: Shopping cart service
  annotations:
    backstage.io/techdocs-ref: dir:.
  tags:
    - javascript
spec:
  dependsOn:
    - component: auth-service
  type: service
  lifecycle: production
  owner: shopping-team
  consumesApis:
    - auth-api

Even when consumesApis is present, add dependsOn for a direct relationship to the provider component—particularly important when the dependency is not expressed as an API (for example, a shared library or internal package). Example: component depends on a resource (database)

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
  description: Authentication service
  tags:
    - javascript
spec:
  dependsOn:
    - resource: auth-db
  type: service
  lifecycle: production
  owner: guests
  system: authentication-authorization
  providesApis:
    - auth-api

apiVersion: backstage.io/v1alpha1
kind: Resource
metadata:
  name: auth-db
  description: Stores user details
spec:
  type: database
  owner: user:jdoe
  system: authentication-authorization

System membership and Domains

Systems group cooperating entities (components, APIs, resources). Use the system property on components, APIs, and resources to indicate which System they belong to. Example: component assigned to a system

apiVersion: backstage.io/v1alpha1
kind: Component
metadata:
  name: auth-service
  description: Authentication service
  tags:
    - javascript
spec:
  system: user-management
  type: service
  lifecycle: production
  owner: auth-team

Systems belong to Domains. Use the domain property on a System to assign it to a Domain. Domains can also be nested with subdomainOf to express broader organizational or product grouping.

apiVersion: backstage.io/v1alpha1
kind: Domain
metadata:
  name: user-management
  description: Everything about users
spec:
  owner: guests

apiVersion: backstage.io/v1alpha1
kind: System
metadata:
  name: authentication-authorization
  description: Handles user authentication and profiles
spec:
  owner: guests
  domain: user-management

Domains can be organized hierarchically:

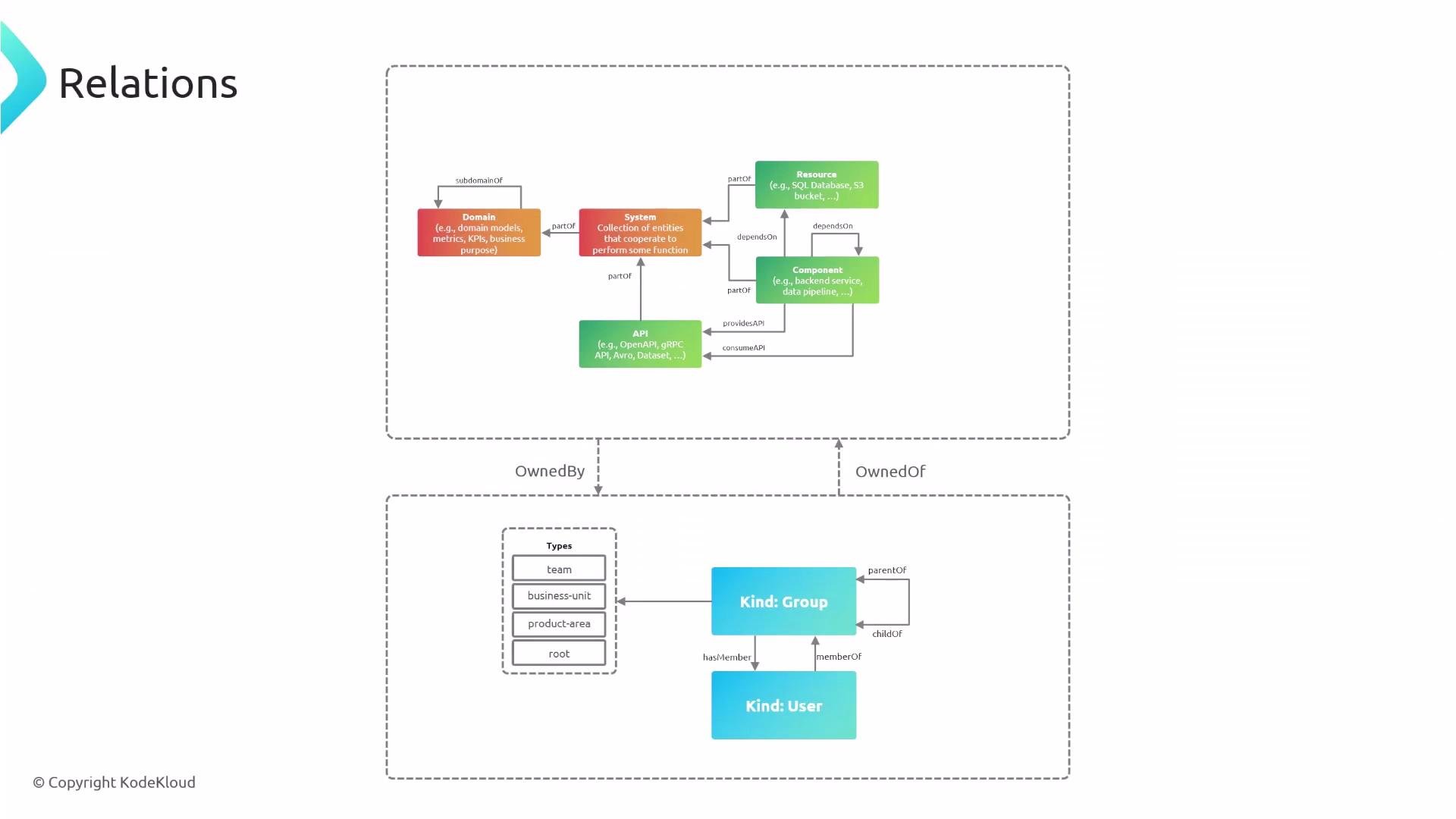

A schematic diagram titled "Relations" that maps entities like Domain, System, API, Component and Resource and shows their relationships (partOf, dependsOn, provides/consumes API) along with ownership and group/user membership.

Example: domain that is a subdomain of another domain

apiVersion: backstage.io/v1alpha1
kind: Domain
metadata:
  name: ecommerce
  description: Everything encompassing ecommerce app
spec:
  owner: guests

apiVersion: backstage.io/v1alpha1
kind: Domain
metadata:
  name: user-management
  description: Everything about users
spec:
  owner: guests
  subdomainOf: ecommerce

With relationships defined (membership, ownership, API mappings, direct dependencies, system membership, and domain hierarchies), Backstage can visualize impact, trace ownership, and help you reason about architecture and change management across your software catalog. Links and references

Backstage Catalog documentation: https://backstage.io/docs/features/software-catalog
Backstage entity model: https://backstage.io/docs/features/software-catalog/entity-model
