In this guide, we’ll explore core Backstage entities: Users, Groups, APIs, Systems, Domains, Resources, and Templates. Understanding how these types interrelate will help you organize your software catalog and automate entity synchronization.

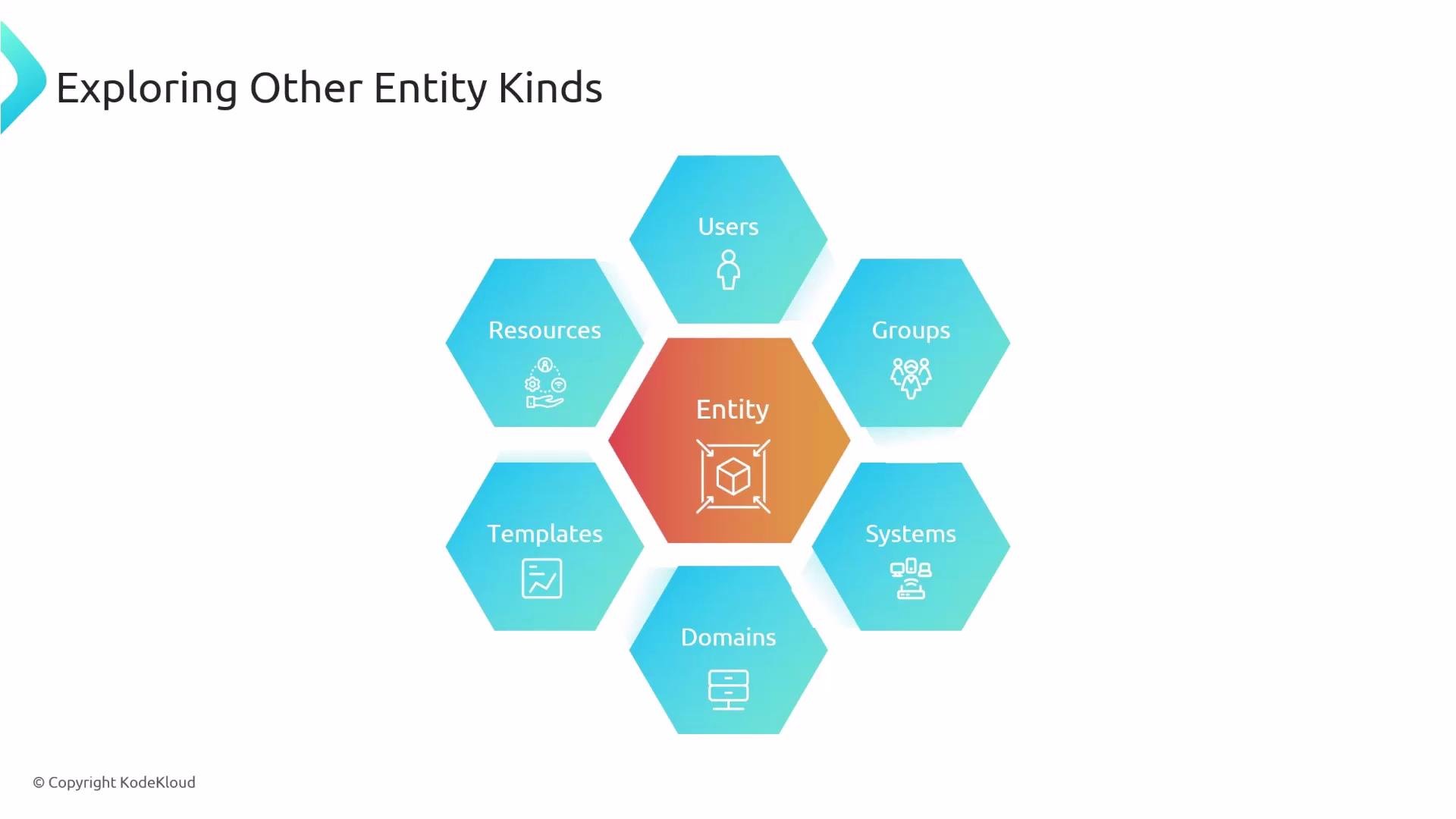

The image is a diagram with a central hexagon labeled "Entity" surrounded by six other hexagons labeled "Users," "Groups," "Systems," "Domains," "Templates," and "Resources." It illustrates different types of entities.

​
Backstage Entity Overview

Entity TypeKindDescription
UserUserA person (employee, contractor)
GroupGroupOrganizational units like teams or business units
ComponentComponentServices, libraries, or applications
APIAPIInterfaces provided or consumed by components
SystemSystemCollection of related components and resources
DomainDomainLogical business area grouping multiple systems
ResourceResourceInfrastructure elements (databases, queues, etc.)

​
Users

A UserEntity represents an individual—an employee, contractor, or consultant. Each user follows the same YAML structure:
apiVersion: backstage.io/v1alpha1
kind: User
metadata:
  name: jdoe
spec:
  profile:
    displayName: Jenny Doe
    email: jenny-doe@example.com
    picture: https://example.com/staff/jenny-with-party-hat.jpeg
    memberOf:
      - team-b
      - employees
  • metadata.name: unique identifier for the user
  • spec.profile: contains displayName, email, picture
  • memberOf: lists Backstage groups the user belongs to
You can synchronize users automatically from LDAP, SSO, or an HR system instead of hand-authoring each YAML file.

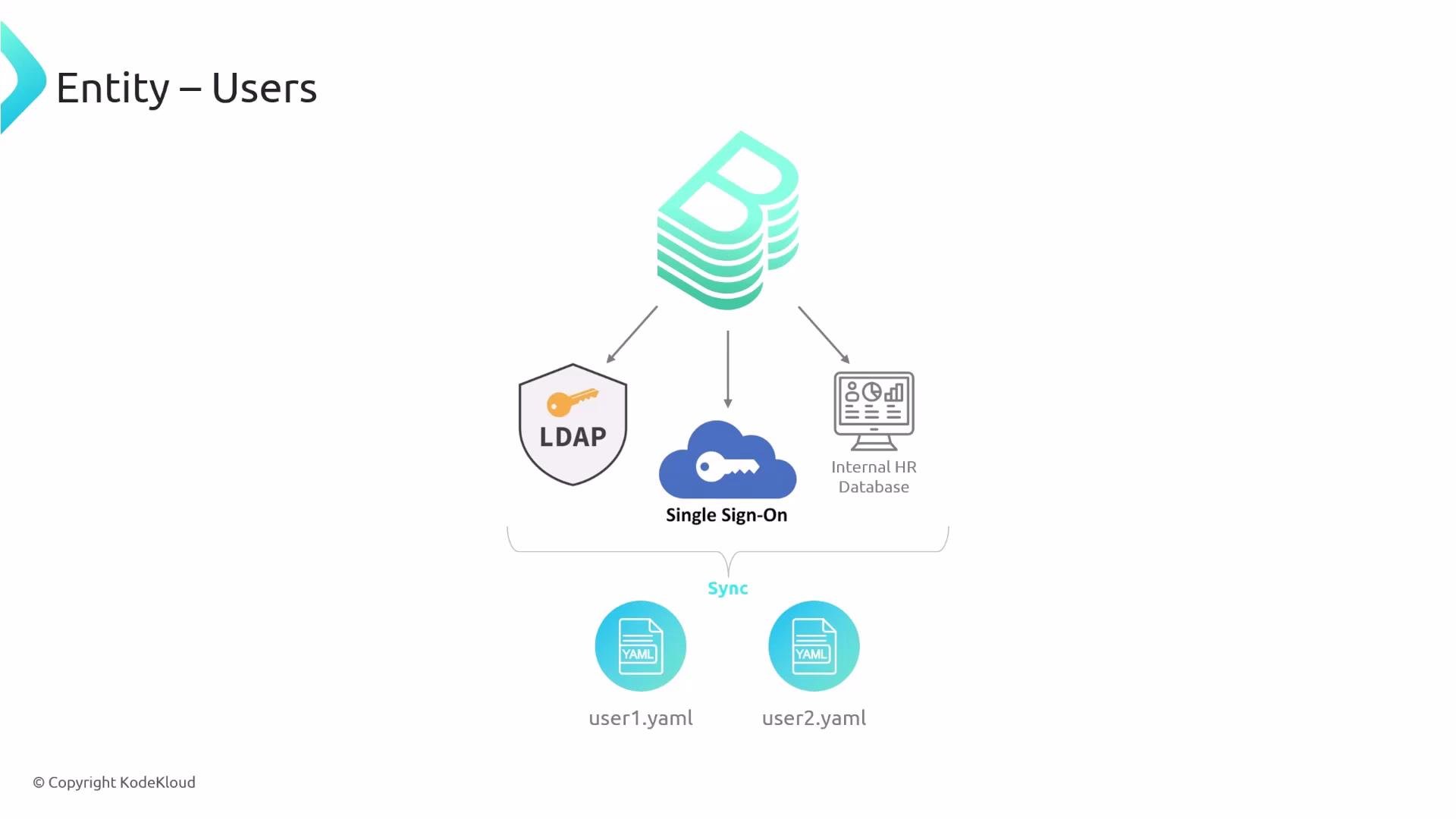

The image is a diagram illustrating user entity synchronization, showing connections between LDAP, Single Sign-On, and an internal HR database, with outputs to user YAML files.

​
Groups

A GroupEntity models teams, business units, or communities of interest. Groups help organize users and reflect your company’s hierarchy:
apiVersion: backstage.io/v1alpha1
kind: Group
metadata:
  name: infrastructure
  description: The infra business unit
spec:
  type: business-unit
  profile:
    displayName: Infrastructure
    email: infrastructure@example.com
    picture: https://example.com/groups/bu-infrastructure.jpeg
  parent: ops
  children:
    - backstage
    - other
  members:
    - jdoe
  • spec.type: e.g., business-unit, team
  • parent/children: build a hierarchy of groups
  • members: list of user metadata.name values
When syncing groups from GitHub or an identity provider, ensure the metadata.name matches the external group’s identifier to avoid duplicates.
The image is a diagram showing the concept of syncing information to create teams, with two example teams labeled "Auth Team" and "Content Team."

​
APIs

Backstage treats APIs as first-class entities. Define Component and API resources to model service interfaces:
The image is a diagram showing an "Auth Service" providing an API, which is consumed by three different services labeled Service 1, Service 2, and Service 3.
apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
  description: Authentication service
  tags:
    - javascript
spec:
  type: service
  lifecycle: production
  owner: auth-team
  providesApis:
    - auth-api
---
apiVersion: backstage.io/v1alpha1
kind: API
metadata:
  name: auth-api
  description: Verify user authentication status
spec:
  type: openapi
  lifecycle: production
  owner: auth-team
  apiProvidedBy: auth-service
  definition:
    $json: https://raw.githubusercontent.com/Sanjeev-Thiyagarajan/backstage-auth/main/openapi/auth-api-spec.yaml
You can declare the relationship from the Component (providesApis) or from the API (apiProvidedBy).

​
Systems

A SystemEntity groups related components and resources, exposing only public APIs to consumers:
The image explains that a system is a collection of resources and components exposing public APIs, with the main benefit being the hiding of resources and private APIs between components. It includes icons representing consumers and a network.
apiVersion: backstage.io/v1alpha1
kind: System
metadata:
  name: authentication-authorization
  description: Handles user authentication and profiles
spec:
  owner: guests
  domain: user-management
---
apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
  description: Authentication service
  tags:
    - javascript
  links:
    - url: https://google.com
      title: Admin Dashboard
      icon: dashboard
      type: admin-dashboard
spec:
  type: service
  lifecycle: production
  owner: guests
  system: authentication-authorization
  providesApis:
    - auth-api
Real-world examples:
The image illustrates a playlist management system with a mobile interface and a backend service for updating, querying, and storing playlists.

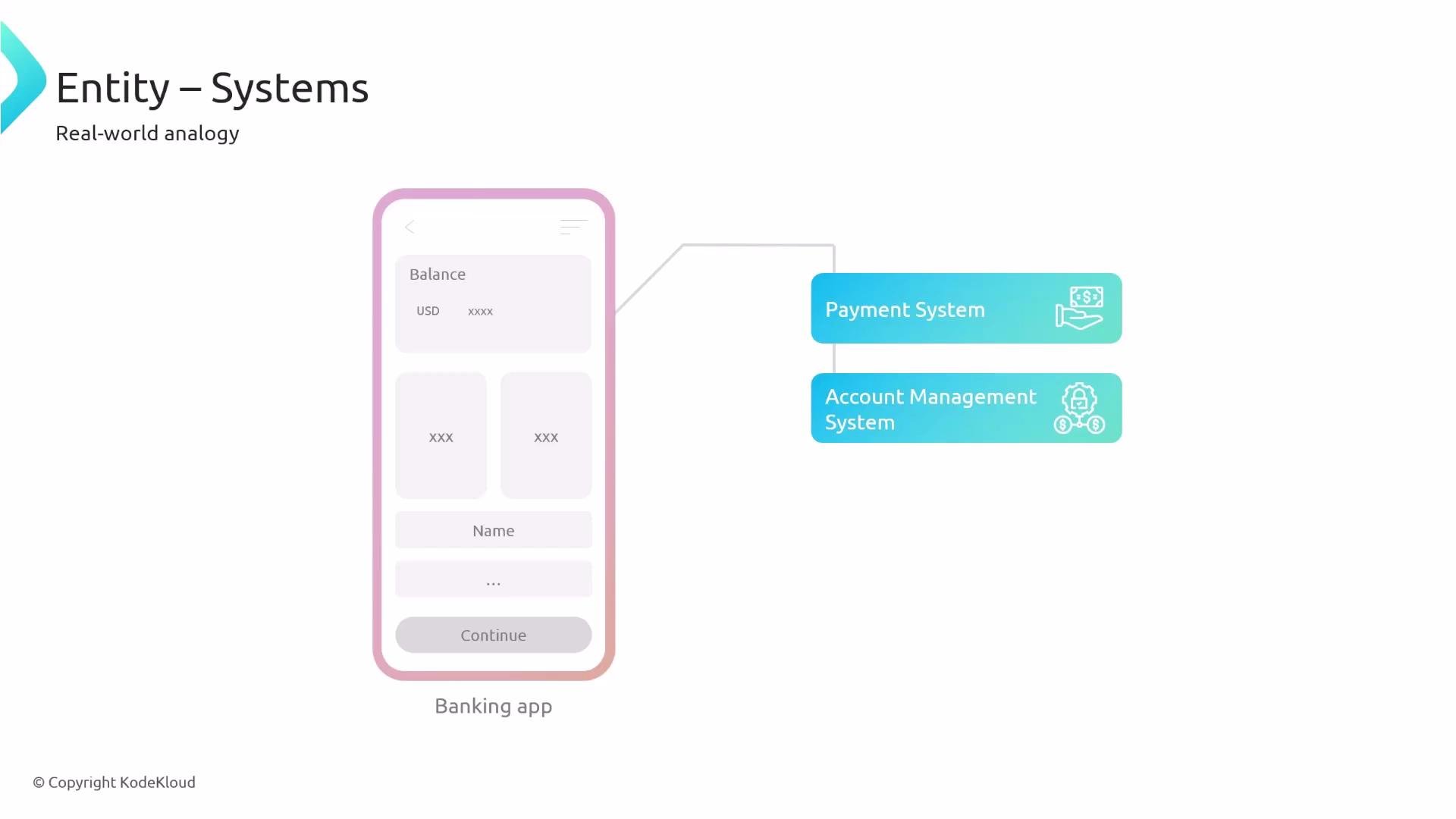

The image illustrates a real-world analogy of entity-systems, showing a banking app interface connected to a payment system and an account management system.

​
Domains

A DomainEntity defines a logical business area. Systems are grouped under domains to reflect products or services:
The image explains the concept of a domain as a collection of components serving a specific business, focusing on the "User Management Domain" with systems for authentication, user profiles, and tenants.
apiVersion: backstage.io/v1alpha1
kind: Domain
metadata:
  name: user-management
  description: Everything about user operations
spec:
  type: product-area
  owner: guests
  subdomainOf: Ecommerce
---
apiVersion: backstage.io/v1alpha1
kind: System
metadata:
  name: authentication-authorization
  description: Handles user authentication and profiles
spec:
  owner: guests
  domain: user-management

​
Resources

A ResourceEntity represents infrastructure—databases, message queues, buckets, or CDNs—that a system relies on:

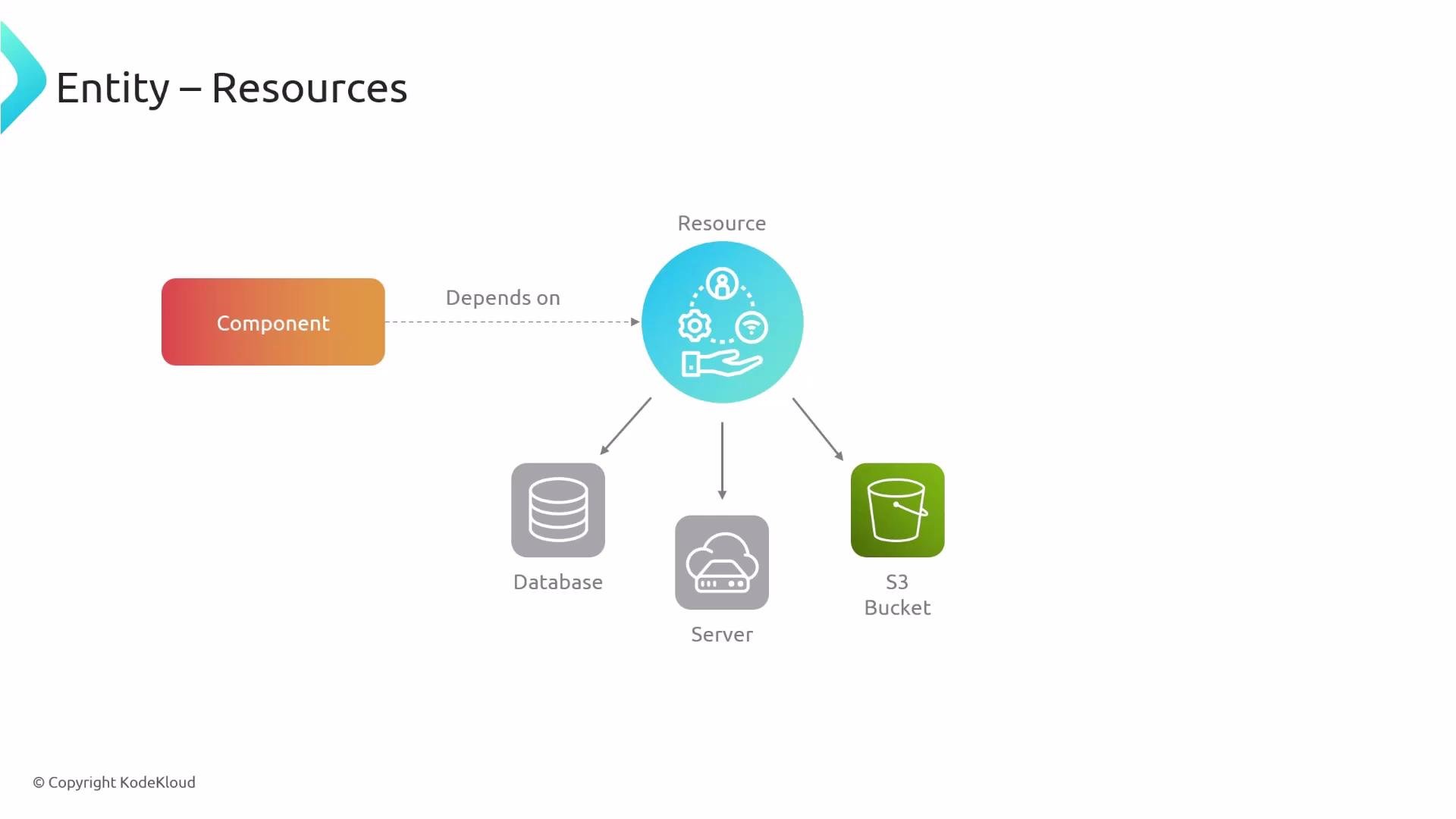

The image is a diagram showing a "Component" that depends on a "Resource," which is connected to a database, server, and S3 bucket.
apiVersion: backstage.io/v1alpha1
kind: Resource
metadata:
  name: auth-db
  description: Stores user profiles
spec:
  type: database
  owner: guests
  system: authentication-authorization
