Demo Customizing UI Part 2

In this lesson you’ll add a direct sidebar link in Backstage that navigates straight to the “Register existing component” page. The goal is to illustrate how Backstage pages map to routes and how to modify the sidebar (Root.tsx) to add a new SidebarItem that points to /catalog-import.

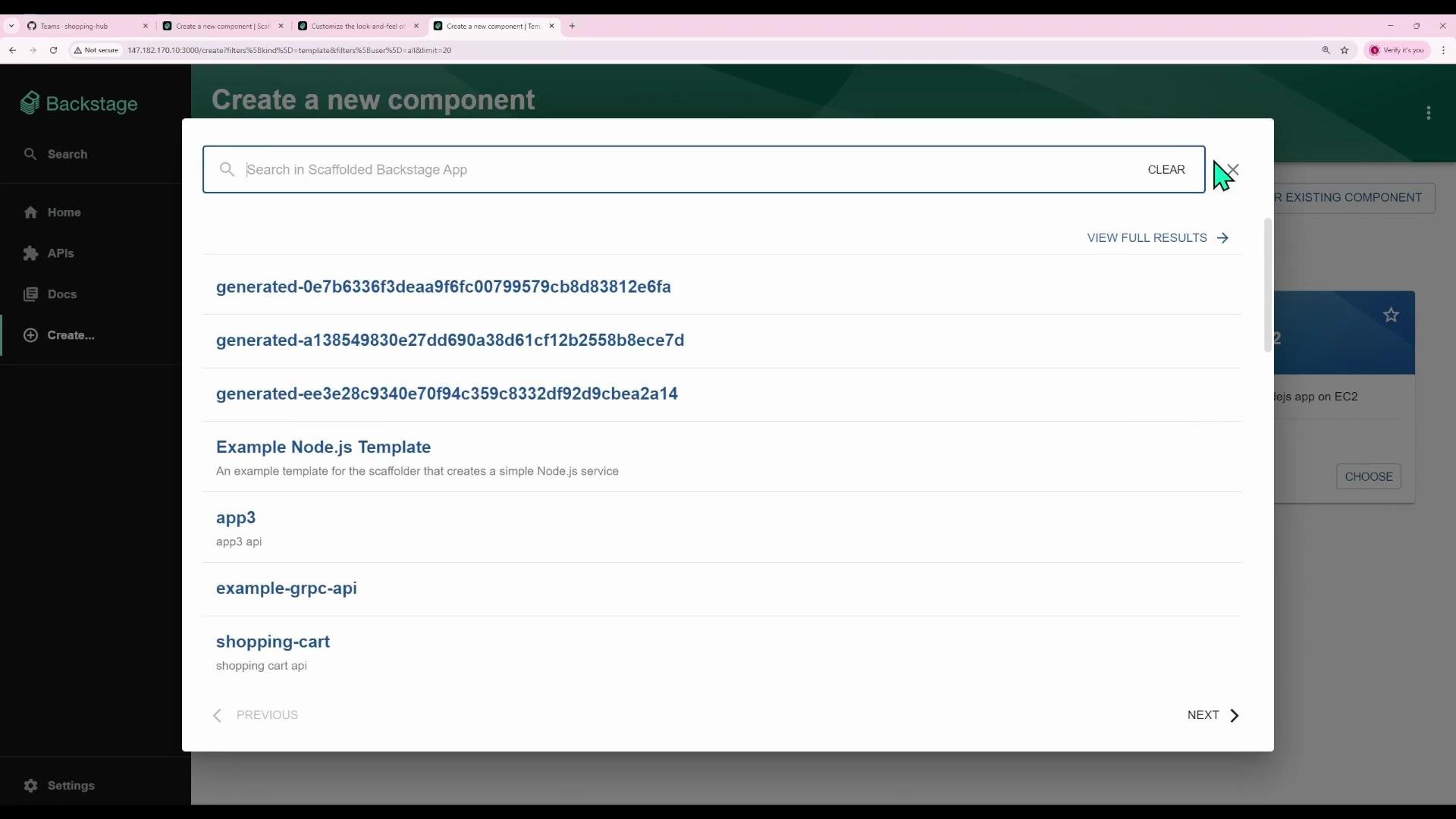

A screenshot of the Backstage "Create a new component" dialog showing a search box and a list of scaffolder templates (generated IDs, Example Node.js Template, app3, example-grpc-api, shopping-cart). The modal is overlaid on a dark left navigation with items like Home, APIs, and Docs.

Overview

Backstage renders each page as a React component.
Navigation is implemented by mapping URL paths to components using React Router.
The left sidebar is defined in Root.tsx — add or update SidebarItem entries there.

How Backstage routes map to pages Every page in Backstage has a unique URL path. When the browser navigates to a path, React Router renders the corresponding React component. Use FlatRoutes / Route elements to wire a path to a page component. Common page paths in this example:

Page	Path
Home (Catalog index)	`/catalog`
APIs (API docs)	`/api-docs`
Docs (TechDocs index/reader)	`/docs` or `/docs/:namespace/:kind/:name/*`
Create (Scaffolder)	`/create`
Register existing component (Catalog Import)	`/catalog-import`

Example route configuration (from App.tsx)

// App.tsx (relevant parts)
import React from 'react';
import { Navigate, Route } from 'react-router-dom';
import { FlatRoutes } from '@backstage/core-app-api';
import {
  CatalogIndexPage,
  CatalogEntityPage,
} from '@backstage/plugin-catalog';
import { TechDocsIndexPage, TechDocsReaderPage } from '@backstage/plugin-techdocs';
import { ScaffolderPage } from '@backstage/plugin-scaffolder';
import { ApiExplorerPage } from '@backstage/plugin-api-docs';
import { CatalogImportPage } from '@backstage/plugin-catalog-import';
import { RequirePermission } from '@backstage/core-components';
import { catalogEntityCreatePermission } from '@backstage/plugin-catalog';

const routes = (
  <FlatRoutes>
    <Route path="/" element={<Navigate to="/catalog" replace />} />
    <Route path="/catalog" element={<CatalogIndexPage />} />
    <Route path="/catalog/:namespace/:kind/:name" element={<CatalogEntityPage />}>
      {/* entityPage routes / sub-routes go here */}
    </Route>

    <Route path="/docs" element={<TechDocsIndexPage />} />
    <Route path="/docs/:namespace/:kind/:name/*" element={<TechDocsReaderPage />} />

    <Route path="/create" element={<ScaffolderPage />} />
    <Route path="/api-docs" element={<ApiExplorerPage />} />

    <Route
      path="/catalog-import"
      element={
        <RequirePermission permission={catalogEntityCreatePermission}>
          <CatalogImportPage />
        </RequirePermission>
      }
    />
  </FlatRoutes>
);

export default routes;

Notes

A Navigate at / commonly redirects users to a landing page (here /catalog).
Protect sensitive pages (like catalog-import) with permission checks (RequirePermission).

Where to update the sidebar: Root.tsx The sidebar lives in src/components/Root/Root.tsx. Sidebar navigation is built with components such as SidebarGroup and SidebarItem. Each SidebarItem accepts props like icon, to, and text to control where it navigates and how it appears. Example excerpt from Root.tsx showing the existing menu:

// src/components/Root/Root.tsx (excerpt)
import React, { PropsWithChildren } from 'react';
import { Link } from 'react-router-dom';
import { makeStyles } from '@material-ui/core';
import HomeIcon from '@material-ui/icons/Home';
import ExtensionIcon from '@material-ui/icons/Extension';
import LibraryBooksIcon from '@material-ui/icons/LibraryBooks';
import CreateComponentIcon from '@material-ui/icons/AddCircleOutline';
import {
  SidebarPage,
  Sidebar,
  SidebarLogo,
  SidebarGroup,
  SidebarItem,
  SidebarDivider,
  SidebarScrollWrapper,
} from '@backstage/core-components';
import LogoFull from './LogoFull';
import LogoIcon from './LogoIcon';
import { SidebarSearchModal } from '@backstage/plugin-search';
import SearchIcon from '@material-ui/icons/Search';
import GroupIcon from '@material-ui/icons/Group';

export const Root = ({ children }: PropsWithChildren<{}>) => (
  <SidebarPage>
    <Sidebar>
      <SidebarLogo />
      <SidebarGroup label="Search" icon={<SearchIcon />} to="/search">
        <SidebarSearchModal />
      </SidebarGroup>

      <SidebarDivider />

      <SidebarGroup label="Menu" icon={<HomeIcon />}>
        {/* Global nav, not org-specific */}
        <SidebarItem icon={<HomeIcon />} to="/catalog" text="Home" />
        <SidebarItem
          singularTitle="My Group"
          pluralTitle="My Groups"
          icon={<GroupIcon />}
        />
        <SidebarItem icon={<ExtensionIcon />} to="/api-docs" text="APIs" />
        <SidebarItem icon={<LibraryBooksIcon />} to="/docs" text="Docs" />
        <SidebarItem icon={<CreateComponentIcon />} to="/create" text="Create..." />
      </SidebarGroup>

      <SidebarDivider />
      <SidebarScrollWrapper>{children}</SidebarScrollWrapper>
    </Sidebar>
  </SidebarPage>
);

Add a direct link to “Register existing component” To add a sidebar link that navigates directly to the Catalog Import page (/catalog-import):

Import an icon (e.g., Material UI’s AssignmentReturned):

import AssignmentReturnedIcon from '@material-ui/icons/AssignmentReturned';

Add a SidebarItem inside the “Menu” SidebarGroup near the other top-level items:

<SidebarItem
  icon={<AssignmentReturnedIcon />}
  to="/catalog-import"
  text="Register"
/>

Complete snippet in context:

// inside the SidebarGroup labeled "Menu"
<SidebarItem icon={<ExtensionIcon />} to="/api-docs" text="APIs" />
<SidebarItem icon={<LibraryBooksIcon />} to="/docs" text="Docs" />
<SidebarItem icon={<CreateComponentIcon />} to="/create" text="Create..." />
<SidebarItem icon={<AssignmentReturnedIcon />} to="/catalog-import" text="Register" />

After saving and restarting (or rebuilding) your Backstage app, the new “Register” sidebar link will appear and navigate directly to /catalog-import, streamlining the Create → Register flow.

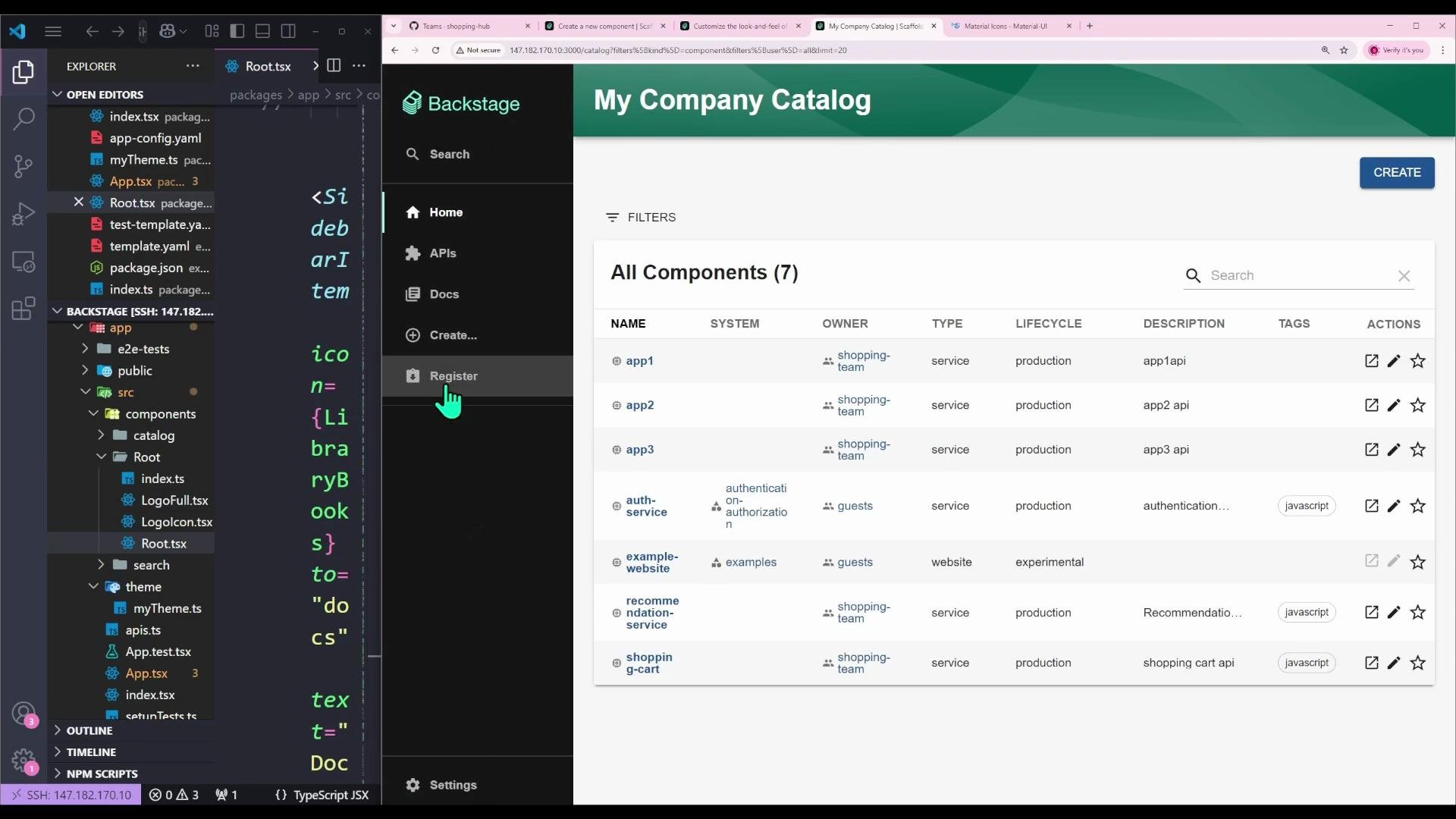

A split-screen screenshot showing a code editor (Visual Studio Code) with a project file tree and TypeScript code on the left, and a web UI for "My Company Catalog" (Backstage) displaying a table of components on the right. The left panel shows folders like src/components/Root, while the right shows component names, owners, types, and lifecycle statuses.

Tip: Use a distinct icon and clear label to make the new link discoverable. Keep SidebarItem placement near related items so users learn the menu layout quickly.

Permission considerations

The Catalog Import page (/catalog-import) typically requires a permission check such as catalogEntityCreatePermission. If you add the sidebar link but users lack permission, they’ll be prevented from accessing the page.
Wrap the target page in RequirePermission (as shown in the routes example) to enforce access control.

Important: If you add a SidebarItem that points to a protected route, ensure the route itself enforces permissions. The sidebar link does not implicitly grant access.

Visual confirmation of the change The screenshots below demonstrate the code edits in VS Code and the resulting direct navigation to the “Register an existing component” page.

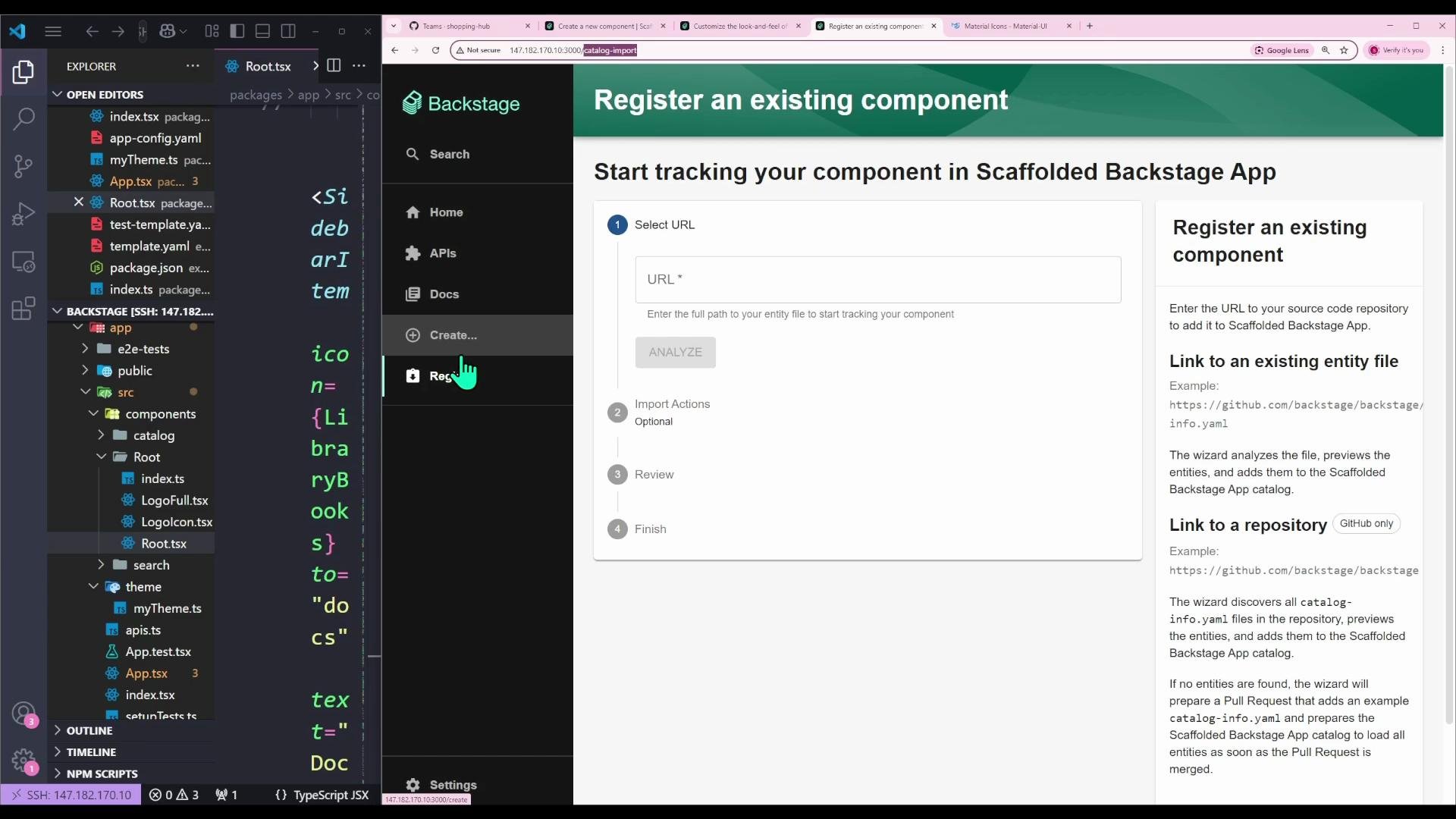

A split-screen screenshot showing a code editor (VS Code) with a project/file explorer and TypeScript/React files on the left, and the Backstage "Register an existing component" web UI (URL input and instructions) open in a browser on the right.

Summary & next steps

Backstage pages are React components mapped to routes — update App.tsx (or equivalent) to wire new pages.
Modify Root.tsx to change or add sidebar entries using SidebarItem, SidebarGroup, and SidebarDivider.
Use the to prop to point SidebarItem at the route you want (e.g., /catalog-import).
Choose distinct icons and labels to improve usability.
Ensure protected pages enforce permissions using RequirePermission.

References

Backstage docs: https://backstage.io/docs
React Router: https://reactrouter.com/
Backstage core components: https://backstage.io/docs/components/core-features

This change is standard React work inside a Backstage app — once you understand routes and Root.tsx you can customize the UI to match your team’s workflows.
