Welcome back. In this lesson we’ll walk through a real-world embedding use case and explain the end-to-end flow for retrieval-augmented systems. End-to-end embedding retrieval flow — high level:
  1. A user sends a natural language query (e.g., “hello”) to an assistant such as ChatGPT or Claude.
  2. The query text is converted into a numeric vector (an embedding) by an embedding model.
  3. That query embedding is compared against a persisted index of document embeddings in a vector database (or other retrieval store).
  4. The system retrieves the closest matching documents or passages and passes them as context to the language model.
  5. The model combines the retrieved context with its reasoning to generate the final response shown to the user.
  • Typically, documents and long-lived content are pre-embedded and stored; queries are embedded at request time.
  • Retrieval quality depends on the embedding model, index structure (ANN, exact), and similarity metric (cosine similarity, dot product).

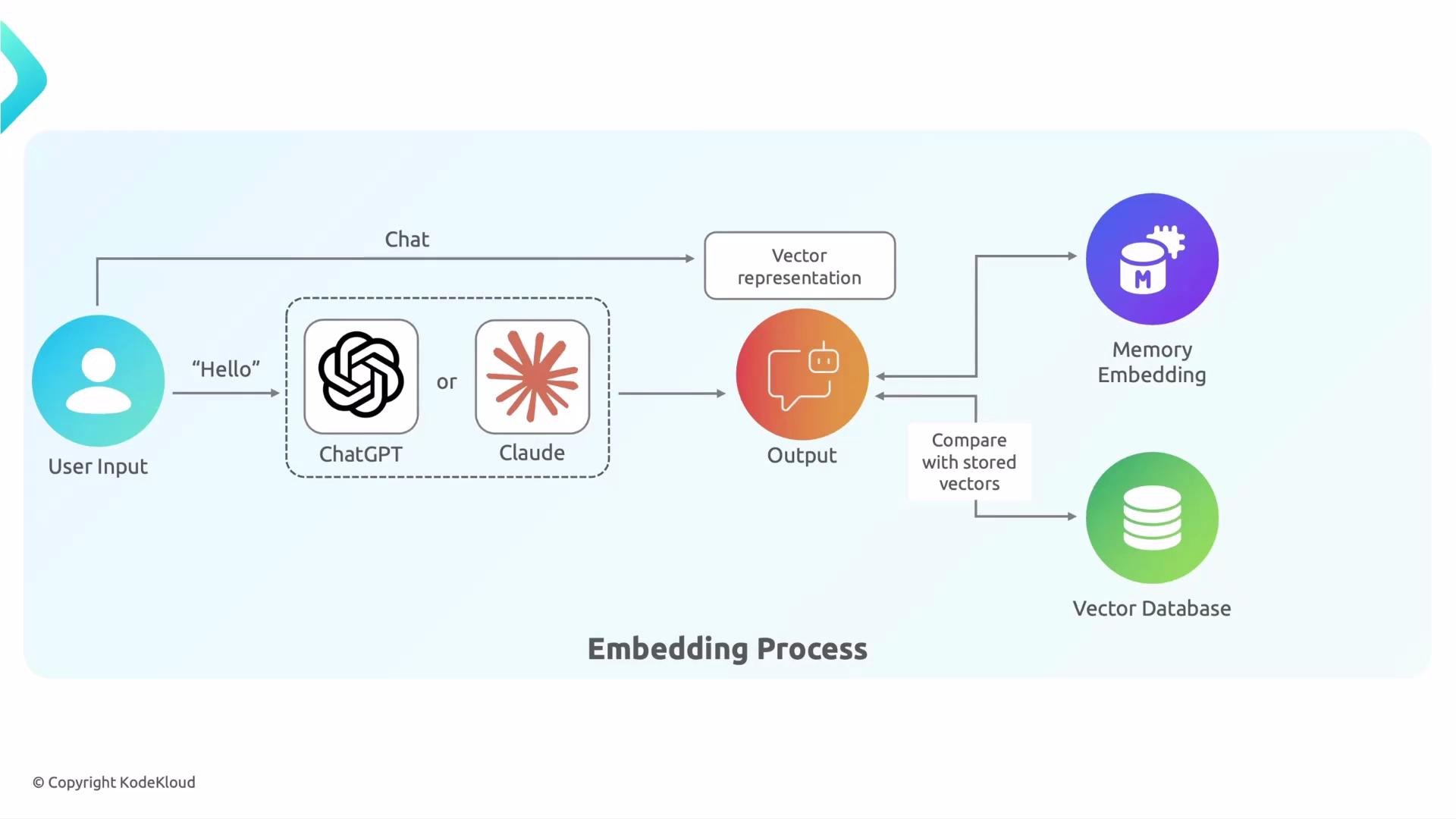

The image is a flowchart depicting the embedding process, showing how user input is processed by ChatGPT or Claude to produce an output, which is then converted into a vector representation and stored in a vector database for comparison.
Key architecture responsibilities and components
  • Embedding model: a neural network that maps natural language (or other modalities) into numeric vectors. This can be a dedicated embedding model or an embedding endpoint provided by a larger LLM.
  • Vector database / index: persists embeddings and supports fast nearest-neighbor search (ANN indexes like HNSW, IVFPQ, IVF+PQ, or in-memory FAISS).
  • Query-time workflow: embed the incoming text, query the vector index for nearest neighbors, and return the retrieved content to the model as additional context.
  • Monitoring and lifecycle: some systems also embed model outputs for analytics, conversational memory, or to detect drift; plan for privacy, retention, and reindexing strategies.
What embedding models do — encoding semantics The model does not “understand” text like a human. Instead, it converts text into coordinates in a high-dimensional vector space so that semantically similar items are near each other. Example (illustrative values):
  • “The cat sleeps” → [0.23, −0.45, …]
  • “A feline resting” → [0.25, −0.44, …]
Although the wording differs, the two vectors are close in embedding space; downstream search recognizes their semantic relationship even when keywords differ.

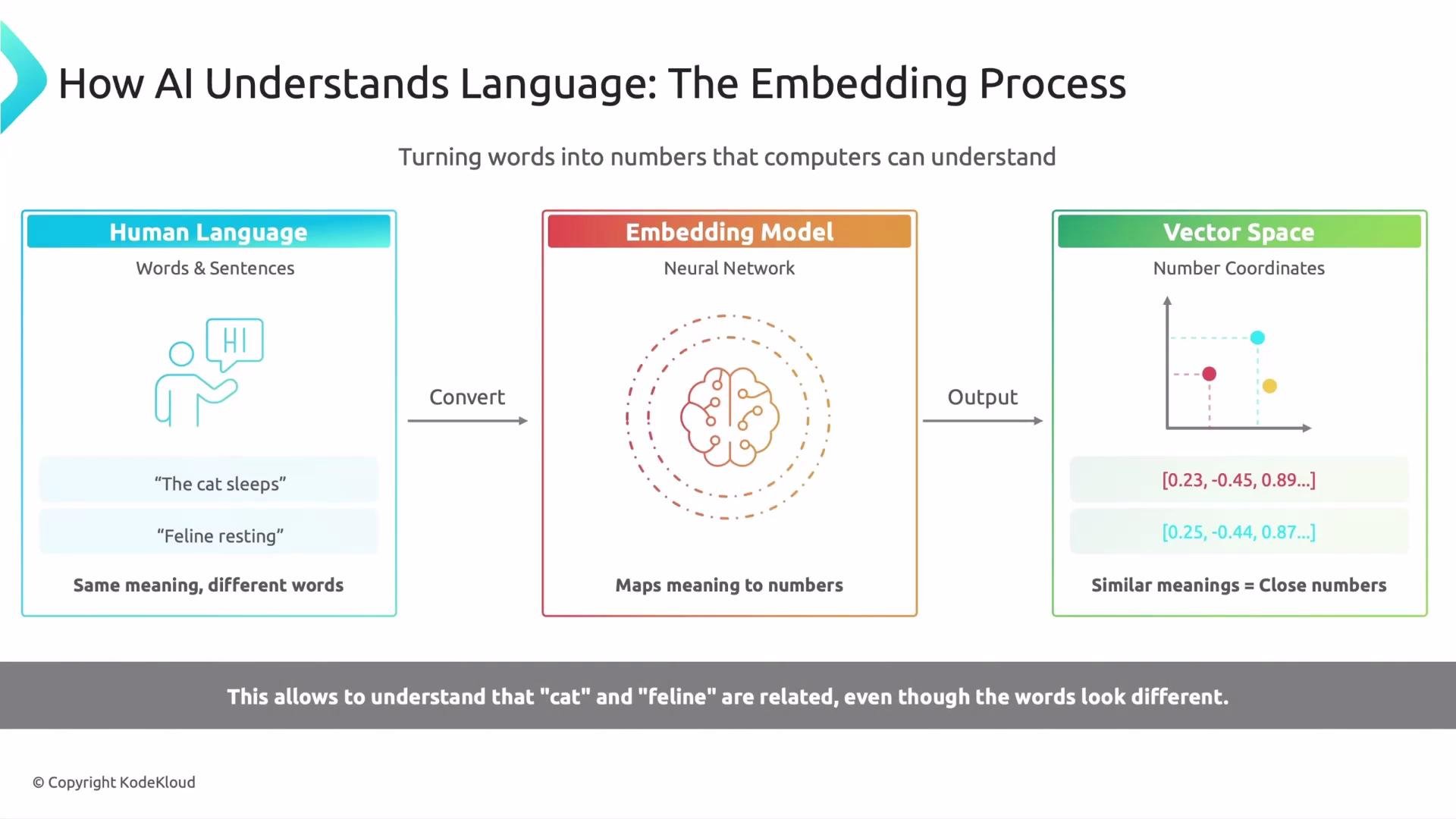

The image explains the AI language understanding process, showing how human language phrases are converted into numerical vectors using an embedding model, which helps AI recognize similar meanings with different words.
Types of embedding models and common use cases
Model TypeTypical Use CaseExample applications
Text embeddingsSemantic search, RAG (retrieval-augmented generation), clustering, summarizationDocument search, FAQ matching, conversational memory
Image / video embeddingsVisual similarity, image retrieval, clustering of visual assetsReverse image search, deduplication, visual recommendations
Audio embeddingsSpeaker identification, semantic search across audio, clusteringPodcast search, keyword spotting, speaker diarization
Choosing the right model
  • Match modality: use a text model for text, an image model for images, and so on.
  • Precision vs. cost: larger embeddings or higher-dimensional vectors can increase retrieval fidelity but also storage and compute costs.
  • Indexing strategy: ANN indexes (HNSW, IVF) balance search speed and accuracy for large corpora; FAISS and Milvus are common choices.
  • Metric: cosine similarity and dot product are most common for text embeddings—pick the metric your embedding model was trained with.
Practical tips
  • Pre-embed static content to reduce query latency.
  • Normalize vectors (L2 normalization) when using cosine similarity if required by your index.
  • Periodically re-embed or reindex when your embedding model changes or when the corpus evolves.
  • Monitor recall and precision of retrieved results; use relevance feedback to improve prompts or embeddings.
Embeddings are numeric representations of meaning. When designing systems, choose an embedding model aligned to your data modality (text, image, audio), plan for storage and indexing costs, and implement a reindexing strategy to handle model updates and data drift.
Links and references That concludes this lesson. Further sections will explore specific text, image/video, and audio embedding models and show example integration patterns for common vector stores.
