Demo Firewall Ports Install Config

You can quickly verify NGINX and a backend Flask app from the server itself using curl. That confirms the services are running from the server/engineer perspective, but it doesn’t prove the same results from the client/browser perspective. Below are the two checks we ran locally on the host to confirm both NGINX and the Flask app were responding:

bob@alpine-host ~ ➜  curl localhost
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
  body {
    width: 35em;
    margin: 0 auto;
    font-family: Tahoma, Verdana, Arial, sans-serif;
  }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

bob@alpine-host ~ ➜  curl localhost:5000
<h1>Hello, Human!</h1>[Not Authenticated]
bob@alpine-host ~ ➜  clear

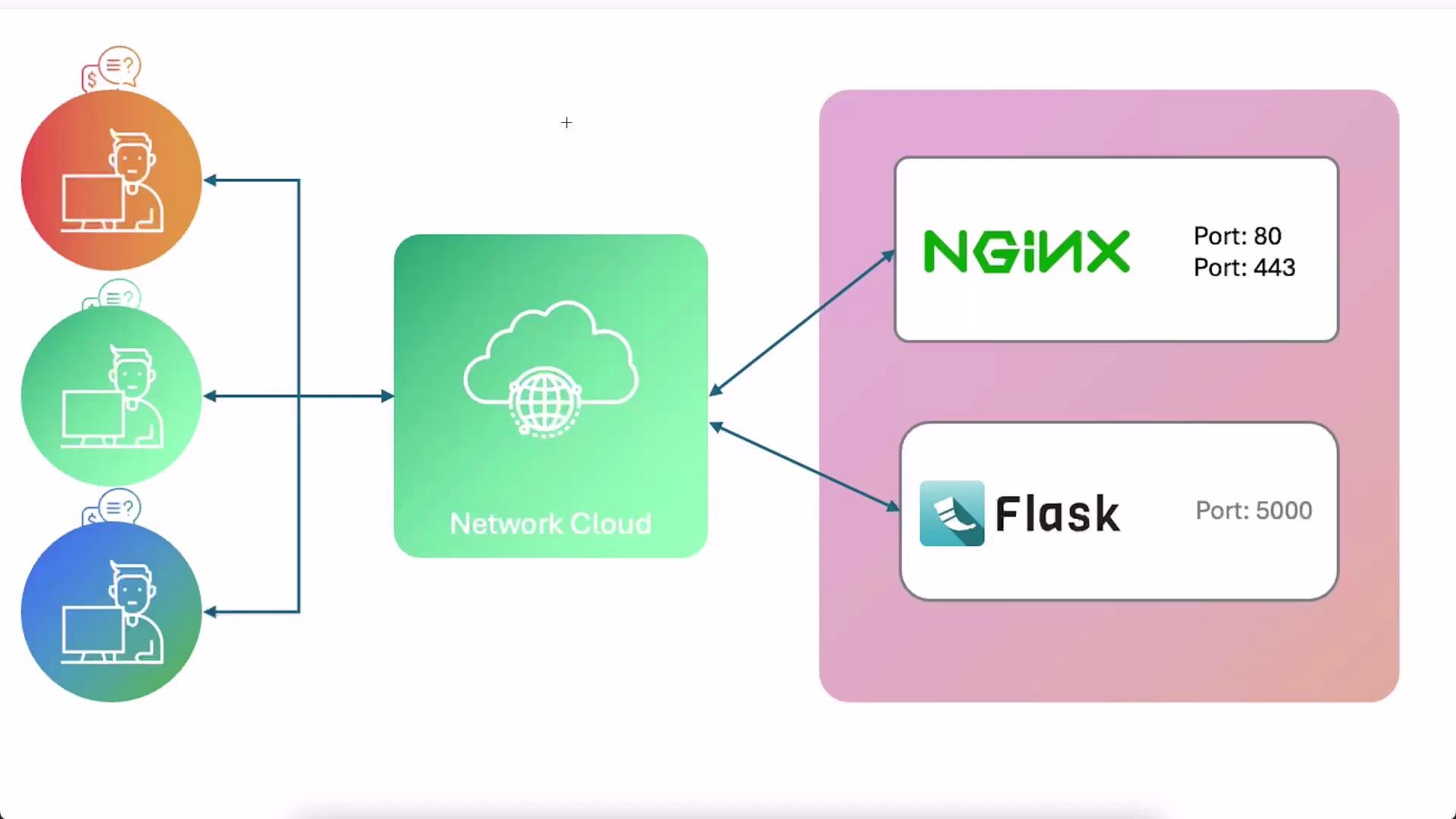

A simple network diagram showing users on the left connecting through a "Network Cloud" to backend services on the right: NGINX (Port 80, 443) and a Flask app (Port 5000).

The diagram above illustrates the lab environment:

Users (left) reach services over the Internet (network cloud).
Services (right):
- NGINX serves the default page on port 80 (HTTP).
- A small Flask application listens on port 5000.

In this lab the firewall is initially inactive, so both services are reachable directly from a browser or the lab UI “view ports” feature (you can open 80 or 5000 in a browser tab from the UI). This setup is convenient for learning but not representative of a secure production environment. UFW (Uncomplicated Firewall) is a simple frontend to manage Linux iptables rules. See the official UFW documentation for details: https://help.ubuntu.com/community/UFW. The recommended workflow is to enable UFW and explicitly allow only the ports your system needs.

Before enabling the firewall, always make sure you allow SSH access (for example sudo ufw allow OpenSSH or sudo ufw allow 22/tcp) so you don’t lock yourself out of the server.

Typical UFW workflow

Below is a step-by-step example showing how to check UFW status, allow SSH, enable the firewall, add web ports, and verify the rules:

# Check current status (likely inactive in a fresh lab)
bob@alpine-host ~ ➜  sudo ufw status
Status: inactive

# Allow SSH first to avoid being locked out (recommended)
bob@alpine-host ~ ➜  sudo ufw allow OpenSSH
Rule added
Rule added (v6)

# Enable UFW (turns on the firewall and enables it at startup)
bob@alpine-host ~ ➜  sudo ufw enable
Firewall is active and enabled on system startup

# Allow HTTP (port 80) and HTTPS (port 443)
bob@alpine-host ~ ➜  sudo ufw allow 80/tcp
Rule added
Rule added (v6)

bob@alpine-host ~ ➜  sudo ufw allow 443/tcp
Rule added
Rule added (v6)

# (Optional) Allow the Flask app port if you need direct external access (not recommended)
bob@alpine-host ~ ➜  sudo ufw allow 5000/tcp
Rule added
Rule added (v6)

# View current active rules
bob@alpine-host ~ ➜  sudo ufw status
Status: active

To                         Action      From
--                         ------      -----
80/tcp                     ALLOW       Anywhere
443/tcp                    ALLOW       Anywhere
5000/tcp                   ALLOW       Anywhere
22/tcp                     ALLOW       Anywhere
80/tcp (v6)                ALLOW       Anywhere (v6)
443/tcp (v6)               ALLOW       Anywhere (v6)
5000/tcp (v6)              ALLOW       Anywhere (v6)
22/tcp (v6)                ALLOW       Anywhere (v6)

Port summary and recommended exposure

Service	Port	Typical use / recommendation
NGINX (HTTP)	`80`	Publicly expose for HTTP traffic; use only if you intentionally serve unencrypted content.
NGINX (HTTPS)	`443`	Publicly expose for secure web traffic. Use a TLS certificate for production.
Flask app (development)	`5000`	Development port. Avoid exposing directly to the Internet. Instead, route via NGINX on `80`/`443`.
SSH	`22`	Required for remote administration. Always allow before enabling the firewall. (`sudo ufw allow OpenSSH`)

Best practices and notes

UFW adds both IPv4 and IPv6 rules. You will typically see Rule added (v6) in the command output. If your environment supports IPv6 (mobile networks frequently do), those rules are relevant.
Always permit SSH (22/tcp or OpenSSH) before enabling UFW to prevent locking yourself out.
For public-facing services, prefer exposing only 80 and 443. Avoid opening non-standard ports (like 5000) to reduce your attack surface and avoid confusion for end users who normally do not append ports to URLs.
To expose internal apps on standard web ports, use NGINX as a reverse proxy (or a load balancer) to accept traffic on 80/443 and forward requests internally to your application on 5000. Reverse proxying and load balancing deserve their own dedicated guides.

Resources:

UFW documentation: https://help.ubuntu.com/community/UFW
NGINX documentation: https://nginx.org/en/docs/

Summary: enable UFW, allow only the ports you need (and always allow SSH before enabling), and use NGINX as a reverse proxy to present backend applications on standard web ports (80/443) instead of opening many arbitrary ports.
