Pipeline Durability

What is pipeline durability? Pipeline durability in Jenkins determines how much in-memory execution state a Pipeline persists to disk during its run. This persisted state enables a Pipeline to resume after an unexpected Jenkins restart (resumability), but writing more state to disk increases disk I/O and can impact performance for Pipelines with many steps. Durability settings let you balance resumability against runtime throughput.

Pipeline durability affects whether a Pipeline can recover after an unclean shutdown. Choose settings based on the criticality of the job: production deployments typically favor durability, high-throughput workloads may favor performance.

Why this matters (SEO keywords): Jenkins pipeline durability, resumable pipelines, pipeline speed vs durability, Jenkins restart recovery. Durability options

Mode	Description	When to use
`PERFORMANCE_OPTIMIZED`	Minimizes disk I/O for better performance. May lose state on unclean shutdowns and the Pipeline cannot resume.	High-throughput feature branches or short-lived jobs where occasional restart loss is acceptable.
`SURVIVABLE_NON_ATOMIC`	Middle-ground. Preserves more state than performance-optimized while attempting to reduce I/O.	Typical development workflows that need some resiliency without the full cost of maximum survivability.
`MAX_SURVIVABILITY`	Most conservative: persists the most state to disk, giving the best chance of resuming after an unclean shutdown. Slower due to frequent disk I/O.	Critical pipelines (production deployments, infrastructure changes, long-running jobs).

Where to change durability settings You can configure durability in three scopes: global (affects all Pipelines by default), per-pipeline job, and per-branch for multibranch or organization folders.

Scope	How to change	Notes
Global	Manage Jenkins → System → Pipeline Speed / Durability	Sets the default for new and existing Pipelines unless overridden.
Multibranch / Branch	Multibranch project or Organization folder → Configuration → Branch pipeline speed/durability override	Useful to set `main`/`master` to `MAX_SURVIVABILITY` and feature branches to `PERFORMANCE_OPTIMIZED`.
Pipeline job	Pipeline job configuration → Pipeline Speed / Durability	Job-level setting overrides the global default.

Global setting Change the default for all Pipelines in Jenkins via: Manage Jenkins → System → Pipeline Speed / Durability. The global default is MAX_SURVIVABILITY, but you can change it to PERFORMANCE_OPTIMIZED or SURVIVABLE_NON_ATOMIC as needed.

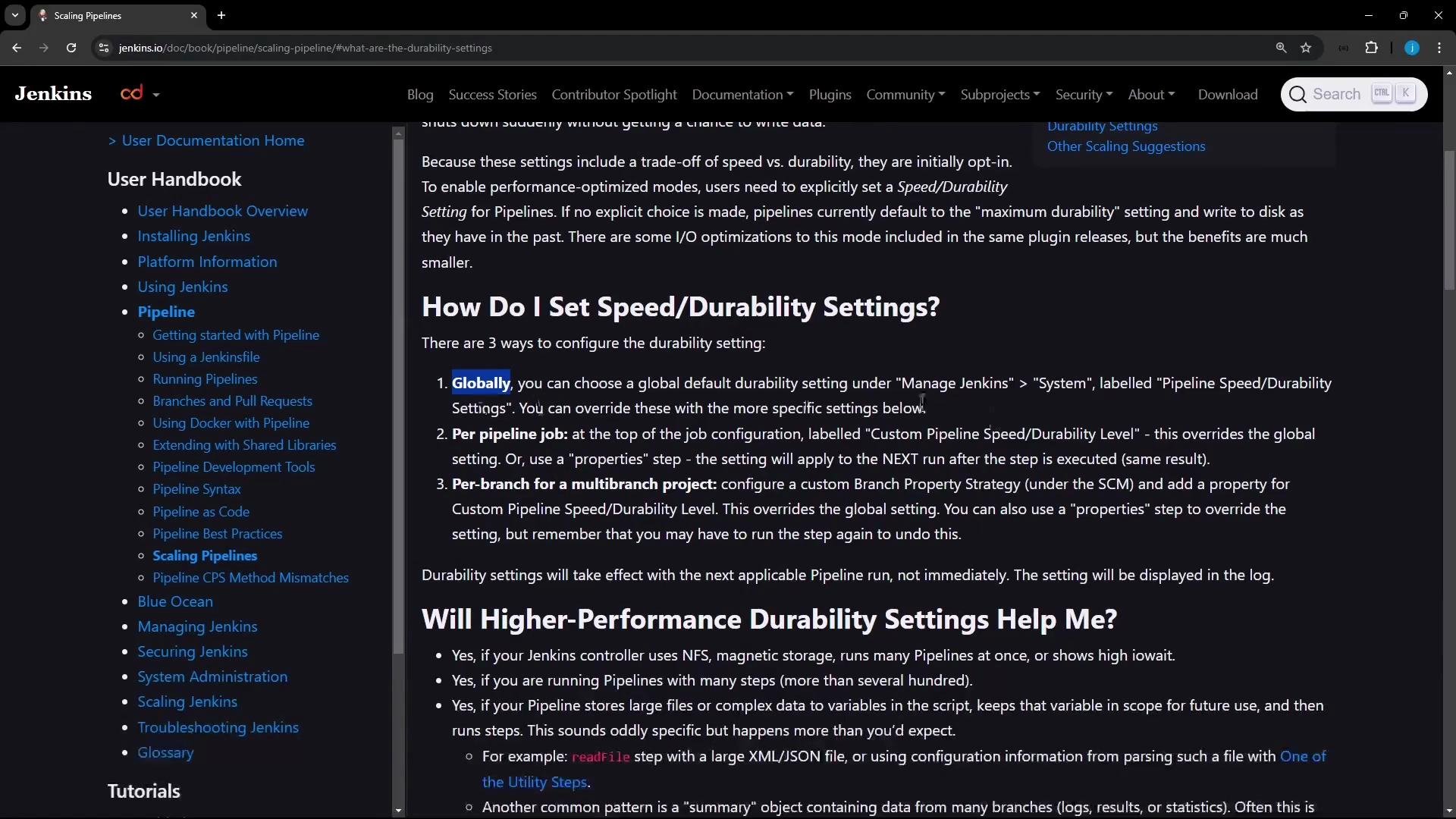

A screenshot of the Jenkins documentation page titled "How Do I Set Speed/Durability Settings?" showing numbered configuration options and explanatory text. A dark-themed site layout is visible with a "User Handbook" navigation sidebar on the left.

The global default can be changed from the dropdown in the System configuration.

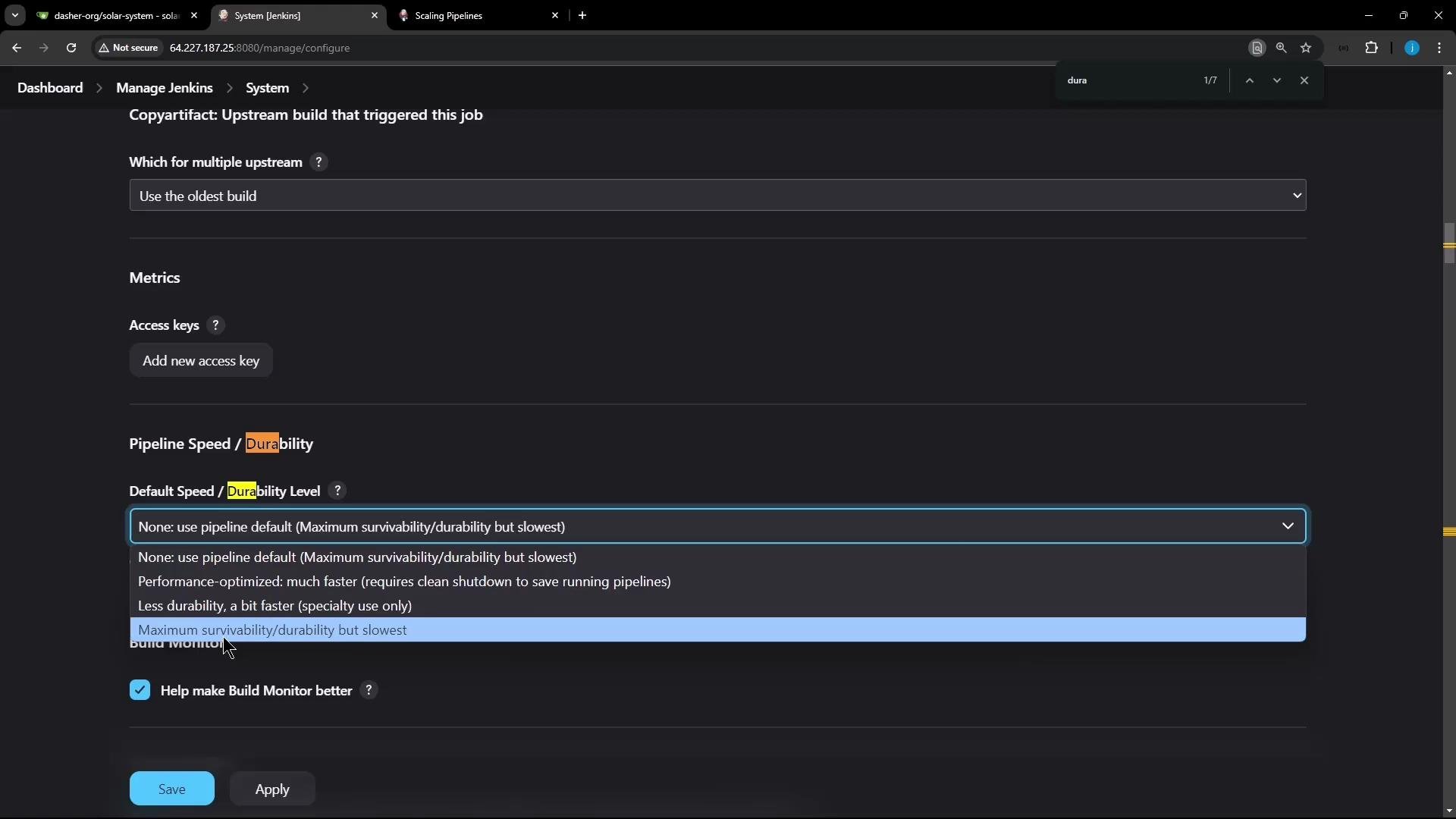

A screenshot of a Jenkins "Manage Jenkins > System" configuration page in dark mode showing the "Pipeline Speed / Durability" section with a dropdown open listing durability options (highlighting "Maximum survivability/durability but slowest"). The page also shows sections for Copyartifact upstream build selection, access keys, and Save/Apply buttons.

Multibranch / branch-level setting For multibranch projects or organization folders, you can override durability per branch. A common pattern is to set main or master to MAX_SURVIVABILITY while using PERFORMANCE_OPTIMIZED for short-lived feature branches.

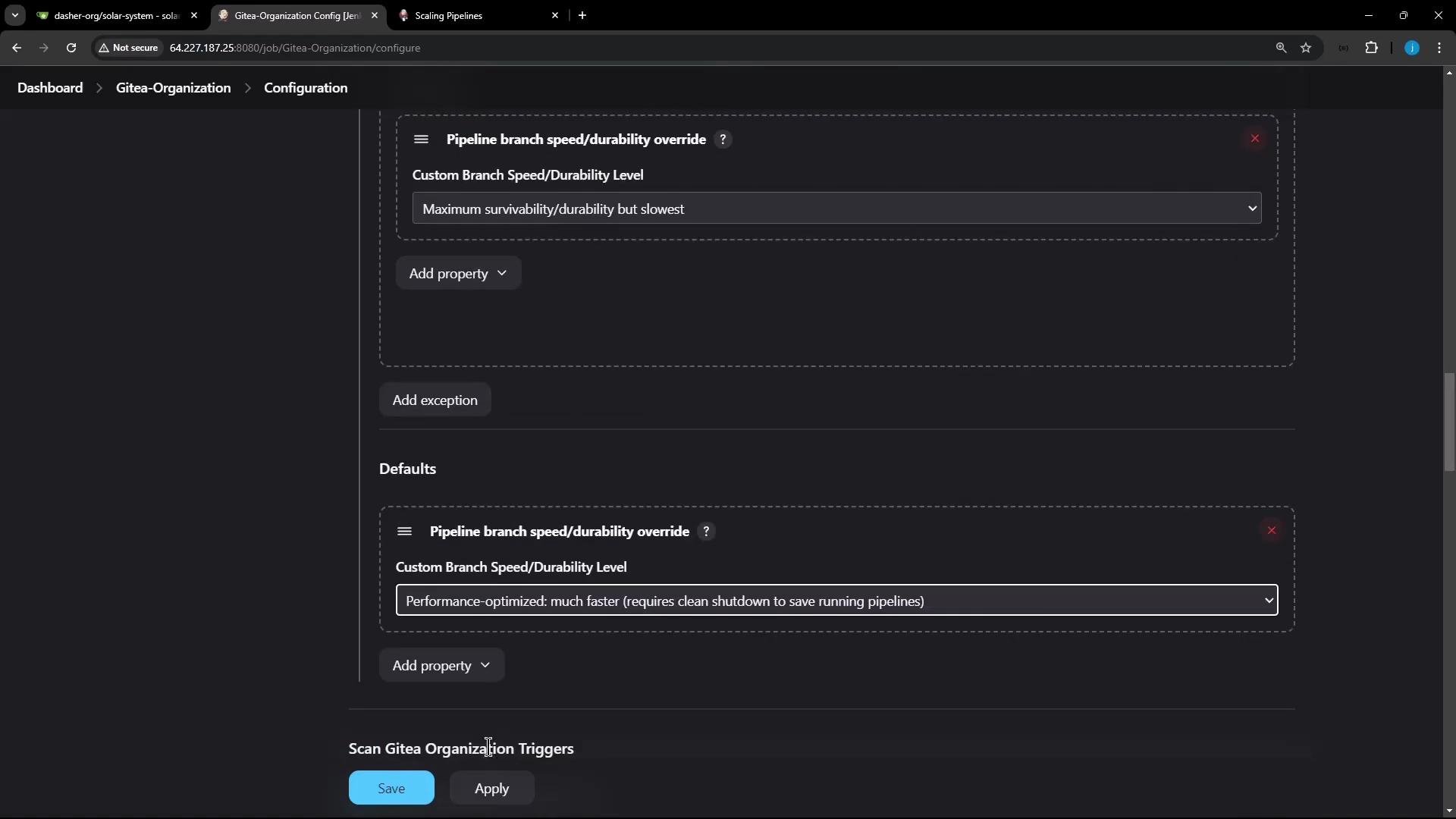

A dark-themed web UI showing a "Gitea-Organization › Configuration" page with pipeline branch speed/durability override settings and dropdowns. At the bottom are "Save" and "Apply" buttons.

Pipeline job-level setting You can also set durability per Pipeline job in the Pipeline configuration UI. This setting overrides the global default for that specific job — useful when individual jobs have differing resiliency requirements. Example: durability test Pipeline This simple Pipeline writes a number to a file once per second for 600 iterations. It’s designed to demonstrate resumability behavior under different durability settings.

pipeline {
    agent any
    stages {
        stage('For Loop - Durability Test') {
            steps {
                script {
                    sh 'touch numbers.txt'
                    for (int i = 0; i < 600; i++) {
                        sh "echo ${i + 1} >> numbers.txt"
                        sleep 1
                    }
                }
            }
        }
    }
}

Run the job with MAX_SURVIVABILITY With the job set to Maximum survivability, Jenkins persists enough state for the Pipeline to resume after an unclean restart. Start the build, kill the Jenkins process, then restart Jenkins — the Pipeline should continue from where it left off. Pipeline dashboard while running:

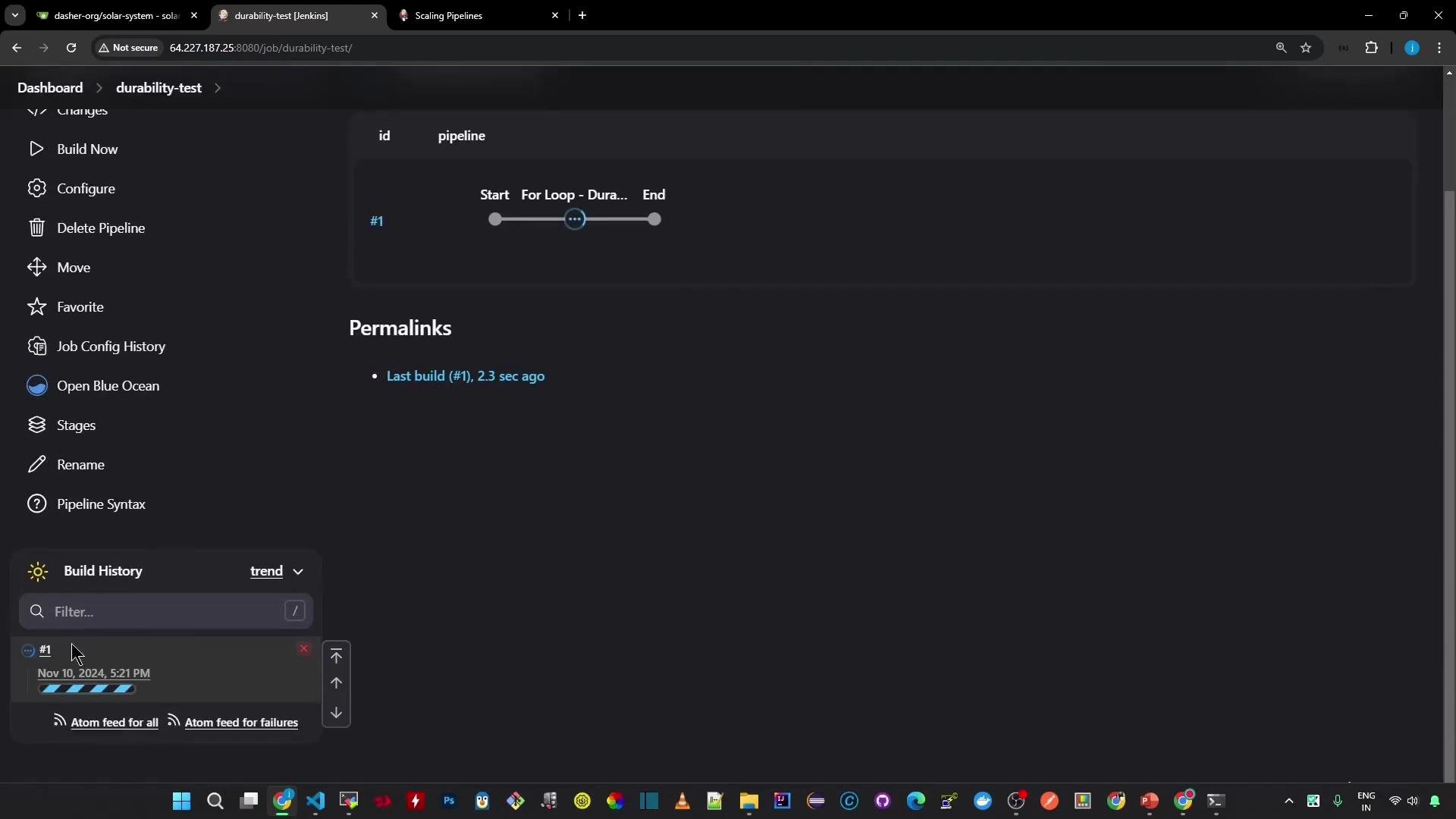

A dark-themed Jenkins pipeline dashboard screenshot showing a job page for "durability-test" with a small pipeline stage diagram (Start → For Loop → End), permalinks, and a build history panel at the bottom left.

Example sequence for killing the Jenkins controller (run on the controller):

# Find the Jenkins java process
ps aux | grep -i jenkins.war

# Kill the process (replace PID with the actual PID shown)
kill -9 1048864

# Check systemd status
systemctl status jenkins

On restart, console output typically shows the build resuming, for example:

Resuming build at Sun Nov 10 17:22:47 UTC 2024 after Jenkins restart
No need to sleep any longer
Ready to run at Sun Nov 10 17:22:48 UTC 2024
[Pipeline] sh
+ echo 40
[Pipeline] sleep
Sleeping for 1 sec
[Pipeline] sh
+ echo 41

Because MAX_SURVIVABILITY was selected, the Pipeline persisted the necessary FlowNode state and continued after the restart. Run the same job with PERFORMANCE_OPTIMIZED Switch the job’s durability to PERFORMANCE_OPTIMIZED and run it again. If Jenkins is killed and not shut down cleanly, the Pipeline will likely not be resumable. You may see output like:

Creating placeholder flownodes because failed loading originals.

ERROR: Cannot resume build because FlowNode 42 for FlowHead 1 could not be loaded. This is expected to happen when using the PERFORMANCE_OPTIMIZED durability setting and Jenkins is not shut down cleanly. Consider investigating to understand if Jenkins was not shut down cleanly or switching to the MAX_SURVIVABILITY durability setting which should prevent this issue in most cases.
[Gitea] do not publish assets due to build being non-Successfully
Finished: FAILURE

This demonstrates the trade-off: PERFORMANCE_OPTIMIZED improves throughput but risks losing resumability after unclean restarts.

If your Pipeline performs critical operations (production deploys, database migrations, infrastructure changes), prefer MAX_SURVIVABILITY. For ephemeral or highly parallel workloads where throughput matters more than resuming after crashes, PERFORMANCE_OPTIMIZED may be appropriate.

Summary

Use MAX_SURVIVABILITY for critical, long-running, or deployment Pipelines where resumability is important.
Use PERFORMANCE_OPTIMIZED for high-throughput Pipelines where occasional loss on unclean restarts is acceptable.
SURVIVABLE_NON_ATOMIC is a compromise between the two.
Configure durability at the global level, per-pipeline, or per-branch for multibranch projects depending on your operational needs.
