Migrating Jenkins to Another Node

This guide walks through a simple, reliable process to migrate a self-managed Jenkins controller from one VM to another. The core steps are:

Stop Jenkins on the source node
Archive JENKINS_HOME
Transfer the archive to the target
Restore the archive on the target and fix ownership
Start Jenkins on the target and verify

This approach preserves jobs, plugin data, credentials and other configuration stored under JENKINS_HOME.

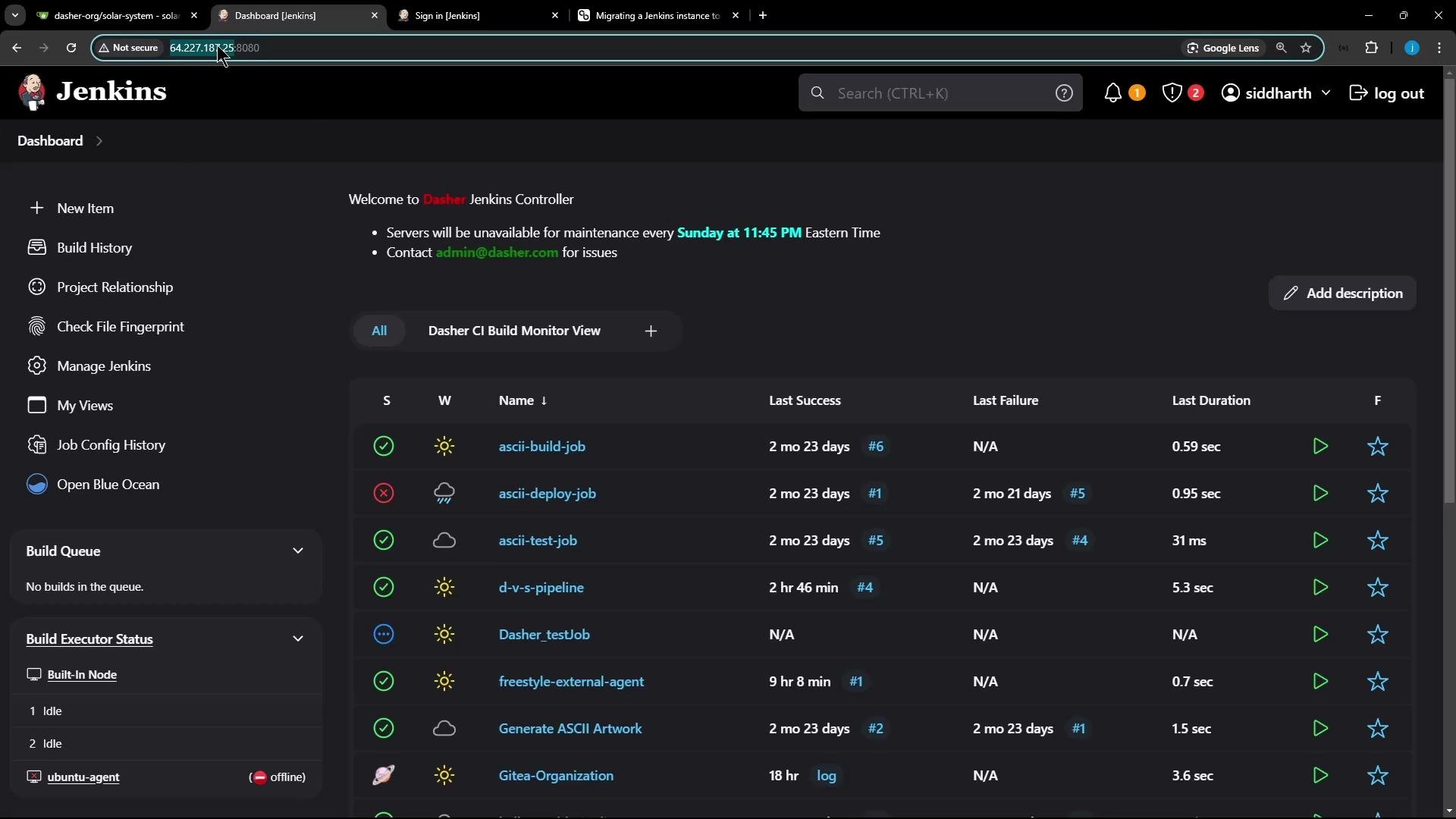

Screenshot of a Jenkins CI dashboard in dark mode showing a list of build jobs with status icons, last success/failure times, and run durations. The left sidebar displays navigation items like New Item, Build History, Manage Jenkins, and a Build Queue.

Example environment in this walkthrough:

Source Jenkins VM IP: 64.227.*.*
Target (fresh Jenkins install) VM IP: 165.3.22.*

Important: For package-based Jenkins installs the initial admin password for a fresh installation is stored at:

$JENKINS_HOME/secrets/initialAdminPassword
# commonly:
# /var/lib/jenkins/secrets/initialAdminPassword

There are many migration scenarios (master-to-master, containerized Jenkins, CloudBees-specific workflows). The steps below cover the common case for systemd-based, package-installed Jenkins instances.

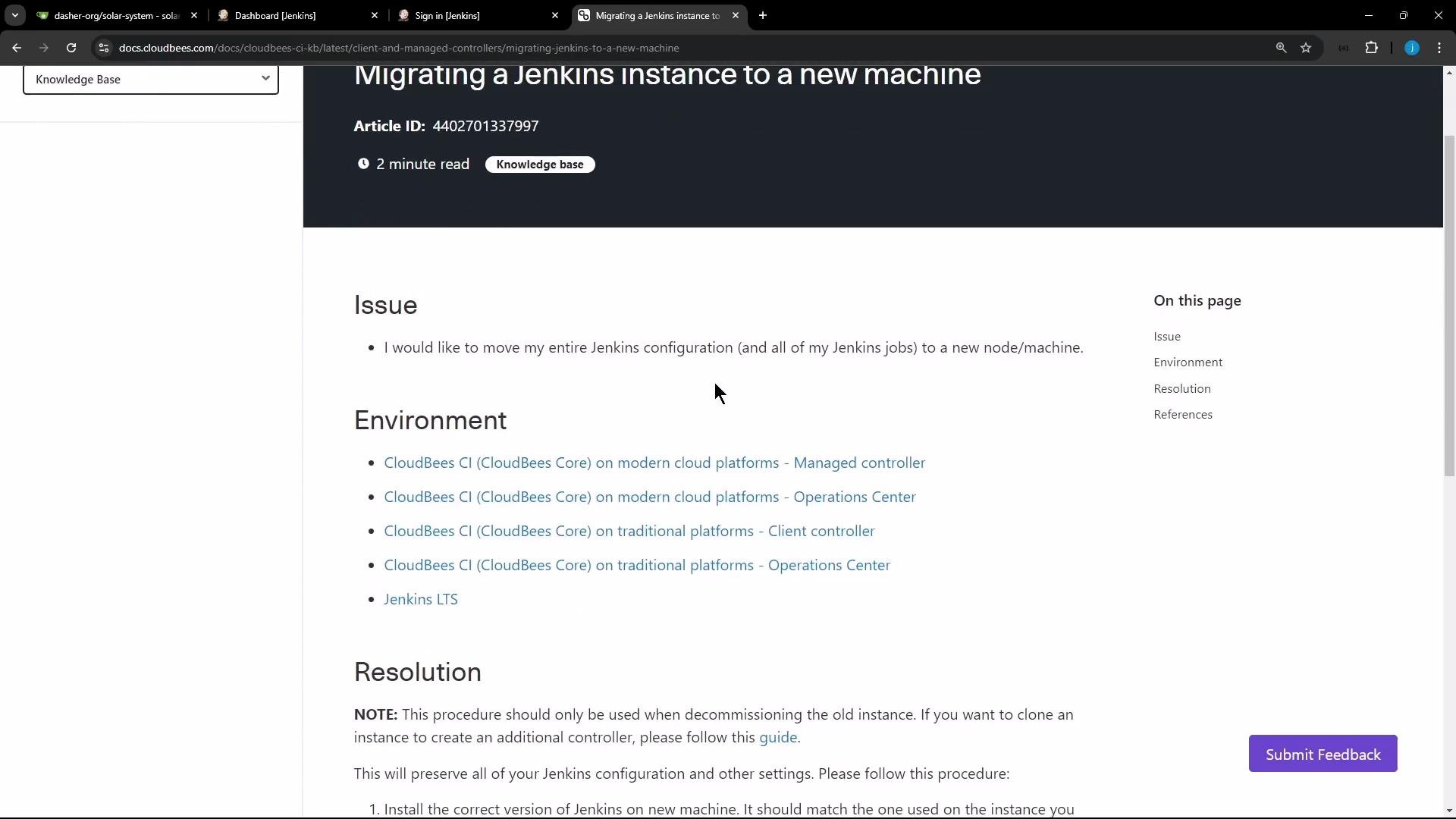

A screenshot of a CloudBees documentation webpage titled "Migrating a Jenkins instance to a new machine," showing sections like Issue, Environment, and Resolution. The page includes environment links, a sidebar table of contents, and browser tabs at the top.

Pre-migration checklist

Area	Why it matters	Action / Example
Jenkins & plugins	Version mismatches can cause incompatibilities	Ensure target Jenkins version and plugin set match source
Java / JDK	Jenkins is sensitive to Java versions	Use the same JDK version on both nodes
Disk space	Jenkins home can be large (jobs, artifacts)	Confirm free space on target to accommodate archive
Secrets & credentials	Secret files and `credentials.xml` are critical	Confirm `secrets/` and `credentials.xml` are included in backup
Agents / connectivity	Hostname/IP changes may require reconfiguration	Plan for reconnecting agents and updating hostnames/IPs

Plan for plugin compatibility and integrations (e.g., secret stores, LDAP, external agents). If the target already has Jenkins installed, back it up before proceeding.

Step-by-step migration

The instructions assume JENKINS_HOME is /var/lib/jenkins (common for package installs). If your JENKINS_HOME is elsewhere, substitute that path.

1) Prepare the source node (create a consistent snapshot)

Stop Jenkins to get a consistent filesystem snapshot:

sudo systemctl stop jenkins
sudo systemctl disable jenkins

Create a compressed tarball of the jenkins directory from its parent (commonly /var/lib):

cd /var/lib
sudo tar -czf jenkins-backup.tar.gz jenkins

Tip: Use a timestamped filename for versioning, e.g. jenkins-backup-$(date +%Y%m%d).tar.gz. Explanation of tar flags:

-c = create
-z = gzip
-f = filename

2) Transfer the backup to the target

Copy the tarball using scp, rsync, or another transport. Example with scp:

scp /var/lib/jenkins-backup.tar.gz root@165.3.22.*:/tmp/

Use SSH keys for automation and resume-capable tools like rsync/rsync --progress --partial for large transfers.

3) Prepare and restore on the target node

Log into the target VM and stop/disable the existing Jenkins service:

sudo systemctl stop jenkins
sudo systemctl disable jenkins

Back up any existing Jenkins home on the target before overwriting:

cd /var/lib
# Only run the backup if the directory exists
if [ -d jenkins ]; then
  sudo tar -czf jenkins.bak.tar.gz jenkins
fi

Remove the old jenkins directory (only after confirming your backup is safe):

sudo rm -rf jenkins

Move the copied tarball into /var/lib then extract it:

sudo mv /tmp/jenkins-backup.tar.gz /var/lib/
cd /var/lib
sudo tar -xzf jenkins-backup.tar.gz

Extraction may take several minutes for large JENKINS_HOMEs; the archive will print file names as it extracts. Fix ownership and permissions (Jenkins typically runs as user/group jenkins):

sudo chown -R jenkins:jenkins /var/lib/jenkins

4) Start Jenkins on the target and verify

Enable and start the service:

sudo systemctl enable jenkins
sudo systemctl start jenkins

Check status and recent logs to ensure successful startup:

sudo systemctl status jenkins
sudo journalctl -u jenkins -b --no-pager | tail -n 50

Open the Jenkins UI for the target node and verify:

Jobs and build history
Installed plugins and plugin versions
Credentials and secrets
Global and folder-level configurations
Agent connectivity

If everything looks good, you can either decommission the source node or keep it stopped as a fallback.

Do not run two active Jenkins controllers against the same JENKINS_HOME or backing store simultaneously — this can cause data corruption and split-brain issues. Only one controller should own the JENKINS_HOME.

Additional tips and common gotchas

Secrets: secrets/ and credentials.xml are inside JENKINS_HOME and are preserved by the tarball. Keep backups secure.
Tools: Custom tool installations under tools/ are included in the backup and should restore with the archive.
Agents: Agents may need to be reconnected if their configuration relies on hostnames or IPs that changed.
Quiet mode: To prevent new builds during migration, use Jenkins quiet mode:
- Programmatic endpoints: /quietDown and /cancelQuietDown
- Example URL: https://`<jenkins-url>`/cancelQuietDown
- Note: Programmatic POSTs may require CSRF crumbs and authentication.
For very large JENKINS_HOME, consider file-level rsync (rsync -aHAX) instead of a single tarball to reduce downtime and allow incremental syncs.

Quick command references

Task	Command
Stop Jenkins	`sudo systemctl stop jenkins`
Create a tarball of JENKINS_HOME	`cd /var/lib && sudo tar -czf jenkins-backup.tar.gz jenkins`
Copy tarball to target	`scp /var/lib/jenkins-backup.tar.gz root@<target-ip>:/tmp/`
Extract on target	`sudo tar -xzf jenkins-backup.tar.gz`
Fix ownership	`sudo chown -R jenkins:jenkins /var/lib/jenkins`
Start Jenkins	`sudo systemctl enable --now jenkins`
View logs	`sudo journalctl -u jenkins -b —no-pager	tail -n 50`

Links and references

Jenkins: https://www.jenkins.io/
Jenkins system administration documentation: https://www.jenkins.io/doc/book/system-administration/
CloudBees article on migrating Jenkins instances: https://support.cloudbees.com/hc
rsync documentation: https://download.samba.org/pub/rsync/rsync.html
systemd service management: https://www.freedesktop.org/wiki/Software/systemd/

That’s it — following these steps should let you migrate a Jenkins controller to a new VM while preserving jobs, plugins, credentials, and build history.
