Scripted Pipeline Initialize

In this lesson we convert the caching portion of a Declarative Jenkins pipeline into a Scripted pipeline. The goals:

Run a single stage: Installing Dependencies
Enable timestamper output
Disable concurrent builds (abort previous runs)
Use the NodeJS tool configured in Jenkins
Reuse the existing cache logic

Repository and branch

Working repo: solar-system
Current branch: feature/advanced-demo

Create a working branch for this lesson:

git checkout -b pipeline/scripted
Switched to a new branch 'pipeline/scripted'

A Git-backed organization folder build may have been triggered automatically; you can cancel the initial run if the Jenkinsfile hasn’t been pushed yet.

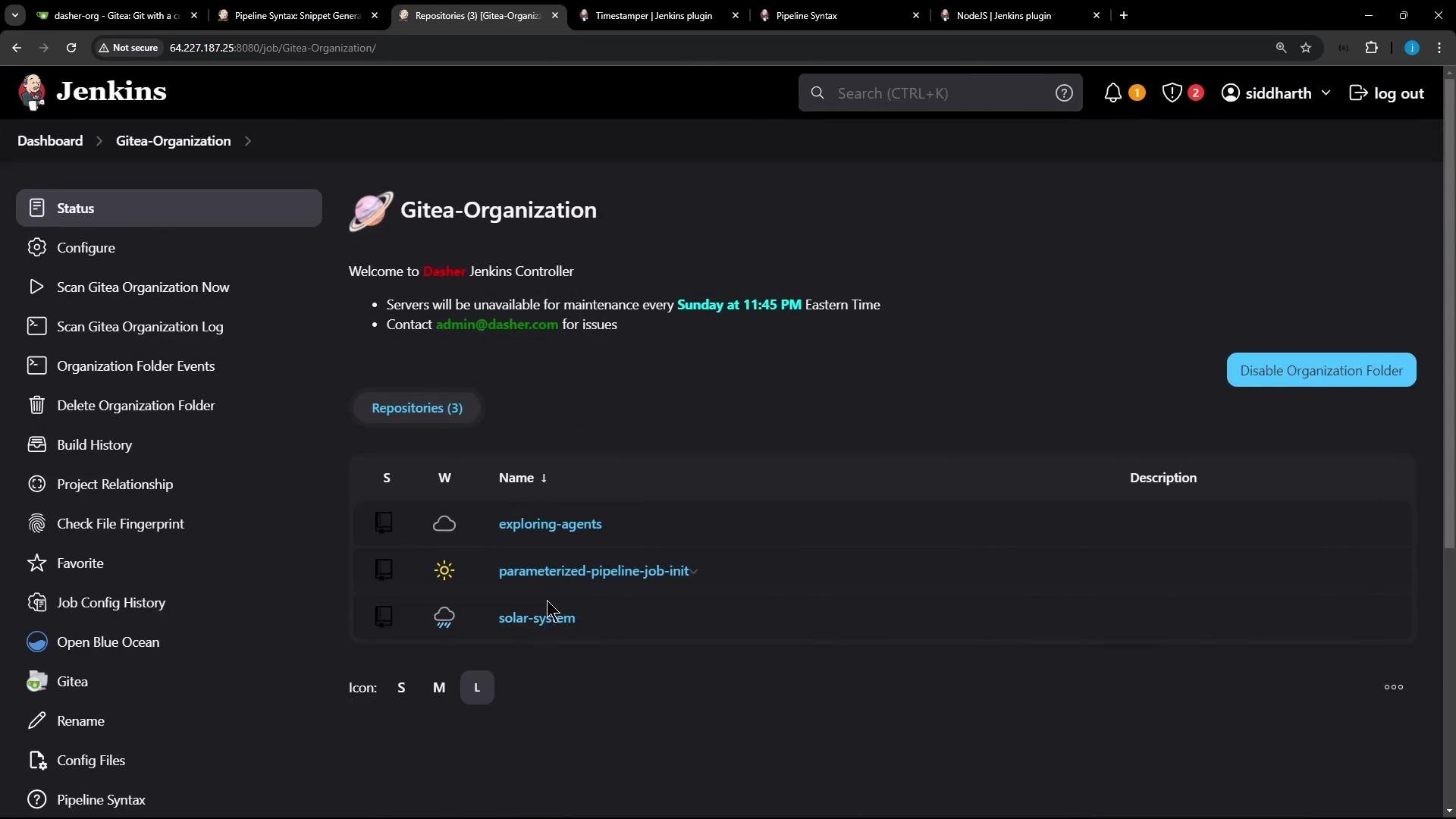

A dark-themed Jenkins web UI showing the "Gitea-Organization" organization folder page with a sidebar of actions. The main panel lists repositories (exploring-agents, parameterized-pipeline-job-init, solar-system) and a "Disable Organization Folder" button.

Why Scripted differs from Declarative

Declarative pipelines use a top-level pipeline { ... } block and many built-in directives.
Scripted pipelines run inside node { ... } and require some Declarative-only features (for example options { ... }) to be expressed with properties(...) or appropriate wrappers.

Scripted pipelines always run inside node { ... }. Declarative-only directives (like options) must be converted to properties(...) or equivalent build wrappers when migrating to Scripted pipelines.

Quick mapping: Declarative → Scripted

Declarative feature	Scripted equivalent	Example
`pipeline { ... }`	`node { ... }`	Use `node` as the top-level block.
`tools { nodejs 'name' }`	`env.NODEJS_HOME = tool('name')` and update `env.PATH`	See code example below.
`options { disableConcurrentBuilds(...) }`	`properties([ disableConcurrentBuilds(...) ])`	Call `properties(...)` inside `node`.
`timestamps()`	`wrap([$class: 'TimestamperBuildWrapper']) { ... }`	Wrap stages to get timestamped logs.

Converting NodeJS tool usage

Declarative pipelines commonly declare tools via tools { nodejs 'name' }.
In Scripted pipelines, resolve the tool with tool(...), then export it to env and update PATH so node/npm become available.

Example:

node {
  // Resolve the NodeJS installation configured in Jenkins
  env.NODEJS_HOME = "${tool 'nodejs-22-6-0'}"
  env.PATH = "${env.NODEJS_HOME}/bin:${env.PATH}"

  sh 'node --version'
  sh 'npm --version'
}

Using pipeline properties in Scripted pipelines

Declarative options like disableConcurrentBuilds(abortPrevious: true) must be applied via properties(...) in Scripted pipelines.
Call properties(...) once inside your node block (typically near the start of the Jenkinsfile).

Example:

properties([
  disableConcurrentBuilds(abortPrevious: true)
])

Timestamper wrapper

To enable timestamped console output in Scripted pipelines, use the wrap step with the Timestamper build wrapper:

wrap([$class: 'TimestamperBuildWrapper']) {
  // stage(s) with timestamped logs
}

Final Scripted Jenkinsfile Below is a compact, corrected Scripted Jenkinsfile that demonstrates the translated flow: resolve the NodeJS tool, apply properties to disable concurrent builds, perform SCM checkout, and run a timestamped Installing Dependencies stage that uses the same cache logic.

// Jenkinsfile (Scripted)
node {
  // Resolve NodeJS tool (name configured in Jenkins global tools)
  env.NODEJS_HOME = "${tool 'nodejs-22-6-0'}"
  env.PATH = "${env.NODEJS_HOME}/bin:${env.PATH}"

  // Convert Declarative options to properties in Scripted pipelines
  properties([
    disableConcurrentBuilds(abortPrevious: true)
  ])

  stage('Checkout') {
    checkout scm
  }

  wrap([$class: 'TimestamperBuildWrapper']) {
    stage('Installing Dependencies') {
      cache(maxCacheSize: 550, caches: [
        arbitraryFileCache(
          cacheName: 'npm-dependency-cache',
          cacheValidityDecidingFile: 'package-lock.json',
          files: ['node_modules']
        )
      ]) {
        // Use the resolved NodeJS and run npm install
        sh 'node -v'
        sh 'npm install --no-audit'

        // Optionally stash artifacts for later stages
        stash includes: '**', name: 'source-and-modules', useDefaultExcludes: false
      }
    }
  }
}

Key notes about the example

env.NODEJS_HOME = "${tool 'nodejs-22-6-0'}" resolves the NodeJS installation by name and updates PATH so node and npm are available.
properties([...]) is the Scripted equivalent for certain Declarative options (in this example, disableConcurrentBuilds(abortPrevious: true)).
wrap([$class: 'TimestamperBuildWrapper']) enables timestamps for the wrapped stage(s).
The cache { ... } block mirrors Declarative cache-plugin usage; adjust files/cacheName per your cache plugin configuration.

Selected console excerpts (cleaned and corrected)

Checkout phase (shortened):

[Pipeline] checkout
The recommended git tool is: NONE
using credential gitea-server-creds
Cloning the remote Git repository
> git init /var/lib/jenkins/workspace/n_solar-system_pipeline_scripted # timeout=10
> git --version # 'git version 2.43.0'
> git fetch --no-tags --force --progress http://64.227.187.25:5555/dasher-org/solar-system.git +refs/heads/pipeline/scripted:refs/remotes/origin/pipeline/scripted # timeout=10
Checking out Revision b68ef5702edca1527d3b3a5db7eff98e1736b7e8 (pipeline/scripted)
Obtained Jenkinsfile from b68ef5702edca1527d3b3a5db7eff98e1736b7e8

Cache restore/create messages:

[Cache for node_modules (npm-dependency-cache) with id 3ec03583f8eaec275cb2183db769ff47] Searching cache in job specific caches...
[Cache for node_modules (npm-dependency-cache) with id 3ec03583f8eaec275cb2183db769ff47] Skip restoring cache as no up-to-date cache exists
+ node -v
v22.6.0
+ npm install --no-audit
added 365 packages in 3s
[Pipeline] stash
Stashed 5036 file(s)
[Cache for node_modules (npm-dependency-cache) with id 3ec03583f8eaec275cb2183db769ff47] Creating cache...
[Cache for node_modules (npm-dependency-cache) with id 3ec03583f8eaec275cb2183db769ff47] got hash 5a15d94c8bab08a68882fddf4b8ef16c2 for cacheValidityDecidingFile(s): package-lock.json
[Cache for node_modules (npm-dependency-cache) with id 3ec03583f8eaec275cb2183db769ff47] cache created in 1633ms

Behavior of disableConcurrentBuilds(abortPrevious: true)

When multiple builds for the same branch are triggered, earlier running builds will be interrupted and marked as superseded; the latest build proceeds. Console output may include:

Superseded by #3
Sending interrupt signal to process
18:20:17 + node -v
18:20:17 v22.6.0
18:20:18 + npm install --no-audit
18:20:20 up to date in 2s
Finished: NOT_BUILT

Summary: converting Declarative to Scripted (cheat-sheet)

Wrap your pipeline steps in node { ... }.
Resolve global tools via tool(...) and export to env.
Convert Declarative options using properties([ ... ]).
Use wrap([$class: 'TimestamperBuildWrapper']) to get timestamped logs.
Keep existing cache and shell steps unchanged inside the Scripted flow.
