Load TrivyScan Library in Jenkins Pipeline

This guide shows how to load a TrivyScan shared library into a Jenkins Declarative Pipeline and invoke its methods from pipeline stages. The shared library runs Trivy to scan Docker images and converts JSON results into HTML and JUnit formats for publishing. What you’ll learn:

How the trivyScan shared library is implemented
How to reference a specific branch of a trusted library with @Library
How to call shared-library methods inside a Declarative Pipeline
How to publish Trivy reports in Jenkins

Shared library implementation

Create a shared library file at vars/trivyScan.groovy that exposes two global methods:

vulnerability(String imageName): runs Trivy to generate JSON vulnerability results
reportsConverter(): converts JSON results to HTML and JUnit (XML) formats

Example contents of vars/trivyScan.groovy:

// vars/trivyScan.groovy

def vulnerability(String imageName) {
    echo "image - ${imageName}"

    sh """
        trivy image ${imageName} \
            --severity LOW,MEDIUM,HIGH \
            --exit-code 0 \
            --quiet \
            --format json -o trivy-image-MEDIUM-results.json

        trivy image ${imageName} \
            --severity CRITICAL \
            --exit-code 1 \
            --quiet \
            --format json -o trivy-image-CRITICAL-results.json
    """
}

def reportsConverter() {
    sh '''
        trivy convert \
            --format template --template "@/usr/local/share/trivy/templates/html.tpl" \
            --output trivy-image-MEDIUM-results.html trivy-image-MEDIUM-results.json

        trivy convert \
            --format template --template "@/usr/local/share/trivy/templates/html.tpl" \
            --output trivy-image-CRITICAL-results.html trivy-image-CRITICAL-results.json

        trivy convert \
            --format template --template "@/usr/local/share/trivy/templates/junit.tpl" \
            --output trivy-image-MEDIUM-results.xml trivy-image-MEDIUM-results.json
    '''
}

Table: shared library methods at a glance

Method	Parameters	Description
`vulnerability`	`String imageName`	Runs `trivy image` twice to produce JSON results: one for LOW/MEDIUM/HIGH (non-failing) and one for CRITICAL (exit code 1)
`reportsConverter`	—	Converts JSON results to HTML and JUnit XML using `trivy convert`

Links:

Trivy: https://github.com/aquasecurity/trivy

Repository setup and branch usage

In the shared-libraries repository we added a branch named featureTrivyScan that contains trivyScan.groovy (and other shared library files, e.g., Slack notification helpers).
When configuring Jenkins Global Trusted Pipeline Libraries, the library’s default version is usually main. Administrators can allow pipeline authors to override the default version so a pipeline can use a different branch or tag.

To use a specific branch of a trusted shared library from your Jenkinsfile add an @Library annotation at the top of the Jenkinsfile with the library name and branch:

@Library('dasher-trusted-shared-library@featureTrivyScan') _
pipeline {
    agent any

    tools { /* … */ }

    environment {
        MONGO_URI = "mongodb+srv://supercluster.d83jj.mongodb.net/superData"
        MONGO_DB_CREDS = credentials('mongo-db-credentials')
        MONGO_USERNAME = credentials('mongo-db-username')
        MONGO_PASSWORD = credentials('mongo-db-password')
        SONAR_SCANNER_HOME = tool 'sonarqube-scanner-610'
        GITEA_TOKEN = credentials('gitea-api-token')
    }

    options { /* … */ }

    stages {
        stage('Build Docker Image') {
            steps {
                sh 'printenv'
                sh 'docker build -t siddharth67/solar-system:$GIT_COMMIT .'
            }
        }

        stage('Trivy Vulnerability Scanner') {
            steps {
                script {
                    // Call the shared library method and pass the image name
                    trivyScan.vulnerability("siddharth67/solar-system:$GIT_COMMIT")
                }
            }
            post {
                always {
                    script {
                        // Generate reports via the shared library
                        trivyScan.reportsConverter()
                    }
                    // Publish HTML reports (example usage)
                    publishHTML([
                        allowMissing: true,
                        alwaysLinkToLastBuild: true,
                        keepAll: true,
                        reportDir: '.',
                        reportFiles: 'trivy-image-MEDIUM-results.html',
                        reportName: 'Trivy MEDIUM Report'
                    ])
                    publishHTML([
                        allowMissing: true,
                        alwaysLinkToLastBuild: true,
                        keepAll: true,
                        reportDir: '.',
                        reportFiles: 'trivy-image-CRITICAL-results.html',
                        reportName: 'Trivy CRITICAL Report'
                    ])
                }
            }
        }

        // other stages...
    }
}

Declarative vs Scripted pipeline: where to call shared-library methods

Scripted Pipeline: you can call global vars methods directly, e.g.:
- trivyScan.vulnerability "image-name"
Declarative Pipeline: method calls on global vars must be executed inside a script { ... } block. Calling them directly inside steps (outside script) will raise an error:
- “method calls on objects are not allowed outside the script directive block.”

Wrap shared-library method invocations in a script block in Declarative Pipelines. Example:

script {
    trivyScan.vulnerability("siddharth67/solar-system:$GIT_COMMIT")
}

Use fenced code blocks for any examples containing braces to avoid MDX parsing issues.

Pipeline execution and logs (high level)

The @Library('dasher-trusted-shared-library@featureTrivyScan') annotation instructs Jenkins to resolve and load the specified branch of the shared library at build time.
trivyScan.vulnerability prints the image name and runs Trivy to create JSON results for medium/low/high severities (non-failing) and for critical severity (exit-code 1).
trivyScan.reportsConverter converts JSON results to HTML and JUnit XML so they can be published as build artifacts and test reports.

Example console output lines (trimmed):

+ echo image - siddharth67/solar-system:c9dc5eb9b28147642a87fb0e2c8f9f2845fa4b1d
image - siddharth67/solar-system:c9dc5eb9b28147642a87fb0e2c8f9f2845fa4b1d
+ trivy image siddharth67/solar-system:c9dc5eb9b28147642a87fb0e2c8f9f2845fa4b1d --severity LOW,MEDIUM,HIGH --exit-code 0 --quiet --format json -o trivy-image-MEDIUM-results.json
+ trivy image siddharth67/solar-system:c9dc5eb9b28147642a87fb0e2c8f9f2845fa4b1d --severity CRITICAL --exit-code 1 --quiet --format json -o trivy-image-CRITICAL-results.json
Loading library dasher-trusted-shared-library@featureTrivyScan
Found match: refs/heads/featureTrivyScan revision 6cbbbd114ce8938745132865995d01431d1b0d31
Checking out Revision 6cbbbd114ce8938745132865995d01431d1b0d31 (featureTrivyScan)

Reports and artifacts

After running reportsConverter, the generated HTML and XML files are available as build artifacts.
Use the HTML Publisher plugin to display HTML reports in the Jenkins job UI, or archive the artifacts for download.

Useful plugin:

HTML Publisher: https://plugins.jenkins.io/htmlpublisher/

Using multiple library versions

Jenkins supports loading multiple shared libraries. You can reference specific branches or tags with @Library('name@branch') and call methods from each loaded library as needed.

That’s the complete flow to load and invoke the TrivyScan shared library from a Declarative Jenkins Pipeline, including the required script {} wrapper for method calls on library objects.

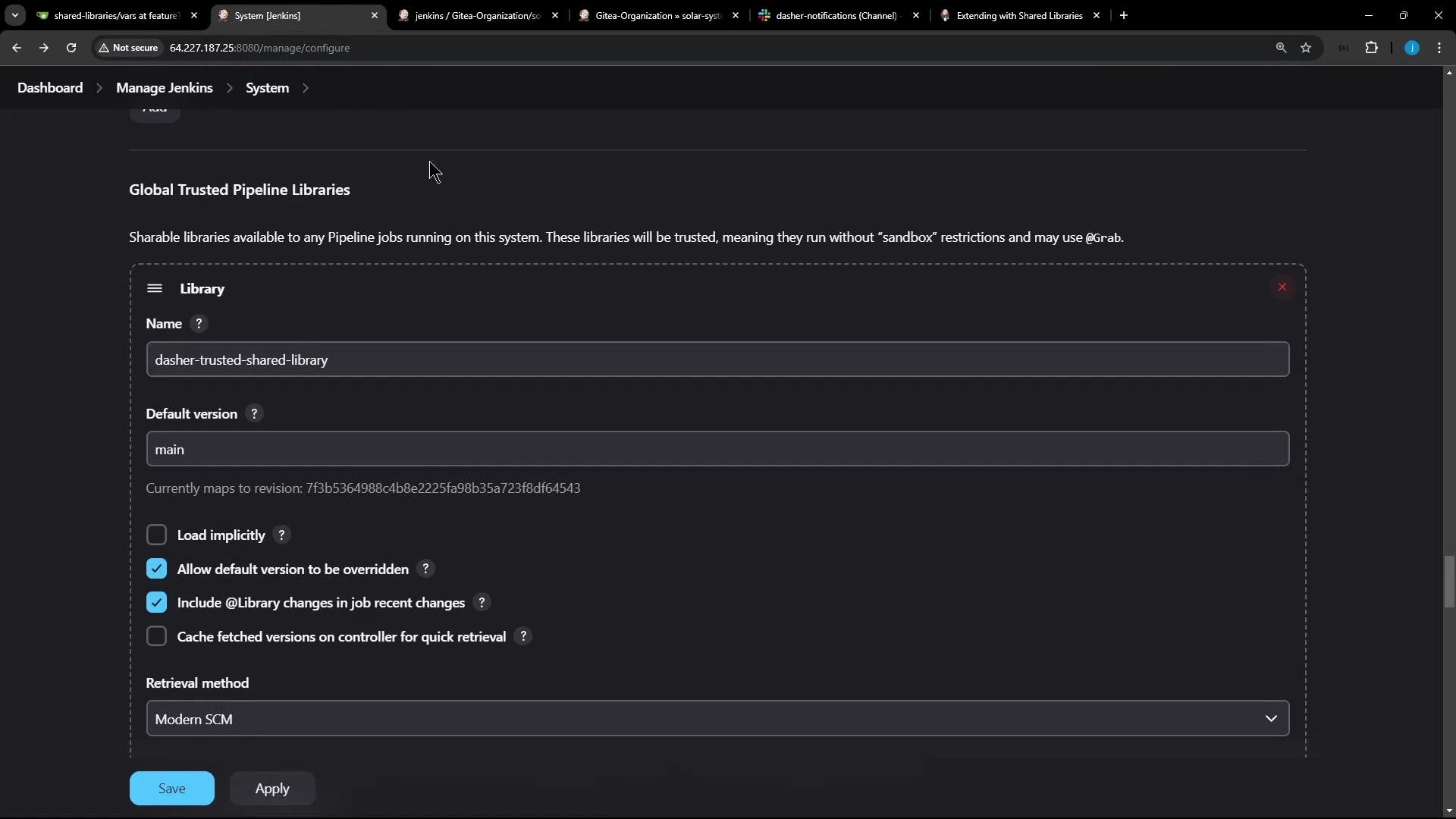

A dark-themed Jenkins "Manage Jenkins → System" page showing the Global Trusted Pipeline Libraries configuration for a library named "dasher-trusted-shared-library" with default version set to "main." The form shows various options (checkboxes), retrieval method set to "Modern SCM," and Save/Apply buttons.

Links and references

Trivy (Aqua Security): https://github.com/aquasecurity/trivy
Jenkins Shared Libraries: https://www.jenkins.io/doc/book/pipeline/shared-libraries/
HTML Publisher plugin: https://plugins.jenkins.io/htmlpublisher/
