Scripted Pipeline K8S Agent

This lesson shows how to run scripted Jenkins Pipeline stages inside Kubernetes pods using the Jenkins Kubernetes plugin. In declarative pipelines you typically use agent { kubernetes { ... } } to provision pods automatically. In scripted pipelines, you get the same behavior with podTemplate and containerTemplate constructs. You will learn how to:

define pod and container templates (either in the Jenkins cloud configuration or inline in the Jenkinsfile),
run specific stages inside a Kubernetes pod container with container('<name>'),
share files between a static agent and a Kubernetes pod using stash/unstash.

The examples below demonstrate using multiple containers in the same pod, configuring pod templates from the Jenkins UI, and mixing static agents with ephemeral Kubernetes pod agents.

Example: podTemplate with multiple containers

The snippet below (from the Kubernetes plugin examples) shows a podTemplate that defines two container templates (maven and golang) and how to run different stages inside those containers using container(...):

podTemplate(
    agentContainer: 'maven',
    agentInjection: true,
    containers: [
        containerTemplate(name: 'maven', image: 'maven:3.9.9-eclipse-temurin-17'),
        containerTemplate(name: 'golang', image: 'golang:1.16.5', command: 'sleep', args: '99d')
    ]) {

    node(POD_LABEL) {
        stage('Get a Maven project') {
            git 'https://github.com/jenkinsci/kubernetes-plugin.git'
            container('maven') {
                stage('Build a Maven project') {
                    sh 'mvn -B -ntp clean install'
                }
            }
        }

        stage('Get a Golang project') {
            git url: 'https://github.com/hashicorp/terraform.git', branch: 'main'
            container('golang') {
                stage('Build a Go project') {
                    sh '''
mkdir -p /go/src/github.com/hashicorp
ln -s `pwd` /go/src/github.com/hashicorp/terraform
cd /go/src/github.com/hashicorp/terraform && make
'''
                }
            }
        }
    }
}

Key points from this example:

podTemplate wraps the node(POD_LABEL) block that runs inside the pod.
Use container('<name>') to run commands inside a specific container in the pod.
You can run different parts of your build in different containers within the same pod (e.g., build and test toolchains).

Define pod templates in the Jenkins UI (recommended for reuse)

You can define pod templates at the cloud level in Jenkins. This is recommended when you want to reuse the same pod definition across multiple pipelines. Below is the Jenkins Cloud UI where you can add Pod Templates for a Kubernetes cloud.

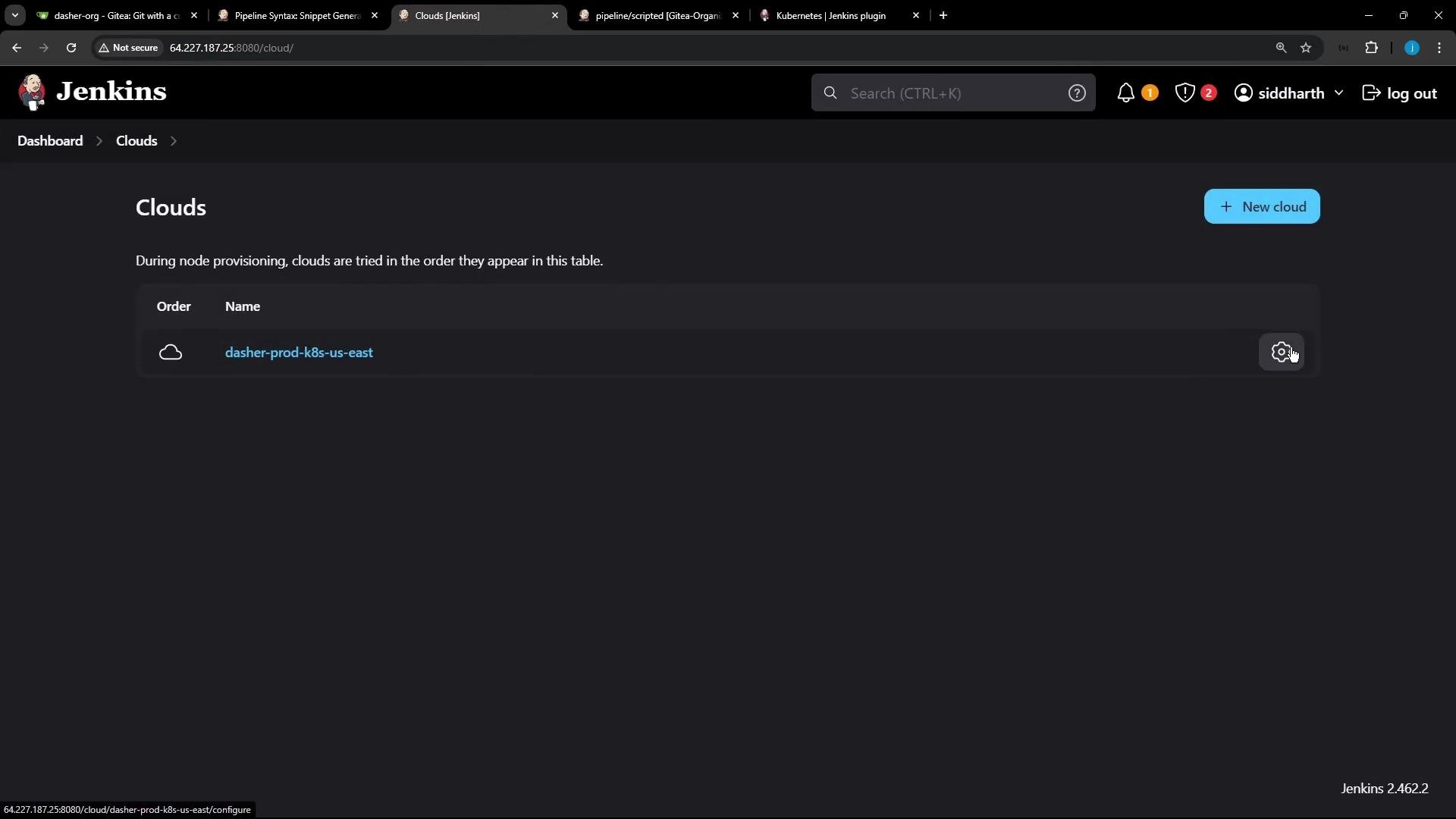

Screenshot of the Jenkins "Clouds" settings page in dark theme showing one configured cloud named "dasher-prod-k8s-us-east." A "New cloud" button and a gear/settings icon for the listed cloud are also visible.

If you use the Jenkins UI to create pod templates, the Pipeline Syntax (Snippet Generator) can generate the corresponding Groovy snippet. The generated script includes many optional fields — you can keep only the fields you need (cloud name, pod label, container name, image, command, args, TTY, privileged, etc.). Here we set the cloud, label, namespace, and add a node-18 container template via the Pipeline Syntax UI:

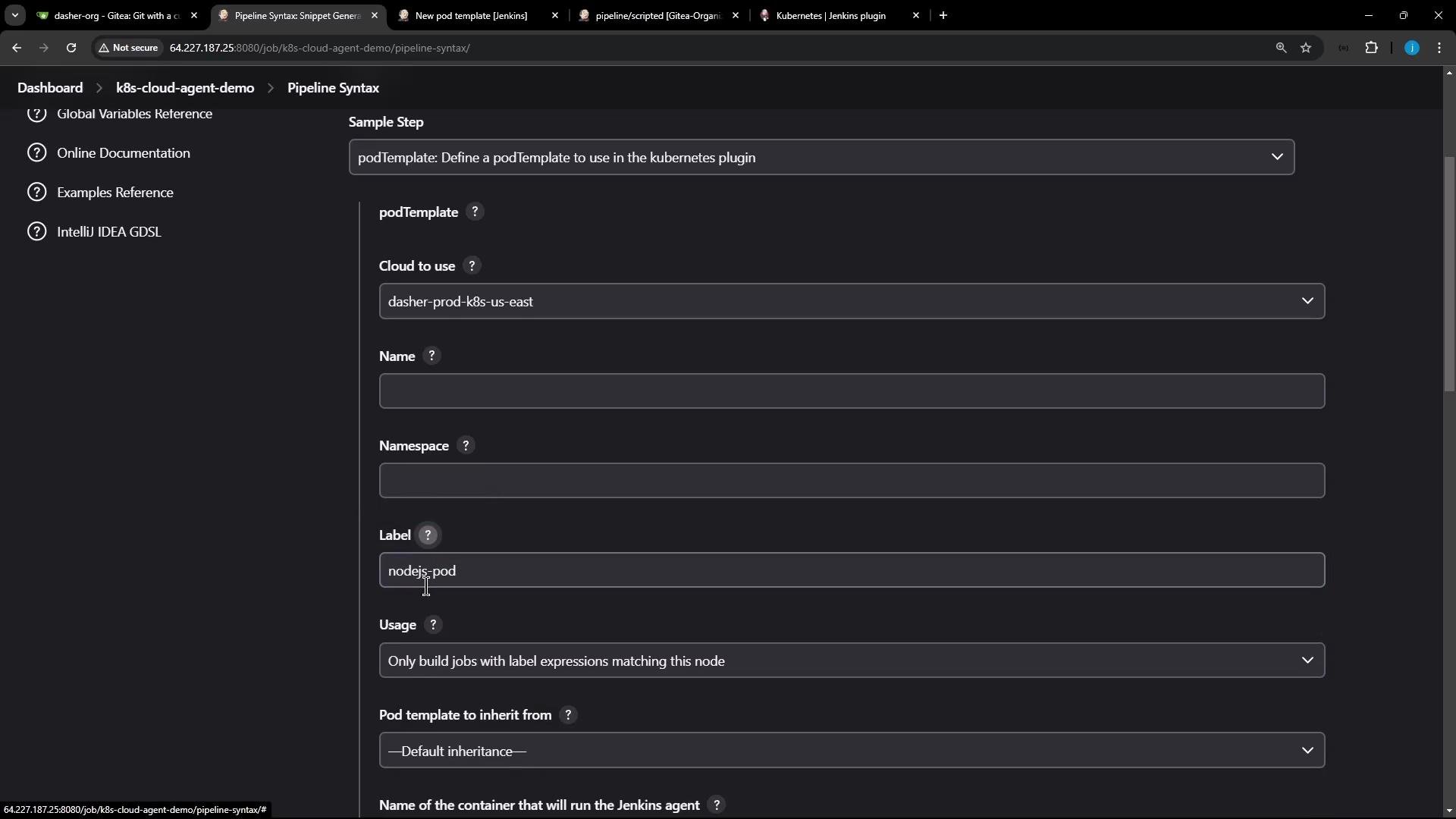

A dark-themed Jenkins Pipeline Syntax page showing a Kubernetes podTemplate configuration with fields like "Cloud to use" (dasher-prod-k8s-us-east), "Label" (nodejs-pod), namespace and name. The left sidebar displays links to documentation and examples.

Additional Pod Template options such as supplemental groups, pod retention, working directory, and workspace volumes can be tuned to your needs:

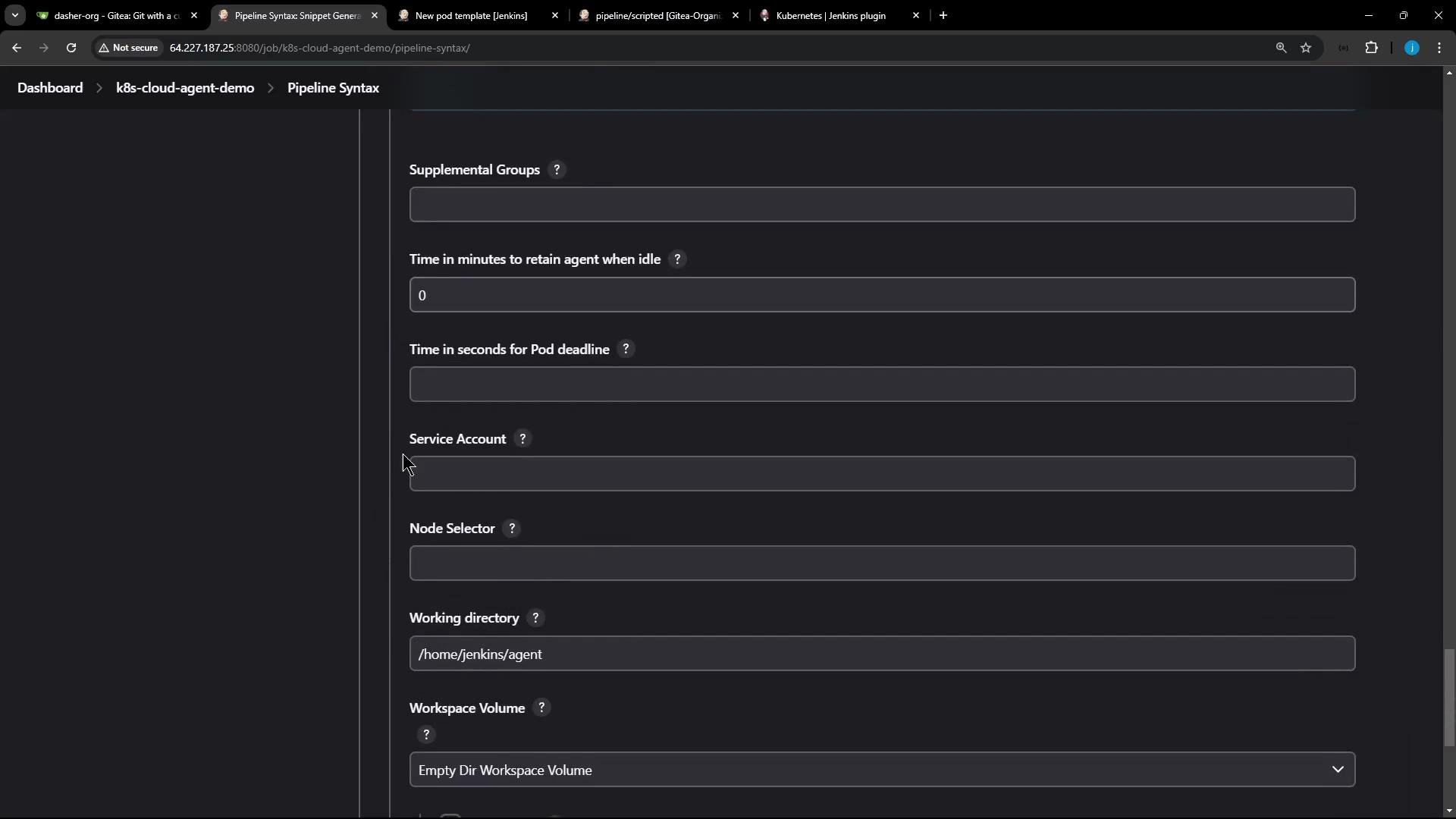

A dark-themed web UI screenshot (Jenkins Pipeline Syntax for a k8s cloud agent) showing form fields like Supplemental Groups, time to retain agent when idle, Pod deadline, Service Account, Node Selector, working directory (/home/jenkins/agent) and workspace volume.

Compact inline podTemplate example

If you choose to inline a pod template inside your Jenkinsfile, here is a compact snippet that targets a cloud named dasher-prod-k8s-us-east and creates a pod labeled nodejs-pod with a node-18 container:

podTemplate(
  cloud: 'dasher-prod-k8s-us-east',
  label: 'nodejs-pod',
  containers: [
    containerTemplate(
      args: '9999999',
      command: 'sleep',
      image: 'node:18-alpine',
      name: 'node-18',
      privileged: true,
      ttyEnabled: true
    )
  ]
) {
    // pipeline node blocks go inside this closure
}

Place podTemplate at the root of your scripted pipeline. The closure created by podTemplate { ... } must wrap any node blocks that should use that pod template.

Mixing a static agent and a Kubernetes pod (stash/unstash example)

A common pattern is to use a static agent to perform checkout and build/cache dependencies, then use a Kubernetes pod for running tests. The static agent can build node_modules, stash them, and the pod can checkout scm again (required when switching agents) and unstash the dependencies before running tests.

In scripted pipelines, checkout scm happens only on the node where it is invoked. If you run stages on multiple, different agents (or pods), you must explicitly run checkout scm on each agent that needs access to the workspace files.

Warning: stashing large directories may slow your pipeline. Use caching (e.g., external caches or the cache step if available) to reduce transfer time and keep stashes minimal.

Stashing large dependency directories (like node_modules) can be slow and may hit size limits. Prefer build caches or selective stashing (only what’s necessary) to optimize pipeline performance.

Below is a full minimal Jenkinsfile that demonstrates using an inline podTemplate, a static agent for checkout and npm install, then a Kubernetes pod container (node-18) for running unit tests with unstash.

// Use the pod template (inline). This wraps the pipeline nodes that use this pod.
podTemplate(
  cloud: 'dasher-prod-k8s-us-east',
  label: 'nodejs-pod',
  containers: [
    containerTemplate(
      args: '9999999',
      command: 'sleep',
      image: 'node:18-alpine',
      name: 'node-18',
      privileged: true,
      ttyEnabled: true
    )
  ]
) {

  // Static agent (e.g., an Ubuntu Docker node) to perform checkout and install dependencies
  node('ubuntu-docker-jdk17-node20') {
    env.NODEJS_HOME = "${tool 'nodejs-22-6-0'}"
    env.PATH = "${env.NODEJS_HOME}/bin:${env.PATH}"
    env.MONGO_URI = "mongodb+srv://supercluster.d83jj.mongodb.net/superData"

    stage('Checkout') {
      checkout scm
    }

    wrap([$class: 'TimestamperBuildWrapper']) {
      stage('Installing Dependencies') {
        // Use a build cache (if configured) and stash node_modules for reuse in other agents
        cache(maxCacheSize: 550, caches: [
          arbitraryFileCache(
            cacheName: 'npm-dependency-cache',
            cacheValidityDecidingFile: 'package-lock.json',
            includes: '**/*',
            path: 'node_modules'
          )
        ]) {
          sh 'node -v'
          sh 'npm install --no-audit'
          stash(includes: 'node_modules/**', name: 'solar-system-node-modules')
        }
      }
    }
  }

  // Run unit tests inside the Kubernetes pod (container name node-18)
  node('nodejs-pod') {
    container('node-18') {
      stage('Unit Testing') {
        // Checkout is required here because this node is a different agent (K8s pod)
        checkout scm

        // Restore node_modules that were built on the static agent
        unstash 'solar-system-node-modules'

        withCredentials([usernamePassword(credentialsId: 'mongo-db-credentials', usernameVariable: 'MONGO_USER', passwordVariable: 'MONGO_PASSWORD')]) {
          sh 'node -v'
          sh 'npm test'
        }
      }
    }
  }
}

Quick reference

Concept	Purpose	Example
Define pod template	Reuse pod definitions across pipelines	`podTemplate(cloud: 'dasher-prod-k8s-us-east', label: 'nodejs-pod', ...)`
Run inside specific container	Execute commands in a container inside the pod	`container('node-18') { sh 'npm test' }`
Switch agents	Run stages on different agents (static vs pod)	`node('ubuntu-docker-jdk17-node20') { ... }` then `node('nodejs-pod') { ... }`
Share artifacts between agents	Transfer files from producing agent to consuming agent	`stash(includes: 'node_modules/**', name: 'solar-system-node-modules')` and `unstash 'solar-system-node-modules'`
Required per-agent checkout	Ensure repo files are available on each agent	`checkout scm` inside each `node(...)` block that needs the workspace

Key takeaways

Pod templates can be configured at the cloud level (recommended for reuse) or inline in the Jenkinsfile.
Use the label from the pod template in node('<label>') to run steps inside that pod.
Use container('<container-name>') inside node to execute commands inside a specific container in the pod.
In scripted pipelines, checkout scm is not automatic for every agent — explicitly run checkout scm on any agent that needs repository files.
To share files between agents, use stash on the producing agent and unstash on the consuming agent.
Combining static agents and Kubernetes pods gives you consistent setup for build/caching and dynamic, disposable environments for running tests.
