Sharing a File between Containers

If you’ve used Kubernetes, you know that multiple containers running in the same Pod can share storage (for example via an emptyDir volume). This article demonstrates that behavior by showing a Jenkins pipeline (using the Kubernetes plugin) that creates a file in one container and reads it from another container running in the same Pod. Below is a compact, corrected Jenkinsfile that uses inline Pod YAML to launch two containers in the same Pod: ubuntu-container (the default) and node-container. The pipeline creates a file from the Ubuntu container in one stage and reads the same file from the Node container in a later stage.

pipeline {
  agent {
    kubernetes {
      cloud 'dasher-prod-k8s-us-east'
      // Instead of inline YAML you could use: yamlFile 'jenkins-pod.yaml'
      yaml '''
apiVersion: v1
kind: Pod
spec:
  containers:
  - name: node-container
    image: node:18-alpine
    command:
    - cat
    tty: true
  - name: ubuntu-container
    image: ubuntu
    command:
    - sleep
    args:
    - "infinity"
  restartPolicy: Never
'''
      defaultContainer 'ubuntu-container'
      retries 2
    }
  }

  stages {
    stage('Print Hostname and Create File') {
      steps {
        // This runs in the default container (ubuntu-container)
        sh 'hostname'
        echo "###############################################################"
        sh 'echo important_UBUNTU_data > ubuntu-$BUILD_ID.txt'
        sh 'ls -ltr ubuntu-$BUILD_ID.txt'
        echo "###############################################################"
      }
    }

    stage('Print Node Version and Read File') {
      steps {
        container('node-container') {
          sh 'node -v'
          sh 'npm -v'
          echo "###############################################################"
          sh 'ls -ltr ubuntu-$BUILD_ID.txt'
          sh 'cat ubuntu-$BUILD_ID.txt'
          echo "###############################################################"
        }
      }
    }
  }
}

How this Jenkinsfile works (key parts)

agent.kubernetes: Declares a Kubernetes agent and provides an inline Pod manifest (you can also reference a YAML file via yamlFile).
Pod spec: Defines two containers in the same Pod:
- node-container (image: node:18-alpine) — used to read the file in the second stage.
- ubuntu-container (image: ubuntu) — set to run sleep infinity and designated as the defaultContainer.
defaultContainer 'ubuntu-container': Ensures the first stage runs inside the Ubuntu container without an explicit container(...) block.
Workspace sharing: The file created in the Ubuntu stage is written to the Pod workspace. Because both containers run inside the same Pod and share the Pod’s workspace (backed by a volume such as emptyDir in many setups), the Node container can list and read the same file in a later stage.

In typical Kubernetes setups the workspace is mounted into the Pod (for example using an emptyDir volume) so files created by one container in the Pod are accessible to the other containers. Note that emptyDir is ephemeral and its lifetime is tied to the Pod lifecycle.

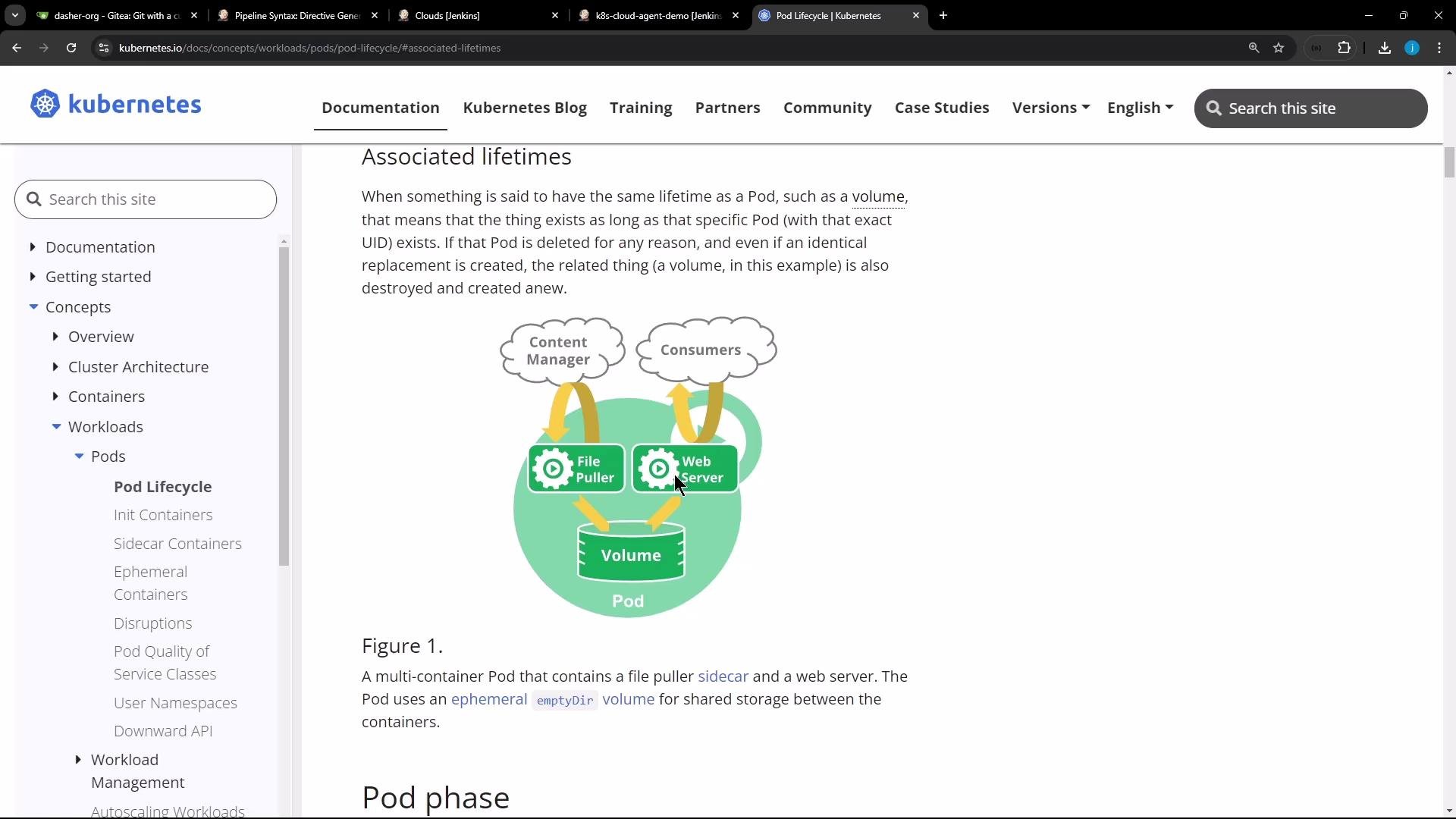

The Kubernetes documentation illustrates this pattern: containers in the same Pod can share volumes and therefore files. The image below shows a Pod containing a shared volume accessible to multiple containers.

A screenshot of the Kubernetes documentation page titled "Associated lifetimes" with a diagram showing a Pod containing a Volume shared by a File Puller and a Web Server, and arrows to/from "Content Manager" and "Consumers." The page also shows the site navigation sidebar and header.

Example pipeline output (excerpt)

[Pipeline] sh
+ hostname
k8s-cloud-agent-demo-5-rv7b8-8frt0-n41pw
[Pipeline] sh
+ echo important_UBUNTU_data
[Pipeline] sh
+ ls -ltr ubuntu-5.txt
-rw-r--r-- 1 root root 22 Nov 10 09:47 ubuntu-5.txt

[Pipeline] stage
[Pipeline] { (Print Node Version)
[Pipeline] container
[Pipeline] sh
+ node -v
v18.20.4
[Pipeline] sh
+ ls -ltr ubuntu-5.txt
-rw-r--r-- 1 root root 22 Nov 10 09:47 ubuntu-5.txt
[Pipeline] sh
+ cat ubuntu-5.txt
important_UBUNTU_data

This confirms the file created in the Ubuntu container is accessible from the Node container because both containers share the same Pod workspace. Best practices and considerations

Workspace persistence: The workspace is typically provided by the Jenkins agent configuration (often with an emptyDir in Kubernetes-based agents). emptyDir is ephemeral — it exists only for the lifetime of the Pod. If you need persistence across Pods, use a persistent volume (e.g., PersistentVolumeClaim).
Permissions: Ensure user permissions and owners inside each container allow reading/writing the workspace files.
Tooling inside images: Bake required CLI tools into agent images when possible to reduce per-job setup overhead.
Debugging: Use sh 'ls -la' and sh 'id' in each container to inspect permissions and verify the shared directory.

Comparison: static nodes vs. container-based agents

Agent Type	Use Case	Pros	Cons
Static nodes (long-running VMs)	Persistent environments, special hardware, or macOS builds	Always available, supports specialized tooling and hardware	Maintenance overhead, manual software updates
Docker or Kubernetes agents (ephemeral containers/Pods)	Reproducible, on-demand builds and CI tasks	Ephemeral and reproducible, easy to scale, low maintenance	Ephemeral storage (use PVCs if persistence needed); requires Kubernetes/Docker infrastructure

Useful links and references

Summary

Running multiple containers in the same Pod allows them to share files through a mounted workspace (commonly via emptyDir).
The example Jenkinsfile demonstrates creating a file in one container and reading it from another within the same Pod.
Choose static nodes for specialized persistent needs; prefer container-based or Kubernetes agents for ephemeral, reproducible builds and reduced maintenance.

That is all for now.
