Create Shared Library for Trivy Scan

In this lesson you’ll extract the Trivy image scan and report conversion steps into a reusable Jenkins shared library. Doing so lets multiple pipelines call the same logic and simplifies maintenance. We’ll implement this in a feature branch to demonstrate versioning for the shared library.

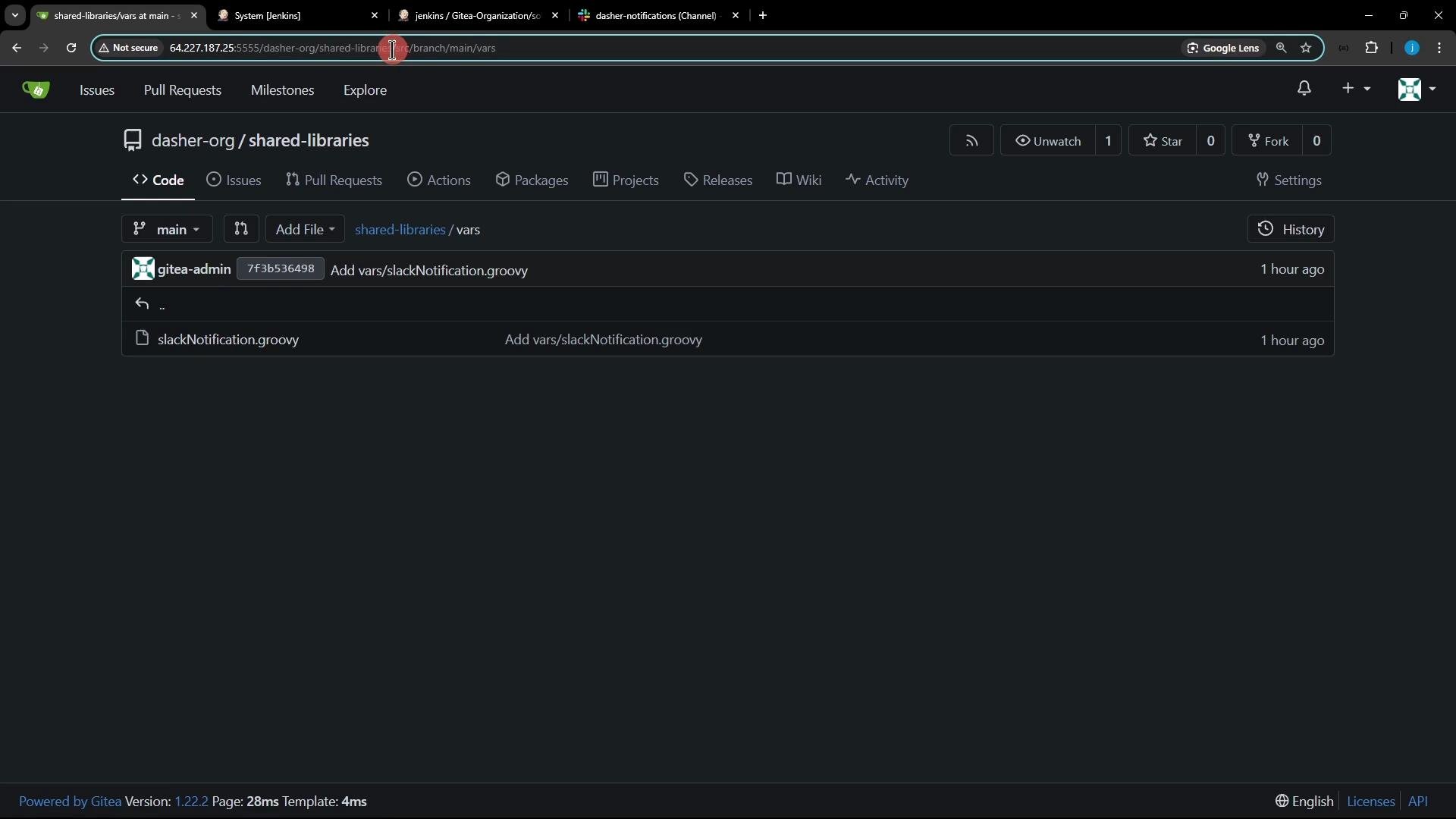

A dark-themed Gitea repository page for "dasher-org / shared-libraries" showing the "vars" folder with a single file named slackNotification.groovy. The entry shows a recent commit by gitea-admin and repository controls (branches, add file, history).

Prerequisites

A Jenkins instance configured to run pipelines.
Trivy installed on the Jenkins agents that will run the scan, along with the Trivy HTML template file at /usr/local/share/trivy/templates/html.tpl.
Access to the shared-libraries Git repository (example URL used below).

1. Inspect the shared-libraries repository

Clone the repository locally and inspect the vars folder. It currently contains slackNotification.groovy, and we’ll add a new file alongside it.

git clone http://64.227.187.25:5555/dasher-org/shared-libraries/
cd shared-libraries/
ls -la

2. Create a feature branch

Create a branch for your changes so the shared library can be versioned independently:

git checkout -b featureTrivyScan

3. Add a Trivy shared library file

Under the repository’s vars directory, add trivyScan.groovy. This file exposes two reusable functions to pipelines:

vulnerability(String imageName) — runs Trivy scans for different severity levels and writes JSON results to the workspace.
reportsConverter() — converts the JSON results into HTML reports using trivy convert.

Create vars/trivyScan.groovy with the following content:

def vulnerability(String imageName) {
    sh """
        echo "Scanning image: ${imageName}"

        trivy image ${imageName} \
            --severity LOW,MEDIUM,HIGH \
            --exit-code 0 \
            --quiet \
            --format json -o trivy-image-MEDIUM-results.json

        trivy image ${imageName} \
            --severity CRITICAL \
            --exit-code 1 \
            --quiet \
            --format json -o trivy-image-CRITICAL-results.json
    """
}

def reportsConverter() {
    sh '''
        trivy convert \
            --format template --template "@/usr/local/share/trivy/templates/html.tpl" \
            --output trivy-image-MEDIUM-results.html trivy-image-MEDIUM-results.json

        trivy convert \
            --format template --template "@/usr/local/share/trivy/templates/html.tpl" \
            --output trivy-image-CRITICAL-results.html trivy-image-CRITICAL-results.json
    '''
}

Function summary

Function	Purpose	Notes / Output
`vulnerability(String imageName)`	Runs Trivy image scans for LOW, MEDIUM, HIGH and CRITICAL severities	Produces `trivy-image-MEDIUM-results.json` and `trivy-image-CRITICAL-results.json` in the workspace
`reportsConverter()`	Converts JSON reports into HTML using the Trivy template	Produces `trivy-image-MEDIUM-results.html` and `trivy-image-CRITICAL-results.html`

Best practice: Pass the full image name (including tag or commit) to vulnerability, for example siddharth67/solar-system:${env.GIT_COMMIT} so scans are reproducible and traceable.

Ensure Trivy and the HTML template file exist on the agent executing the pipeline (template path used: /usr/local/share/trivy/templates/html.tpl). If the template is missing or Trivy is not installed, the reportsConverter() and vulnerability() steps will fail.

4. Commit and push the branch

Add the new file to the repository and push the feature branch:

git add vars/trivyScan.groovy
git commit -m "Add trivyScan shared library with vulnerability and reportsConverter functions"
git push -u origin featureTrivyScan

5. Using the shared library in a Jenkins pipeline

After configuring the shared library in Jenkins (see next section), the trivyScan file in vars/ is exposed as a global variable named trivyScan. Here is an example Declarative pipeline stage that calls the shared library functions:

pipeline {
    agent any
    stages {
        stage('Trivy Vulnerability Scanner') {
            steps {
                script {
                    // Construct the full image name including commit/tag
                    def imageName = "siddharth67/solar-system:${env.GIT_COMMIT}"
                    trivyScan.vulnerability(imageName)
                }
            }
            post {
                always {
                    script {
                        trivyScan.reportsConverter()
                        // You may also archive artifacts or publish HTML reports here
                    }
                }
            }
        }
    }
}

6. Configure the shared library in Jenkins

In Jenkins, go to “Manage Jenkins” → “Configure System” → “Global Pipeline Libraries” and add a new library.
Set the library name (for example shared-libraries), provide the Git repository URL, and set the Default Version to the branch featureTrivyScan (or leave it configurable per-job).
You can reference the library explicitly in a Pipeline with @Library('shared-libraries@featureTrivyScan') _ or configure it as a global library and call trivyScan directly.

7. Tips for pipelines using the library

Archive or publish the generated HTML reports after reportsConverter() runs (for example, use archiveArtifacts or a HTML publisher plugin).
If you want different severity thresholds, you can extend trivyScan.groovy to accept severity lists or output file names as parameters.
Keep the shared library versioned: create feature branches or tags for changes to shared library functions to avoid breaking consuming pipelines.

Links and references

Trivy documentation: https://aquasecurity.github.io/trivy/latest/
Jenkins shared library documentation: https://www.jenkins.io/doc/book/pipeline/shared-libraries/
Trivy templates: see trivy installation and template locations on official docs.

That’s it — the Trivy scanning logic is now encapsulated in a reusable shared library. Configure Jenkins to load the featureTrivyScan branch and invoke trivyScan.vulnerability(...) and trivyScan.reportsConverter() from your pipelines to run scans and convert reports.
