Declarative vs Scripted Pipeline

This lesson explains the differences between Declarative and Scripted Jenkins pipelines, how they map to a Jenkinsfile, and when to use each style in your CI/CD workflows. Both styles:

Live in a Jenkinsfile inside your source repository.
Use the same Jenkins Pipeline subsystem and the Pipeline DSL (Groovy-based).
Can reuse shared libraries to centralize common pipeline code.

The main difference is abstraction and target audience:

Scripted pipelines: code-first, expose raw Groovy, and offer maximum flexibility.
Declarative pipelines: provide a structured, opinionated syntax that simplifies common tasks and enforces a consistent pipeline structure.

Both styles are stored in a Jenkinsfile in your source repository. Declarative provides a structured, opinionated layer on top of the Pipeline DSL (Groovy), while scripted pipelines allow you to write arbitrary Groovy code for advanced scenarios.

Scripted Pipeline

Scripted pipelines are Groovy scripts that usually start with a top-level node block. They expose the full power of Groovy, which makes them ideal for complex logic, dynamic control flow, and advanced automation. Key points:

Code-centric and flexible.
Full access to Groovy language features.
Best for complex or highly dynamic workflows.
Steeper learning curve and requires better programming skills.

Example (Scripted Jenkinsfile):

node {
  try {
    stage('Checkout') {
      checkout scm
    }
    stage('Build') {
      echo 'Building...'
      // custom Groovy code or complex logic can go here
    }
    stage('Test') {
      echo 'Testing...'
    }
  } finally {
    stage('Cleanup') {
      echo 'Cleaning up...'
    }
  }
}

Declarative Pipeline

Declarative pipelines use a predefined, higher-level syntax with built-in blocks and validation. They are easier to read and write for typical CI/CD workflows and help teams follow consistent patterns. Key points:

Structured and opinionated syntax.
Built-in blocks like pipeline, agent, stages, steps, post, environment, and options.
Validation helps catch common mistakes early.
Supports limited scripted snippets via script {} when needed.

Example (Declarative Jenkinsfile):

pipeline {
  agent any
  stages {
    stage('Checkout') {
      steps {
        checkout scm
      }
    }
    stage('Build') {
      steps {
        echo 'Building...'
      }
    }
    stage('Test') {
      steps {
        echo 'Testing...'
      }
    }
  }
  post {
    always {
      echo 'Cleaning up...'
    }
    success {
      echo 'Pipeline succeeded.'
    }
    failure {
      echo 'Pipeline failed.'
    }
  }
}

Quick Comparison

Area	Scripted Pipeline	Declarative Pipeline
Syntax style	Code-centric (Groovy)	Structured, domain-specific
Typical start	`node { ... }`	`pipeline { ... }`
Flexibility	Maximum — arbitrary Groovy	Constrained but consistent
Validation	Minimal — runtime errors possible	Built-in validation and linting
Use case	Complex logic, dynamic flows	Standard CI/CD flows, team-friendly
Mixing styles	Native Groovy only	Use `script {}` for snippets

Choosing between Declarative and Scripted

Prefer Declarative when you want predictable, maintainable, and easy-to-read pipelines for most CI/CD tasks.
Choose Scripted when you need fine-grained control, advanced Groovy programming, or highly dynamic pipeline generation.
You can mix approaches: use Declarative as the primary structure and insert script {} blocks for specific scripted needs, or move complex shared logic into libraries.

If you start with Declarative and require custom logic, extend it via script {} blocks or migrate parts to Scripted pipelines. Centralize shared logic in reusable libraries to avoid duplication across multiple pipelines.

For more details and examples, see the Jenkins Pipeline documentation: Jenkins Pipeline Syntax.

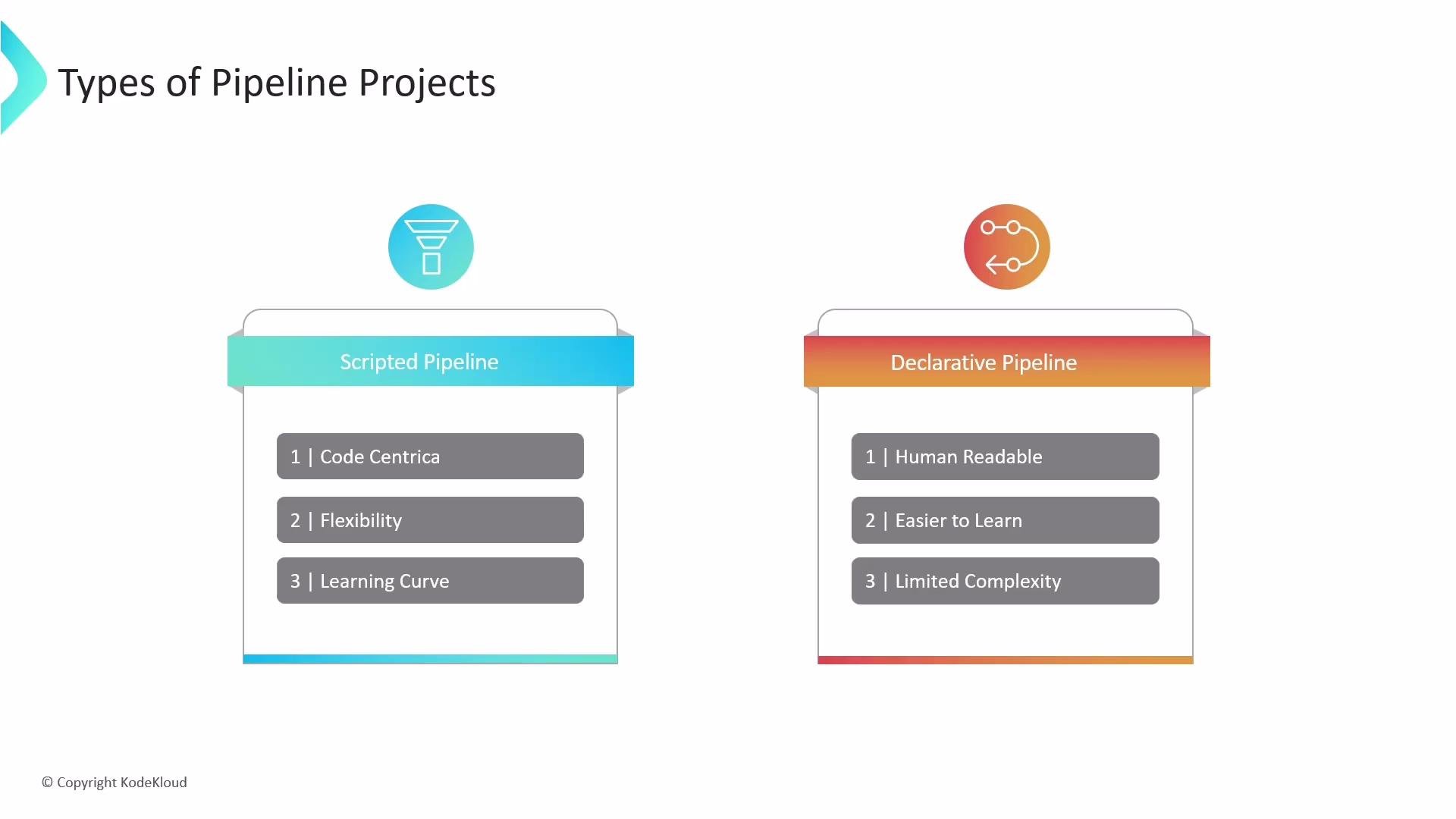

A slide titled "Types of Pipeline Projects" comparing two pipeline styles. The left column is "Scripted Pipeline" (code-centric, flexible, steeper learning curve) and the right column is "Declarative Pipeline" (human-readable, easier to learn, limited complexity).
