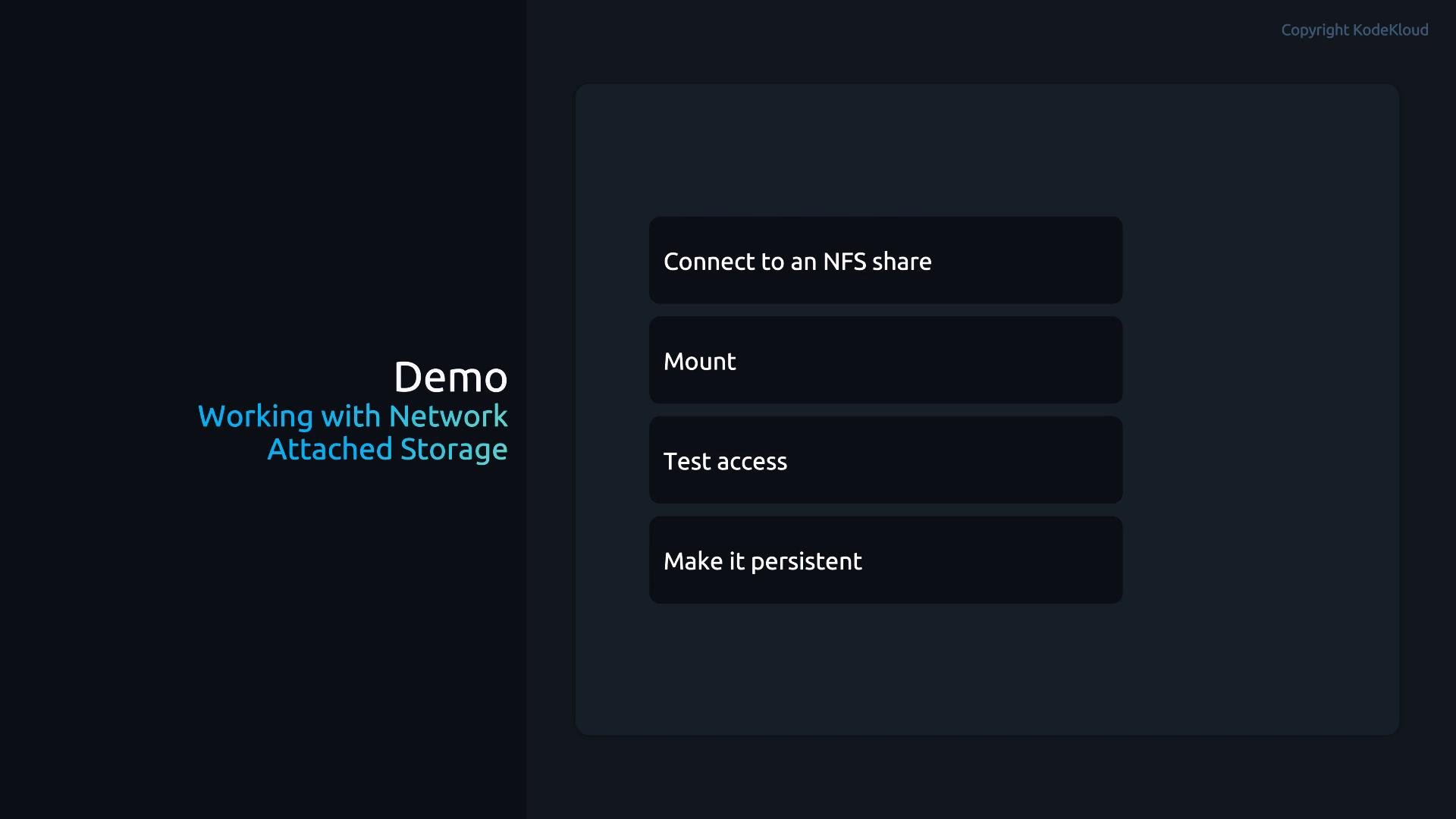

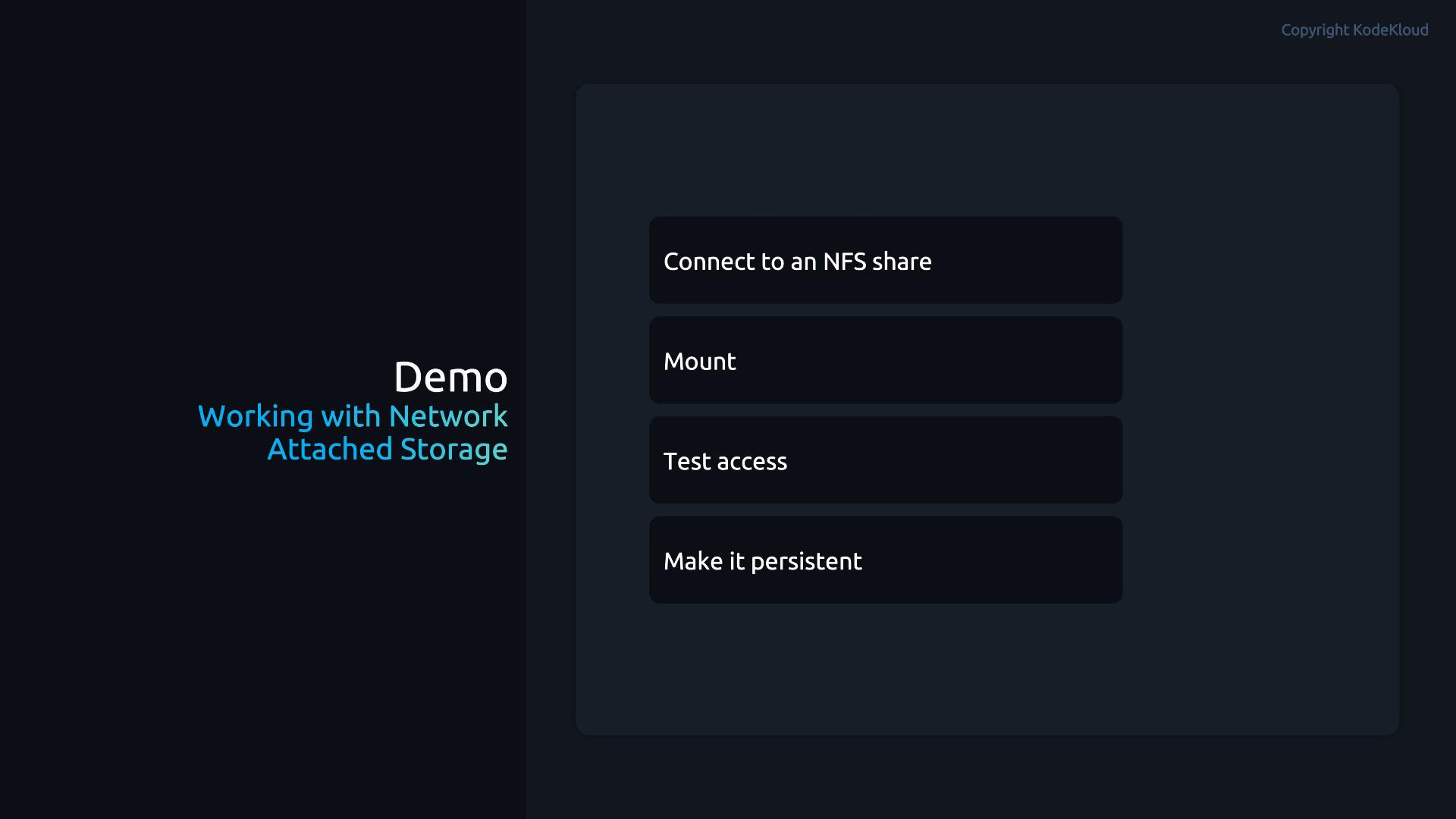

Demo Working With Network Attached Storage

In this lesson you’ll learn to connect to an NFS server, mount a remote export on a client, verify access, and make the mount persistent across reboots so your network storage remains available.

By the end of this walkthrough you’ll understand how to extend a system’s storage using NFS, validate the mount, and ensure the export is re-mounted automatically on boot.

Step 1 — Verify connectivity to the NFS server

First, confirm the client can reach the NFS server over the network. Replace the example IP with your server’s address (here: 10.0.2.15).

root@control:/# ping -c 4 10.0.2.15
PING 10.0.2.15 (10.0.2.15) 56(84) bytes of data.
64 bytes from 10.0.2.15: icmp_seq=1 ttl=64 time=9.83 ms
64 bytes from 10.0.2.15: icmp_seq=2 ttl=64 time=0.591 ms
64 bytes from 10.0.2.15: icmp_seq=3 ttl=64 time=0.584 ms
64 bytes from 10.0.2.15: icmp_seq=4 ttl=64 time=0.617 ms

--- 10.0.2.15 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3074ms
rtt min/avg/max/mdev = 0.584/2.904/9.825/3.995 ms
root@control:/#

If ping fails, check routing, firewall rules, or that the NFS server is running and reachable on the expected network.

Network connectivity and appropriate firewall rules (e.g., allowing NFS/RPC ports) are required before mounting. Ensure you have administrative privileges on the client to create mount points and perform mounts.

Step 2 — Create a mount point on the client

Create the directory where the remote export will be mounted. Use -p to avoid errors if the parent exists already.

root@control:/# mkdir -p /mountnfs

Mount the remote export. In this example the server export path is /srv/nfs/share/nfs-lab on host 10.0.2.15.

root@control:/# mount -t nfs 10.0.2.15:/srv/nfs/share/nfs-lab /mountnfs

Validate the mount by checking the list of mounted filesystems for the mount point:

root@control:/# mount | grep /mountnfs
10.0.2.15:/srv/nfs/share/nfs-lab on /mountnfs type nfs4 (rw,relatime,vers=4.2,rsize=262144,wsize=262144,hard,proto=tcp,sec=sys,addr=10.0.2.15)

Quick access tests:

# list files on the NFS export
root@control:/# ls -l /mountnfs

# create a small test file to verify write access (if permitted)
root@control:/# touch /mountnfs/.$(date +%s)-test

The mount command above performs a runtime (ephemeral) mount. It remains until unmounted or the system reboots. To ensure automatic mounting after reboot, add the export to /etc/fstab with appropriate options.

Step 4 — Make the mount persistent by editing /etc/fstab

Add an entry to /etc/fstab so the NFS share is mounted automatically on boot. Common and useful NFS mount options include _netdev, nofail, and vers=. Example /etc/fstab entry (server: 10.0.2.15, export: /srv/nfs/share/nfs-lab, mount point: /mountnfs):

10.0.2.15:/srv/nfs/share/nfs-lab    /mountnfs      nfs    defaults,_netdev,nofail,vers=4 0 0

After saving /etc/fstab, apply mounts without rebooting:

# if currently mounted, unmount first
root@control:/# umount /mountnfs

# re-evaluate fstab and mount all entries
root@control:/# mount -a

Confirm the persistent mount is active:

root@control:/# mount | grep /mountnfs
10.0.2.15:/srv/nfs/share/nfs-lab on /mountnfs type nfs4 (rw,relatime,vers=4.2,rsize=262144,wsize=262144,hard,proto=tcp,sec=sys,addr=10.0.2.15)

Common NFS mount options

Option	Purpose	Example usage
`_netdev`	Delay mount until network is available (recommended for network filesystems)	`defaults,_netdev`
`nofail`	Allow boot to continue even if the mount fails	`nofail`
`vers=`	Force NFS protocol version (e.g., 3 or 4)	`vers=4` or `vers=3`
`rsize=` / `wsize=`	Set read/write buffer sizes for performance tuning	`rsize=262144,wsize=262144`
`ro` / `rw`	Mount read-only or read-write	`rw`

Step 5 — Summary and considerations

Use _netdev to avoid attempting to mount network filesystems before network interfaces are up.
Use nofail so booting continues when the remote share is unavailable.
Force vers= if your server requires a specific NFS protocol version.
Adjust rsize/wsize, locking, and security options (sec=) as required by your environment and workload.
If you need automount behavior rather than static fstab entries, consider systemd automount units or autofs for on-demand mounting.

References and further reading

NFS overview: https://nfs.sourceforge.io/ (or your distro’s NFS docs)
fstab(5) manual: https://man7.org/linux/man-pages/man5/fstab.5.html
mount(8) manual: https://man7.org/linux/man-pages/man8/mount.8.html

This completes the lesson on mounting an NFS share and making the mount persistent across reboots.
