Before migrating pipelines or running migrations, perform a focused review of the existing Jenkins controller, its job types, agents, plugins, and credentials. This helps identify compatibility issues, credentials that must be re-created, and any agent configuration needed when migrating to GitHub Actions or other CI platforms. I’m running Jenkins on a VM reachable at http://139.84.149.70:8080 and the controller version is 2.504.1. The instance hosts roughly four projects of mixed types (Freestyle, Declarative Pipeline, Scripted Pipeline) with various triggers (poll-based and SCM-based). Here’s the Jenkins process observed on the host (Java flags shown):
root@jenkins:~#
ps aux | grep -i jenkins
jenkins      940  0.5 10.0 6892276 1649636 ?        Ssl  May19   5:56 /usr/bin/java -Xms1G -Xmx2G -Djava.awt.headless=true -jar /usr/share/java/jenkins.war --webroot=/var/cache/jenkins/war --httpPort=8080
root        28174  0.0  0.0  6544  2304 pts/0    S+   12:45   0:00 grep --color=auto -i jenkins
The dashboard shows several pipelines and jobs (visible statuses, last build times, durations):

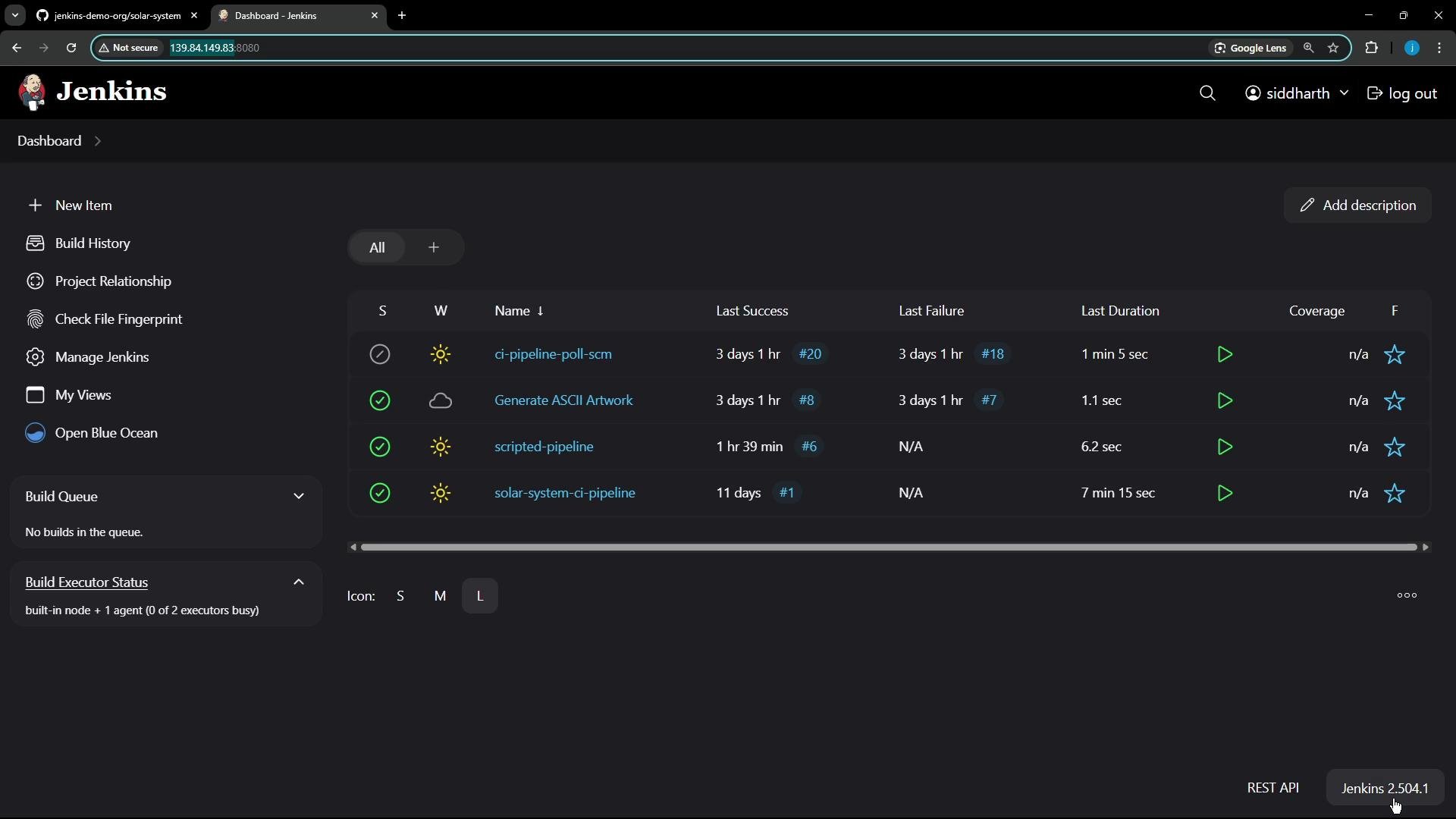

A Jenkins continuous-integration dashboard in dark mode showing several pipeline jobs with status icons, last success/failure times, and durations. The left sidebar displays navigation items like New Item, Build History, and Build Queue.

​
Quick configuration summary

ItemValue
Jenkins home directory/var/lib/jenkins
Controller executors2
Jenkins URLConfigured in System Settings (UI)
Controller version2.504.1
Common job typesFreestyle, Declarative Pipeline, Scripted Pipeline
Typical triggersPoll SCM, SCM webhooks

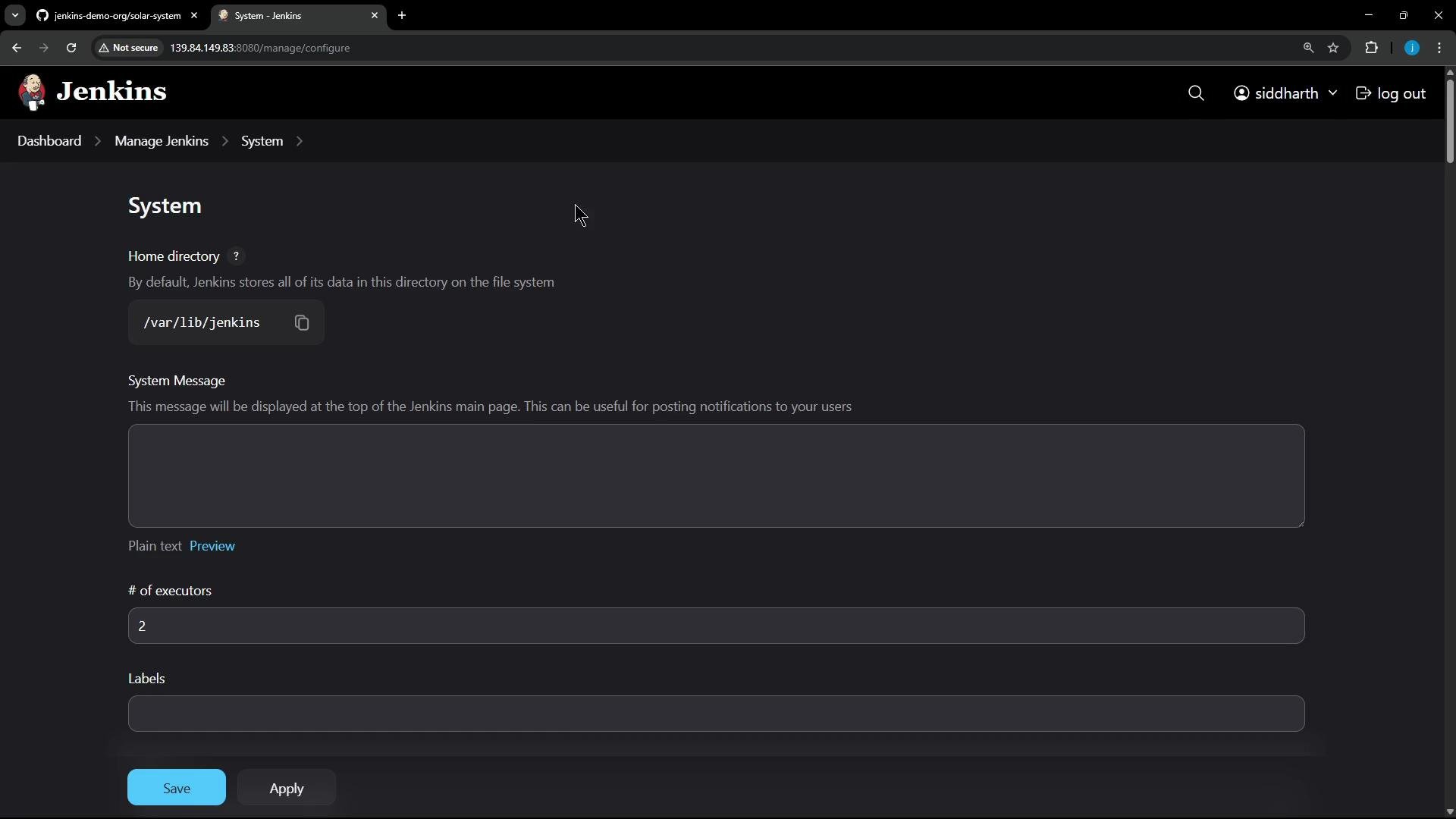

A dark-themed Jenkins "System" settings page. It shows the Jenkins home directory (/var/lib/jenkins), a system message box, executors set to 2, and Save/Apply buttons.

​
Installed tools and notable plugins

This environment is primarily used for Node.js-based pipelines. High-level tools and plugins observed:
Tool / PluginPurpose
Node.js installerProvides Node runtime for builds
OWASP Dependency-Check (dependency-check 12.1.1)Dependency vulnerability scanning
Sysdig-related toolSecurity/monitoring integrations
Local DockerImage build/push during pipelines
Various Jenkins pluginsPipeline, SCM, JUnit, and others (some updates available)

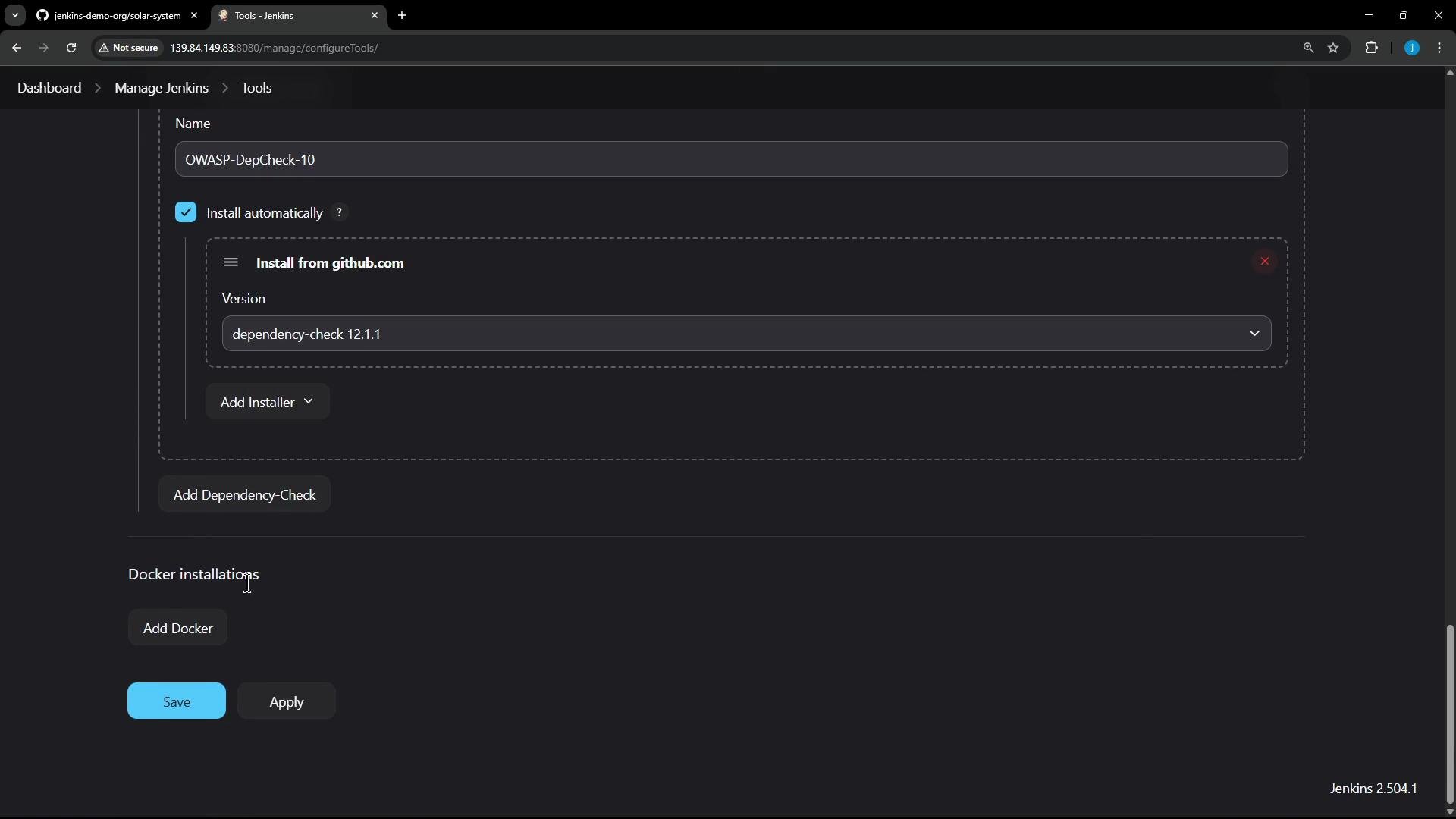

A dark‑theme screenshot of the Jenkins "Manage Jenkins → Tools" configuration page showing an OWASP-DepCheck tool entry. The "Install automatically" box is checked and the installer is set to "dependency-check 12.1.1", with Add Docker, Save and Apply buttons visible.
Plugin updates are visible in the UI; consider reviewing change logs before upgrading plugins during a migration:

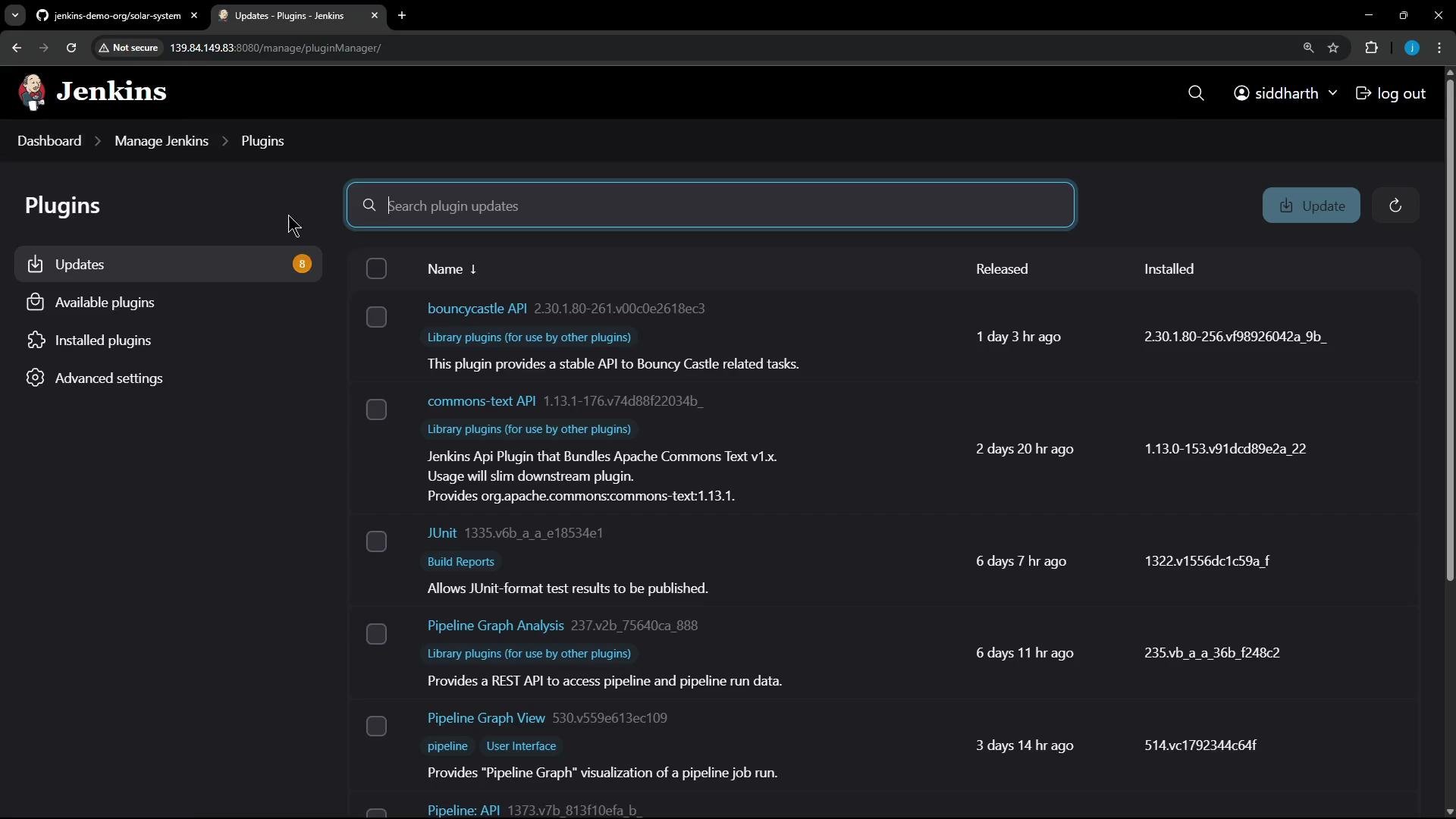

A screenshot of the Jenkins web UI on the Plugins > Updates page showing a list of plugins available for update (e.g., bouncycastle API, commons-text, JUnit, Pipeline Graph Analysis). The interface includes a search bar, an "Update" button, and navigation links on the left.

​
Nodes and agents

  • The built-in controller node provides two executors.
  • There is an additional agent named us-west-1-ubuntu-22, which was offline at the time of inspection.

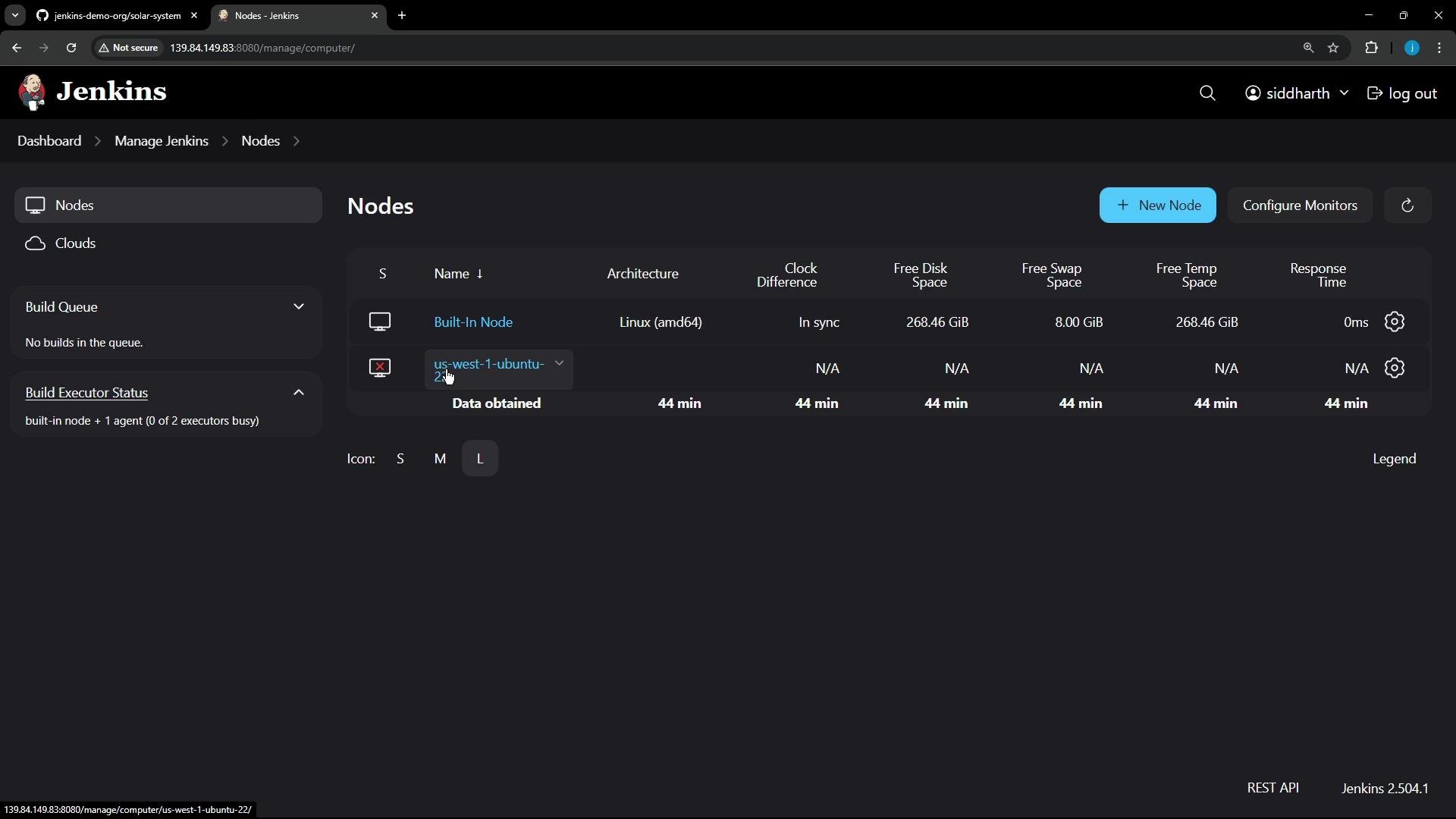

A screenshot of the Jenkins "Nodes" management page in dark theme showing a Built-In Node (Linux amd64) with free disk/swap stats and an offline agent named "us-west-1-ubuntu-22" reporting N/A metrics. The top toolbar shows a "New Node" button and the logged-in user "siddharth."

​
Connecting the agent manually

In this environment the controller is not configured for HTTPS agent communication, so the agent is launched manually using the agent JAR. On the agent host:
# Download the agent jar from the controller
curl -sO http://139.84.149.70:8080/jnlpJars/agent.jar

# Store the agent secret in a file (replace with the real secret, securely)
echo "REPLACE_WITH_AGENT_SECRET" > secret-file

# Start the agent using the secret stored in a file
java -jar agent.jar -url http://139.84.149.70:8080/ -secret @secret-file -name "us-west-1-ubuntu-22" -webSocket -workDir "/home/jenkins-agent"
Never commit agent secrets, API tokens, or other credentials into source control. Use credential managers, secret stores, or environment-specific secret injection. Limit token scope and expiry.
After starting the agent it should connect and report a single executor, its remote root directory, and labels. Jobs targeting the agent label will run on this node.

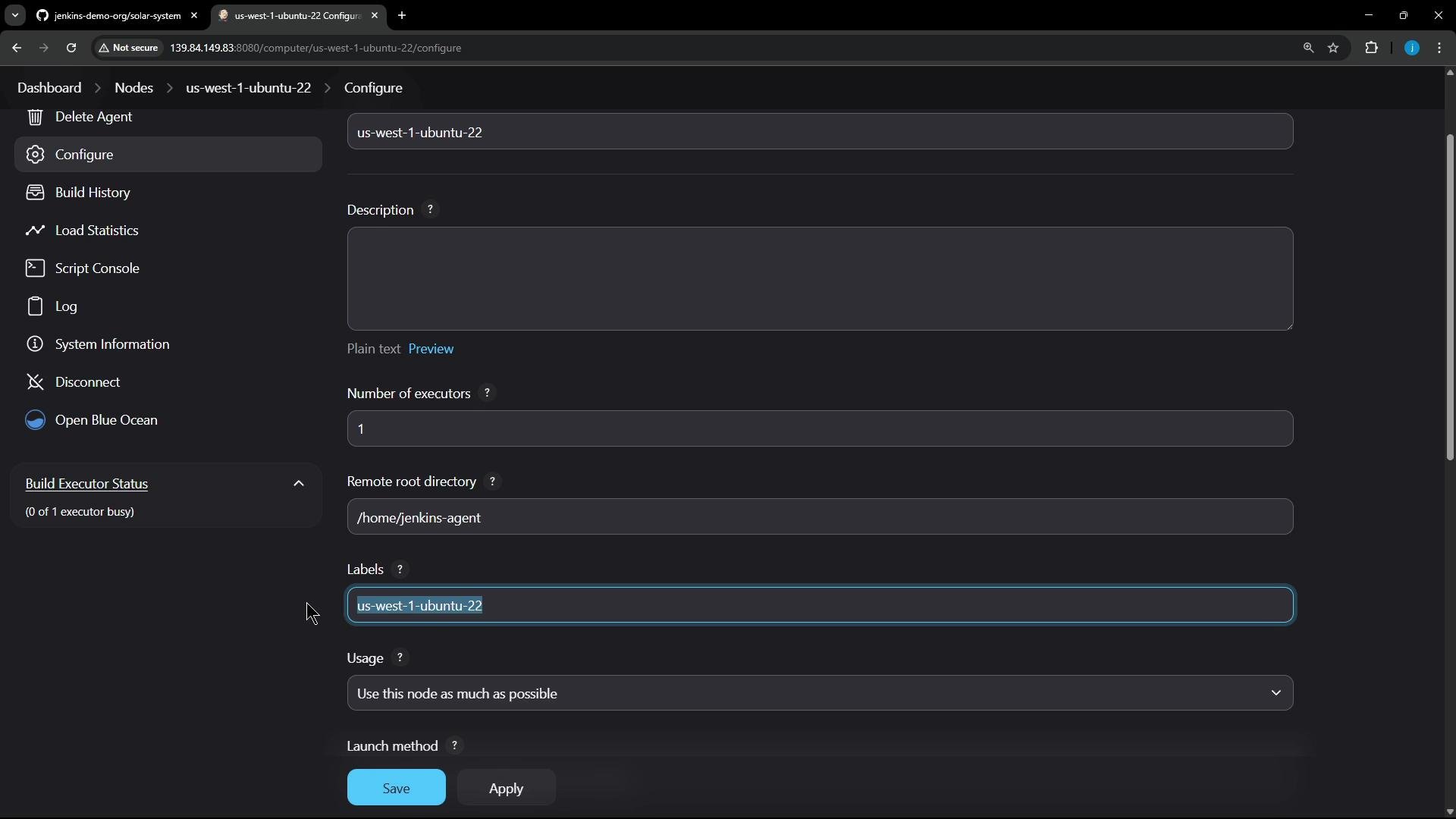

A dark-themed Jenkins node configuration page for the agent "us-west-1-ubuntu-22," showing fields like Description, Number of executors (1), Remote root directory (/home/jenkins-agent), Labels, and Save/Apply buttons. The left sidebar lists agent actions (Delete Agent, Configure, Build History, etc.) and a Build Executor Status panel.

​
Security and credentials

  • Authentication: Jenkins own user database (internal user store).
  • Current UI user: Siddharth.
  • API tokens in use to authenticate automation (e.g., tokens named gh-1).

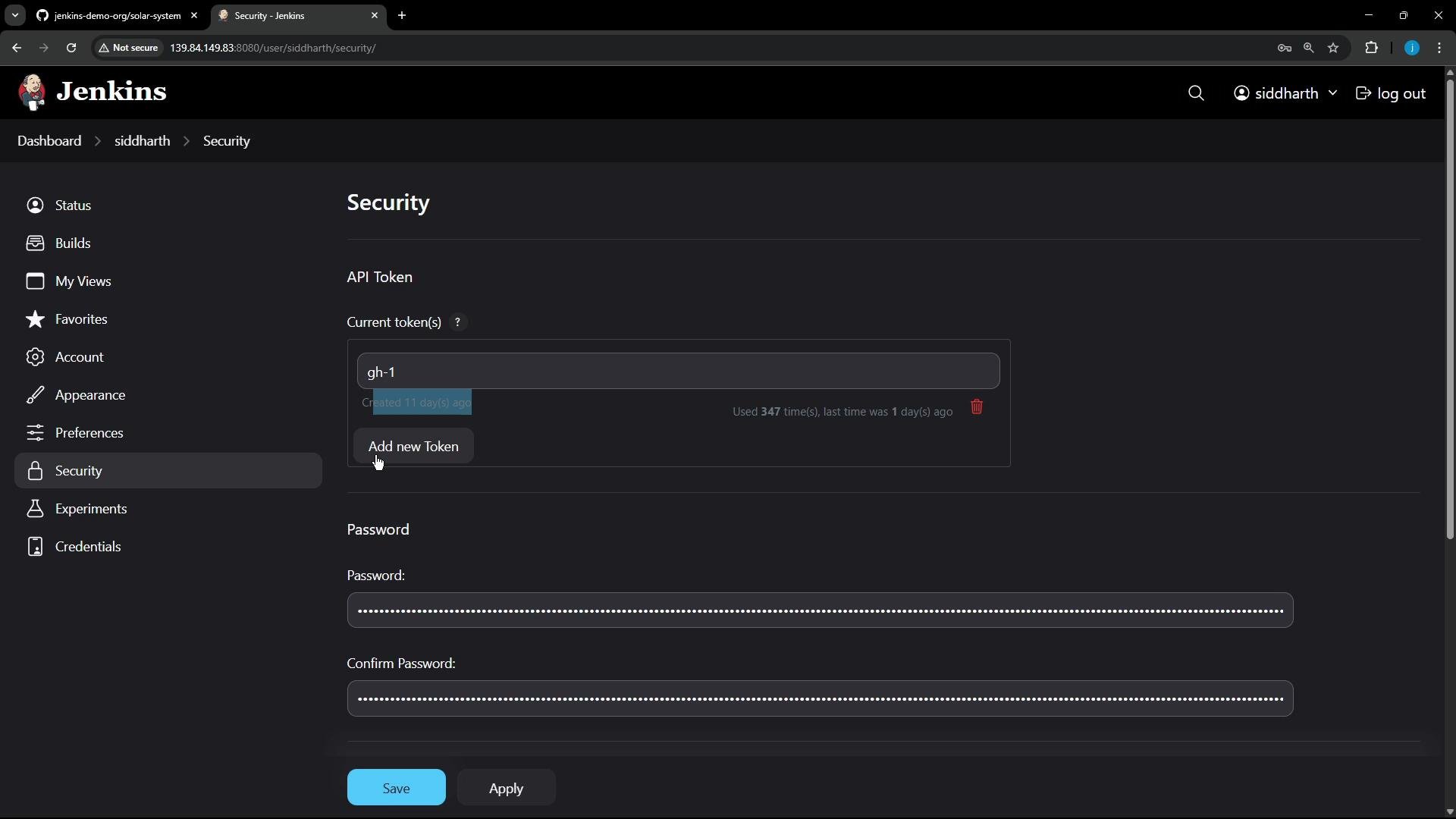

A screenshot of the Jenkins web interface on the "Security" settings page, showing API token management (a token labeled "gh-1" and an "Add new Token" button) and password/confirm password fields with Save/Apply buttons. The dark-themed layout includes a left navigation menu with items like Status, Builds, Account, and Security.

​
Credentials stored in Jenkins

Several credentials are scoped in Jenkins credential stores and referenced by pipelines:
CredentialUse
mongo-db-credentials (user/password)Used in unit tests and coverage stages
mongo-db-username / mongo-db-passwordTest DB access
docker-hub-credentialsPushing Docker images
OWASP DepCheck credentialUsed by Dependency-Check where required

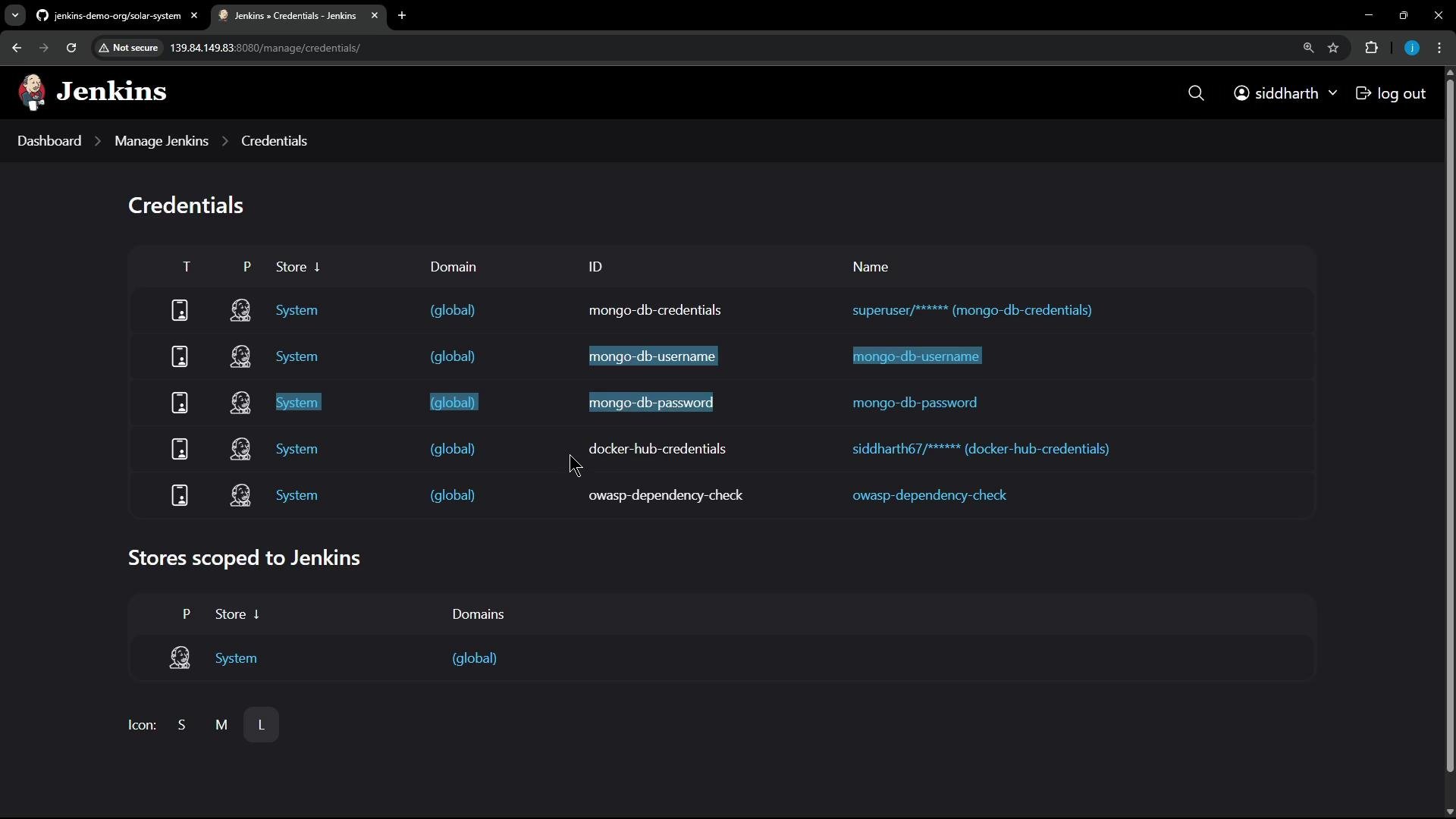

A screenshot of the Jenkins "Credentials" administration page showing a list of stored credentials (e.g., mongo-db-credentials, mongo-db-username, mongo-db-password, docker-hub-credentials) and credential stores scoped to the system. The UI is in dark theme with navigation breadcrumbs at the top.
When migrating pipelines to GitHub Actions (or another CI), plan to:
  • Re-create necessary secrets in the target CI secrets store.
  • Avoid copying credentials verbatim—rotate tokens where possible.
  • Map Jenkins credentials to corresponding environment names (e.g., DOCKERHUB_TOKEN, MONGO_USER, MONGO_PASS).
Tip: Inventory every credential referenced by jobs (check pipeline scripts and Freestyle build steps). Use a spreadsheet or small manifest to record each credential name, where it’s used, required scope, and a recommended replacement in the target CI.

​
Summary and next steps

  • The controller is a standard Jenkins installation with one connected agent (and one offline agent at audit time).
  • Key tools and plugins (Node.js installer, Dependency-Check, Docker) are in use; some plugins show available updates.
  • Credentials and API tokens exist and will need to be re-created in the target CI. Do not migrate secrets directly—use secure secret tooling and rotate credentials after migration.
  • Next: inspect each project in turn, run representative builds to validate behavior, then begin mapping pipeline steps to GitHub Actions workflows or the target CI solution.
