Demo Audit Jenkins 2

In this lesson we update the Jenkins instance, add a Multi-branch Pipeline, create a secret binding in an existing job, and re-run the audit to see how the audit summary and generated artifacts change. What you’ll see in this demo:

Creating a Multi-branch Pipeline that discovers Jenkinsfiles in multiple branches.
Indexing output from Jenkins showing discovered branches.
Adding a secret via the job’s Environment → Bindings and using it in a shell step.
Re-running the gh actions-importer audit jenkins command and inspecting the updated audit summary and generated GitHub Actions workflow snippets.

Relevant references:

Jenkins Pipeline (Multibranch)
GitHub Actions documentation
gh actions-importer: use the tool’s CLI to audit and migrate Jenkins jobs to GitHub Actions.

Initial state: existing Jenkins jobs and previous audit

There were four Jenkins jobs discovered by the previous audit. One job was in a pending state (likely an agent issue); it was cancelled so it wouldn’t interfere with the demo. For reference, here is the trimmed audit summary from the previous run:

Summary for [Jenkins instance](http://139.84.149.83:8080/)

- GitHub Actions Importer version: **1.3.22397 (b4d19e0745a2d2c3db575188f98101dd1f9b4a53)**
- Performed at: **5/21/25 at 18:19**

## Pipelines
Total: **4**

- Successful: **1 (25%)**
- Partially successful: **2 (50%)**
- Unsupported: **1 (25%)**
- Failed: **0 (0%)**

### Job types

Supported: **3 (75%)**

- flow-definition: **2**
- project: **1**

Unsupported: **1 (25%)**

- scripted: **1**

### Build steps
...

Create a Multi-branch Pipeline

We created a new GitHub repo jenkins-demo-org/demo-repo containing two branches: main and uat. Each branch contains a Jenkinsfile — main includes a single stage, while uat contains two stages. To add the multi-branch job in Jenkins, choose New Item → Multi-branch Pipeline and point the Branch Source to the GitHub repository.

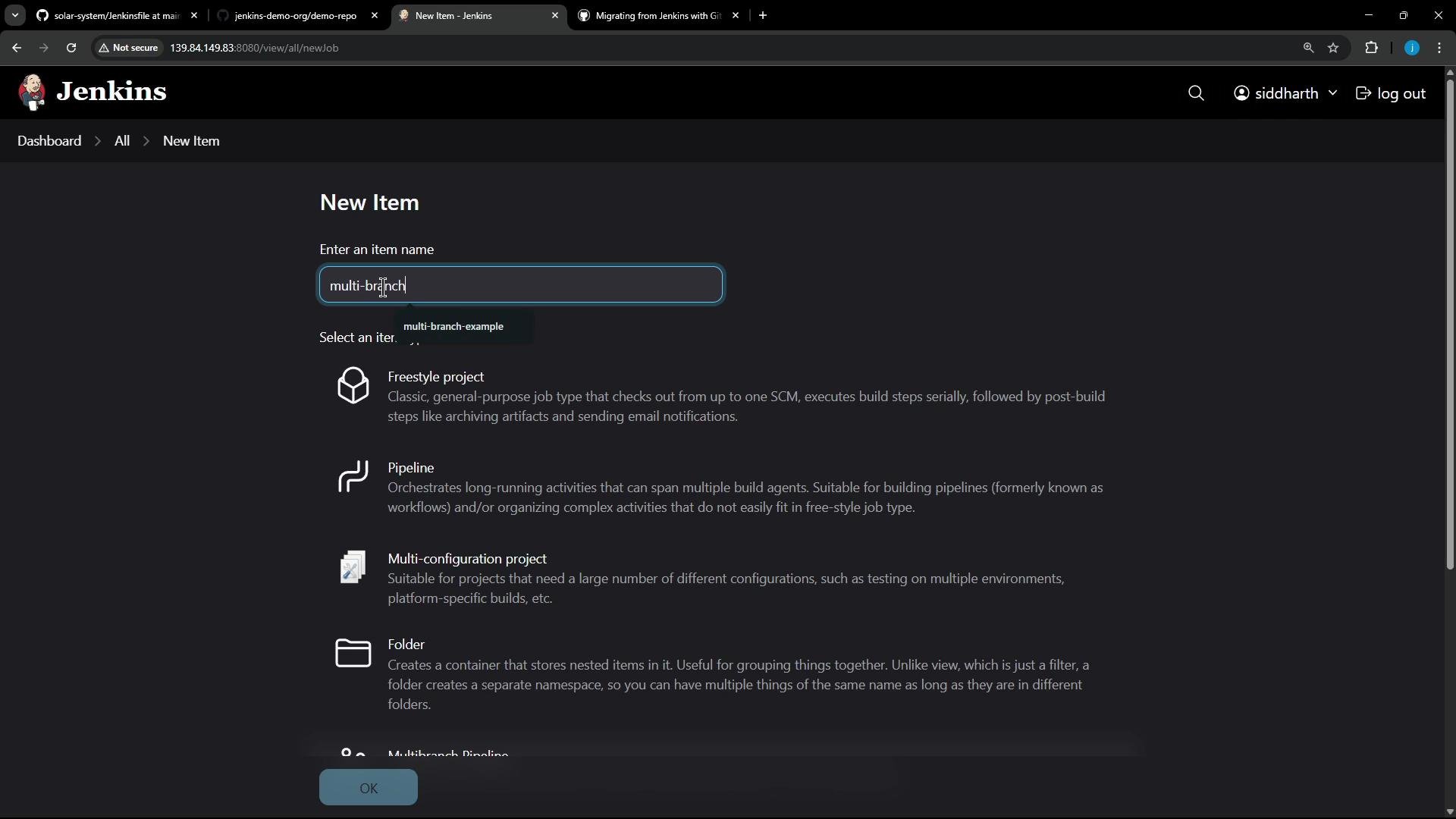

A screenshot of the Jenkins "New Item" page showing an item name field with "multi-branch" typed in. Below it are selectable job types like Freestyle project, Pipeline, and Multi-configuration project.

The demo repository in GitHub:

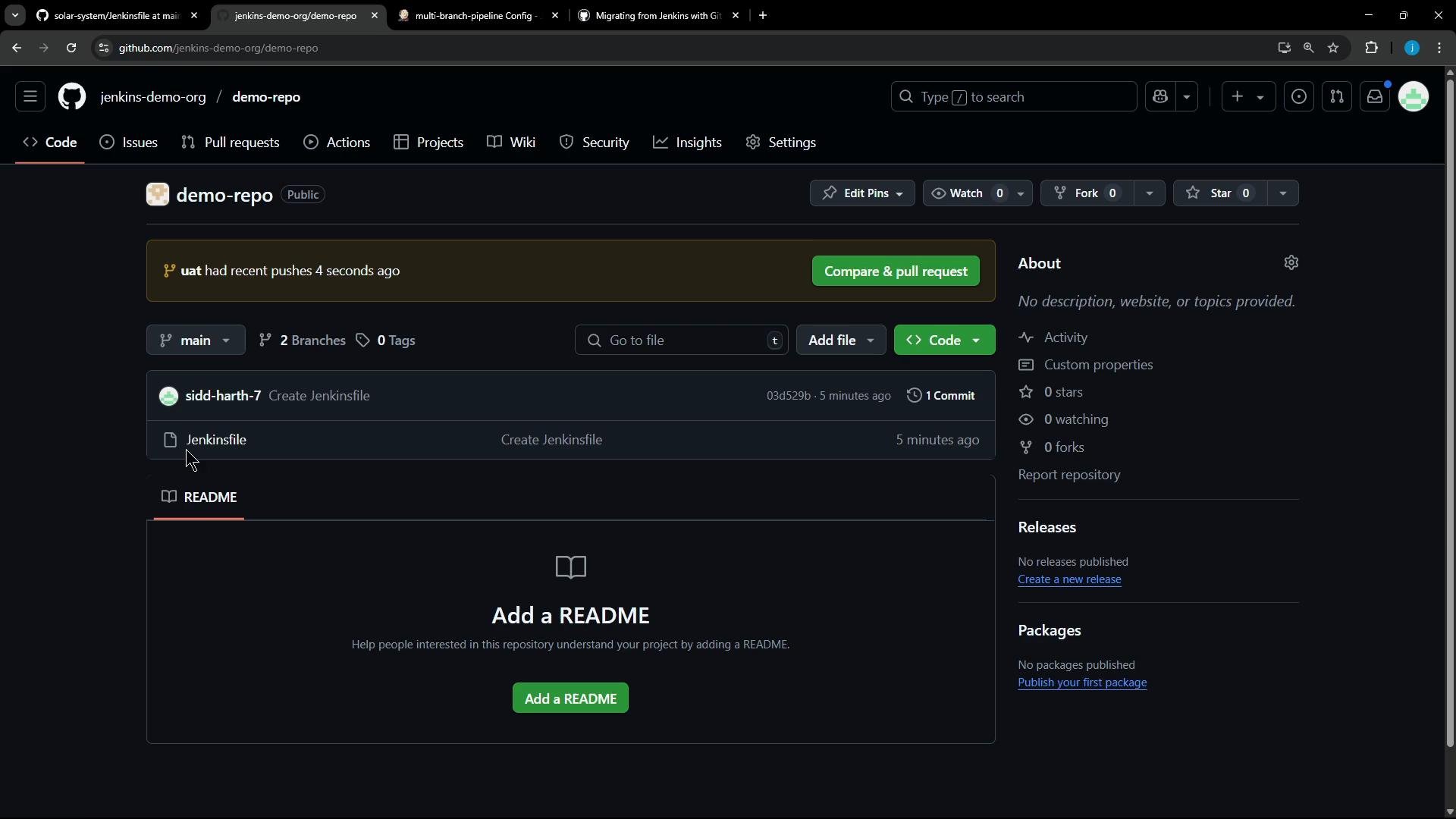

A dark-themed GitHub repository page for "demo-repo" (jenkins-demo-org) showing branch and commit details including a Jenkinsfile. The page also shows an "Add a README" prompt and a "Compare & pull request" button.

Example Jenkinsfile (used in both branches, with uat containing Stage-2):

pipeline {
    agent any

    stages {
        stage('Stage-1') {
            steps {
                echo "stage-1"
            }
        }

        stage('Stage-2') {
            steps {
                echo "stage-2"
            }
        }
    }
}

In the Multi-branch Pipeline configuration we pointed Branch Source to the GitHub repository and validated the connection. This repo is public, so no Jenkins credentials were required when validating the branch source.

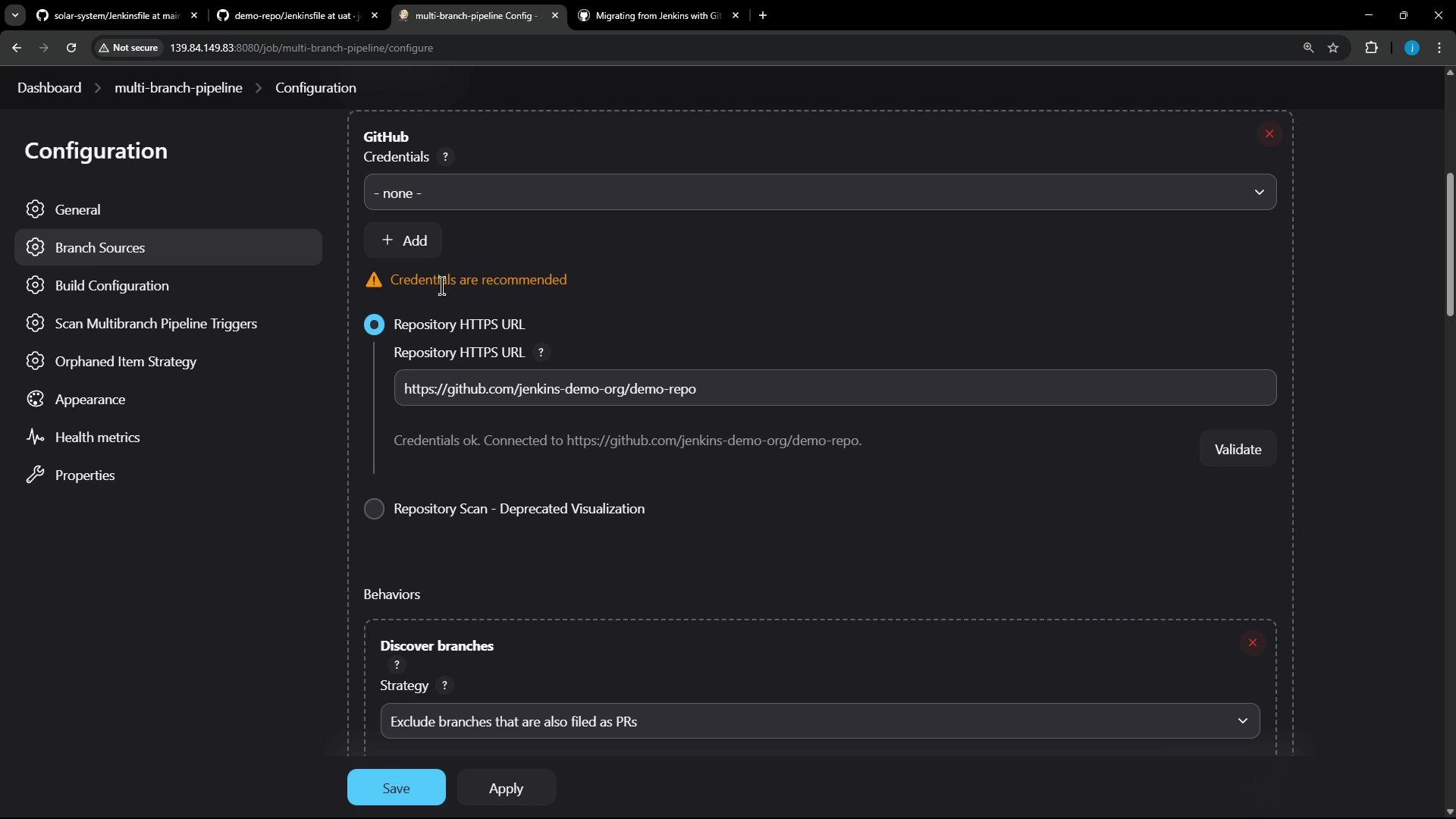

A screenshot of the Jenkins multi-branch pipeline Configuration page showing the Branch Sources section for a GitHub repo, including a Credentials dropdown and the Repository HTTPS URL field populated with https://github.com/jenkins-demo-org/demo-repo. The left sidebar lists other configuration panels and Save/Apply buttons are visible at the bottom.

We left other settings at defaults and saved the job. Jenkins scanned the repository and indexed both branches, reporting that each branch contained a Jenkinsfile and was scheduled for indexing:

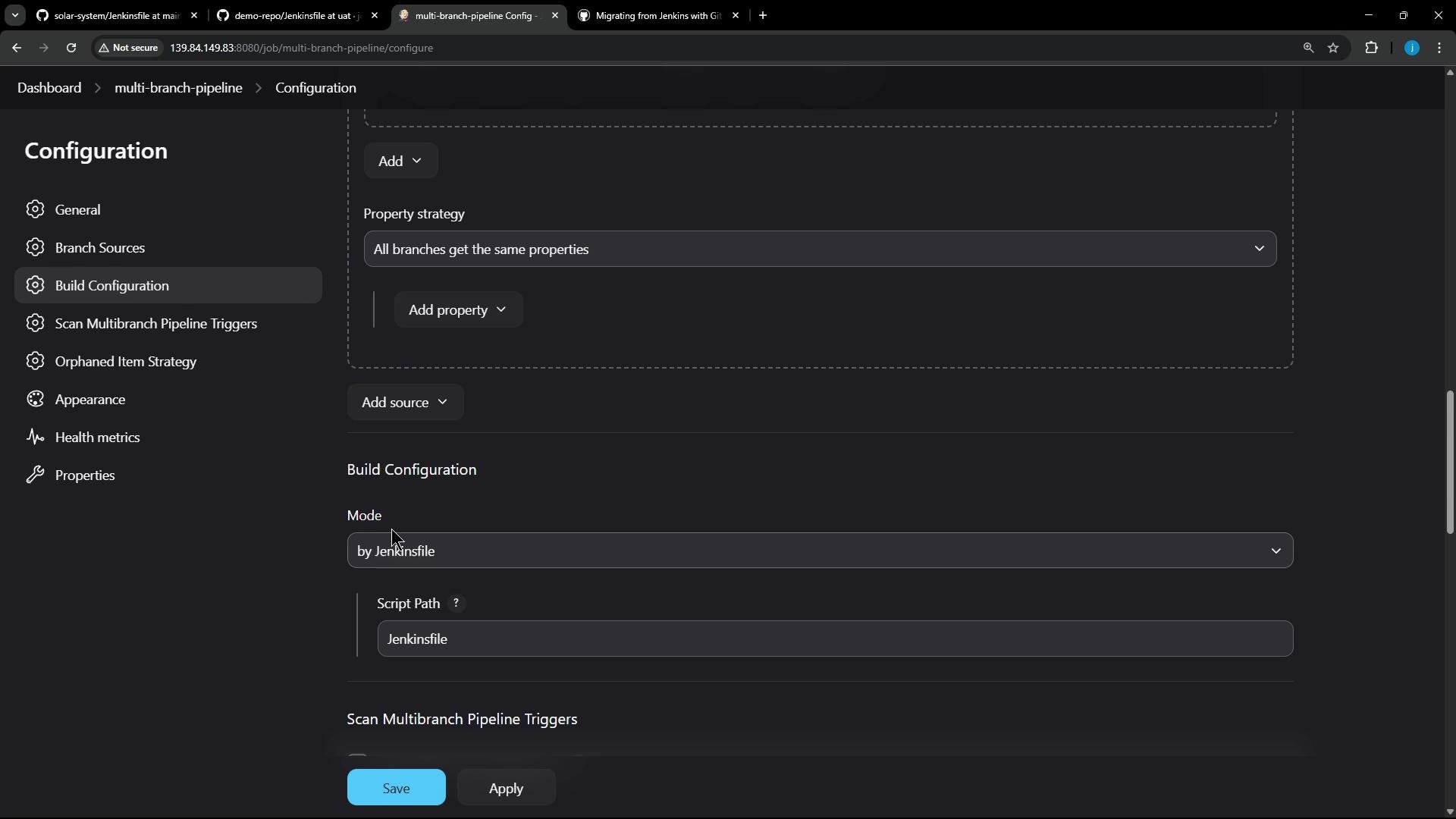

A dark-themed Jenkins web UI screenshot showing the Configuration page for a multi-branch pipeline, with sections like Build Configuration, Property strategy, and Script Path. The left sidebar lists configuration categories and there are "Save" and "Apply" buttons at the bottom.

Indexing console output:

Examining jenkins-demo-org/demo-repo
Checking branches...
Getting remote branches...
Checking branch main
    'Jenkinsfile' found
    Met criteria
Scheduled build for branch: main
Checking branch uat
    'Jenkinsfile' found
    Met criteria
Scheduled build for branch: uat
2 branches were processed
Finished examining jenkins-demo-org/demo-repo
[Thu May 22 09:22:59 UTC 2025] Finished branch indexing. Indexing took 2.2 sec
Finished: SUCCESS

After indexing, the main branch showed a successful build:

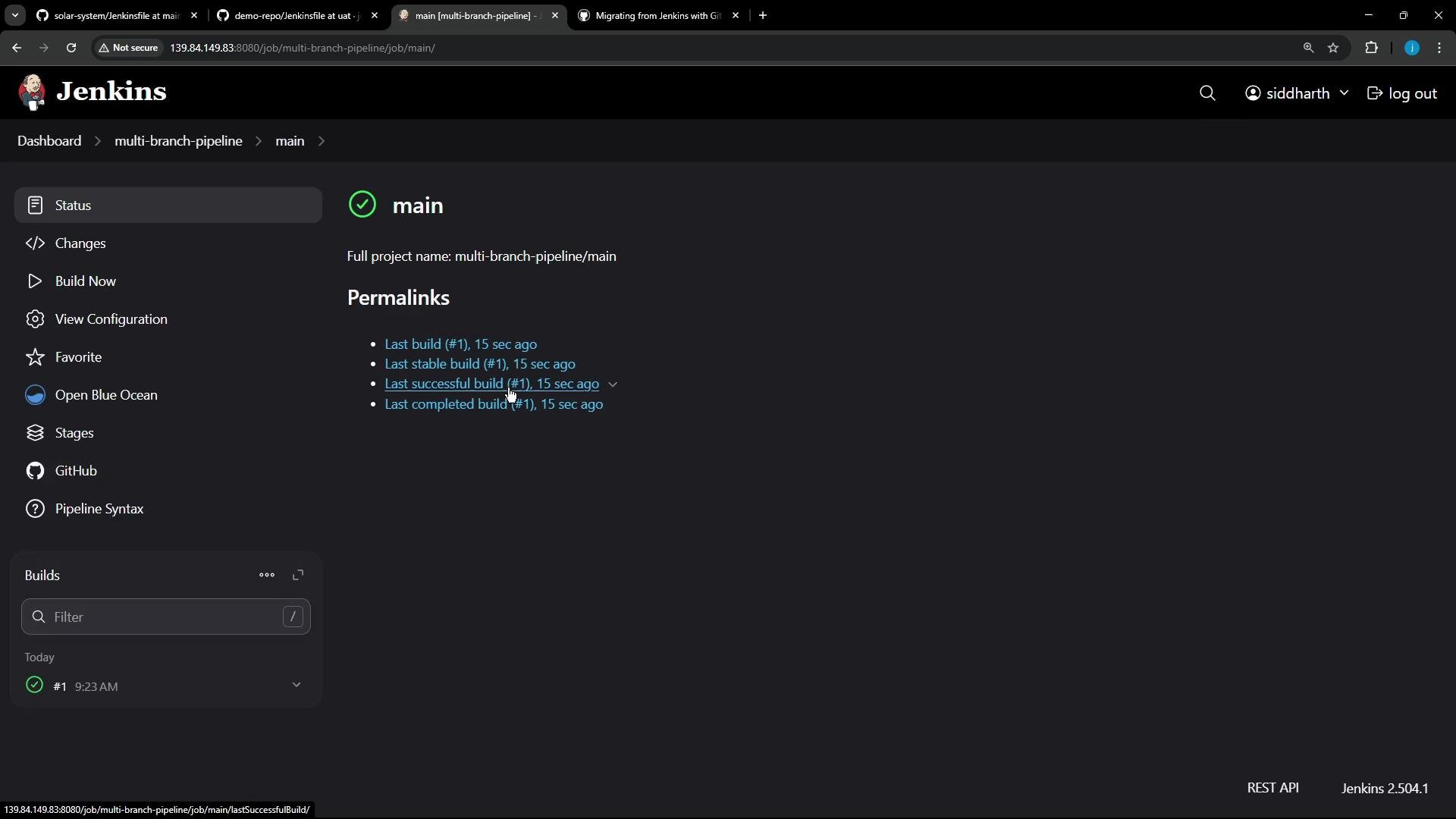

A dark-themed Jenkins dashboard showing the "multi-branch-pipeline / main" job page with permalinks to the last builds and a sidebar of actions (Status, Changes, Build Now, etc.). The Builds panel at left shows a successful build #1.

Add a secret binding to an existing job

Next, we switched to an existing job (Generate ASCII Artwork) and added a secret via Configure → Environment → Bindings. We added a Secret text binding named m_username and selected an existing stored credential (mongo-db-password) for the demo.

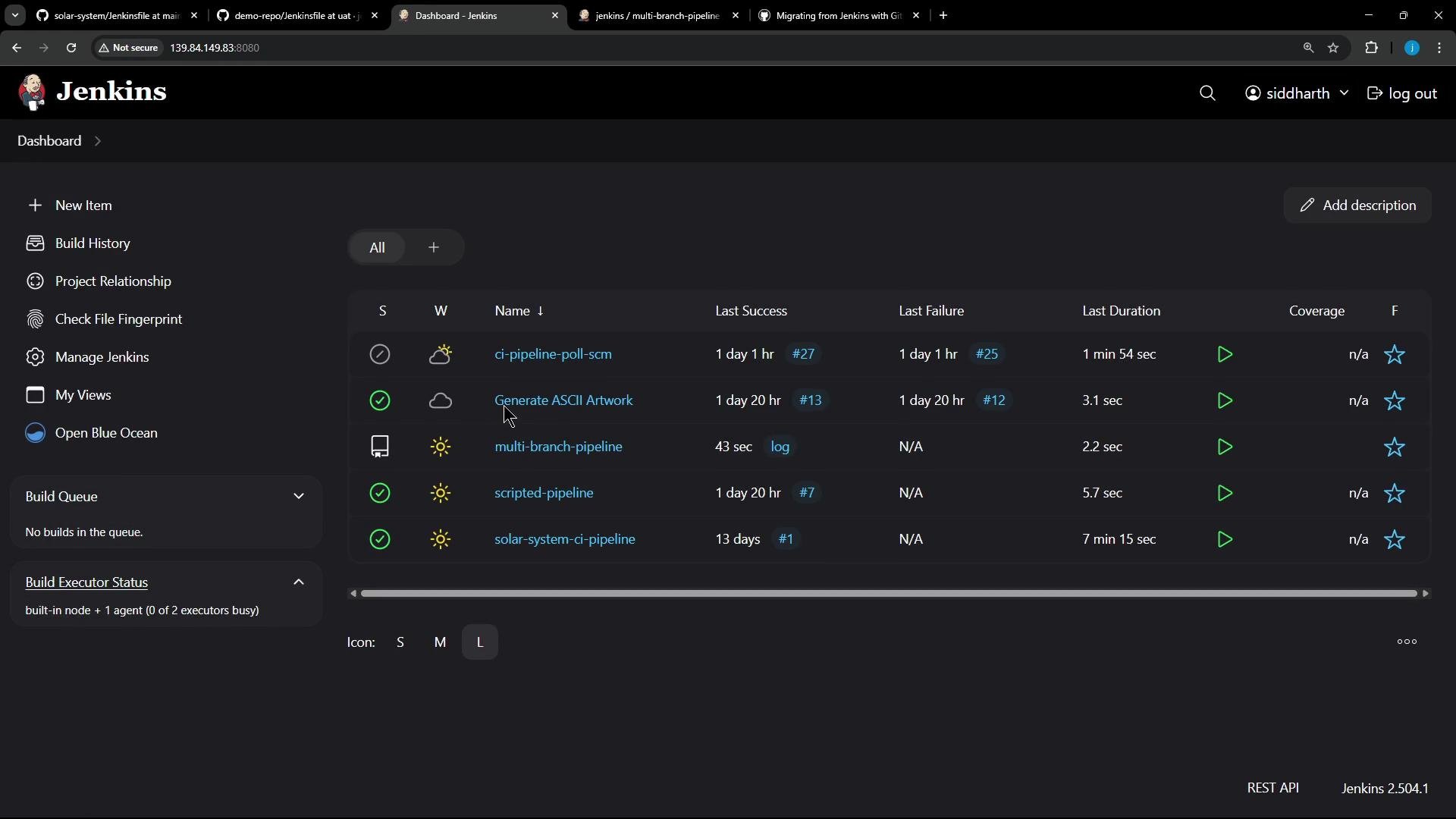

A dark‑themed Jenkins dashboard showing a list of CI pipelines with status icons, last success/failure times, and play buttons. The left sidebar displays navigation items and build queue/executor status.

Bindings configured in the job:

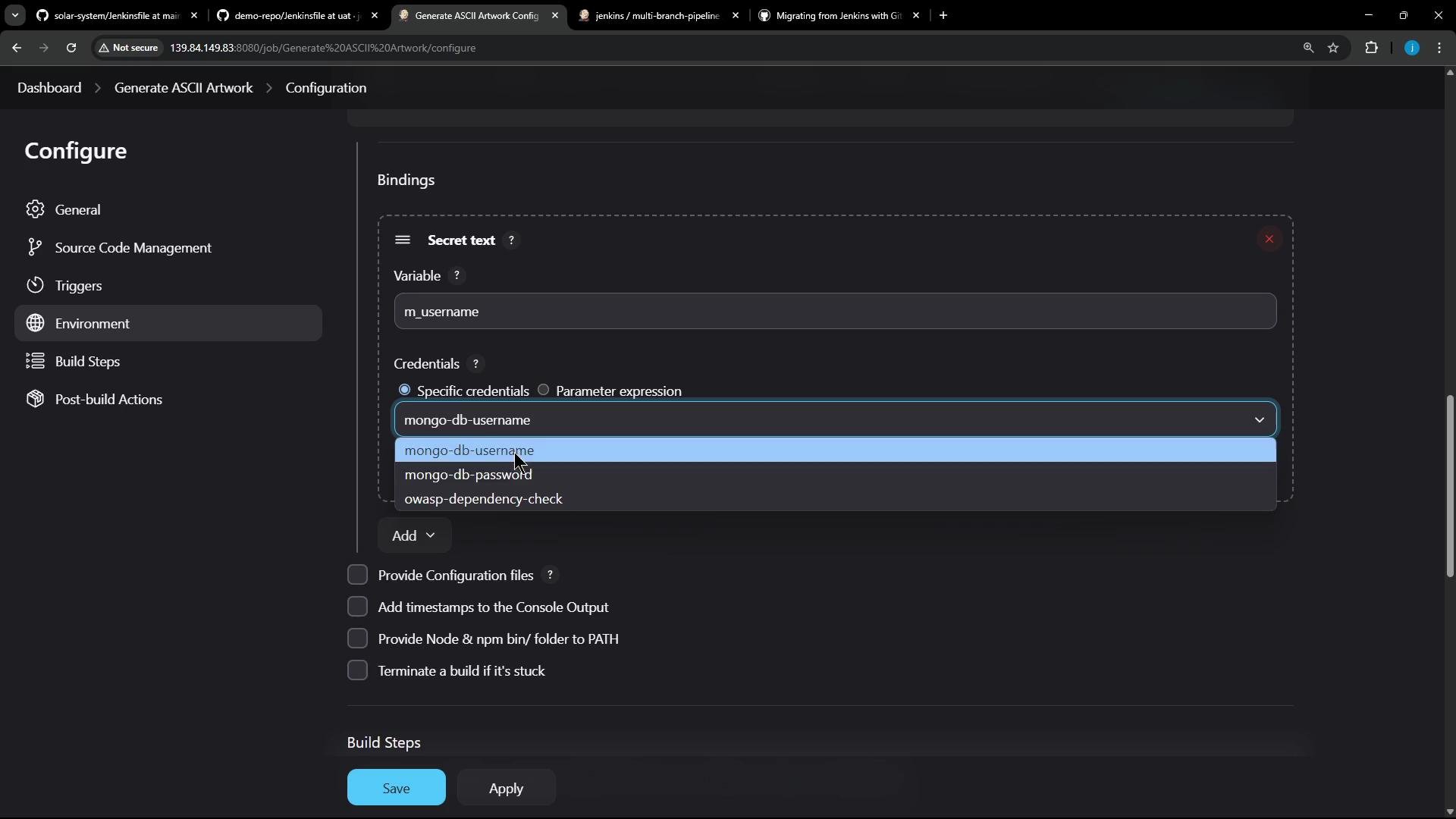

A Jenkins job "Configure" screen showing the Environment > Bindings section with a Secret text variable named "m_username" and a credentials dropdown (options include mongo-db-username, mongo-db-password, owasp-dependency-check). The Save and Apply buttons are visible at the bottom.

We used that variable inside a shell build step. The original demo script had syntax issues; below is an improved and safer version suitable for a shell build step:

#!/bin/bash
# Build a message by invoking ADVICESLIP API
curl -s https://api.adviceslip.com/advice > advice.json
cat advice.json

# Test to make sure the advice message has more than 5 words.
jq -r .slip.advice < advice.json > advice.message
if [ $(wc -w < advice.message) -gt 5 ]; then
  echo "Advice has more than 5 words"
else
  echo "Advice - $(cat advice.message) has 5 or fewer words"
fi

# Deploy (example)
echo "$m_username"
sudo apt-get update && sudo apt-get install -y cowsay
echo "$PATH"
export PATH="$PATH:/usr/games:/usr/local/games"

Notes:

Use jq to extract structured JSON fields reliably.
Avoid printing secrets to logs in production — the example echoes the secret only for demonstration.

Re-run the audit

After saving the new multi-branch job and the updated job with a secret binding, we re-ran the audit to refresh the report and capture the new job and secret binding. Run the audit:

gh actions-importer audit jenkins --output-dir tmp/audit

Trimmed terminal session showing the audit run and redaction:

root@jenkins:/home# gh actions-importer audit jenkins --output-dir tmp/audit
# ... tool runs ...
[2025-05-22 09:25:57] tmp/audit/workflow_usage.csv
[2025-05-22 09:25:57] tmp/audit/audit_summary.md
[2025-05-22 09:26:18] Secrets redacted in file(s):
[2025-05-22 09:26:18] tmp/audit/Generate_ASCII_Artwork/.github/workflows/generate_ascii_artwork.yml
[2025-05-22 09:26:18] tmp/audit/Generate_ASCII_Artwork/config.json
[2025-05-22 09:26:18] tmp/audit/multi-branch-pipeline/main/config.json
[2025-05-22 09:26:18] tmp/audit/multi-branch-pipeline/uat/config.json
[2025-05-22 09:26:18] tmp/audit/multi-branch-pipeline/config.json
Redacting secrets: |---------------------------------------|
root@jenkins:/home# (took 46s)

The updated audit summary now includes the new multi-branch job and the secret binding detection:

Summary for [Jenkins instance](http://139.84.149.83:8080/)

- GitHub Actions Importer version: **1.3.22397 (b4d19e0745a2d2c3db575188f98101dd1f9b4a53)**
- Performed at: **5/22/25 at 09:25**

## Pipelines

Total: **5**

- Successful: **2 (40%)**
- Partially successful: **2 (40%)**
- Unsupported: **1 (20%)**
- Failed: **0 (0%)**

### Job types

Supported: **4 (80%)**

- flow-definition: **2**
- project: **1**
- org.jenkinsci.plugins.workflow.multibranch: **1**

Unsupported: **1 (20%)**
...

Summary table: Before vs After (high level)

Metric	Before (5/21/25 18:19)	After (5/22/25 09:25)
Total pipelines	4	5
Successful	1 (25%)	2 (40%)
Partially successful	2 (50%)	2 (40%)
Unsupported	1 (25%)	1 (20%)
Multi-branch discovered	No	Yes (org.jenkinsci.plugins.workflow.multibranch)

Generated GitHub Actions workflow and secret mapping

The import tool redacted secrets and generated workflow YAML for the Jenkins jobs it can map. It detected the m_username secret and mapped it to a repository/organization-level secret in the generated workflow. You (or a repo administrator) must create that secret in GitHub (repo/org/environment level) so the workflow can use it at runtime. Example generated workflow snippet (secrets must be created in GitHub prior to running the workflow):

name: Generate_ASCII_Artwork
on:
  workflow_dispatch:
env:
  m_username: "${{ secrets.MONGO_DB_PASSWORD_M_USERNAME }}"
jobs:
  build:
    runs-on:
      - ubuntu-latest
    steps:
      - name: checkout
        uses: actions/checkout@v4.1.0
      - name: run command
        shell: bash
        run: |
          # Build a message by invoking ADVICESLIP API
          curl -s https://api.adviceslip.com/advice > advice.json
          cat advice.json
          # Test to make sure the advice message has more than 5 words.
          jq -r .slip.advice < advice.json > advice.message
          if [ $(wc -w < advice.message) -gt 5 ]; then
            echo "Advice has more than 5 words"
          else
            echo "Advice - $(cat advice.message) has 5 or fewer words"
          fi
          # Deploy
          echo "$m_username"
          sudo apt-get update && sudo apt-get install -y cowsay

Important: The tool maps many Jenkins credential types to appropriate GitHub Actions equivalents and creates references in the generated workflows, but it does not create the repository/org secrets for you — you must create those secrets manually in GitHub.

The audit tool maps many Jenkins credential types to GitHub Actions equivalents, but referenced secrets must be created in GitHub (repo/org/environment level) before the workflow runs.

That’s it for this lesson — the updated audit summary and generated artifacts reflect the newly added multi-branch pipeline and the secret binding added to the existing job.
