In this lesson we inspect the OWASP Dependency-Check stage from a Jenkins pipeline and demonstrate how to migrate it into a GitHub Actions workflow. We’ll:
  • Review the migrated workflow that the importer produced.
  • Identify Dependency-Check-related steps that lacked matching transformers.
  • Use a helper transformer to print the Jenkins JSON for those steps.
  • Map the Jenkins configuration to an appropriate GitHub Action that runs OWASP Dependency-Check.
Overview: the migrated workflow already contains environment variables and a runner configuration. The first job installs dependencies:
name: ci-pipeline-poll-scm
on:
env:
  MONGO_URI: mongodb+srv://supercluster.d83jj.mongodb.net/superData
  MONGO_USERNAME: superuser
  MONGO_PASSWORD: "${{ secrets.mongo_db_password }}"
jobs:
  Installing_Dependencies:
    name: Installing Dependencies
    runs-on:
      ubuntu-latest
    container:
      image: node:24
      # This item has no matching transformer
      docker:
        key: args
        value:
          isLiteral: true
          value: "-u root:root"
    steps:
      - name: Checkout
        uses: actions/checkout@v4
      - name: Install dependencies
        shell: bash
        run: npm install --no-audit
A dry-run of the actions-importer confirms the GitHub Actions workflow file was generated:
root@jenkins in /home via 💎
> gh actions-importer dry-run jenkins --source-url http://139.84.149.83:8080/job/ci-pipeline-poll-scm/ --output-dir tmp/dry-run --custom-transformers ss-pipeline-transformer.rb
[2025-05-22 18:54:06] Logs: 'tmp/dry-run-log/valet-20250522_185406.log'
[2025-05-22 18:54:07] Output file(s):
[2025-05-22 18:54:07] tmp/dry-run/ci-pipeline-poll-scm/.github/workflows/ci-pipeline-poll-scm.yml

root@jenkins in /home via 💎 took 15s
The pipeline includes an NPM dependency audit job and an OWASP Dependency-Check job. Both migrated, but the Dependency-Check step (and the Dependency-Check publisher) had no matching transformers in the default migration. To implement a correct translation, inspect the JSON representation emitted by the importer for those Jenkins identifiers. Use a helper transformer that prints the item JSON for multiple identifiers. For example:
transform "sleep", "dependencyCheck", "dependencyCheckPublisher" do |item|
  puts "JSON for identifier: #{item}"
end
Run the importer with the helper transformer to emit the JSON for the dependencyCheck and dependencyCheckPublisher items. Example (abridged) output:
root@jenkins in /home via ◇
> gh actions-importer dry-run jenkins --source-url http://139.84.149.83:8080/job/ci-pipeline-poll-scm/ --output-dir tmp/dry-run --custom-transformers ss-pipeline-transformer.rb --custom-transformers helper-transformer.rb
[2025-05-22 19:01:42] Logs: 'tmp/dry-run/log/valet-20250522-190142.log'
JSON for identifier: {"name"=>"dependencyCheck", "arguments"=>[{"key"=>"additionalArguments", "value"=>{"isLiteral"=>true, "value"=>"\n                                --scan './' \n                                --out ./ \n                                --format ALL \n                                --disableYarnAudit \n                                --prettyPrint --failOnCVSS 9"}}, {"key"=>"nvdCredentialsId", "value"=>{"isLiteral"=>true, "value"=>"owasp-dependency-check"}}, {"key"=>"odcInstallation", "value"=>{"isLiteral"=>true, "value"=>"OWASP-DepCheck-10"}}]}
JSON for identifier: {"name"=>"dependencyCheckPublisher", "arguments"=>[{"key"=>"failedTotalCritical", "value"=>{"isLiteral"=>true, "value"=>1}}, {"key"=>"pattern", "value"=>{"isLiteral"=>true, "value"=>"dependency-check-report.xml"}}, {"key"=>"stopBuild", "value"=>{"isLiteral"=>true, "value"=>true}}]}
[2025-05-22 19:01:43] Output file(s):
[2025-05-22 19:01:43] tmp/dry-run/ci-pipeline-poll-scm/.github/workflows/ci-pipeline-poll-scm.yml

root@jenkins in /home via ◇ took 20s
The important fields from the emitted JSON for the dependencyCheck step are:
{
  "name": "dependencyCheck",
  "arguments": [
    {
      "key": "additionalArguments",
      "value": {
        "isLiteral": true,
        "value": "\n                                --scan './' \n                                --out './' \n                                --format 'ALL' \n                                --disableYarnAudit \n                                --prettyPrint --failOnCVSS 9"
      }
    },
    {
      "key": "nvdCredentialsId",
      "value": {
        "isLiteral": true,
        "value": "owasp-dependency-check"
      }
    },
    {
      "key": "odcInstallation",
      "value": {
        "isLiteral": true,
        "value": "OWASP-DepCheck-10"
      }
    }
  ]
}
Notes on the fields:
  • additionalArguments contains the CLI flags passed to OWASP Dependency-Check. Key items: --scan (path), --out (output path), --format (report formats), and --failOnCVSS 9 (fail build for CVSS ≥ 9).
  • nvdCredentialsId and odcInstallation are Jenkins-specific entries referencing credentials and installer configurations used to accelerate NVD downloads or select a preinstalled Dependency-Check binary. These typically do not translate directly to ephemeral GitHub Actions runners.
CVSS score ranges are commonly used to gate failures. For reference, scores ≥ 9 are considered Critical, and scores between 7 and 8.9 are High:

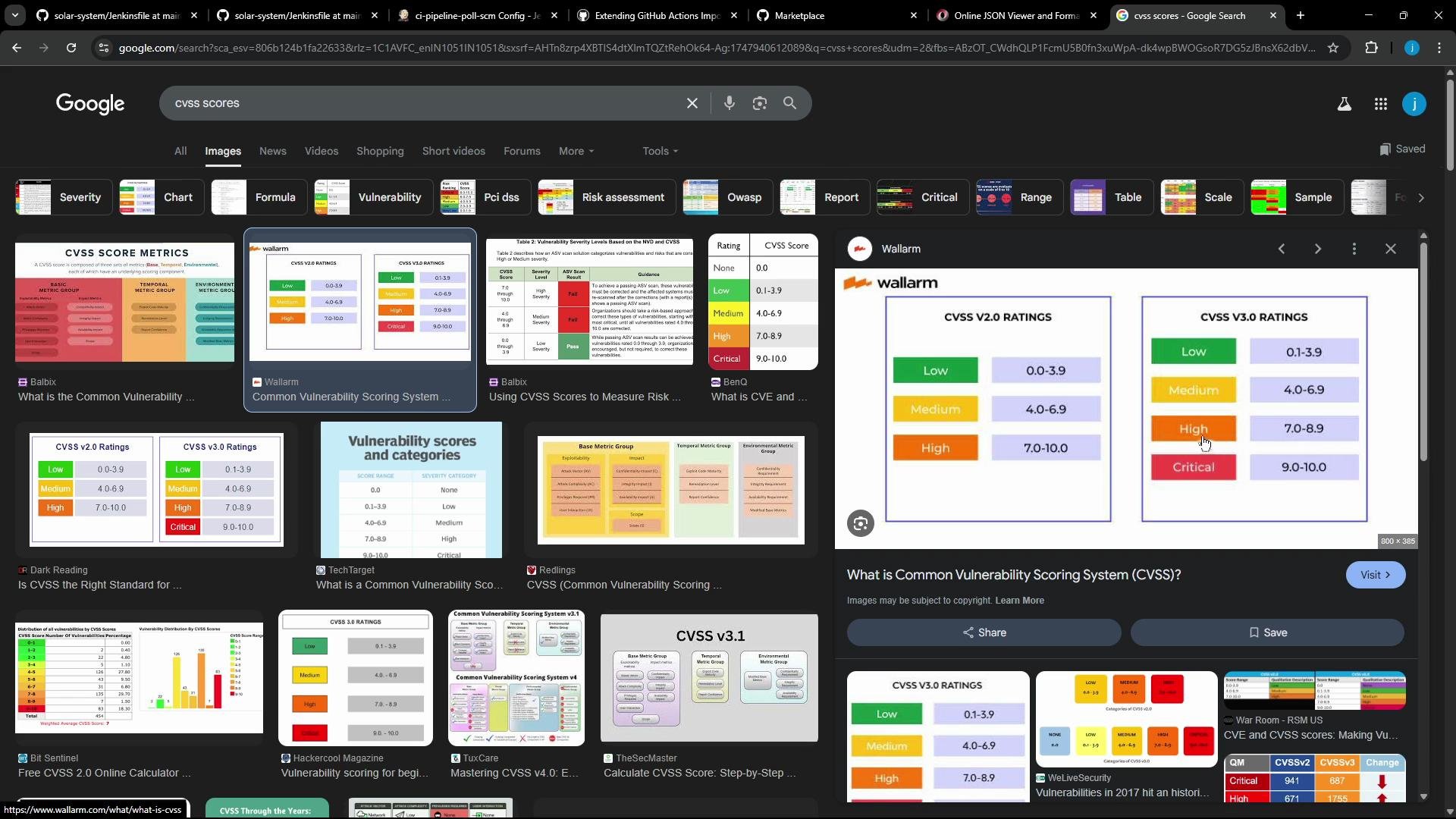

A screenshot of a Google Images results page for "cvss scores," showing many thumbnails and charts that display CVSS rating categories (Low, Medium, High, Critical) and score ranges. The browser is in a dark theme with search tabs visible across the top.
Jenkins’ nvdCredentialsId and odcInstallation point to server-side configuration. When migrating to Actions, prefer a maintained Action or Docker image that packages Dependency-Check. If you need authenticated or mirrored NVD access, you’ll need to provide credentials or a custom DB image to the Action.
Because GitHub Actions runners are ephemeral, the typical approach is to use an existing Action that runs Dependency-Check inside a Docker image. The GitHub Marketplace project dependency-check/dependency-check-action runs OWASP Dependency-Check in a container and exposes inputs for common CLI options. A mapped GitHub Actions job that runs Dependency-Check might look like this:
on: [push]

jobs:
  depchecktest:
    runs-on: ubuntu-latest
    name: depcheck_test
    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Build project (example: Maven)
        run: mvn -B -DskipTests clean package

      - name: Run OWASP Dependency-Check
        uses: dependency-check/dependency-check-action@main
        id: depcheck
        with:
          project: 'test'
          path: '.'
          format: 'HTML'
          out: 'reports' # default is 'reports'
          args: >
            --failOnCVSS 9
            --enableRetired

      - name: Upload Dependency-Check report
        uses: actions/upload-artifact@v3
        with:
          name: depcheck-report
          path: ${{ github.workspace }}/reports
Key mapping decisions (Jenkins → GitHub Actions):
Jenkins field / CLI flagPurposeGitHub Action mapping / notes
--scanPath(s) to scanAction input path (or pass via args)
--outOutput directoryAction input out
--formatReport format(s) (XML/HTML/ALL)Action input format
--failOnCVSS <score>Fail build if highest CVSS ≥ scorePass as args: --failOnCVSS 9 or implement follow-up checks
nvdCredentialsId, odcInstallationJenkins-specific credentials/installerUsually omitted; the Action provides the runtime. Use custom runner or additional Action inputs for special NVD access.
If your Jenkins pipeline relied on a pre-downloaded NVD DB (via odcInstallation) or private NVD credentials, you must plan how to supply that to Actions: either use a self-hosted runner with the database pre-populated or configure the Action to use an authenticated/mirrored NVD feed. Otherwise scans may be slower or behave differently.
Best practices when migrating Dependency-Check:
  • Translate CLI flags (--scan, --out, --format, --failOnCVSS) into the Action’s with inputs or into args.
  • Upload generated reports with actions/upload-artifact@v3 so they are available in the Actions UI.
  • For “publisher” logic (e.g., “fail build if N critical vulnerabilities”), convert to --failOnCVSS or implement a follow-up step that parses the XML report and fails the job based on thresholds from the Jenkins dependencyCheckPublisher config.
Next steps (next lesson/article):
  • Implement a custom transformer that extracts format, failOnCVSS, --scan path, and other important flags from the Jenkins JSON and emits a corresponding GitHub Actions step.
  • Translate the Dependency-Check publisher config: detect the XML pattern, and translate the “fail build if N criticals” logic into Action flags or a separate report-parsing step.
Links and references: That’s all for now.
