This lesson shows how to migrate a Jenkins pipeline stage that runs the Trivy vulnerability scanner into an equivalent GitHub Actions job. The objective is to preserve behavior:
  • Scan the built Docker image,
  • Fail the pipeline when CRITICAL vulnerabilities are found,
  • Publish an HTML report for inspection.
Below we start with the relevant Jenkins stages, explain what they do, show the equivalent GitHub Actions step, and present a sample custom transformer (Ruby) used by migration tooling to automate the conversion.

​
Jenkins pipeline (source)

Here is the consolidated, relevant portion of the original Jenkinsfile. It includes three stages: Code Coverage, Build/Publish Image, and Trivy Vulnerability Scanner.
stage('Code Coverage') {
    agent {
        docker {
            image 'node:24'
            args '-u root:root'
        }
    }
    steps {
        catchError(buildResult: 'SUCCESS', message: 'Oops! it will be fixed in future releases', stageResult: 'UNSTABLE') {
            sh 'npm run coverage'
        }
        publishHTML([
            allowMissing: true,
            alwaysLinkToLastBuild: true,
            keepAll: true,
            reportDir: 'coverage/lcov-report',
            reportFiles: 'index.html',
            reportName: 'Coverage'
        ])
    }
}

stage('Build Publish Image') {
    steps {
        sh 'docker build -t siddharth67/solar-system:$GIT_COMMIT .'
        withDockerRegistry(credentialsId: 'docker-hub-credentials', url: "") {
            sh 'docker push siddharth67/solar-system:$GIT_COMMIT'
        }
    }
}

stage('Trivy Vulnerability Scanner') {
    steps {
        sh '''trivy image siddharth67/solar-system:$GIT_COMMIT --severity CRITICAL --exit-code 1 --quiet --format json -o trivy-image-CRITICAL-results.json'''
        sh '''trivy convert --format template --template "@/usr/local/share/trivy/templates/html.tpl" --output trivy-image-CRITICAL-results.html trivy-image-CRITICAL-results.json'''
        publishHTML([
            allowMissing: true,
            alwaysLinkToLastBuild: true,
            keepAll: true,
            reportDir: './',
            reportFiles: 'trivy-image-CRITICAL-results.html',
            reportName: 'Trivy CRITICAL'
        ])
    }
}
What these Jenkins sh steps do:
  • The trivy image command scans siddharth67/solar-system:$GIT_COMMIT with:
    • --severity CRITICAL (filter to CRITICAL)
    • --exit-code 1 (non-zero exit if CRITICAL vuln found)
    • --quiet (less noisy)
    • --format json -o <file> (JSON output saved)
  • The trivy convert command converts JSON into an HTML report using a template.

​
Why use the official Trivy GitHub Action?

The official action from Aqua Security (aquasecurity/trivy-action) can run Trivy on GitHub Actions runners and produce templated output directly (avoiding a separate convert step). It supports inputs such as format, template, output, severity, exit-code, and hide-progress.
Using aquasecurity/trivy-action lets you:
  • run Trivy without installing it manually on runners,
  • request templated HTML output directly (via format: template and template),
  • set exit-code so the job fails conditionally based on severity.
See the action documentation: https://github.com/aquasecurity/trivy-action

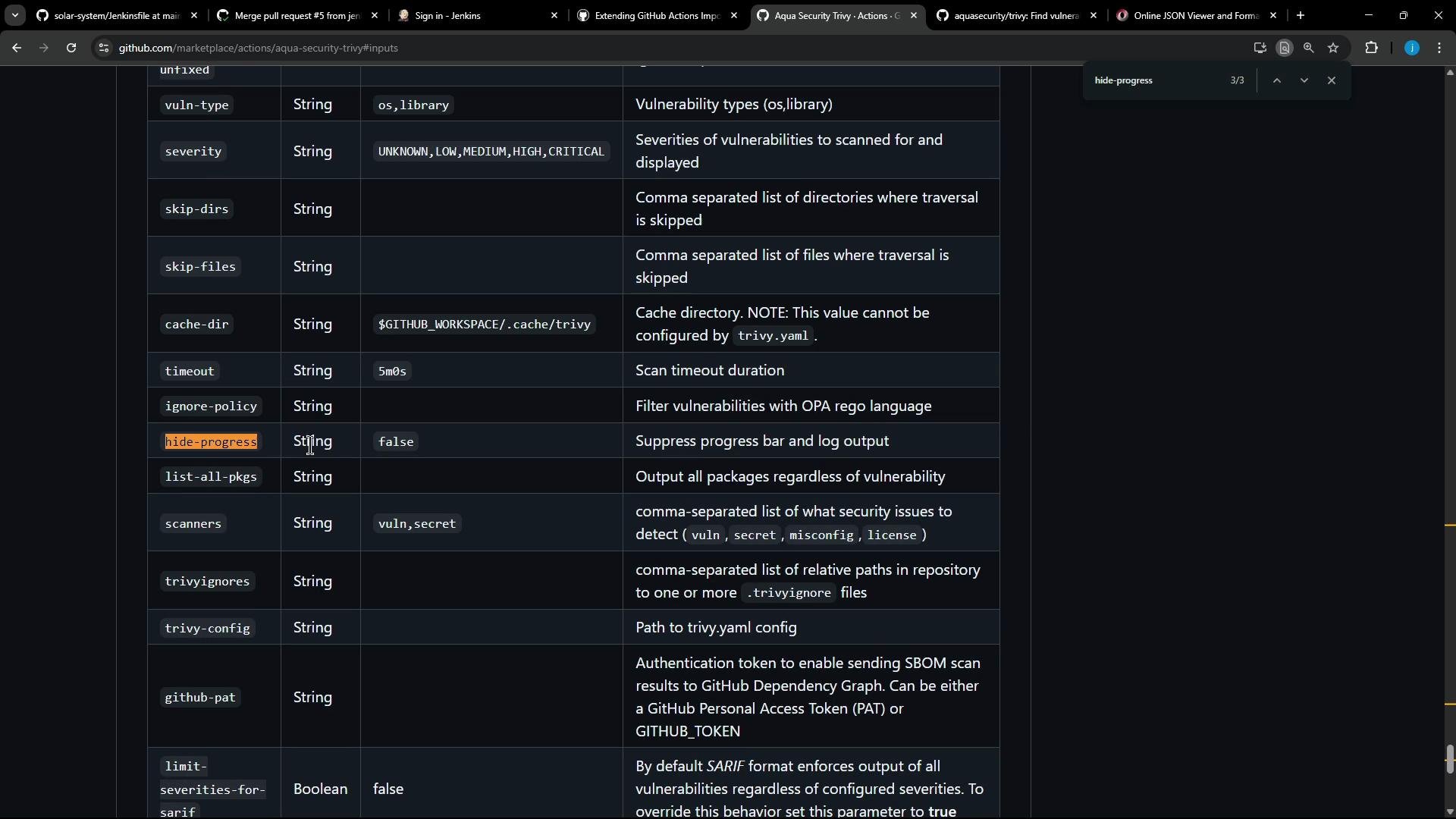

A dark-themed screenshot of a GitHub Marketplace / Actions page showing a table of inputs for the Aqua Security Trivy action, with columns for option name, type, default and description. The table lists parameters like vuln-type, severity, skip-dirs, cache-dir and a highlighted "hide-progress" row.

​
Mapping Jenkins flags to Trivy Action inputs

Use this quick reference when converting the Jenkins trivy shell invocation into action inputs.
Jenkins option / behaviorTrivy Action inputExample
--severity CRITICALseverityCRITICAL
--exit-code 1exit-code1
--quiethide-progresstrue
--format json -o file.json + trivy convertformat: template, template: <path>, outputformat: template, template: "@$HOME/.local/bin/trivy-bin/contrib/html.tpl", output: trivy-results.html
Image reference (e.g. siddharth67/solar-system:$GIT_COMMIT)image-ref${{ vars.DOCKERHUB_USERNAME }}/${{ vars.IMAGE_NAME }}:${{ github.sha }}
Notes:
  • Wrap special GitHub expressions and variables in backticks when showing in docs (e.g. ${{ github.sha }}).
  • Use format: template to make the action emit HTML directly, avoiding a separate conversion step.

​
Minimal GitHub Actions step equivalent

A compact Actions step that mirrors the Jenkins behavior and outputs an HTML report:
- name: Run Trivy vulnerability scanner
  uses: aquasecurity/trivy-action@v0.30.0
  with:
    image-ref: "docker.io/my-organization/my-app:${{ github.sha }}"
    format: template
    template: "@$HOME/.local/bin/trivy-bin/contrib/html.tpl"
    output: trivy-results.html
    exit-code: '1'
    severity: "CRITICAL"
    hide-progress: true
Note: the template path above references the template bundled by the action. You can also provide a custom template file in your repository and point to it.

​
Automating the conversion: custom transformer (Ruby)

To automate migrating Jenkins sh steps to GitHub Actions, you can create a transformer that:
  • Detects sh calls that invoke trivy image,
  • Extracts the image reference, severity, format, output file, exit code, quiet flag,
  • Normalizes image references into repository variables (e.g. vars.DOCKERHUB_USERNAME, vars.IMAGE_NAME) and substitutes ${{ github.sha }},
  • Emits a aquasecurity/trivy-action step plus an actions/upload-artifact step that runs with if: ${{ always() }} so the report is uploaded even if the scan fails.
Example transformer used with migration tooling:
# ss-pipeline-transformer.rb
# Example transformer that converts Jenkins 'sh' trivy commands into GH Actions steps.
transform "sh" do |item|
  script = item.dig("arguments", 0, "value", "value").to_s.strip
  next nil unless script.downcase.start_with?("trivy image")

  # Extract image reference
  image_match = script.match(/trivy image (\S+)/i)
  image_ref = image_match ? image_match[1] : nil
  next nil unless image_ref

  # Extract other flags (fault-tolerant)
  severity = script.match(/--severity\s+(\S+)/i)&.captures&.first || "CRITICAL"
  format   = script.match(/--format\s+(\S+)/i)&.captures&.first || "json"
  output   = script.match(/-o\s+(\S+)/i)&.captures&.first || "trivy-results.json"
  exit_code = (script.match(/--exit-code\s+(\d+)/i)&.captures&.first || "1").to_i
  quiet = script.include?("--quiet") || script.include?("--quiet=true")

  # Normalize the image reference if it matches the original pattern
  if image_ref.include?("siddharth67/solar-system") || image_ref.include?("siddharth67/solar-system:$GIT_COMMIT")
    normalized_image_ref = "${{ vars.DOCKERHUB_USERNAME }}/${{ vars.IMAGE_NAME }}:${{ github.sha }}"
  else
    normalized_image_ref = image_ref
  end

  # Decide template-based output (we want HTML directly)
  # Use the Trivy action with template format and set the output to an HTML file
  trivy_output_html = output.end_with?(".html") ? output : "trivy-results.html"

  [
    {
      "name" => "Trivy Security Scan",
      "uses" => "aquasecurity/trivy-action@v0.30.0",
      "with" => {
        "image-ref" => normalized_image_ref,
        "severity"  => severity,
        "format"    => "template",
        "template"  => "@$HOME/.local/bin/trivy-bin/contrib/html.tpl",
        "output"    => trivy_output_html,
        "exit-code" => exit_code,
        "hide-progress" => quiet
      }
    },
    {
      "name" => "Upload Scan Report",
      "if" => "${{ always() }}",
      "uses" => "actions/upload-artifact@v4",
      "with" => {
        "name" => "Trivy Report",
        "path" => trivy_output_html
      }
    }
  ]
end
When the transformer runs as part of the migration tool, it replaces the Jenkins sh Trivy commands with the two GitHub Actions steps shown below.

​
Generated GitHub Actions job (migrated)

Example of the generated job after running the transformer:
Trivy_Vulnerability_Scanner:
  name: Trivy Vulnerability Scanner
  runs-on:
    - ubuntu-latest
  needs: Build_Publish_Image
  steps:
    - name: checkout
      uses: actions/checkout@v4.1.0
    - name: Trivy Security Scan
      uses: aquasecurity/trivy-action@v0.30.0
      with:
        image-ref: "${{ vars.DOCKERHUB_USERNAME }}/${{ vars.IMAGE_NAME }}:${{ github.sha }}"
        severity: CRITICAL
        format: template
        template: "@$HOME/.local/bin/trivy-bin/contrib/html.tpl"
        output: trivy-results.html
        exit-code: 1
        hide-progress: true
    - name: Upload Scan Report
      if: "${{ always() }}"
      uses: actions/upload-artifact@v4
      with:
        name: Trivy Report
        path: trivy-results.html
After the migrated workflow runs:
  • The Trivy action installs the Trivy binary, runs the scan, and writes trivy-results.html.
  • If no CRITICAL vulnerabilities are found, the job succeeds and the report is uploaded.
  • If CRITICAL vulnerabilities are found, the action exits with code 1 (job fails), but the upload step still runs because of if: ${{ always() }} so you can download the report.

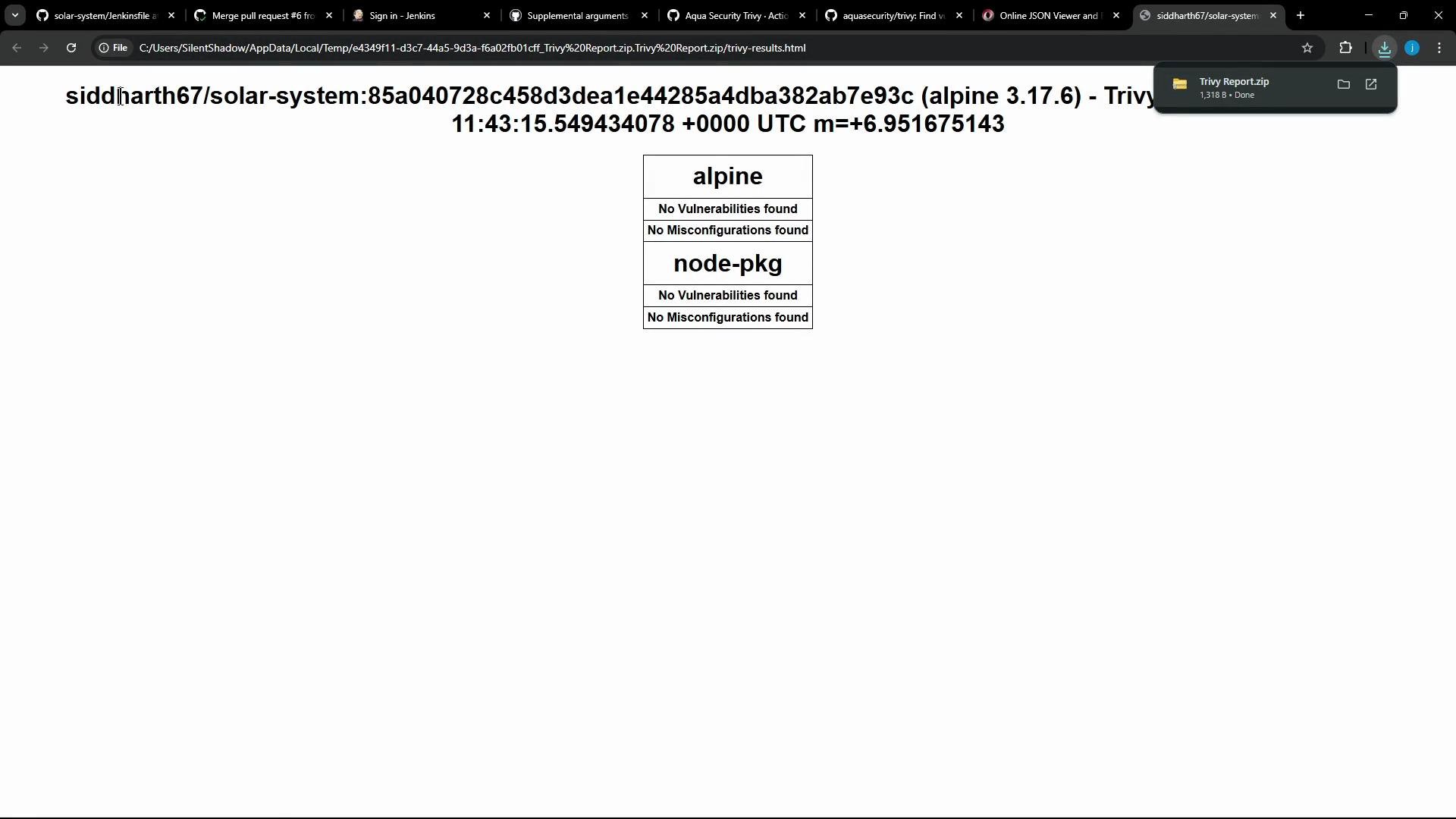

A browser screenshot of a Trivy scan results page for "siddharth67/solar-system" showing "alpine" and "node-pkg" with "No Vulnerabilities found" and "No Misconfigurations found." A small download notification for "Trivy Report.zip" is visible in the top-right.

​
Best practices & tips

​
Summary

  • The Jenkins trivy image + trivy convert pipeline can be mapped directly to aquasecurity/trivy-action in GitHub Actions to simplify the workflow and avoid manual conversions.
  • A custom transformer can detect trivy shell commands and emit equivalent action steps while normalizing image references and preserving behavior (severity, exit-code, quiet).
  • Upload reports using actions/upload-artifact@v4 with if: ${{ always() }} so you can inspect results even on failures.
This approach keeps the original pipeline intent intact while producing a cleaner, maintainable workflow native to GitHub Actions.
