Mapping Jenkins Directives to GitHub Actions Workflow

GitHub Actions and Jenkins share many CI/CD concepts, so migrating pipelines is usually a matter of translating declarative constructs. This guide compares common Jenkins Declarative Pipeline directives with their GitHub Actions equivalents and provides concise, copy-ready examples to accelerate migration.

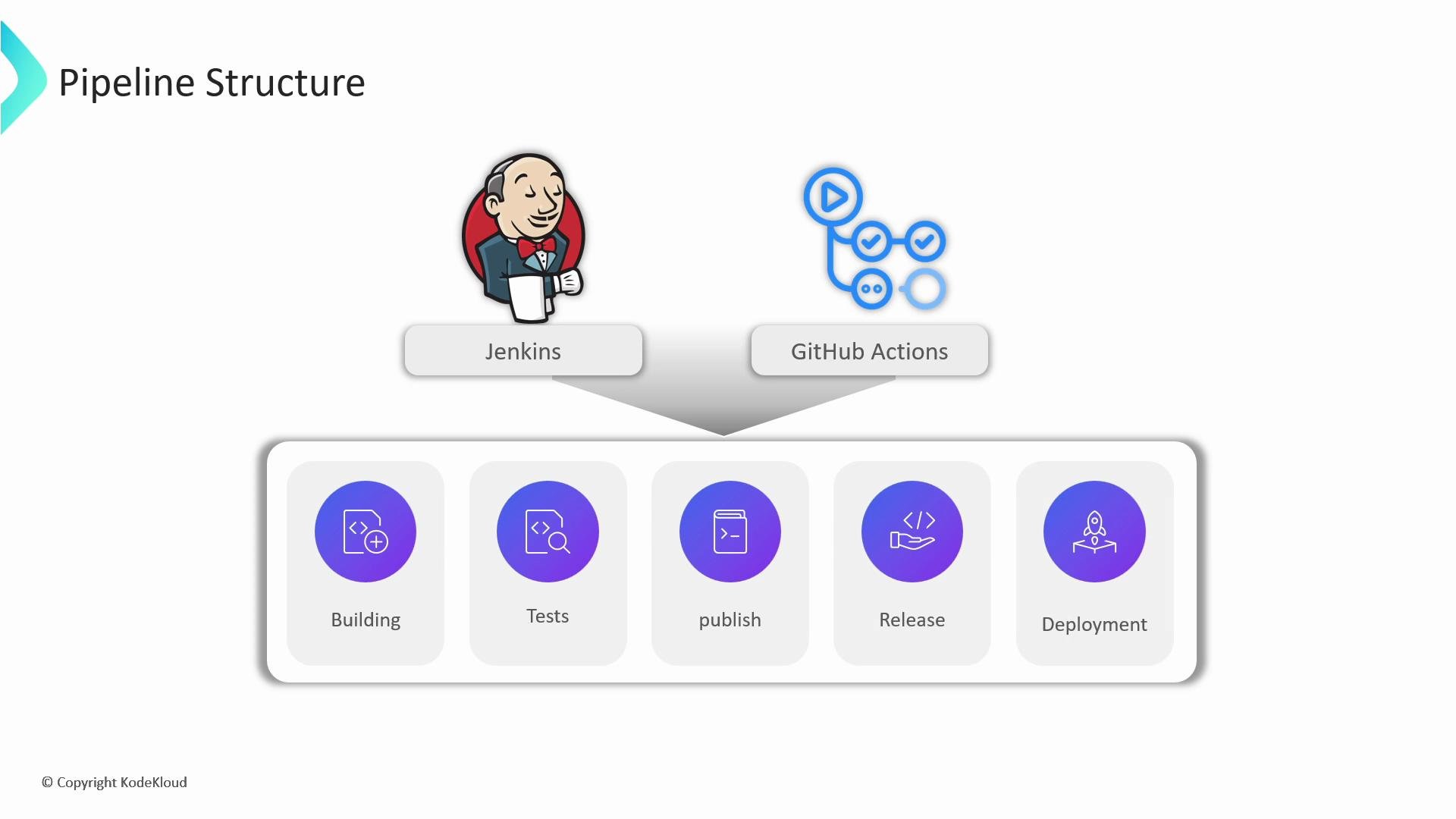

A diagram titled "Pipeline Structure" showing Jenkins and GitHub Actions at the top feeding into a CI/CD pipeline. The pipeline includes stages labeled Building, Tests, publish, Release, and Deployment.

Overview

Jenkins Declarative Pipelines are Groovy-based and organized into top-level sections such as agent, environment, and stages.
GitHub Actions workflows use YAML organized under on, jobs, env, defaults, and permissions.
Conceptual mappings:
- Jenkins stages → GitHub Actions jobs
- Jenkins steps → GitHub Actions steps (nested under a job)
- Jenkins agent → GitHub Actions runs-on (and optionally container)

Quick mapping table

Jenkins concept	GitHub Actions equivalent	Notes / example
`pipeline` / `stages`	`workflow` / `jobs`	Jobs run independently; use job dependencies to sequence.
`agent`	`runs-on` / `container`	Example: `runs-on: ubuntu-latest` or `container: node:18`.
`environment`	`env`	Use workflow-level or job-level `env`.
`withCredentials`	`${{ secrets.* }}`	Store secrets in repo/org settings.
`when`	`if`	`if` works at job or step level.
Parallel stages	parallel `jobs` or `strategy.matrix`	Matrix runs are ideal for multiple configs.
Triggers / `cron`	`on` (schedule, push, workflow_dispatch)	Use `on.schedule` for cron-based runs.

Links and references

Jenkins Declarative Pipeline: https://www.jenkins.io/doc/book/pipeline/
GitHub Actions: https://docs.github.com/actions

Top-level pipeline → jobs

Jenkins declarative pipeline (Groovy):

pipeline {
  agent any
  stages {
    stage('Build') {
      steps {
        sh 'npm install'
      }
    }
    stage('Test') {
      steps {
        sh 'npm test'
      }
    }
  }
}

Equivalent GitHub Actions workflow (YAML):

name: CI
on: [push, pull_request]

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - name: Check out code
        uses: actions/checkout@v4

      - name: Install dependencies
        run: npm install

      - name: Run tests
        run: npm test

Jenkins stages are often sequential by default. In GitHub Actions, implement sequential phases by introducing job dependencies (using needs), or keep multiple sequential steps inside one job.

Agents, runners, and containers

Mappings at a glance:

Jenkins agent any → runs-on: ubuntu-latest
Jenkins agent { label 'docker' } → runs-on: [self-hosted, docker]
Jenkins agent { docker { image 'alpine' } } → container: alpine (inside a job)

Jenkins example:

pipeline {
  agent { docker { image 'node:18' } }
  stages {
    stage('Test') {
      steps {
        sh 'node -v'
      }
    }
  }
}

GitHub Actions equivalent (runs the job inside a Node container on a GitHub-hosted runner):

jobs:
  build:
    runs-on: ubuntu-22.04
    container:
      image: node:18
    steps:
      - uses: actions/checkout@v4
      - name: Print Node version
        run: node -v

Explanation:

runs-on provisions the VM environment; container launches the specified container image inside that VM. All steps run within the container.

Environment variables

Jenkins:

pipeline {
  agent any
  environment {
    NODE_ENV = 'production'
  }
  stages {
    stage('Build') {
      steps {
        sh 'echo $NODE_ENV'
      }
    }
  }
}

GitHub Actions (workflow-level and job-level env):

env:
  NODE_ENV: production

jobs:
  build:
    runs-on: ubuntu-latest
    env:
      APP_VERSION: "1.0.0"
    steps:
      - name: Print envs
        run: |
          echo "NODE_ENV=$NODE_ENV"
          echo "APP_VERSION=$APP_VERSION"

Notes:

Use env at the workflow level to set variables available to all jobs, and at job or step level for narrower scope.

Credentials and secrets

Jenkins with withCredentials:

withCredentials([usernamePassword(credentialsId: 'db-creds', usernameVariable: 'DB_USER', passwordVariable: 'DB_PASS')]) {
  sh 'echo "User: $DB_USER"'
}

GitHub Actions (use repository or organization secrets):

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - name: Deploy step
        env:
          DB_USER: ${{ secrets.DB_USER }}
          DB_PASS: ${{ secrets.DB_PASS }}
        run: |
          echo "User: $DB_USER"
          # Use $DB_PASS securely in commands that accept stdin or env vars

Never print secrets to logs. In GitHub Actions, reference secrets using ${{ secrets.YOUR_SECRET }} and avoid echoing them. Masked secrets are protected, but logging them exposes risk.

Conditional execution

Jenkins example using when:

stage('Deploy') {
  when {
    branch 'main'
  }
  steps {
    sh 'deploy-script.sh'
  }
}

GitHub Actions uses if at the job or step level:

jobs:
  deploy:
    runs-on: ubuntu-latest
    if: github.ref == 'refs/heads/main'
    steps:
      - name: Deploy
        run: ./deploy-script.sh

Example: condition on PR comment body

jobs:
  conditional:
    runs-on: ubuntu-latest
    if: contains(github.event.comment.body, '/deploy')
    steps:
      - run: echo "Deploy triggered by comment"

Parallelism and matrix builds

Jenkins parallel stages:

stage('Parallel Jobs') {
  parallel {
    stage('Build Frontend') {
      steps { sh 'npm install' }
    }
    stage('Build Backend') {
      steps { sh 'mvn -DskipTests package' }
    }
  }
}

GitHub Actions matrix strategy: run the same job across multiple OSes and Node versions

jobs:
  test:
    runs-on: ${{ matrix.os }}
    strategy:
      matrix:
        os: [ubuntu-latest, windows-latest]
        node: [16, 18]
    steps:
      - uses: actions/checkout@v4
      - name: Print matrix
        run: echo "OS: ${{ matrix.os }}, Node: ${{ matrix.node }}"

Notes:

GitHub Actions runs jobs in parallel by default. Use strategy.matrix for multiple configurations inside one logical job.

Triggers

Jenkins triggers example (cron):

pipeline {
  agent any
  triggers {
    cron('H 2 * * *') // Run daily at ~2:00 AM (Jenkins H token)
  }
  stages { ... }
}

GitHub Actions equivalents:

Scheduled runs:

on:
  schedule:
    - cron: '0 2 * * *'  # Run at 02:00 UTC daily

Manual trigger (adds “Run workflow” button):

on:
  workflow_dispatch: {}

Event-based triggers with filters:

on:
  push:
    branches: [ main ]
  pull_request:
    branches: [ main ]
  issue_comment:
    types: [created]

Summary and migration checklist

Step	Action
Convert high-level structure	Map Jenkins `stages` to GitHub `jobs`; use `needs` to sequence jobs.
Choose runners	Replace `agent` with `runs-on` and `container` as required.
Move secrets	Migrate credentials to GitHub `secrets` and reference with `${{ secrets.* }}`.
Translate conditional logic	Convert `when` blocks to `if:` expressions at job/step level.
Parallelize	Use multiple jobs or `strategy.matrix` for parallel/matrix runs.
Set triggers	Replace Jenkins `triggers` with `on: schedule`, `workflow_dispatch`, or event filters.

These mappings cover the core patterns you’ll use when migrating Jenkins Declarative Pipelines to GitHub Actions workflows. For advanced migrations (pipeline libraries, custom shared libraries, or scripted pipelines), consider breaking large Groovy logic into smaller scripts or actions and leveraging reusable workflows in GitHub Actions. Further reading

GitHub Actions concepts: https://docs.github.com/actions/learn-github-actions/introduction-to-github-actions
Jenkins Pipeline Syntax: https://www.jenkins.io/doc/book/pipeline/syntax/
