This lesson explains the GitHub Actions matrix strategy and shows how to convert a single-job workflow (or a Jenkins multi-stage flow) into a matrix-driven GitHub Actions job that runs the same steps across multiple Node.js versions and operating systems. What you’ll learn:
  • Why a matrix is useful for multi-version and multi-OS testing.
  • How to define matrix axes and reference them in your job.
  • How to keep artifacts and other outputs unique per matrix job.

​
Current single-job workflow (one runner, one Node.js version)

This workflow runs tests on a single runner and one Node.js version:
on:
  push:
  workflow_dispatch:

env:
  MONGO_URI: "mongodb+srv://supercluster.d83jj.mongodb.net/superData"
  MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}

jobs:
  unit-testing:
    runs-on: ubuntu-latest
    env:
      MONGO_PASSWORD: ${{ secrets.MONGO_PASSWORD }}
    steps:
      - name: Checkout Repo
        uses: actions/checkout@v4

      - name: List repo file
        run: ls -ltr

      - uses: actions/setup-node@v4
        with:
          node-version: 22

      - name: Installing Dependencies
        run: npm install --no-audit

      - name: Unit Testing
        run: npm test

      - uses: actions/upload-artifact@v4
        with:
          name: Mocha-Test-Results
          path: test-results.xml
This is similar to a single Jenkins pipeline stage that executes on one environment. In Jenkins, you might instead run multiple stages inside Docker agents to get coverage across versions and platforms.

​
Example Jenkins pipeline (for context)

A Jenkins pipeline that uses Docker agents per stage could look like this:
pipeline {
  agent any
  environment {
    MONGO_PASSWORD = credentials('mongo-db-password')
  }
  stages {
    stage('Installing Dependencies') {
      agent {
        docker {
          image 'node:24'
          args '-u root:root'
        }
      }
      steps {
        sh 'npm install --no-audit'
      }
    }
    stage('Dependency Scanning') {
      steps {
        echo 'Dependency scanning...'
      }
    }
    stage('Unit Testing') {
      agent {
        docker {
          image 'node:24'
          args '-u root:root'
        }
      }
      options {
        retry(2)
      }
      steps {
        sh 'npm test'
        junit allowEmptyResults: true, testResults: 'test-results.xml'
      }
    }
    stage('Code Coverage') {
      steps {
        echo 'Code coverage...'
      }
    }
    stage('Build Publish Image') {
      steps {
        echo 'Build and publish image...'
      }
    }
  }
}

​
Why use a matrix in GitHub Actions?

If you need to run the same job across multiple Node.js versions and operating systems (for example, Ubuntu, macOS, and Windows), the matrix strategy lets GitHub Actions expand one job into many parallel jobs—one for each combination of matrix axes. Minimal matrix example (from the GitHub Actions docs):
jobs:
  example_matrix:
    strategy:
      matrix:
        version: [10, 12, 14]
        os: [ubuntu-latest, windows-latest]
This expands to 3 versions × 2 OS = 6 jobs (every combination).

​
Visualizing matrix axes and combinations

AxisExample valuesNotes
Node.js versions[10, 12, 14]Each value becomes matrix.version in the job
Operating systems[ubuntu-latest, windows-latest]Use as matrix.os in runs-on
Total combinationsN/AProduct of axis lengths (e.g., 3 × 2 = 6)

​
Applying matrix strategy to the Solar System workflow

To convert the earlier single-job workflow to run across multiple Node.js versions and OSes:
  • Define a strategy.matrix with the Node.js versions and operating systems you want.
  • Reference matrix values in runs-on and in action inputs like node-version.
  • Make artifact names unique per-job by including matrix variables (for example, Mocha-Test-Results-${{ matrix.nodejs-version }}-${{ matrix.operating-system }}).
Here is the unit-testing workflow adapted with a matrix:
on:
  push:
  workflow_dispatch:

env:
  MONGO_URI: "mongodb+srv://supercluster.d83jj.mongodb.net/superData"
  MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}

jobs:
  unit-testing:
    strategy:
      matrix:
        nodejs-version: [20, 21, 22]
        operating-system: [ubuntu-latest, macos-latest]
    runs-on: ${{ matrix.operating-system }}
    env:
      MONGO_PASSWORD: ${{ secrets.MONGO_PASSWORD }}
    steps:
      - name: Checkout Repo
        uses: actions/checkout@v4

      - name: List repo file
        run: ls -ltr

      - uses: actions/setup-node@v4
        with:
          node-version: ${{ matrix.nodejs-version }}

      - name: Installing Dependencies
        run: npm install --no-audit

      - name: Unit Testing
        run: npm test

      - uses: actions/upload-artifact@v4
        with:
          name: Mocha-Test-Results-${{ matrix.nodejs-version }}-${{ matrix.operating-system }}
          path: test-results.xml
The total number of parallel jobs equals the product of the lengths of each matrix axis. In the example above you will get 3 Node.js versions × 2 OS = 6 parallel jobs. Monitor concurrency and runner usage as matrices expand.

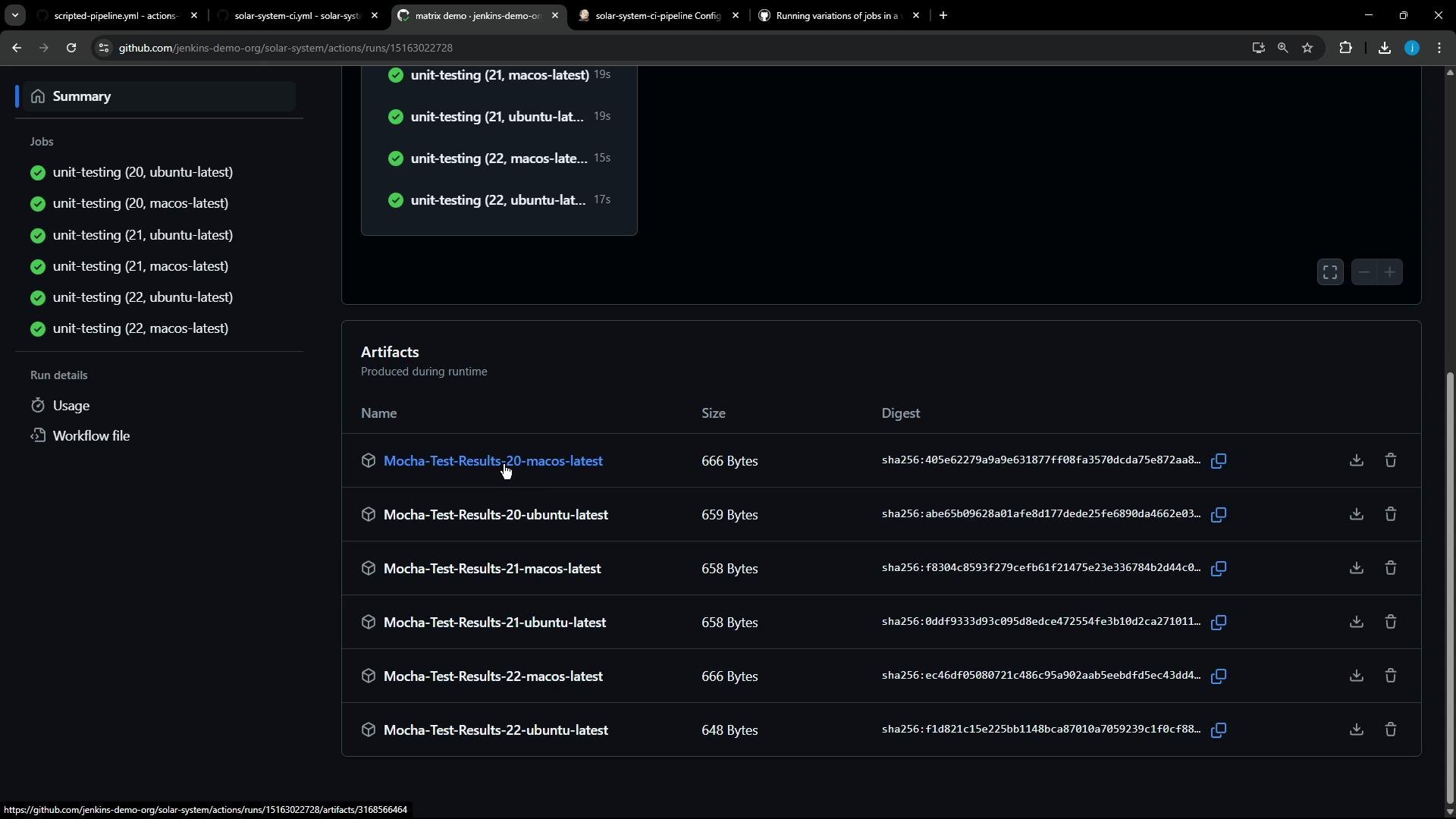

When this workflow runs, GitHub Actions creates a separate job for every combination (for example: Node.js 20 on ubuntu-latest, Node.js 20 on macos-latest, Node.js 21 on each OS, etc.). Each job runs independently and uploads its artifact using the unique name built from matrix variables. Here is a screenshot showing multiple successful “unit-testing” jobs and their produced artifacts (note the artifact names include the OS/version combinations):
A screenshot of a GitHub Actions run page showing multiple successful "unit-testing" jobs in the left sidebar. The main pane lists produced artifacts (Mocha-Test-Results for different OS/version combos) with file sizes and SHA256 digests.

​
Example: macOS runner header log

Inspecting a runner’s logs (macOS example) helps you confirm the runner image and installed software. Example runner header output:
Current runner version: '2.324.0'
▾ Operating System
    macOS
    14.7.5
    23H527
▾ Runner Image
    Image: macos-14-arm64
    Version: 20250505.1431
    Included Software: https://github.com/actions/runner-images/blob/macos-14-arm64/20250505.1431/images/macos/macos-14-arm64-Readme.md
    Image Release: https://github.com/actions/runner-images/releases/tag/macos-14-arm64%2F20250505.1431
▾ Runner Image Provisioner
▾ GITHUB_TOKEN Permissions
Secret source: Actions
Prepare workflow directory
Prepare all required actions
Getting action download info
▸ Download immutable action package 'actions/checkout@v4'
▸ Download immutable action package 'actions/setup-node@v4'
▸ Download immutable action package 'actions/upload-artifact@v4'
▸ Download immutable action package 'actions/cache@v4'
▸ Download immutable action package 'actions/runner-images/virtual-environments@v4'
Complete job name: unit-testing (22, macos-latest)

​
Best practices and tips

  • Use strategy.matrix to cover multiple combinations of versions and OSes.
  • Reference matrix variables using runs-on: ${{ matrix.<name> }} and action inputs like node-version: ${{ matrix.nodejs-version }}.
  • Ensure artifacts and other per-job outputs include matrix variables in their names to prevent collisions.
  • Be mindful of GitHub-hosted runner limits and costs—macOS runners are limited and costlier. Consider self-hosted runners for heavy parallelization.
Expanding matrix axes multiplies job count. Large matrices can quickly exhaust concurrency limits or increase billing. Test with a small matrix first and incrementally add axes.

​
Quick reference

TopicExample
Use runs-on with matrixruns-on: ${{ matrix.operating-system }}
Set node version from matrixnode-version: ${{ matrix.nodejs-version }}
Unique artifact nameMocha-Test-Results-${{ matrix.nodejs-version }}-${{ matrix.operating-system }}
