Demo Convert Solar system pipeline to GA Workflow 2

We need to fix a failing unit-testing job in this lesson. The tests failed because the GitHub Actions job didn’t have the MongoDB connection details (URI, username, or password) available to the test process; Mongoose received an undefined URI. Example failure from the job log:

Run npm test
> Solar System@6.7.6 test
> mocha app-test.js --timeout 10000 --reporter mocha-junit-reporter --exit
error!! MongooseError: The `uri` parameter to `openUri()` must be a string, got "undefined". Make sure the first parameter to `mongoose.connect()` or `mongoose.createConnection()` is a string.
(node:2004) [MONGOOSE] DeprecationWarning: Mongoose: the `strictQuery` option will be switched back to `false` by default in Mongoose 7. Use `mongoose.set('strictQuery', false);` if you want to prepare for this change. Or use `mongoose.set('strictQuery', true);` to suppress this warning.
(Use `node --trace-deprecation ...` to show where the warning was created)
Server successfully running on port - 3000
Error: Process completed with exit code 8.

In the original Jenkins pipeline the stages that connected to MongoDB received environment variables from the top-level environment block, for example:

pipeline {
    agent {
        label 'us-west-1-ubuntu-22'
    }
    tools {
        nodejs 'nodejs-22-6-0'
    }
    environment {
        MONGO_URI = "mongodb+srv://supercluster.d83jj.mongodb.net/superData"
        MONGO_DB_CREDS = credentials('mongo-db-credentials')
        MONGO_USERNAME = credentials('mongo-db-username')
        MONGO_PASSWORD = credentials('mongo-db-password')
    }
    stages {
        stage('Installing Dependencies') {
            agent {
                docker {
                    image 'node:24'
                    args '-u root:root'
                }
            }
            steps {
                sh 'npm install --no-audit'
            }
        }
        stage('Dependency Scanning') { … }
        stage('Unit Testing') {
            agent {
                docker {
                    image 'node:24'
                    args '-u root:root'
                }
            }
            options {
                retry(2)
            }
            ...
        }
    }
}

To replicate this in GitHub Actions without hard-coding secrets, use:

Repository Secrets for sensitive values (passwords, API keys). These are available via secrets.
Repository Variables for non-sensitive configuration (usernames, environment names). These are available via vars.

Create the secret and variable in the repo under Settings > Secrets and variables > Actions, then reference them in the workflow.

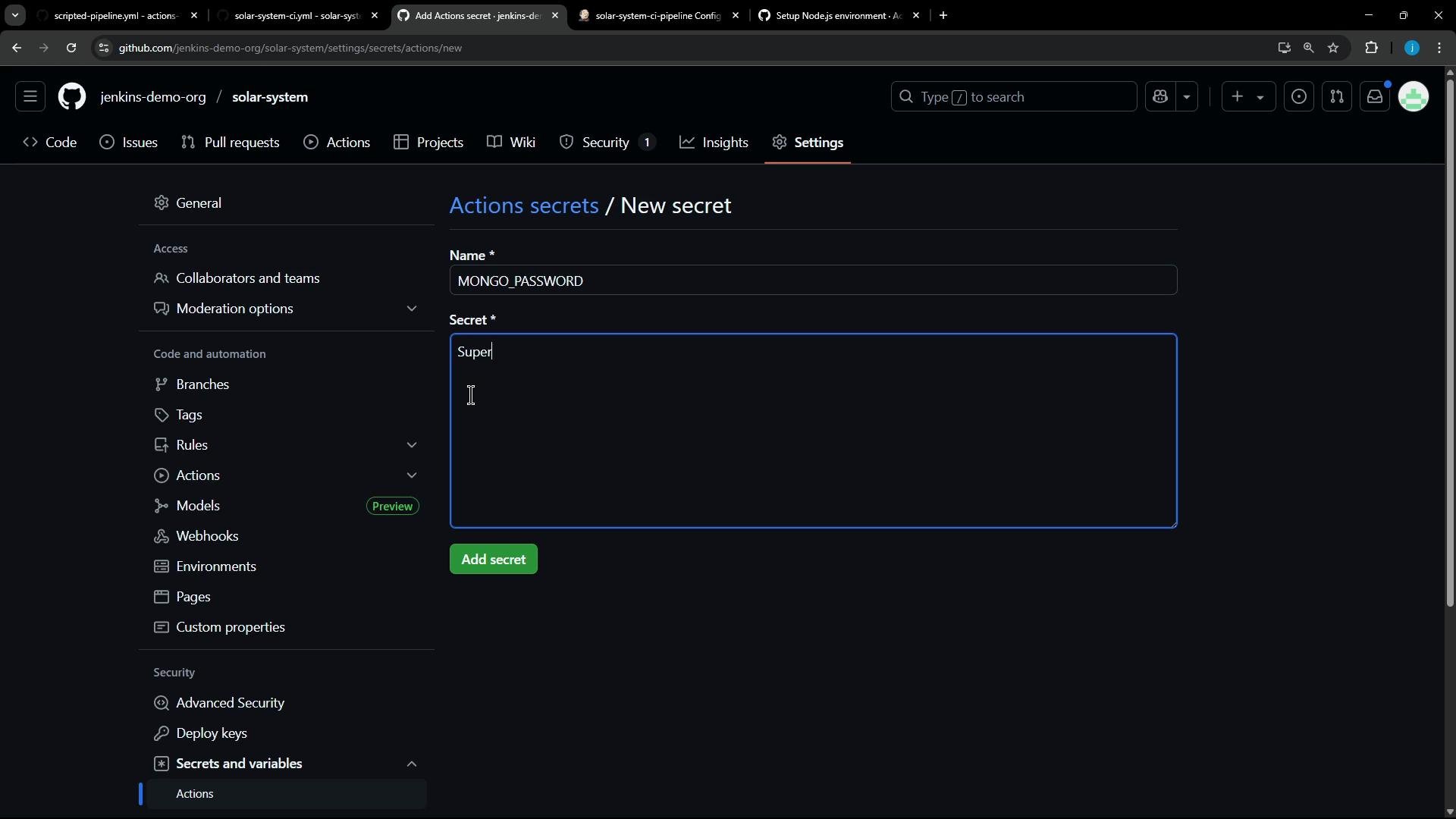

A GitHub repository Settings page open to "Actions secrets / New secret," showing the Name field filled with "MONGO_PASSWORD" and the Secret textarea partially typed ("Super"). The interface is in dark mode with the repo settings sidebar visible.

I added the password as a secret named MONGO_PASSWORD. The secret value is not visible after creation. Next, add a repository variable for the Mongo username:

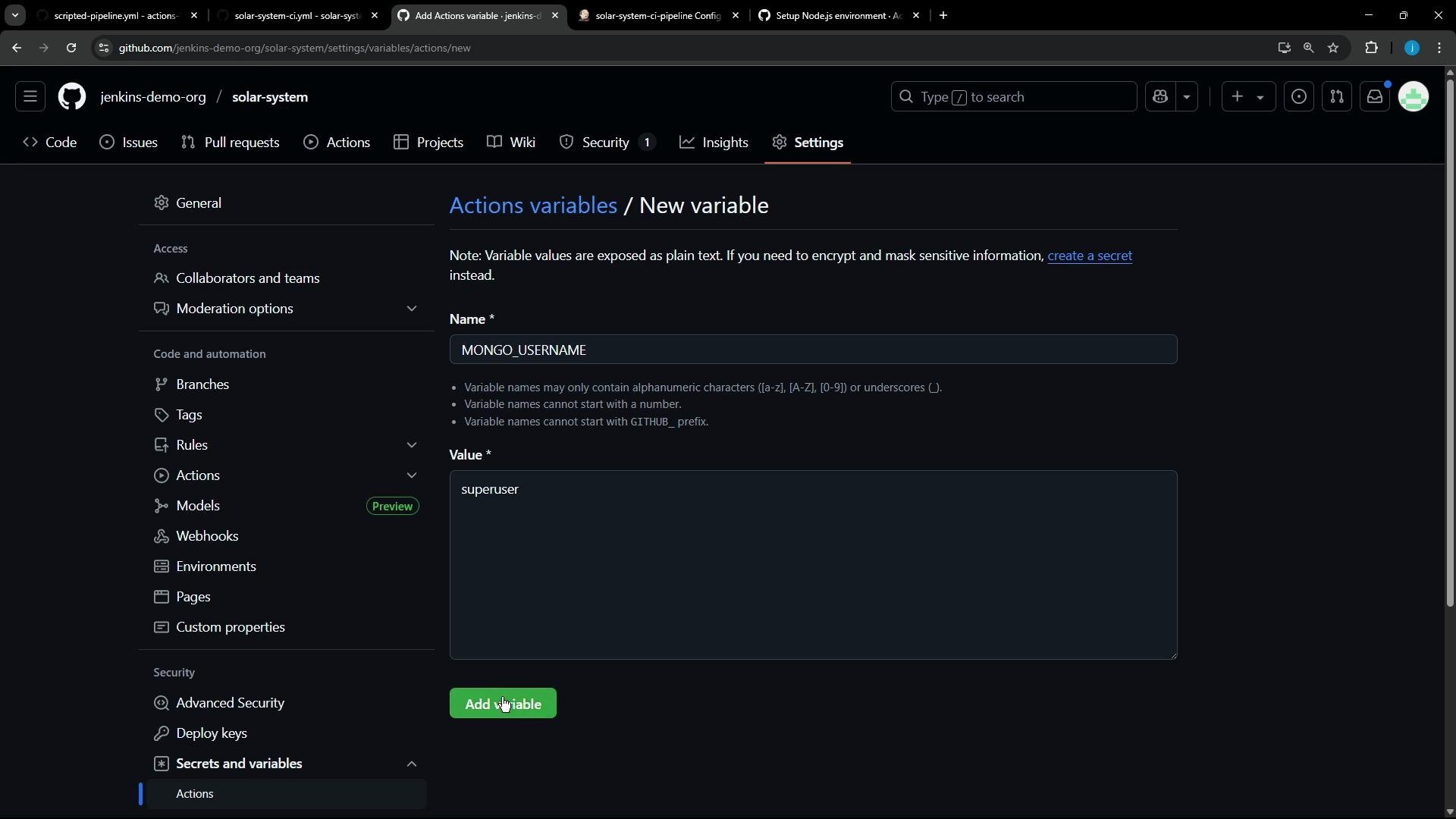

A GitHub repository settings screenshot showing the "Actions variables / New variable" page with the Name field set to MONGO_USERNAME and the Value field containing "superuser," plus a green "Add variable" button. The dark-themed UI shows repository navigation and the settings sidebar on the left.

Use Actions Secrets for sensitive data (passwords, API keys) and Actions Variables for non-sensitive configuration (usernames, environment names). Secrets are masked in logs and are not visible after creation; variables can be edited and viewed in the repository settings by users with appropriate access.

Below is a concise GitHub Actions workflow demonstrating the correct YAML syntax and how to reference the repository variable and secret. Note:

Use : for YAML key/value pairs (not =).
Reference variables as ${{ vars.MONGO_USERNAME }} and secrets as ${{ secrets.MONGO_PASSWORD }}.
Scope sensitive secrets at the job level if you want to limit exposure.

name: Solar System CI

on:
  push:
  workflow_dispatch:

env:
  MONGO_URI: "mongodb+srv://supercluster.d83jj.mongodb.net/superData"
  MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}

jobs:
  unit-testing:
    runs-on: ubuntu-latest
    env:
      MONGO_URI: "mongodb+srv://supercluster.d83jj.mongodb.net/superData"
      MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}
      MONGO_PASSWORD: ${{ secrets.MONGO_PASSWORD }}
    steps:
      - name: Checkout Repo
        uses: actions/checkout@v4

      - name: List repo files
        run: ls -ltr

      - uses: actions/setup-node@v4
        with:
          node-version: 22

      - name: Install Dependencies
        run: npm install --no-audit

      - name: Unit Testing
        run: npm test

Environment variables summary

Variable	Where to set	Example / Notes
`MONGO_URI`	Repository Variables or workflow `env`	`mongodb+srv://supercluster.d83jj.mongodb.net/superData`
`MONGO_USERNAME`	Repository Variable	`${{ vars.MONGO_USERNAME }}` — non-sensitive, set in Settings > Actions > Variables
`MONGO_PASSWORD`	Repository Secret	`${{ secrets.MONGO_PASSWORD }}` — sensitive, set in Settings > Actions > Secrets

Key points and best practices

Never hard-code credentials in workflows or repository files. Use repository secrets for passwords and API keys.
Use repository variables for non-sensitive configuration so they are easy to change across workflows.
Scope secrets to the job-level env to reduce exposure to other jobs.
Use actions/setup-node@v4 to install a Node version compatible with your app (example uses Node 22).
If your tests produce JUnit XML (for example via mocha-junit-reporter), upload the XML as an artifact in a follow-up step so the test results are accessible from the Actions UI.

Do not store credentials or secrets in plaintext in your repository. Secrets are masked in logs, but treating secrets responsibly (scoped, rotated, and audited) is critical for secure CI/CD.

After adding the secret and the variable, I committed and pushed the workflow changes. The workflow ran and the unit-testing job succeeded:

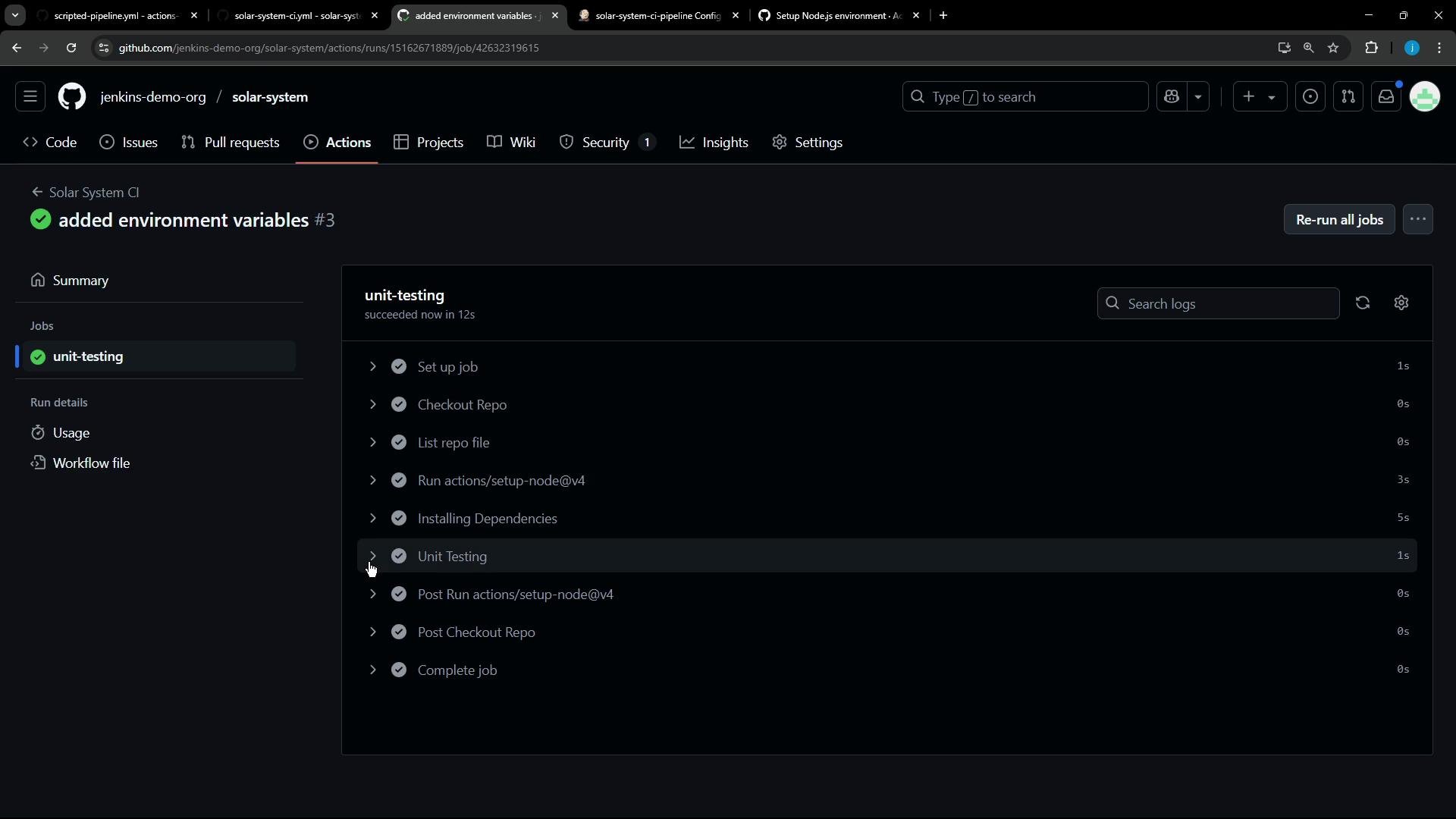

A dark‑mode GitHub Actions run page for the "jenkins-demo-org/solar-system" repo showing a successful workflow titled "added environment variables #3" and the "unit-testing" job. The job's step list (Set up job, Checkout Repo, Install Dependencies, Unit Testing, etc.) is visible with checkmarks indicating success.

Snippet from the successful job log (note the secret is masked):

Run npm test
shell: /usr/bin/bash -e {0}
env:
  MONGO_URI: mongodb+srv://supercluster.d83jj.mongodb.net/superData
  MONGO_USERNAME: superuser
  MONGO_PASSWORD: ***
> Solar System@6.7.6 test
> mocha app-test.js --timeout 10000 --reporter mocha-junit-reporter --exit

(node:2014) [MONGOOSE] DeprecationWarning: Mongoose: the `strictQuery` option will be switched back to `false` by default in Mongoose 7. Use `mongoose.set('strictQuery', false);` if you want to prepare for this change. Or use `mongoose.set('strictQuery', true);` to suppress this warning.
(Use `node --trace-deprecation ...` to show where the warning was created)
Server successfully running on port - 3000

The prior connection error is gone and tests run successfully. One remaining improvement: the test reporter produced JUnit XML, but the workflow did not upload those files as artifacts. In the next lesson we’ll add an artifact upload step (e.g., actions/upload-artifact@v4) so test reports are visible from the GitHub Actions run UI. Related references
