In this lesson we cover how Azure DevOps securely connects to Azure to run Terraform. In CI/CD, Terraform runs non-interactively using a service identity rather than a human user. An Azure DevOps service connection provides three essential capabilities:
  • Secure non-interactive authentication — Pipelines cannot use interactive browser logins or MFA. A service connection lets the pipeline authenticate non-interactively using a service principal or managed identity, avoiding stored user passwords or manual logins.
  • Scoped access — Service connections are scoped to a subscription, resource group, or management group. This enables least-privilege access: pipelines only receive the permissions explicitly granted.
  • Identity separation and traceability — Deployments are performed by the service identity, not developer user accounts. Assign RBAC to that identity so all actions are auditable and attributable to the pipeline.

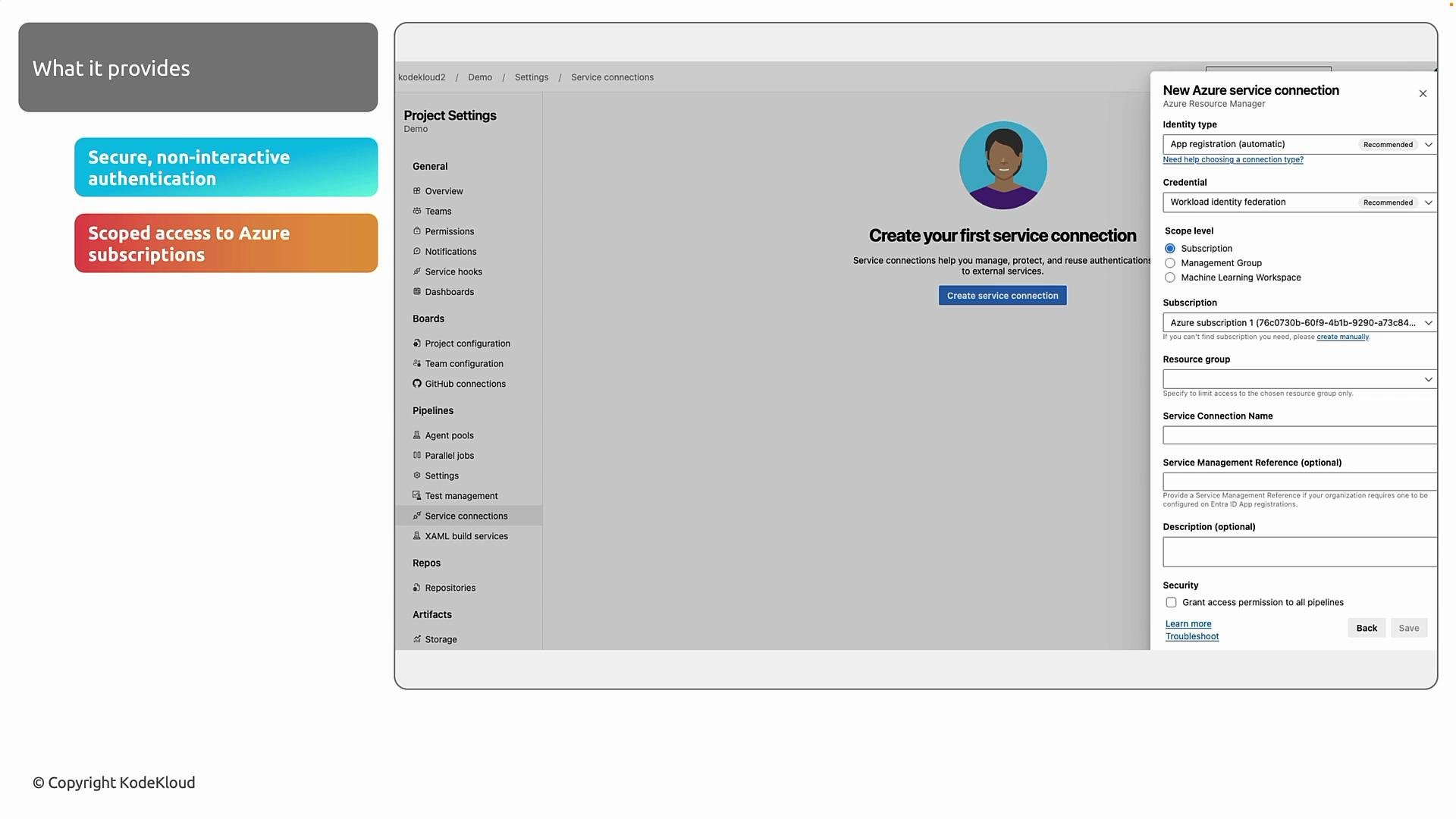

The image shows a project settings interface for creating an Azure service connection, highlighting "secure, non-interactive authentication" and "scoped access to Azure subscriptions."
Once you create a service connection, Terraform uses that identity for two primary purposes:
  • Backend access — When you use a remote backend (for example, Azure Storage), Terraform requires authentication to read state, acquire locks, and write state. The service connection supplies that access securely.
  • ARM operations — During terraform plan and terraform apply, Terraform calls the Azure Resource Manager API. Using the service connection identity, it can create, update, or destroy resources according to the RBAC permissions granted.
Below is a concise walkthrough for creating a service connection in the Azure DevOps portal. If you need broader Azure DevOps context (work items, artifacts, pipelines), consider the AZ-400 course: AZ-400: Designing and Implementing Microsoft DevOps Solutions. This lesson focuses specifically on service connections used with Terraform. Prerequisites
  1. An Azure DevOps organization.
  2. At least one project in that organization. Create a new project for this work (for example, “Terraform on Azure”), and set visibility and version control as required.

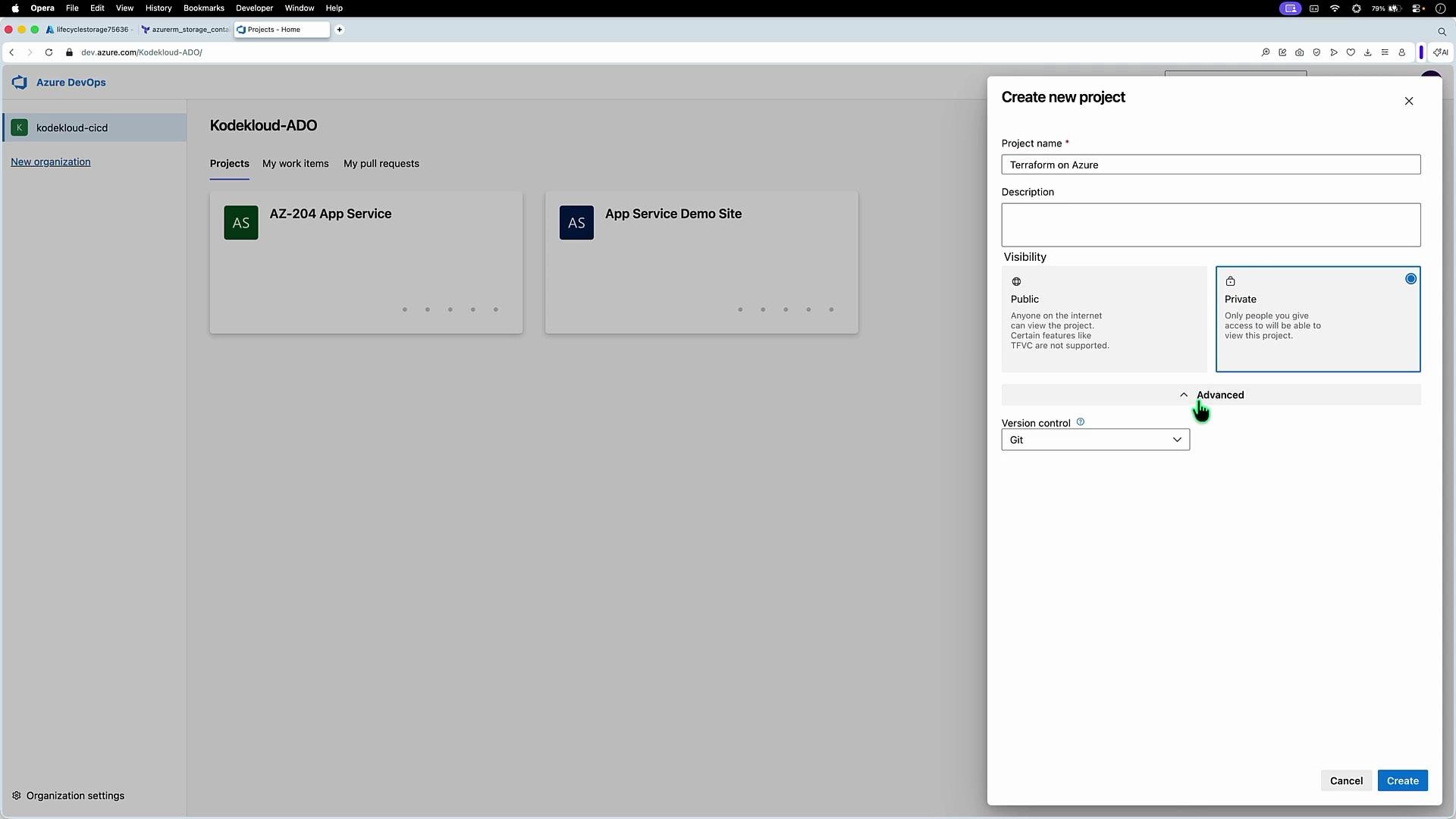

The image shows the Azure DevOps interface with a section for creating a new project, including options for project name, description, visibility, and version control. There are two existing project cards displayed in the background.
After creating the project you will land on the project overview (Boards, Repos, Pipelines, etc.). Open Project Settings and navigate to Service connections to create a new connection.

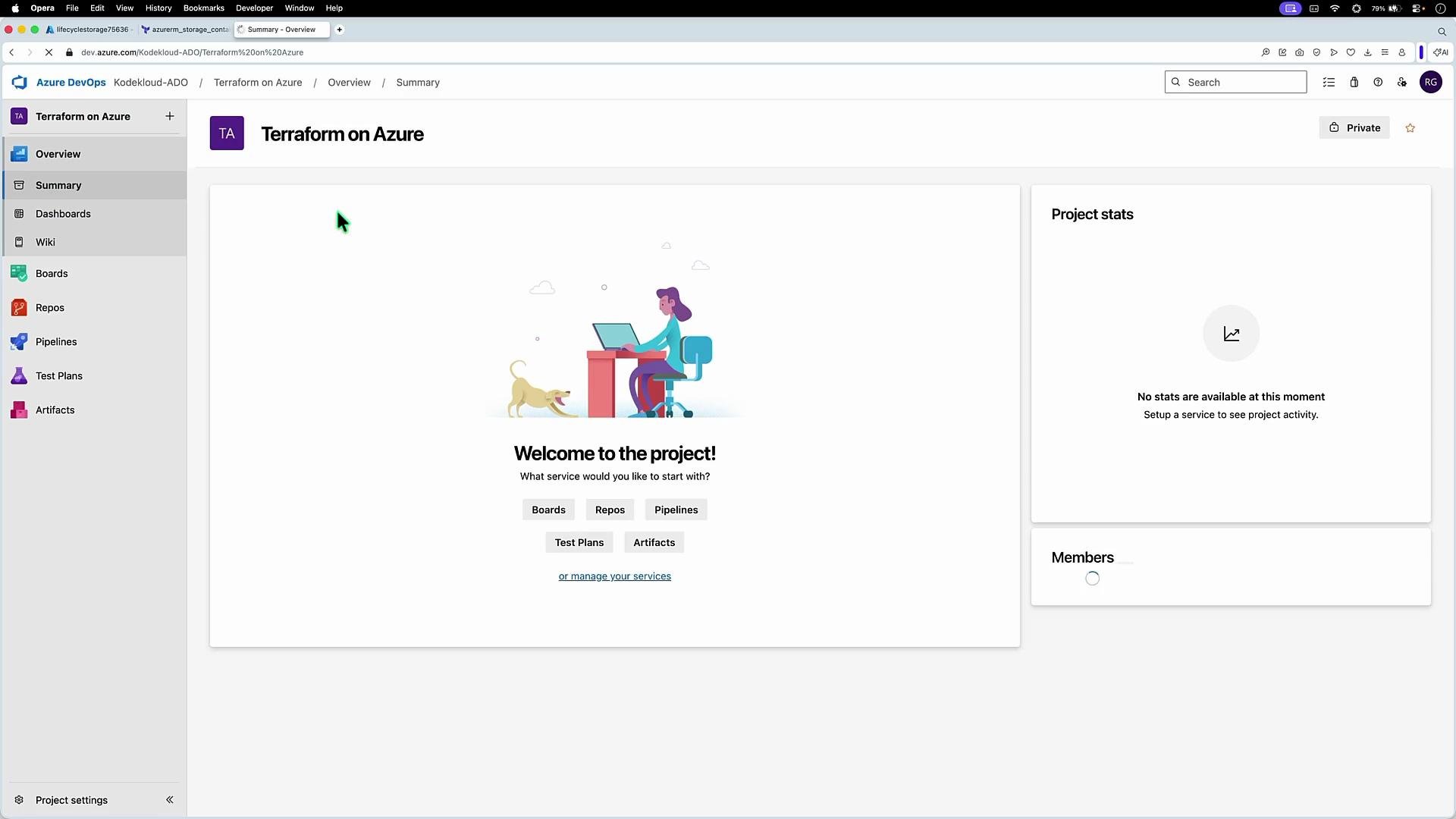

The image displays a project dashboard in Azure DevOps titled "Terraform on Azure," with a welcome message and options to start services like Boards, Repos, and Pipelines. It also shows project stats with no available data and a placeholder for project members.
Step-by-step: Create the service connection
  1. Click Create service connection and select Azure Resource Manager.
  2. Choose the identity and credential options that suit your security and operational needs.
  3. Select the scope (management group, subscription, or resource group) — follow least privilege.
  4. Give the connection a descriptive name (you will reference this name from pipelines).
  5. Save the connection. If you selected automatic app registration with workload identity federation, Azure DevOps will create the app registration and establish the trust relationship automatically.
Key identity and credential options

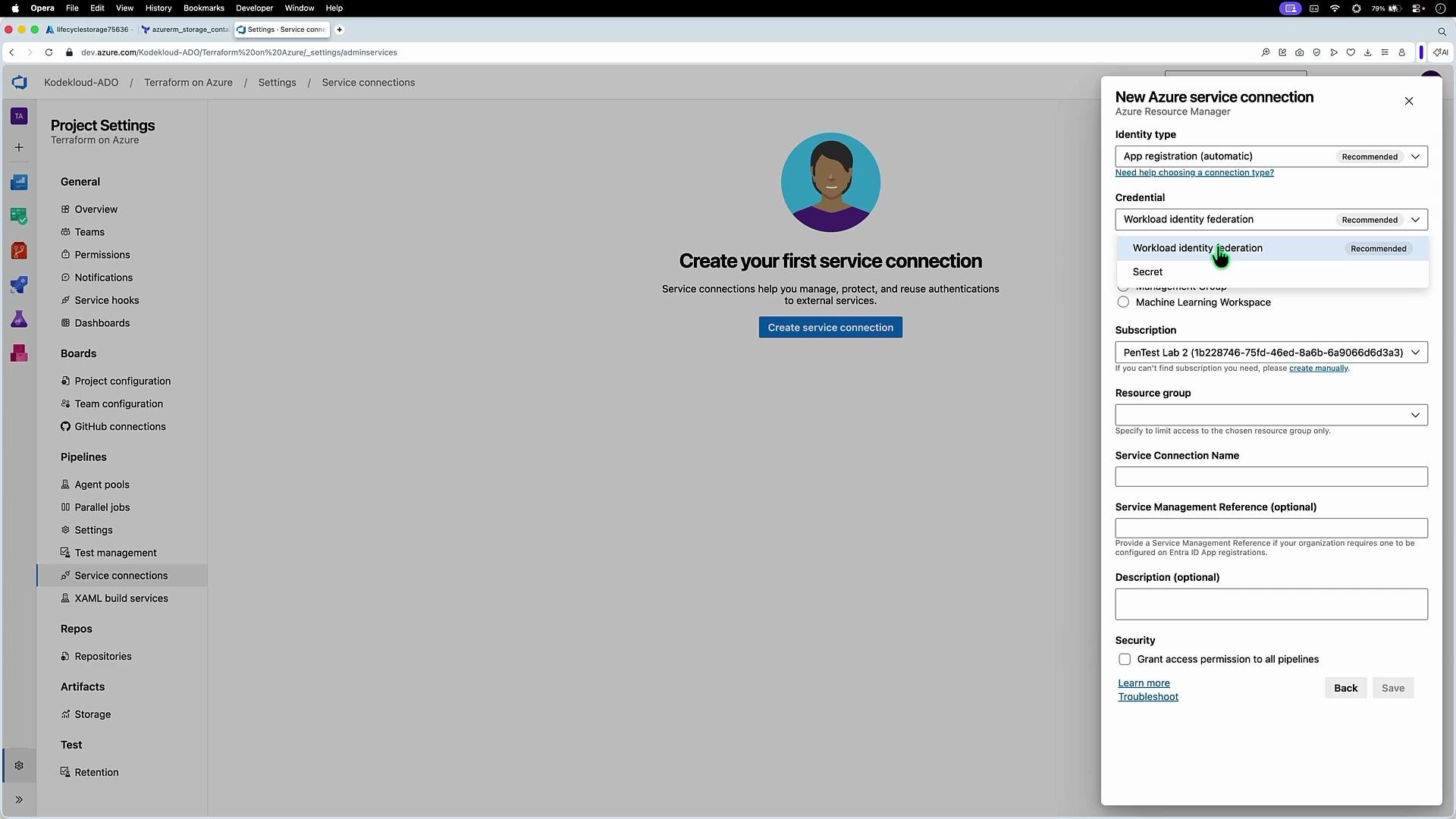

The image shows a web interface for creating a new Azure service connection in the "Project Settings" of an application, with options for selecting identity type, credentials, and subscription details.
Scope and naming
  • Choose the smallest scope that still allows your pipelines to operate (resource group or single subscription is common).
  • Name the service connection clearly (for example, Terraform-Azure-Prod or Terraform-Shared-State) so pipelines reference the correct connection across environments.

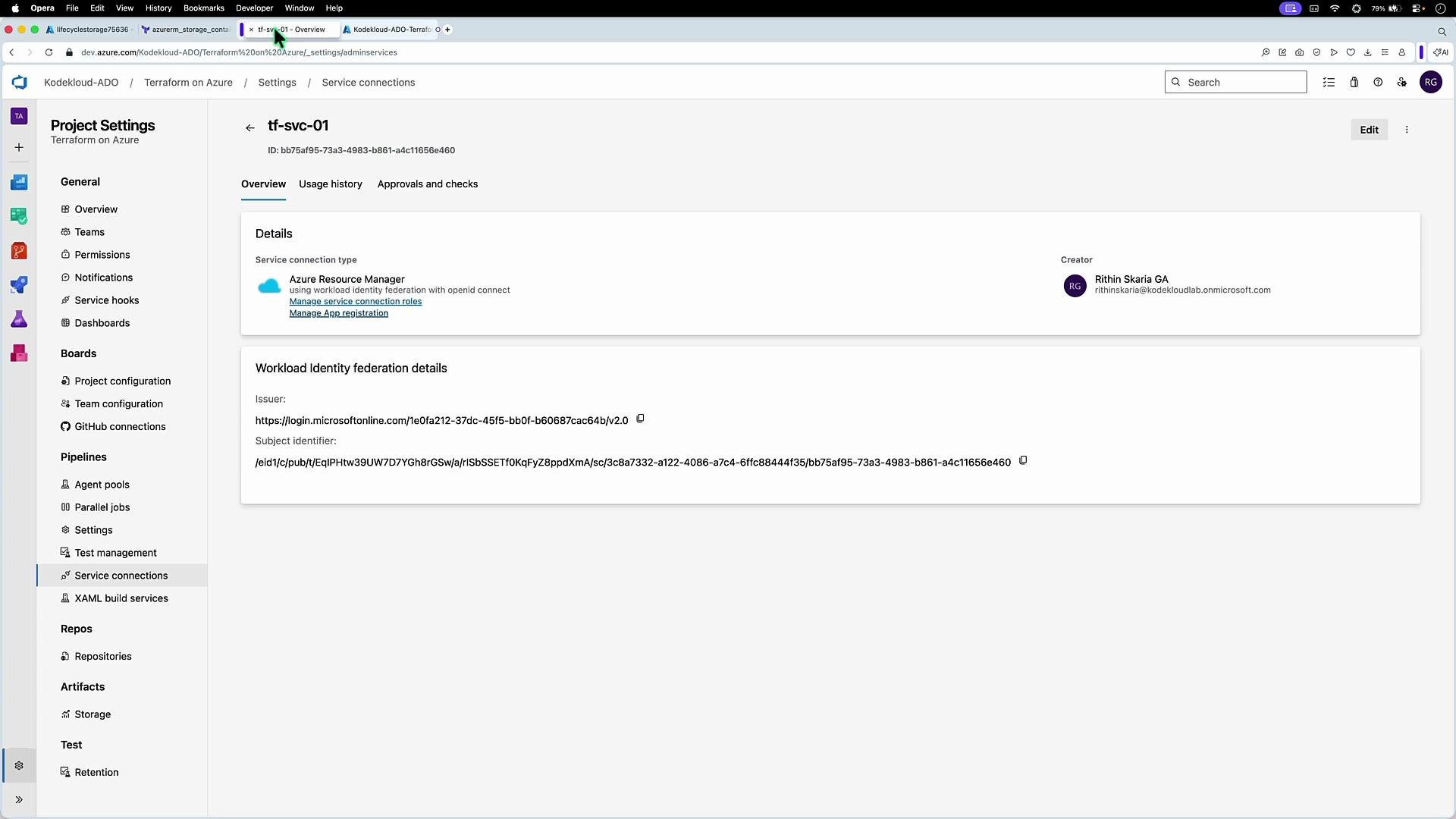

The image shows a screenshot of the Azure DevOps project settings page, specifically detailing a service connection for "Terraform on Azure" with workload identity federation details.
App registration and RBAC If you open Entra ID and inspect App registrations, you will see the app that acts as the service identity for Azure DevOps (if you allowed automatic registration). Assign RBAC roles to that identity to permit required operations. Typical examples:
  • Grant Storage Blob Data Contributor to the service identity on the Storage account used for Terraform state.
  • Grant Contributor or a scoped custom role for resource deployment, limiting permissions to the minimum required.
Workload identity federation is recommended because it avoids long-lived client secrets. If you must use client secrets, plan for regular rotation and update the service connection credentials when they change.
Operational notes
  • You can create multiple service connections to support different subscriptions, environments, or third-party integrations. Keep naming and scopes consistent.
  • Reference the service connection by name from your pipeline tasks (for example, Azure CLI or Terraform tasks) so the pipeline uses the correct identity at runtime.
  • Ensure the service identity has both remote backend access (e.g., Storage account permissions) and sufficient RBAC for the ARM operations your Terraform code performs.
