Modular Structure

In this lesson we’ll learn how to organize Terraform configurations using a modular file layout that scales from small experiments to production-grade projects. A clear file structure improves readability, reduces merge conflicts, and helps teams reuse and share configuration across environments (dev/test/prod). Terraform automatically loads all files in a directory with the .tf extension and merges them into a single configuration. You can name these files arbitrarily (for example a.tf, b.tf, x.tf), but common naming conventions make the intent of each file obvious to collaborators. Key file roles and recommended naming conventions:

File	Purpose	Notes / Example contents
`main.tf`	Primary resource definitions (networks, storage, VMs, etc.)	Keep your resource blocks here. Example: `azurerm_storage_account` resource.
`providers.tf`	Provider configuration (for example, `azurerm` for Azure)	Provider blocks (authentication, features).
`terraform.tf` or `versions.tf`	Terraform settings — `required_providers` and `required_version`	Use the `terraform` block to pin Terraform CLI and provider versions.
`variables.tf`	Input variable declarations	Declare `variable` blocks used to parameterize environments.
`outputs.tf`	Exported values after apply	`output` blocks expose resource IDs, IPs, and names for other modules or CI/CD.
`data.tf`	Data sources to read existing resources	Use `data` blocks to reference existing RPs, images, or other infra.

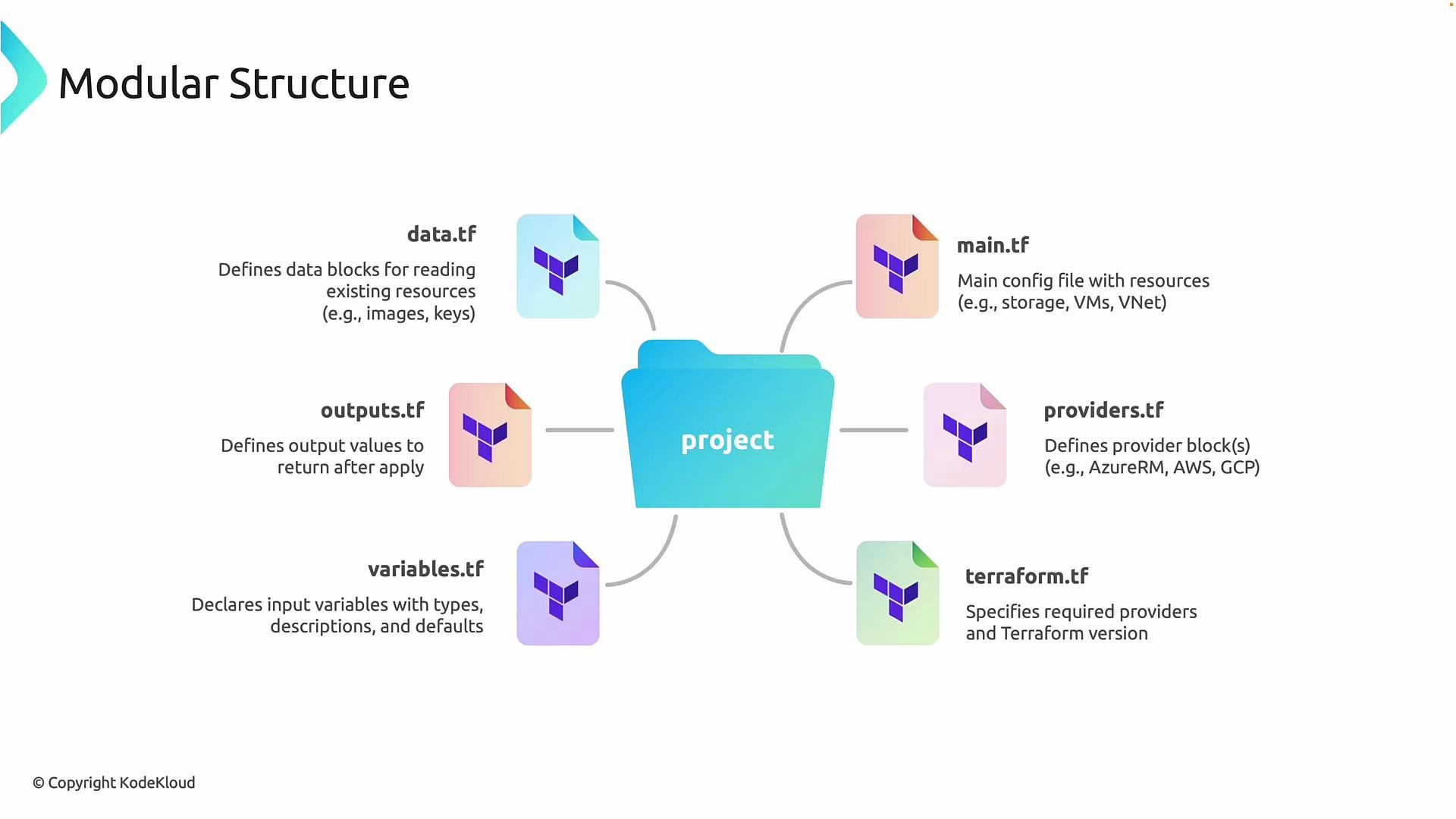

The image illustrates a modular structure for a project, showing various Terraform configuration files such as data.tf, main.tf, outputs.tf, providers.tf, variables.tf, and terraform.tf, each with a brief description of their purpose.

Below are two common patterns you will encounter: a simple single-file layout for quick demos and the recommended modular layout for maintainable projects. Single-file (beginner) approach

Everything—provider configuration and resources—is kept in a single file (for example main.tf). This approach is fine for small demos but becomes difficult to maintain as projects grow.

#----- main.tf -----
provider "azurerm" {
  features {}
}

resource "azurerm_storage_account" "storage" {
  name                     = "tfstorageacct123"
  resource_group_name      = "my-workshop-rg"
  location                 = "East US"
  account_tier             = "Standard"
  account_replication_type = "LRS"
}

Modular (recommended) approach

Split responsibilities into dedicated files (provider config, resource definitions, variables, outputs, etc.). Functionally Terraform behaves the same; this refactor improves maintainability and aligns with enterprise best practices.

#----- providers.tf -----
provider "azurerm" {
  features {}
}

#----- main.tf -----
resource "azurerm_storage_account" "storage" {
  name                     = "tfstorageacct123"
  resource_group_name      = "my-workshop-rg"
  location                 = "East US"
  account_tier             = "Standard"
  account_replication_type = "LRS"
}

Keep in mind provider and version constraints are usually declared in the terraform block (commonly placed in terraform.tf or versions.tf) so teams can pin required provider plugins and Terraform CLI versions for consistency.

Example terraform block (place in terraform.tf or versions.tf):

terraform {
  required_version = ">= 1.5.0"
  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "~> 3.0"
    }
  }
}

Do not hardcode secrets, credentials, or sensitive data directly in .tf files. Use environment variables, the provider’s auth mechanisms, or a secrets manager and mark sensitive outputs with sensitive = true.

Next steps and best practices

Group related resources: consider subfolders and modules for logically separate components (networking, compute, security).
Keep variables and outputs documented inside variables.tf and outputs.tf.
Use a versions.tf or terraform.tf for consistent tooling across the team.
Use remote state (for example, a backend like Azure Storage, S3, or Terraform Cloud) when collaborating to avoid state conflicts.

Links and references

Now that you understand the recommended file layout — providers.tf, main.tf, variables.tf, outputs.tf, data.tf, and terraform.tf — you can begin organizing your code for better collaboration and long-term maintainability.
