Module Structure explained

Understanding Terraform modules starts with a simple truth: a module is not a special language construct — it is a folder organized in a predictable way. When you grasp that pattern, building reusable modules becomes straightforward. At a high level, a Terraform module:

Defines resources (the “how”).
Declares inputs (the “what” the caller provides).
Exposes outputs (values other modules or the root module can consume).

Common files you’ll find in a module:

main.tf — resource definitions (execution layer).
variables.tf — inputs the module expects (module interface/contract).
outputs.tf — values the module exposes to callers.

Separating the “how” (module logic) from the “what” (caller-provided values) makes modules composable and reusable.

File	Purpose
`main.tf`	Resource definitions and implementation details. Prefer referencing variables rather than hard-coding values so the module stays flexible.
`variables.tf`	Declares inputs: names, types, defaults, and validations. This is the module’s contract with callers.
`outputs.tf`	Exposes useful data (IDs, endpoints, connection strings) consumers need to wire modules together.

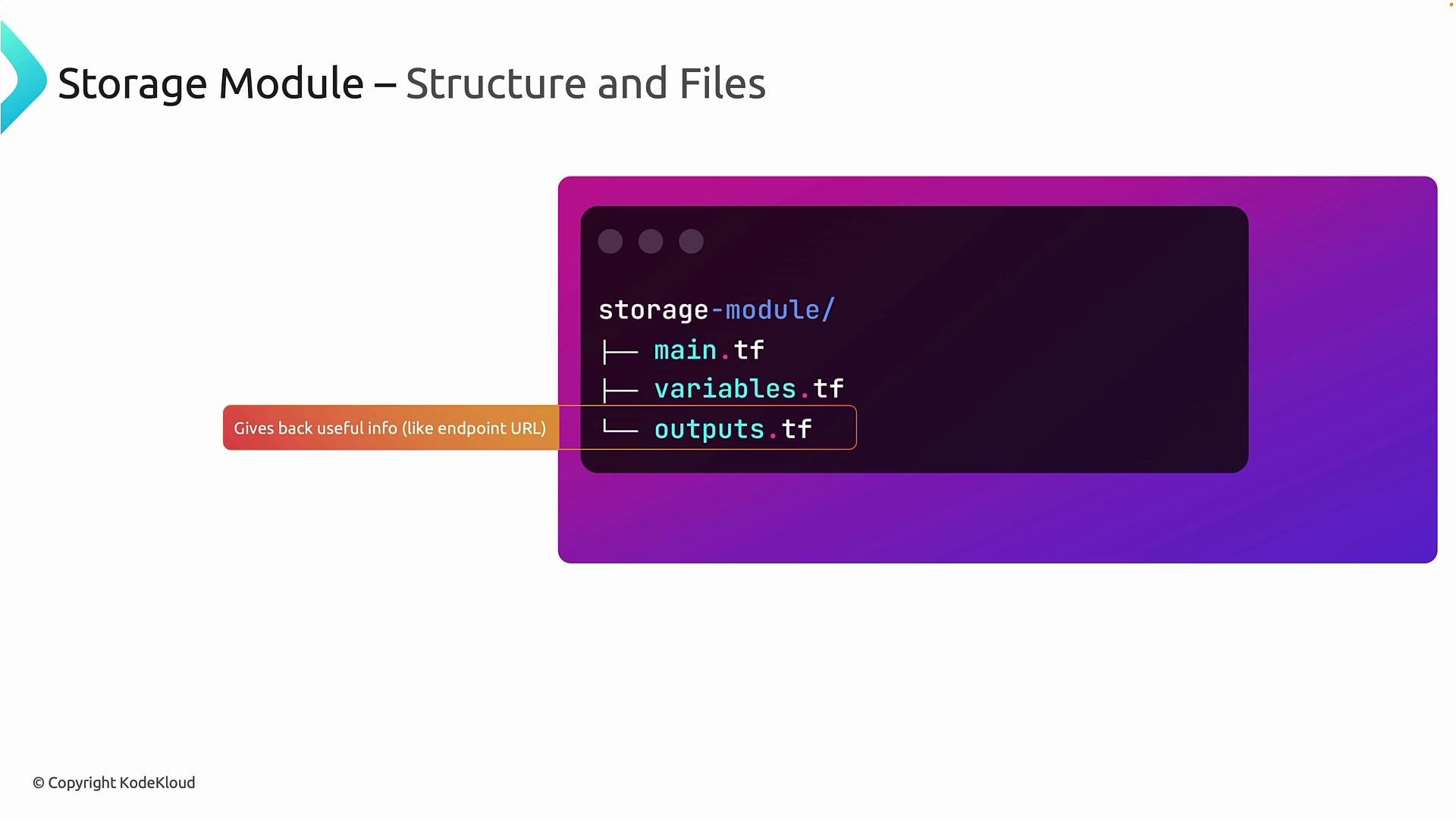

The image shows the file structure of a "Storage Module" with files named main.tf, variables.tf, and outputs.tf, highlighting that outputs.tf provides useful information like an endpoint URL.

Outputs are the communication channel between modules. Without outputs, modules cannot hand useful runtime values back to the root module or other modules that depend on them. Below are practical examples showing how to implement this pattern. The examples keep module implementation minimal while demonstrating inputs and outputs clearly. Example: a storage account resource implemented so every configurable attribute references a variable (caller decides name, location, SKU):

resource "azurerm_storage_account" "this" {
  name                     = var.storage_name
  resource_group_name      = var.resource_group_name
  location                 = var.location
  account_tier             = var.account_tier
  account_replication_type = var.replication_type

  tags = var.tags
}

If your organization requires a specific configuration (for example, always use the Standard account tier), the module may enforce it by hard-coding that property:

resource "azurerm_storage_account" "this" {
  name                     = var.storage_name
  resource_group_name      = var.resource_group_name
  location                 = var.location
  account_tier             = "Standard"
  account_replication_type = var.replication_type

  tags = var.tags
}

Hard-coding an argument inside a module (e.g., account_tier = "Standard") is a valid way to enforce organizational policies. Do this only for properties you intend to make non-configurable for consumers.

Now we’ll walk through creating two simple modules in Visual Studio Code: a resource_group module and a storage_account module. These examples illustrate a clean module structure and how to wire modules together from a root module. Create the modules directory and subfolders:

mkdir -p modules/resource_group
mkdir -p modules/storage_account

Resource Group module

Path: modules/resource_group main.tf

resource "azurerm_resource_group" "main" {
  name     = var.rg
  location = var.region

  tags = {
    Created   = "Terraform"
    Location  = var.region
    CreatedBy = "Module"
  }
}

variables.tf

variable "rg" {
  type        = string
  description = "Name of the resource group"
}

variable "region" {
  type        = string
  description = "Azure region for the resource group"
}

outputs.tf

output "rg_id" {
  description = "The ID of the resource group"
  value       = azurerm_resource_group.main.id
}

This module defines a resource group, declares the inputs it needs, and exposes the resource group’s ID so other modules or the root module can consume it.

Storage Account module

Path: modules/storage_account main.tf

resource "azurerm_storage_account" "this" {
  name                     = var.storage
  resource_group_name      = var.rg
  location                 = var.region
  account_tier             = "Standard"            # enforced by module (organization standard)
  account_replication_type = var.rep

  tags = var.tags
}

variables.tf

variable "storage" {
  type        = string
  description = "Storage account name"
}

variable "rg" {
  type        = string
  description = "Name of the resource group to create the storage account in"
}

variable "region" {
  type        = string
  description = "Azure region for the storage account"
}

variable "rep" {
  type        = string
  description = "Replication type for the storage account (e.g., LRS, GRS)"
}

variable "tags" {
  type        = map(string)
  description = "Tags to apply to the storage account"
  default     = {}
}

outputs.tf

output "primary_blob_endpoint" {
  description = "Primary Blob Endpoint for the storage account"
  value       = azurerm_storage_account.this.primary_blob_endpoint
}

In this example the account_tier is enforced to Standard by the module. All other attributes are configurable, which keeps the module reusable while still meeting organizational constraints.

Using these modules from a root module

Once you have modules/resource_group and modules/storage_account, call them from your root module and wire outputs to inputs. Example minimal root module usage:

module "rg" {
  source = "./modules/resource_group"

  rg     = "my-rg"
  region = "eastus"
}

module "storage" {
  source = "./modules/storage_account"

  storage = "mystorageacct"
  rg      = module.rg.rg_id         # or use the resource group name if exposed
  region  = "eastus"
  rep     = "LRS"
  tags    = { Environment = "dev" }
}

output "storage_blob_endpoint" {
  value = module.storage.primary_blob_endpoint
}

This pattern demonstrates:

Modules encapsulate implementation details.
Inputs (variables.tf) define the contract with callers.
Outputs (outputs.tf) enable composition between modules.

Best practices and tips

Keep modules focused and small: one module per logical resource or closely related set of resources.
Prefer variables over hard-coded values unless enforcing a policy.
Document variables and outputs with description fields so consumers know how to use the module.
Use semantic names for outputs (e.g., primary_blob_endpoint) so their intent is clear.
Version modules if you publish them to a registry or share across teams.

Links and references

Terraform Modules: https://www.terraform.io/docs/language/modules/index.html
Azure Provider for Terraform: https://registry.terraform.io/providers/hashicorp/azurerm/latest/docs
Azure Resource Manager documentation: https://docs.microsoft.com/azure/azure-resource-manager/

These resources will help deepen your understanding of modules and provider-specific resources.
